TRJ150L-GKTEKX (2017)
Toyota Land Cruiser

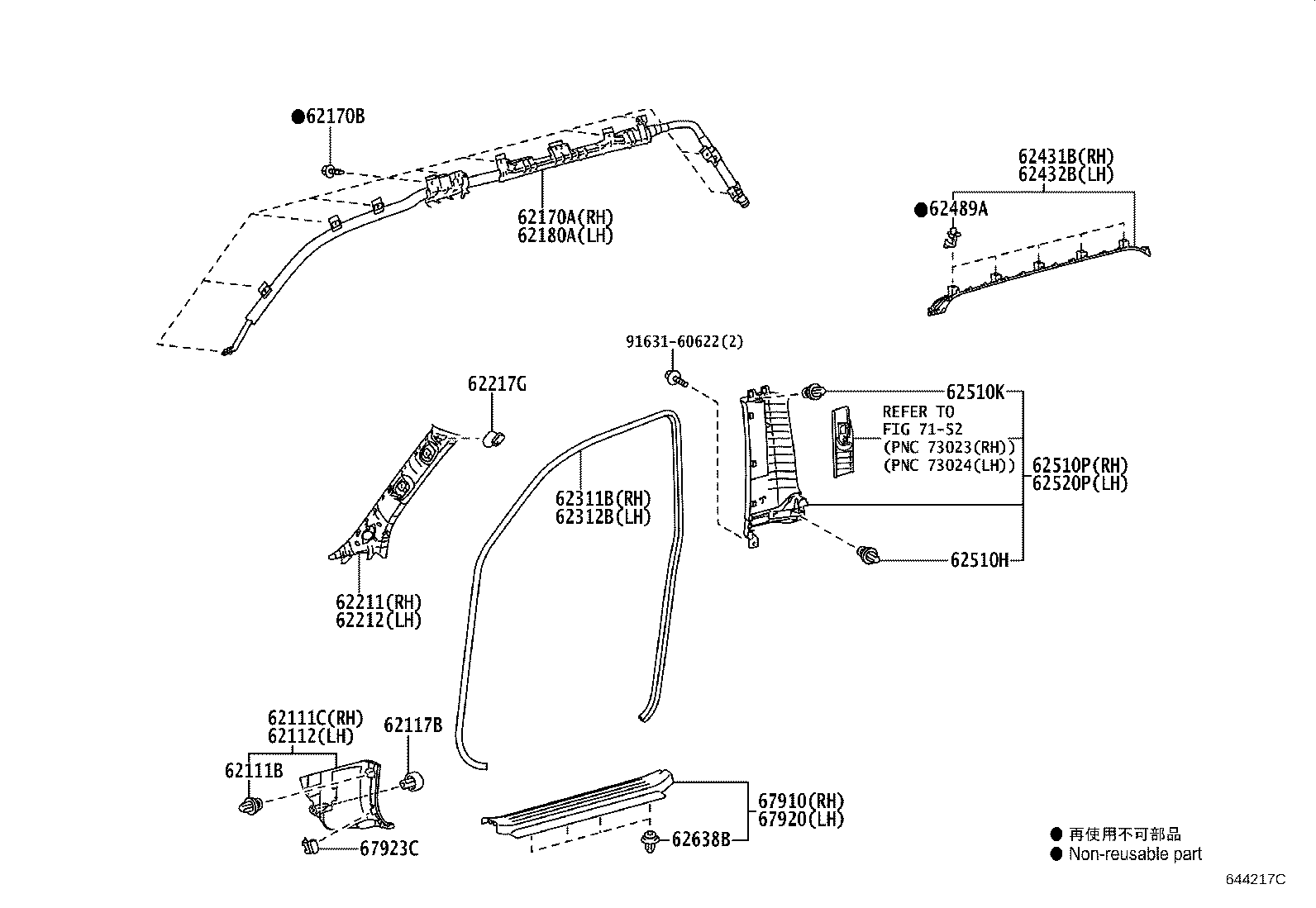

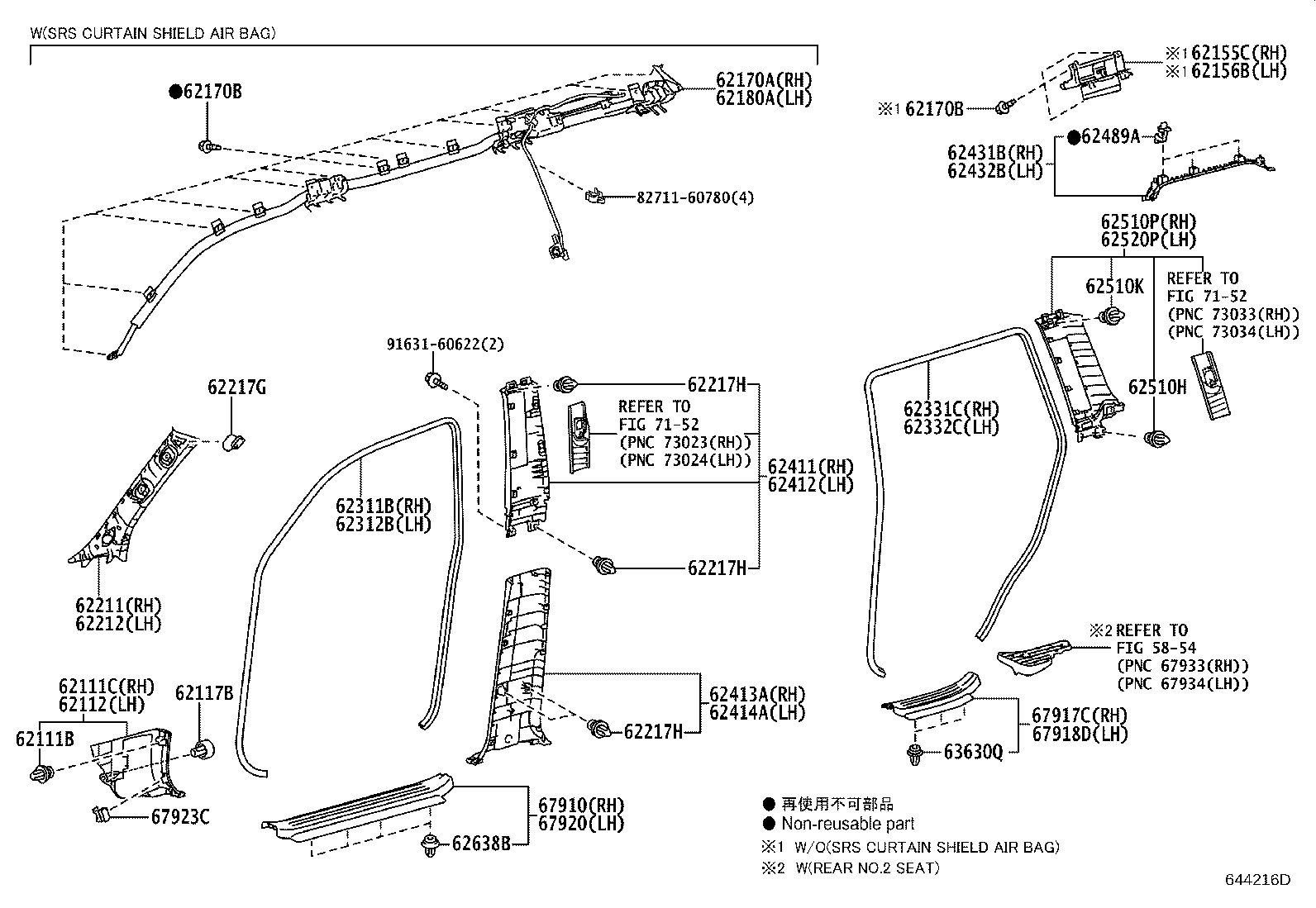

ILLUST NO. 1 OF 1(1708- )GDJ150,GRJ150,KDJ150,TRJ150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 62217-13010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-60161E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62111-60161C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-60260C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62112-60260E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06183 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-60110 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 62170-60110 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 62170-60110 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62170-60110 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 62170-60110 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62170-60100 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 62170-60110 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62170-60110 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62170-60110 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62170-60110 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62170-60110 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
34 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
34 | ||
| 90119-06869 |
GDJ150,GRJ150,KDJ150,TRJ150 |
26 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
34 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
34 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
34 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
34 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
34 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
GDJ150,GRJ150,KDJ150,TRJ150 |
26 | ||
| 90119-06869 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
34 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-60090 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
1 | ||
| 62180-60090 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62180-60090 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 62180-60090 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 62180-60090 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 62180-60090 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62180-60080 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 62180-60090 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62180-60090 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62180-60090 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62180-60090 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-60202E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL &14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL &14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC TX-L PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC TX-L PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL& 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL& 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60202B0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60222E0 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60222E0 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL &14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL &14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC TX-L PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC TX-L PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60203B0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62220-60202E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL& 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL& 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-60020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150 |
8 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150 |
8 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150 |
8 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-60150C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62311-60150E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-60150E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62312-60150C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-60090C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62331-60090E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-60090E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62332-60090C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-60220B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62410-60220E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-60220E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62420-60220B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-60090C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62413-60090E1 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-60090E1 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62414-60090C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62431B - GARNISH, ROOF SIDE RAIL, NO.1 RH | ||||
| 62431-60061E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62431-60061B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62432B - GARNISH, ROOF SIDE RAIL, NO.1 LH | ||||
| 62432-60041E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62432-60041B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-60020 |
GDJ150,GRJ150,KDJ150,TRJ150 |
6 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 62510K - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-10188 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-60D60E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60D60B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-60G40E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60G40B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62638B - CLIP | ||||
| 90467-09234 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
8 | ||
| 63630Q - CLIP | ||||
| 90467-09234 |
GDJ150,GRJ150,KDJ150,TRJ150 |
6 | ||
| 67910 - PLATE ASSY, DOOR SCUFF, RH | ||||
| 67910-60043E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67910-60044C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-60074C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 67930-60073E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67940-60033C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 67940-60033E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67920 - PLATE ASSY, DOOR SCUFF, LH | ||||
| 67920-60043E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67920-60044C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-30030 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| Common parts | ||||
| 82711-60780 | ||||
| 91631-60622 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 7152 | ||||
ILLUST NO. 1 OF 2(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 62217-13010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-60161E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62111-60161C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-60260C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62112-60260E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06183 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-60110 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 62170-60110 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 62170-60110 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62170-60110 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 62170-60110 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62170-60100 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 62170-60110 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62170-60110 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62170-60110 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62170-60110 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62170-60110 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
34 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
34 | ||
| 90119-06869 |
GDJ150,GRJ150,KDJ150,TRJ150 |
26 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
34 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
34 | ||
| 90119-06869 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
34 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-60090 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
1 | ||
| 62180-60090 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62180-60090 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 62180-60090 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 62180-60090 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 62180-60090 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62180-60080 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 62180-60090 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62180-60090 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62180-60090 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62180-60090 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-60202E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL &14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL &14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC TX-L PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC TX-L PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL& 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL& 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60202B0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60222E0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60222E0 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60223B1 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62210-60222E0 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60223B1 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL &14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL &14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC TX-L PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC TX-L PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60203B0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62220-60202E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL& 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL& 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60222E0 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150 TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150 TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62220-60223B1 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-60020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-60150C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62311-60150E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-60150E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62312-60150C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62431B - GARNISH, ROOF SIDE RAIL, NO.1 RH | ||||
| 62431-60061E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62431-60061B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62432B - GARNISH, ROOF SIDE RAIL, NO.1 LH | ||||
| 62432-60041E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62432-60041B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-60020 |
GDJ150,GRJ150,KDJ150,TRJ150 |
6 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 62510K - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-10188 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-60D60B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62510-60D60E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-60G40E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60G40B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62638B - CLIP | ||||
| 90467-09234 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
8 | ||
| 67910 - PLATE ASSY, DOOR SCUFF, RH | ||||
| 67910-60043E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67910-60044C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 67920 - PLATE ASSY, DOOR SCUFF, LH | ||||
| 67920-60043E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67920-60044C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-30030 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| Common parts | ||||
| 91631-60622 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 2(1708- )GDJ150,GRJ150,KDJ150,TRJ150
W(5:5 DOUBLE FLAT REAR NO.2 SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62476A - CAP, ROOF SIDE INNER GARNISH, RH | ||||
| 62476-60011B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62476-60011E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62477A - CAP, ROOF SIDE INNER GARNISH, LH | ||||
| 62477-60011B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62477-60011E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150 |
5 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150 |
5 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 63395-12150 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 90467-09236 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-09236 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 63395-12150 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62579 - SPACER, QUARTER TRIM | ||||
| 62531-60020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62579 - SPACER, QUARTER TRIM | ||||
| 62531-60020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62627B - COVER, QUARTER TRIM | ||||
| 62627-60010C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
2 | ||
| 62627-60010C0 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
2 | ||
| 62627-60010E2 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62627-60010E2 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627-60010C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62627-60010E2 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627-60010C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 62627-60010C0 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 62627-60010E2 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627-60010E2 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627B - COVER, QUARTER TRIM | ||||
| 62627-60010C0 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
2 | ||
| 62627-60010E2 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62627-60010C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
2 | ||
| 62627-60010E2 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627-60010C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62627-60010E2 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627-60010C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 62627-60010C0 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 62627-60010E2 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627-60010E2 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627C - COVER, SIDE TRIM, NO.1 | ||||
| 62627-60020E0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62627-60020C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 62627-60020E0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62627-60020E0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62627-60020C0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 62627-60020C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,BLACK,TRIM2# |
1 | ||
| 62627-60020E0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62627-60020C0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-60260E0 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240B0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60260B0 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60240B0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60240E0 |
GDJ150,GRJ150,TRJ150..6F,6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60260E0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240B0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60260B0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60240B0 |
GDJ150,GRJ150,TRJ150..6F,6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60260E0 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240B0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60240E0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60260B0 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60260B0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60240B0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60260E0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240B0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60230B0 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,LT.GRAY,TRIM2# |
1 | ||
| 62630-60230B0 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,LT.GRAY,TRIM2# |
1 | ||
| 62630-60230E0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
1 | ||
| 62630-60230B0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60230B0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,LT.GRAY,TRIM2# |
1 | ||
| 62630-60230E0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60230E0 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60230B0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,LT.GRAY,TRIM2# |
1 | ||
| 62630-60250E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60230E0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60250B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62630-60230E0 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-60230E0 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230B0 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230E0 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230B0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230B0 |
GDJ150,GRJ150,TRJ150..6F,6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230E0 |
GDJ150,GRJ150,TRJ150..6F,6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230B0 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230E0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230B0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230B0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60250B0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230B0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60250E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230E0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60250B0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230B0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60250E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230E0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60220E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230B0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60240E0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
1 | ||
| 62640-60220B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62640-60240B0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM2# |
1 | ||
| 64712F - COVER, DECK SIDE TRIM, FRONT RH | ||||
| 64712-60020C0 |
GDJ150,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64712-60020E1 |
GDJ150,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020C0 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64712-60020E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712F - COVER, DECK SIDE TRIM, FRONT RH | ||||
| 64712-60020C0 |
GDJ150,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64712-60020E1 |
GDJ150,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020C0 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64712-60020E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-60010C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 64715-60010E1 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-60020C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
2 | ||
| 64725-60020C0 |
GRJ150..RUS;GDJ150,TRJ150..6F,6FC TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,BLACK,TRIM2# |
2 | ||
| 64725-60020E2 |
GRJ150..RUS;GDJ150,TRJ150..6F,6FC TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64725-60040E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-60020C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
2 | ||
| 64725-60020C0 |
GRJ150..RUS;GDJ150,TRJ150..6F,6FC TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,BLACK,TRIM2# |
2 | ||
| 64725-60020E2 |
GRJ150..RUS;GDJ150,TRJ150..6F,6FC TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64725-60040E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-60040C1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64730-60040E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60090C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64730-60090E1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60040E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60030E0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60260C1 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60260E1 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60040C1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64730-60040E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60040C1 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64730-60030C1 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64730-60030E0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60040C1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64730-60090E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60090C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64730-60010E2 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60010C1 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60040C1 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64730-60260E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60260C1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2#,FRAMENO.=5XXXXXX |
1 | ||
| 64730-60030C1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64730-60040E0 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60040E0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60090E1 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
1 | ||
| 64730-60090C0 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64730-60250C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2#,*266 |
1 | ||
| 64730-60250E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4#,*266 |
1 | ||
| 64730-60260C1 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60260C1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60260E1 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60260E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
9 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
3 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
9 | ||
| 90467-10161 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
3 | ||
| 90467-10161 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
3 | ||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150 |
5 | ||
| 90467-10161 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
3 | ||
| 90467-10161 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
9 | ||
| 90467-10161 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT |
9 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
9 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
3 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
9 | ||
| 90467-10161 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
3 | ||
| 90467-10161 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
3 | ||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150 |
5 | ||
| 90467-10161 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
3 | ||
| 90467-10161 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
9 | ||
| 90467-10161 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT |
9 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-60010E2 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60030E1 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60030C1 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60190C0 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2#,*266 |
1 | ||
| 64740-60190E0 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,*266 |
1 | ||
| 64740-60050C1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64740-60030C1 |
TRJ150..6FC AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60050E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60090C1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64740-60090E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60030C1 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60220C0 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60030E1 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60050C1 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64740-60050C1 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64740-60050E0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60190E0 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,*266 |
1 | ||
| 64740-60220E0 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60050E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60190C0 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2#,*266 |
1 | ||
| 64740-60030E1 |
TRJ150..6FC AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60050C1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64740-60090C1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64740-60050E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60190E0 |
TRJ150..6FC AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,*266 |
1 | ||
| 64740-60090E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60220C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2#,FRAMENO.=5XXXXXX |
1 | ||
| 64740-60190C0 |
TRJ150..6FC AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2#,*266 |
1 | ||
| 64740-60220E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60010C1 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60040C1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64740-60040C1 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64740-60040C1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64740-60040E0 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60040E0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60040E0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60080C0 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64740-60180C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2#,*266 |
1 | ||
| 64740-60180E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4#,*266 |
1 | ||
| 64740-60080E1 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
1 | ||
| 64740-60200C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60200C0 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60200E0 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60200E0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64766B - COVER, QUARTER TRIM JACK | ||||
| 64766-60091E1 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64766-60091C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 64907C - STOPPER SUB-ASSY, TONNEAU COVER, RH | ||||
| 64907-60020C0 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..6FC..RUS TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64907-60020C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64907-60020C0 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
1 | ||
| 64907-60020E1 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64907-60020C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64907-60020E1 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64907-60020E1 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..6FC..RUS TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64907-60020E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64909B - STOPPER SUB-ASSY, TONNEAU COVER, LH | ||||
| 64909-60030C0 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..6FC..RUS TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64909-60030C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64909-60030C0 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
1 | ||
| 64909-60030E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64909-60030E1 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64909-60030C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64909-60030E1 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64909-60030E1 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..6FC..RUS TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64910M - COVER ASSY, TONNEAU | ||||
| 64910-60120C0 |
GDJ150,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64910-60100E0 |
GDJ150,GRJ150,TRJ150..LHD TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64910-60120E2 |
GDJ150,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64910-60101C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64910-60100E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64910-60100E0 |
GRJ150;GDJ150,TRJ150..6FC..RUS TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64910-60101C0 |
GDJ150,GRJ150,TRJ150..LHD TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
1 | ||
| 64910-60101C0 |
GRJ150;GDJ150,TRJ150..6FC..RUS TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60040E1 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64937-60040C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
2 | ||
| 64938-60030C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
2 | ||
| 64938-60030C0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64938-60030E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
2 | ||
| 64938-60030C0 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64938-60030C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64938-60030E1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64938-60030C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64938-60030E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64938-60030E1 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64938-60030E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60040C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
2 | ||
| 64937-60040E1 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64938-60030C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
2 | ||
| 64938-60030E1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64938-60030C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64938-60030C0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64938-60030E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
2 | ||
| 64938-60030C0 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64938-60030C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64938-60030E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64938-60030E1 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64938-60030E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 66991 - HOLDER, QUARTER TRIM CUP, RH | ||||
| 64745-60020C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64745-60020E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64745-60020E1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020C0 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64745-60020E1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991A - HOLDER, QUARTER TRIM CUP, LH | ||||
| 64746-60010C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64746-60010E1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64746-60010E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010C0 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64746-60010E1 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90159-60413 | ||||
| 90189-04200 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8715 | ||||
ILLUST NO. 2 OF 2(1708- )GDJ150,GRJ150,KDJ150,TRJ150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62476A - CAP, ROOF SIDE INNER GARNISH, RH | ||||
| 62476-60011B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62476-60011E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62477A - CAP, ROOF SIDE INNER GARNISH, LH | ||||
| 62477-60011E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62477-60011B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150 |
5 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150 |
5 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 63395-12150 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 90467-09236 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 63395-12150 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 90467-09236 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62579 - SPACER, QUARTER TRIM | ||||
| 62531-60020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62579 - SPACER, QUARTER TRIM | ||||
| 62531-60020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 62627B - COVER, QUARTER TRIM | ||||
| 62627-60010C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
2 | ||
| 62627-60010C0 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
2 | ||
| 62627-60010E2 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627-60010C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62627-60010E2 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62627-60010E2 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627-60010C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 62627-60010C0 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 62627-60010E2 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627-60010E2 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627B - COVER, QUARTER TRIM | ||||
| 62627-60010C0 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
2 | ||
| 62627-60010C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
2 | ||
| 62627-60010E2 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627-60010C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 62627-60010E2 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62627-60010E2 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627-60010C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 62627-60010C0 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 62627-60010E2 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62627-60010E2 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-60250B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62630-60240B0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60260B0 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60260E0 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240B0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60240E0 |
GDJ150,GRJ150,TRJ150..6F,6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60260E0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240B0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60260B0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60240B0 |
GDJ150,GRJ150,TRJ150..6F,6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60260E0 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240B0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60240E0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60260B0 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60260B0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60240B0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60260E0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60240B0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60230B0 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,LT.GRAY,TRIM2# |
1 | ||
| 62630-60230B0 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,LT.GRAY,TRIM2# |
1 | ||
| 62630-60230E0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
1 | ||
| 62630-60230B0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM2# |
1 | ||
| 62630-60230B0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,LT.GRAY,TRIM2# |
1 | ||
| 62630-60230E0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60230E0 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60230B0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,LT.GRAY,TRIM2# |
1 | ||
| 62630-60250E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60230E0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62630-60230E0 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-60230B0 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230E0 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230B0 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230E0 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230B0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230B0 |
GDJ150,GRJ150,TRJ150..6F,6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230E0 |
GDJ150,GRJ150,TRJ150..6F,6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230E0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230B0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230B0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60250B0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230B0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60250E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230E0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60250B0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60230E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230B0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60250E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230E0 |
TRJ150..6FC;GDJ150..RHD..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60220E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62640-60230B0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 62640-60240E0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
1 | ||
| 62640-60220B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 62640-60240B0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM2# |
1 | ||
| 64712F - COVER, DECK SIDE TRIM, FRONT RH | ||||
| 64712-60020E1 |
GDJ150,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020C0 |
GDJ150,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64712-60020E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712F - COVER, DECK SIDE TRIM, FRONT RH | ||||
| 64712-60020C0 |
GDJ150,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64712-60020E1 |
GDJ150,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020C0 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64712-60020C0 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64712-60020E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64712-60020E1 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-60010C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 64715-60010E1 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-60040E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64725-60020C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
2 | ||
| 64725-60020C0 |
GRJ150..RUS;GDJ150,TRJ150..6F,6FC TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,BLACK,TRIM2# |
2 | ||
| 64725-60020E2 |
GRJ150..RUS;GDJ150,TRJ150..6F,6FC TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-60040E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64725-60020C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
2 | ||
| 64725-60020C0 |
GRJ150..RUS;GDJ150,TRJ150..6F,6FC TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,BLACK,TRIM2# |
2 | ||
| 64725-60020E2 |
GRJ150..RUS;GDJ150,TRJ150..6F,6FC TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-60040C1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64730-60040E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60090C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64730-60090E1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60030C1 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64730-60040E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60030E0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60260C1 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60260E1 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60040E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60040C1 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64730-60030E0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60040C1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64730-60040C1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64730-60090E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60090C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64730-60010E2 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60010C1 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60040C1 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64730-60260E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60260C1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2#,FRAMENO.=5XXXXXX |
1 | ||
| 64730-60030C1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64730-60040E0 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60040E0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64730-60090E1 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
1 | ||
| 64730-60090C0 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64730-60250C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2#,*266 |
1 | ||
| 64730-60250E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4#,*266 |
1 | ||
| 64730-60260C1 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60260C1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60260E1 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64730-60260E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
9 | ||
| 90467-10161 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
9 | ||
| 90467-10161 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
3 | ||
| 90467-10161 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
3 | ||
| 90467-10161 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
3 | ||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150 |
5 | ||
| 90467-10161 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
3 | ||
| 90467-10161 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
9 | ||
| 90467-10161 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT |
9 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
9 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
3 | ||
| 90467-10161 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
9 | ||
| 90467-10161 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
3 | ||
| 90467-10161 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
3 | ||
| 90467-10161 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
3 | ||
| 90467-10161 |
GDJ150,GRJ150,KDJ150,TRJ150 |
5 | ||
| 90467-10161 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
3 | ||
| 90467-10161 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT |
9 | ||
| 90467-10161 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT |
9 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-60010E2 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60030E1 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60030C1 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60190C0 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2#,*266 |
1 | ||
| 64740-60190E0 |
GDJ150,TRJ150..6FC..RUS AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,*266 |
1 | ||
| 64740-60190E0 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,*266 |
1 | ||
| 64740-60050C1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64740-60050E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60030C1 |
TRJ150..6FC AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60090C1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64740-60090E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60030C1 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60220C0 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60030E1 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60050C1 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64740-60050C1 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64740-60050E0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60220E0 |
GDJ150,GRJ150,TRJ150..LHD..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60050E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60190C0 |
GDJ150,TRJ150..6FC..RUS AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2#,*266 |
1 | ||
| 64740-60030E1 |
TRJ150..6FC AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60050C1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64740-60090C1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64740-60050E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60190E0 |
TRJ150..6FC AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,*266 |
1 | ||
| 64740-60090E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60220C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2#,FRAMENO.=5XXXXXX |
1 | ||
| 64740-60190C0 |
TRJ150..6FC AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2#,*266 |
1 | ||
| 64740-60220E0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60010C1 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60040C1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64740-60040C1 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64740-60040C1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64740-60040E0 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60040E0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60040E0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64740-60080C0 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64740-60180C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2#,*266 |
1 | ||
| 64740-60180E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4#,*266 |
1 | ||
| 64740-60080E1 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
1 | ||
| 64740-60200C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60200C0 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60200E0 |
GDJ150..RHD;GDJ150,GRJ150,TRJ150..LHD..(5F,6FC) AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64740-60200E0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4#,FRAME NO.=5XXXXXX |
1 | ||
| 64766B - COVER, QUARTER TRIM JACK | ||||
| 64766-60091E1 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64766-60091C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 64907C - STOPPER SUB-ASSY, TONNEAU COVER, RH | ||||
| 64907-60020C0 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..6FC..RUS TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64907-60020C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64907-60020C0 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
1 | ||
| 64907-60020E1 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64907-60020C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64907-60020E1 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64907-60020E1 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..6FC..RUS TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64907-60020E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64909B - STOPPER SUB-ASSY, TONNEAU COVER, LH | ||||
| 64909-60030C0 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..6FC..RUS TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64909-60030C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64909-60030C0 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
1 | ||
| 64909-60030E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64909-60030E1 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64909-60030C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64909-60030E1 |
GDJ150,GRJ150,TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64909-60030E1 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..6FC..RUS TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64910M - COVER ASSY, TONNEAU | ||||
| 64910-60120C0 |
GDJ150,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64910-60100E0 |
GDJ150,GRJ150,TRJ150..LHD TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64910-60120E2 |
GDJ150,GRJ150,KDJ150,TRJ150 TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64910-60101C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64910-60100E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64910-60100E0 |
GRJ150;GDJ150,TRJ150..6FC..RUS TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64910-60101C0 |
GDJ150,GRJ150,TRJ150..LHD TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
1 | ||
| 64910-60101C0 |
GRJ150;GDJ150,TRJ150..6FC..RUS TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60040E1 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64937-60040C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
2 | ||
| 64938-60030C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
2 | ||
| 64938-60030C0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64938-60030E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
2 | ||
| 64938-60030C0 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64938-60030C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64938-60030E1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64938-60030C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64938-60030E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64938-60030E1 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64938-60030E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60040E1 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64937-60040C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
2 | ||
| 64938-60030C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
2 | ||
| 64938-60030C0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64938-60030E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
2 | ||
| 64938-60030C0 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64938-60030C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,BLACK,TRIM2# |
2 | ||
| 64938-60030E1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64938-60030C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 64938-60030E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64938-60030E1 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64938-60030E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 66991 - HOLDER, QUARTER TRIM CUP, RH | ||||
| 64745-60020C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64745-60020E1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64745-60020E1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020C0 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64745-60020C0 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64745-60020E1 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64745-60020E1 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991A - HOLDER, QUARTER TRIM CUP, LH | ||||
| 64746-60010C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64746-60010E1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
TRJ150..6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 64746-60010E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
TRJ150..6FC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010C0 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64746-60010C0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
1 | ||
| 64746-60010E1 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC..RUS AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64746-60010E1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90159-60413 | ||||
| 90189-04200 | ||||
| Linked diagrams | ||||
| 7151 | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
