TRJ150L-GKTEKX (2017)
Toyota Land Cruiser
ILLUST NO. 3 OF 4(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-60160 |
GRJ150..RUS;GDJ15#,TRJ150..6F,6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN) |
1 | ||
| 55420-60170 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE |
1 | ||
| 55420-60160 |
GRJ150..RUS;GDJ15#,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS) |
1 | ||
| 55420-60170 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,TRJ150..6FC..RUS *FAS & *IP(ORNAMENT = WOOD-GRAIN) |
1 | ||
| 55420-60160 |
GRJ150..RUS;GDJ15#,TRJ150..6F,6FC *LES & WITHOUT(AVS) |
1 | ||
| 55420-60180 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C) |
1 | ||
| 55420-60170 |
GRJ150..RUS;GDJ15#,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS) |
1 | ||
| 55420-60180 |
GDJ150..RHD..6FC;GDJ150,GRJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS)&BLACK EDITION*(C) |
1 | ||
| 55420-60150 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 55420-60170 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS) |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
TRJ150..6FC AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55522-52020 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 55522-52020 |
GDJ15#,GRJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55522-52020 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-60300 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 55539-60300 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55539-60300 |
TRJ150..6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55539-60300 |
TRJ150..6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60300 |
TRJ150..6FC AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55539-60300 |
GDJ150,GRJ150,TRJ150..6F,6FC AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(REARONLY) |
1 | ||
| 55539-60300 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60300 |
GDJ150,TRJ150..RUS;GRJ150,KDJ150..LHD SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60300 |
TRJ150..6FC SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60360 |
TRJ150..6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60300 |
TRJ150..6FC SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55539-60360 |
TRJ150..6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55539-60360 |
GDJ155..RHD;GDJ150..RUS;GDJ150..RHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60360 |
TRJ150..6FC AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55539-60360 |
GDJ150,GRJ150,TRJ150..6F,6FC AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(REARONLY) |
1 | ||
| 55539-60360 |
TRJ150..6FC SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60360 |
TRJ150..6FC SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55539-60360 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 55539-60360 |
GDJ150..6FC;GDJ150..LHD..6F;GDJ155,GRJ150,TRJ150..LHD AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55539-60360 |
GRJ150;GDJ150,TRJ150..RUS SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-60310 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55539-60310 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 55539-60310 |
TRJ150..6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55539-60310 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60310 |
TRJ150..6FC AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55539-60310 |
GDJ150,GRJ150,TRJ150..6F,6FC AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(REARONLY) |
1 | ||
| 55539-60310 |
TRJ150..6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60310 |
TRJ150..6FC SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60370 |
TRJ150..6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55539-60310 |
GDJ150,TRJ150..RUS;GRJ150,KDJ150..LHD SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60370 |
TRJ150..6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60310 |
TRJ150..6FC SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55539-60370 |
GDJ155..RHD;GDJ150..RUS;GDJ150..RHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60370 |
GDJ150,GRJ150,TRJ150..6F,6FC AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(REARONLY) |
1 | ||
| 55539-60370 |
TRJ150..6FC SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55539-60370 |
TRJ150..6FC SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55539-60370 |
TRJ150..6FC AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55539-60370 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 55539-60370 |
GDJ150..6FC;GDJ150..LHD..6F;GDJ155,GRJ150,TRJ150..LHD AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55539-60370 |
GRJ150;GDJ150,TRJ150..RUS SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-60370 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC *LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE |
1 | ||
| 55670-60370 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
TRJ150..6FC;GDJ150..RHD..6F *LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
TRJ150..6FC;GDJ150..RHD..6F *FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GRJ150..RUS;GDJ15#,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS) |
1 | ||
| 55670-60370 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C) |
1 | ||
| 55670-60370 |
TRJ150..6FC;GDJ150..RHD..6FC *LES & WITHOUT(AVS)&BLACK EDITION*(C)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GRJ150..RUS;GDJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS) |
1 | ||
| 55670-60370 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GDJ150..RHD..6FC;GDJ150,GRJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS)&BLACK EDITION*(C) |
1 | ||
| 55670-60360 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 55670-60370 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS)&BLACK EDITION*(C)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,TRJ150..6FC..RUS *FAS & *IP(ORNAMENT = WOOD-GRAIN) |
1 | ||
| 55670-60370 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-60370 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC *LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE |
1 | ||
| 55670-60370 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
TRJ150..6FC;GDJ150..RHD..6F *LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
TRJ150..6FC;GDJ150..RHD..6F *FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GRJ150..RUS;GDJ15#,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS) |
1 | ||
| 55670-60370 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C) |
1 | ||
| 55670-60370 |
TRJ150..6FC;GDJ150..RHD..6FC *LES & WITHOUT(AVS)&BLACK EDITION*(C)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GRJ150..RUS;GDJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS) |
1 | ||
| 55670-60370 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GDJ150..RHD..6FC;GDJ150,GRJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS)&BLACK EDITION*(C) |
1 | ||
| 55670-60360 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 55670-60370 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS)&BLACK EDITION*(C)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,TRJ150..6FC..RUS *FAS & *IP(ORNAMENT = WOOD-GRAIN) |
1 | ||
| 55670-60370 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-10203 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8603 | ||||
ILLUST NO. 4 OF 4(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58805E - PANEL SUB-ASSY, CONSOLE, LOWER | ||||
| 58805-60360 |
TRJ150..6FC |
1 | ||
| 58805-60440 |
TRJ150..6FC *LES & WITHOUT(AVS)&BLACK EDITION*(C) |
1 | ||
| 58805-60440 |
TRJ150..6FC *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C) |
1 | ||
| 58805E - PANEL SUB-ASSY, CONSOLE, LOWER | ||||
| 58805-60360 |
TRJ150..6FC |
1 | ||
| 58805-60440 |
TRJ150..6FC *LES & WITHOUT(AVS)&BLACK EDITION*(C) |
1 | ||
| 58805-60440 |
TRJ150..6FC *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C) |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90467-13082A0 | ||||
| Linked diagrams | ||||
| 8401 | ||||

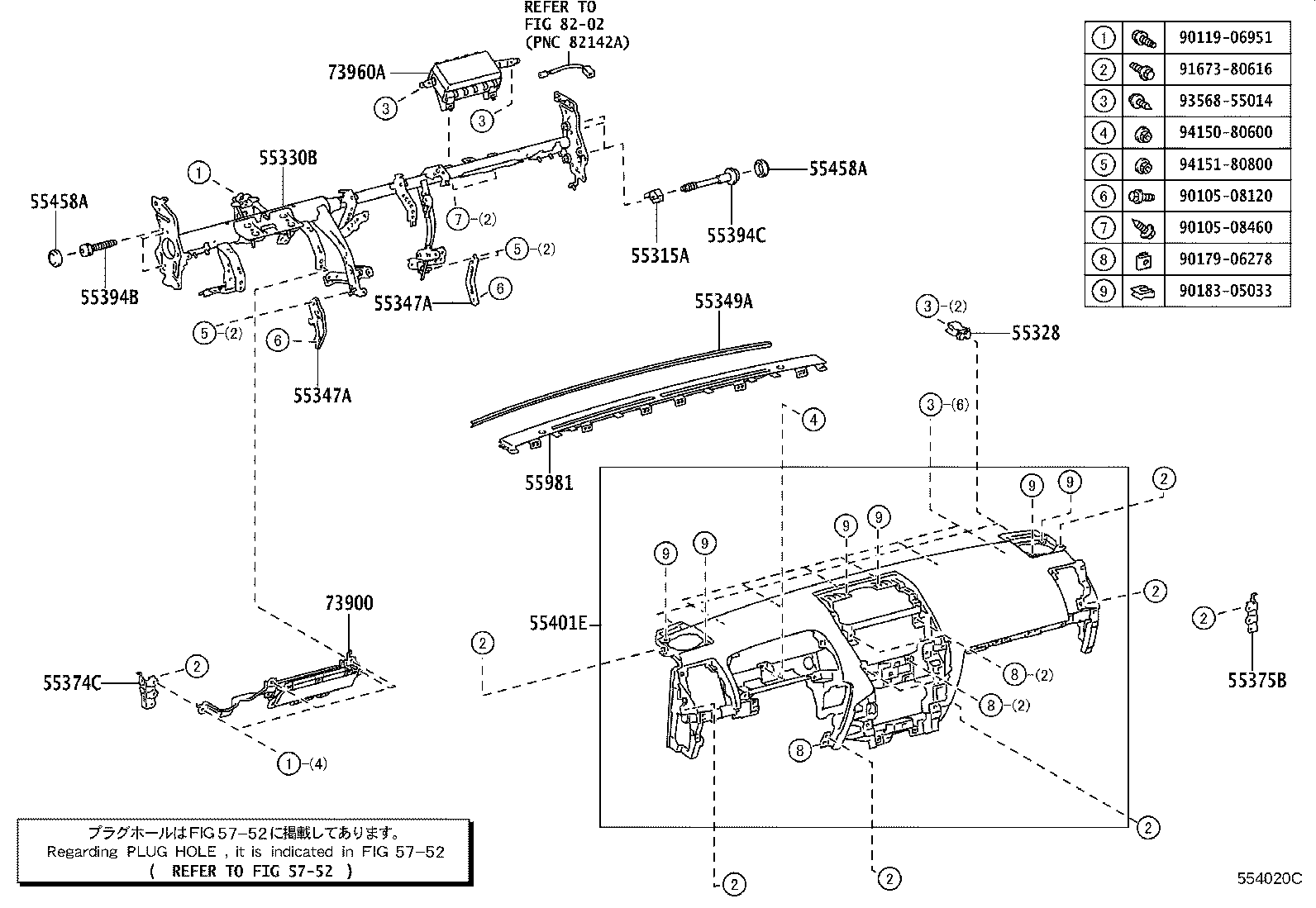

ILLUST NO. 1 OF 4(1708- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-53040 |
TRJ150..6FC VX PACKAGE |
2 | ||
| 55315-53040 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-60232 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 55330-60232 |
TRJ150..6FC VX PACKAGE |
1 | ||
| 55330-60520 |
GDJ15#,GRJ150,TRJ150..LHD |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-60110 |
TRJ150..6FC VX PACKAGE,LH |
1 | ||
| 55348-60120 |
GDJ15#,GRJ150,KDJ150,TRJ150 RH |
1 | ||
| 55347-60110 |
GDJ15#,GRJ150,KDJ150,TRJ150 LH |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-60110 |
TRJ150..6FC VX PACKAGE,LH |
1 | ||
| 55348-60120 |
GDJ15#,GRJ150,KDJ150,TRJ150 RH |
1 | ||
| 55347-60110 |
GDJ15#,GRJ150,KDJ150,TRJ150 LH |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-60100 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-60110 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-60110 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-48050 |
TRJ150..6FC VX PACKAGE |
3 | ||
| 55394-48050 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
3 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-48060 |
TRJ150..6FC VX PACKAGE |
2 | ||
| 55394-48060 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-60936C1 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 55401-60936E3 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD ORCHID BROWN,TRIM4# |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
TRJ150..6FC VX PACKAGE |
5 | ||
| 55458-50100 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
5 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
TRJ150..6FC VX PACKAGE |
5 | ||
| 55458-50100 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
5 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-60030E2 |
GDJ15#,GRJ150,KDJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 55981-60030C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-60030E2 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 73900-60140E0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 73900-60140C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 73900-60030C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 73900-60160 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-60390 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 73960-60200 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 73960-60360 |
GDJ15#,GRJ150,TRJ150..LHD |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90105-08460 | ||||
| 90119-06951 | ||||
| 90179-06278 | ||||
| 90183-05033 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 8202 | ||||

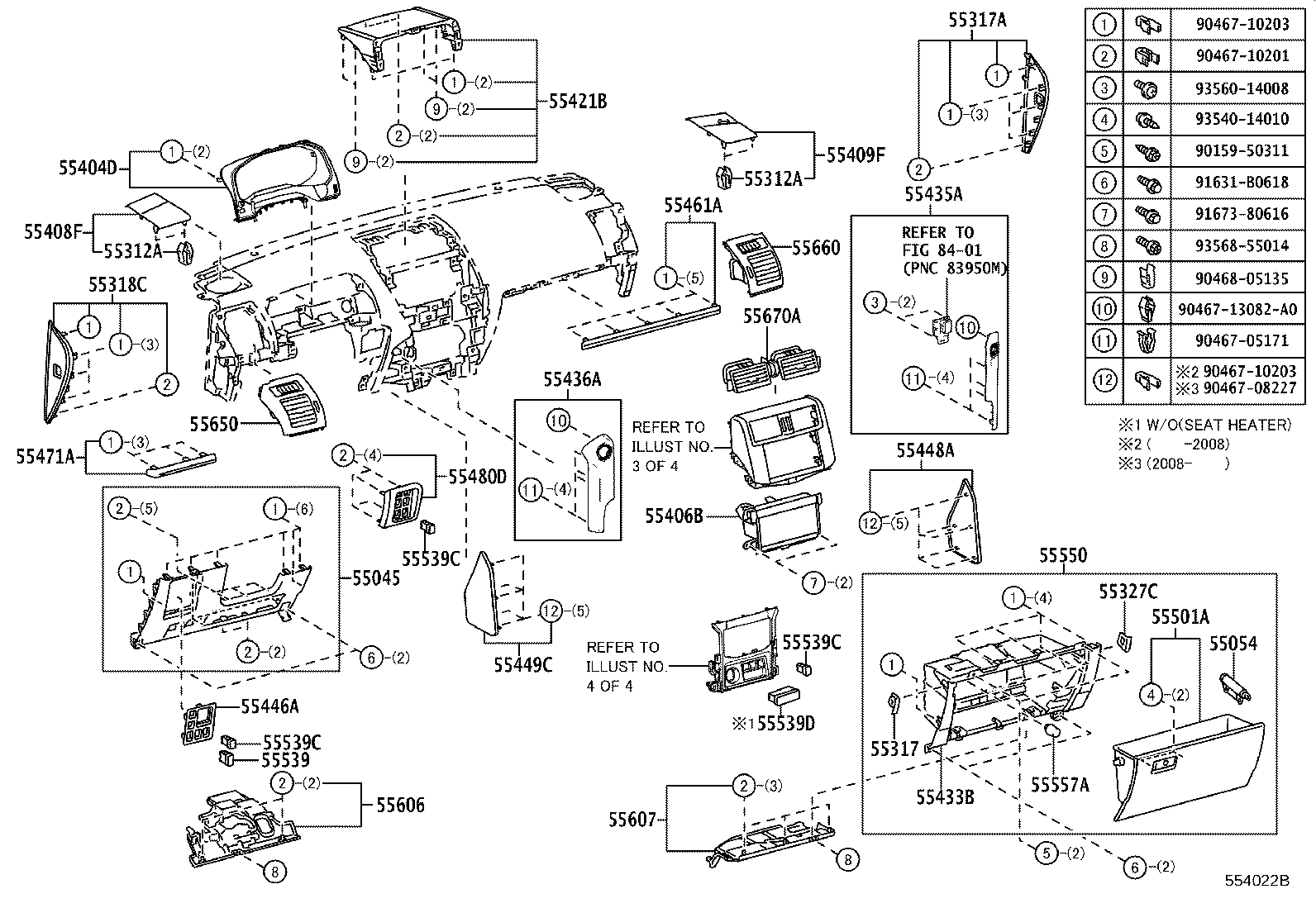

ILLUST NO. 2 OF 4(1708- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-60011C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 55045-60011E2 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-22030 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
GDJ15#,GRJ150,KDJ150,TRJ150 MELLOW WHITE |
4 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
GDJ15#,GRJ150,KDJ150,TRJ150 MELLOW WHITE |
4 | ||
| 55317 - PATCH, INSTRUMENT PANEL | ||||
| 55316-60050C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 55316-60050E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-60050C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 55317-60050E1 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD ORCHID BROWN,TRIM4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-60130C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 55318-60130E1 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD ORCHID BROWN,TRIM4# |
1 | ||
| 55327C - PATCH, INSTRUMENT PANEL, UPPER RH | ||||
| 55315-60120C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 55315-60120E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-60430C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 55404-60430C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 55404-60431 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-60500 |
TRJ150..6FC *LES & WITHOUT(AVS)&BLACK EDITION*(C) |
1 | ||
| 55406-60290 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 55406-60500 |
TRJ150..6FC *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C) |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-60190E1 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 55408-60190C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 55472-60180E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 55472-60180C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 55408-60190C0 |
TRJ150..6FC;GDJ150..RHD..6F AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 55408-60190E1 |
TRJ150..6FC;GDJ150..RHD..6F AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-60070C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 55409-60070E1 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 55409-60070C0 |
TRJ150..6FC;GDJ150..RHD..6F AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 55473-60130E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 55473-60130C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 55409-60070E1 |
TRJ150..6FC;GDJ150..RHD..6F AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-60190C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 55421-60190C0 |
TRJ150..6FC;GDJ150..RHD..6F AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 55421-60200C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 55421-60190E0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 55421-60190C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 55421-60190E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 55421-60200E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 55421-60190E0 |
TRJ150..6FC;GDJ150..RHD..6F AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-60131C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 55433-60131E2 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55402-60100C0 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,BLACK,TRIM2# |
1 | ||
| 55402-60100E0 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,ORCHID BROWN,TRIM4# |
1 | ||
| 55402-60100C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES(COLOR) & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55402-60100E0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES(COLOR) & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55402-60100C0 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C),BLACK,TRIM2# |
1 | ||
| 55402-60100E0 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C),ORCHID BROWN,TRIM4# |
1 | ||
| 55402-60100C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2# |
1 | ||
| 55402-60100C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55402-60100E0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55435-60400C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 55402-60100E0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4# |
1 | ||
| 55435-60400E0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD ORCHID BROWN,TRIM4# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55403-60170C0 |
TRJ150..6FC VX PACKAGE OR TX-L PACKAGE,BLACK/GRAY,TRIM2# |
1 | ||
| 55403-60170E1 |
TRJ150..6FC VX PACKAGE OR TX-L PACKAGE,ORCHID BROWN/LT.BROWN,TRIM4# |
1 | ||
| 55403-60170C0 |
TRJ150..6FC *LES(COLOR) & WITHOUT(AVS),BLACK/GRAY,TRIM2# |
1 | ||
| 55403-60170E1 |
TRJ150..6FC *LES(COLOR) & WITHOUT(AVS),ORCHID BROWN/LT.BROWN,TRIM4# |
1 | ||
| 55403-60170C0 |
TRJ150..6FC *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C),BLACK/GRAY,TRIM2# |
1 | ||
| 55403-60170E1 |
TRJ150..6FC *LES & WITHOUT(AVS),ORCHID BROWN/LT.BROWN,TRIM4# |
1 | ||
| 55403-60170E1 |
TRJ150..6FC *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C),ORCHID BROWN/LT.BROWN,TRIM4# |
1 | ||
| 55403-60170E1 |
TRJ150..6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN/LT.BROWN,TRIM4# |
1 | ||
| 55436-60450C0 |
TRJ150 BLACK,TRIM2# |
1 | ||
| 55403-60170C0 |
TRJ150..6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK/GRAY,TRIM2# |
1 | ||
| 55403-60170C0 |
TRJ150..6FC *LES & WITHOUT(AVS),BLACK/GRAY,TRIM2# |
1 | ||
| 55436-60450E0 |
TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-60230 |
TRJ150..6FC WITHOUT(DESTINATION PACKAGE(EUROPE))&VIETNAM SPEC&VX PACKAGE&*LES & WITHOUT(AVS)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSSTRAFFIC ALERT) |
1 | ||
| 55446-60250 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 55446-60230 |
TRJ150..6FC WITHOUT(DESTINATION PACKAGE(EUROPE))&VIETNAM SPEC&VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 55446-60230 |
TRJ150..6FC WITHOUT(DESTINATION PACKAGE(EUROPE))&VIETNAM SPEC&VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-60120C0 |
GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55448-60120E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 55448-60120C0 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C),BLACK,TRIM2# |
1 | ||
| 55448-60120C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 55448-60120E0 |
GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55448-60120E0 |
GDJ15#..LHD..6F;GDJ15#,GRJ150,TRJ150..6FC *LES & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55448-60120C0 |
GDJ15#..LHD..6F;GDJ15#,GRJ150,TRJ150..6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2# |
1 | ||
| 55448-60120E0 |
GDJ15#..LHD..6F;GDJ15#,GRJ150,TRJ150..6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4# |
1 | ||
| 55448-60120C0 |
GDJ15#..LHD..6F;GDJ15#,GRJ150,TRJ150..6FC *LES & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55448-60180C0 |
GDJ15#,GRJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 55448-60120E0 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C),ORCHID BROWN,TRIM4# |
1 | ||
| 55448-60180E0 |
GDJ15#,GRJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-60110E0 |
GDJ15#,GRJ150,KDJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 55449-60110C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 55449-60110E0 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C),ORCHID BROWN,TRIM4# |
1 | ||
| 55449-60110C0 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C),BLACK,TRIM2# |
1 | ||
| 55449-60110C0 |
GDJ15#..LHD..6F;GDJ15#,GRJ150,TRJ150..6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2# |
1 | ||
| 55449-60110C0 |
GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55449-60110E0 |
GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55449-60110C0 |
GDJ15#..LHD..6F;GDJ15#,GRJ150,TRJ150..6FC *LES & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55449-60110E0 |
GDJ15#..LHD..6F;GDJ15#,GRJ150,TRJ150..6FC *LES & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55449-60160C0 |
GDJ15#,GRJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 55449-60110E0 |
GDJ15#..LHD..6F;GDJ15#,GRJ150,TRJ150..6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4# |
1 | ||
| 55449-60160E0 |
GDJ15#,GRJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 55461A - ORNAMENT, INSTRUMENT PANEL | ||||
| 55011-60080E0 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,LIGHT BROWN,TRIM4# |
1 | ||
| 55011-60080E1 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,DARK BROWN,TRIM2# |
1 | ||
| 55461-60420 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES(COLOR) & WITHOUT(AVS) |
1 | ||
| 55461-60360 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS)&BLACK EDITION*(C) |
1 | ||
| 55011-60080E0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),LIGHT BROWN,TRIM4# |
1 | ||
| 55011-60080E1 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),DARK BROWN,TRIM2# |
1 | ||
| 55011-60080E0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),LIGHT BROWN,TRIM4# |
1 | ||
| 55011-60080E1 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),DARK BROWN,TRIM2# |
1 | ||
| 55461-60360 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C) |
1 | ||
| 55461-60290 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55012-60080E0 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,LIGHT BROWN,TRIM4# |
1 | ||
| 55471-60400 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES(COLOR) & WITHOUT(AVS) |
1 | ||
| 55471-60370 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 55012-60080E1 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,DARK BROWN,TRIM2# |
1 | ||
| 55471-60410 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS)&BLACK EDITION*(C) |
1 | ||
| 55012-60080E0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),LIGHT BROWN,TRIM4# |
1 | ||
| 55471-60410 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C) |
1 | ||
| 55012-60080E0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),LIGHT BROWN,TRIM4# |
1 | ||
| 55012-60080E1 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),DARK BROWN,TRIM2# |
1 | ||
| 55012-60080E1 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),DARK BROWN,TRIM2# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-60330E0 |
TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55480-60330C0 |
TRJ150 BLACK,TRIM2# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-60230E2 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55501-60230C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-58060C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK |
1 | ||
| 55539-60350 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK |
1 | ||
| 55539-60350 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK |
1 | ||
| 55539-60350 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-60212C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 55550-60212E2 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-60140 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-60130 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60400C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2# |
1 | ||
| 55650-60400C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55650-60400E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55650-60400C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55650-60400E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4# |
1 | ||
| 55650-60420E0 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,ORCHID BROWN,TRIM4# |
1 | ||
| 55650-60420C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55650-60400E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55650-60420C0 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,BLACK,TRIM2# |
1 | ||
| 55650-60420C0 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C),BLACK,TRIM2# |
1 | ||
| 55650-60420C0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55650-60390E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 55650-60420E0 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C),ORCHID BROWN,TRIM4# |
1 | ||
| 55650-60420E0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55650-60390C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 55650-60420E0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4# |
1 | ||
| 55650-60420E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55650-60420C0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60480C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2# |
1 | ||
| 55660-60480C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55660-60480E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4# |
1 | ||
| 55660-60480C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55660-60480E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55660-60490C0 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,BLACK,TRIM2# |
1 | ||
| 55660-60480E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55660-60490C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55660-60490E0 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,ORCHID BROWN,TRIM4# |
1 | ||
| 55660-60490C0 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C),BLACK,TRIM2# |
1 | ||
| 55660-60490E0 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C),ORCHID BROWN,TRIM4# |
1 | ||
| 55660-60490E0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55660-60470C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 55660-60470E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 55660-60490E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 55660-60490E0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4# |
1 | ||
| 55660-60490C0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2# |
1 | ||
| 55660-60490C0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-60370 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC *LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE |
1 | ||
| 55670-60370 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
GRJ150..RUS;GDJ15#,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS) |
1 | ||
| 55670-60370 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC *FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
TRJ150..6FC;GDJ150..RHD..6F *LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
TRJ150..6FC;GDJ150..RHD..6F *FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C) |
1 | ||
| 55670-60370 |
TRJ150..6FC;GDJ150..RHD..6FC *LES & WITHOUT(AVS)&BLACK EDITION*(C)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GRJ150..RUS;GDJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER |
1 | ||
| 55670-60370 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS) |
1 | ||
| 55670-60370 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GDJ150..RHD..6FC;GDJ150,GRJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS)&BLACK EDITION*(C) |
1 | ||
| 55670-60360 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 55670-60370 |
GDJ150,GRJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS)&BLACK EDITION*(C)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60370 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,TRJ150..6FC..RUS *FAS & *IP(ORNAMENT = WOOD-GRAIN) |
1 | ||
| 55670-60370 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90467-05171 | ||||
| 90467-08227 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-13082A0 | ||||
| 90468-05135 | ||||
| 91631-B0618 | ||||
| 91673-80616 | ||||
| 93540-14010 | ||||
| 93560-14008 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
