TRJ150L-GKTEKX (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )

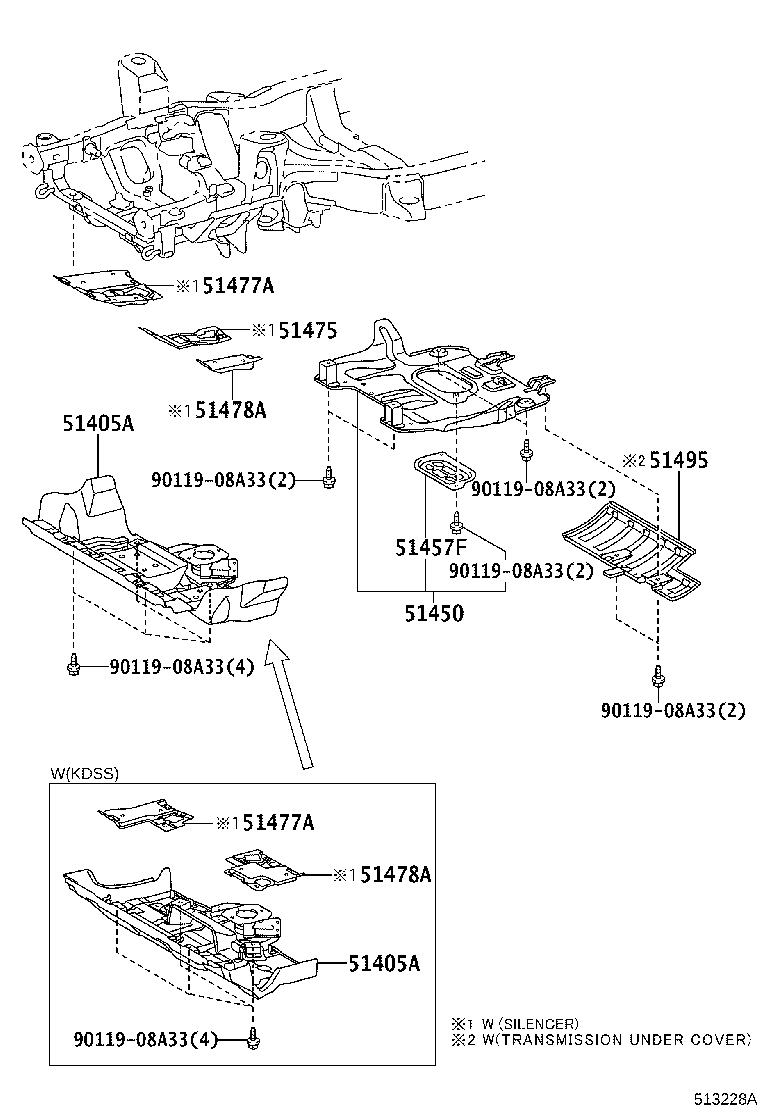

Click highlighted areas on diagram

diagram 51405A 51405A 51450 51457F 51475 51477A 51477A 51478A 51478A 51495 9011908A33 9011908A33 9011908A33 9011908A33 9011908A33 9011908A33
Part # Description Qty Price
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-60210

GRJ150,TRJ150

 1
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-60210

GRJ150,TRJ150

 1
51450 - COVER ASSY, ENGINE UNDER, REAR
51450-60050

GRJ150,TRJ150

 1
51457F - SEAL, ENGINE UNDER COVER
51457-60030

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 1
Common parts
90119-08A33
