TRJ150L-GKTEKX (2017)
Toyota Land Cruiser
(1708- )GDJ15#,GRJ150,KDJ150 ; (2008- )TRJ150..6FC

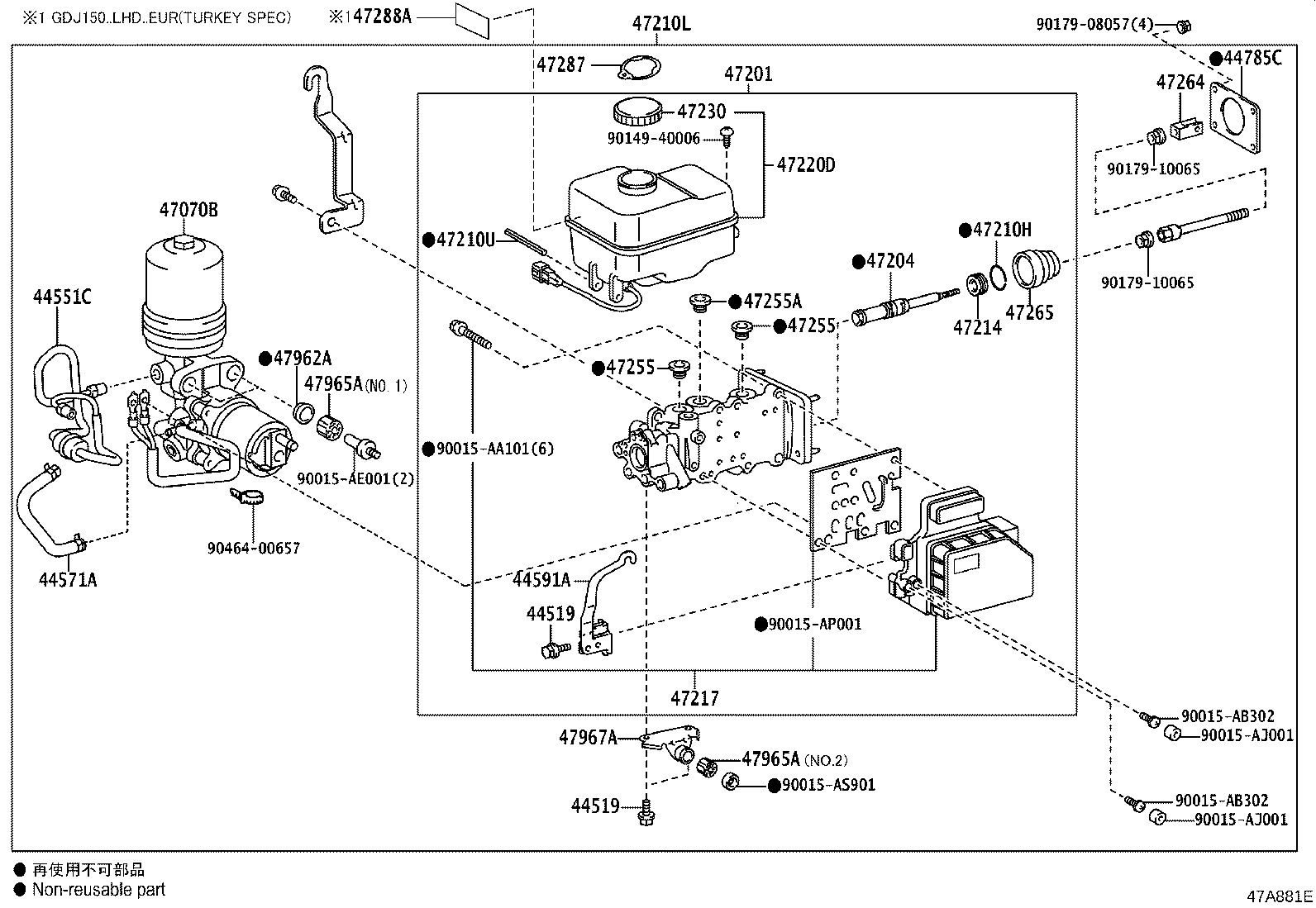

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-24020 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
3 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-24020 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
3 | ||
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-60060 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-60020 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 44591A - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-35070 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
2 | ||
| 44785C - GASKET, BRAKE BOOSTER | ||||
| 44785-60020 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR | ||||
| 47070-60050 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-60A22 |
TRJ150..6FC |
1 | ||
| 47025-60820 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47204 - PISTON, MASTER CYLINDER | ||||
| 47026-60090 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47210H - RING, SNAP(FOR BRAKE MASTER CYLINDER) | ||||
| 90520-32012 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-60B20 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-15803 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47214 - PLUG, MASTER CYLINDER | ||||
| 47027-60090 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47217 - SOLENOID, MASTER CYLINDER | ||||
| 47217-60810 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-60180 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47220-60230 |
TRJ150..6FC |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47230-20140 |
TRJ150 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
2 | ||
| 90029-48001 |
TRJ150 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
2 | ||
| 90029-48001 |
TRJ150 |
2 | ||
| 47255A - GROMMET, MASTER CYLINDER RESERVOIR, NO.2 | ||||
| 31417-35010 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-60020 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 90029-70001 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-60182 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47287-02360 |
TRJ150 |
1 | ||
| 47288A - LABEL, BRAKE FLUID NOTICE | ||||
| 47288-60040 |
TRJ150 |
1 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-60090 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
2 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-30010 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL),NO.1:REFER ILLUST. |
2 | ||
| 90015-AL001 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL),NO.2:REFER ILLUST. |
1 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-30010 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL),NO.1:REFER ILLUST. |
2 | ||
| 90015-AL001 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL),NO.2:REFER ILLUST. |
1 | ||
| 47967A - BRACKET, BRAKE BOOSTER PUMP, NO.1 | ||||
| 47967-60090 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| Common parts | ||||
| 90015-AA101 | ||||
| 90015-AB302 | ||||
| 90015-AE001 | ||||
| 90015-AJ001 | ||||
| 90015-AP001 | ||||
| 90015-AS901 | ||||
| 90149-40006 | ||||
| 90179-08057 | ||||
| 90179-10065 | ||||
| 90464-00657 | ||||

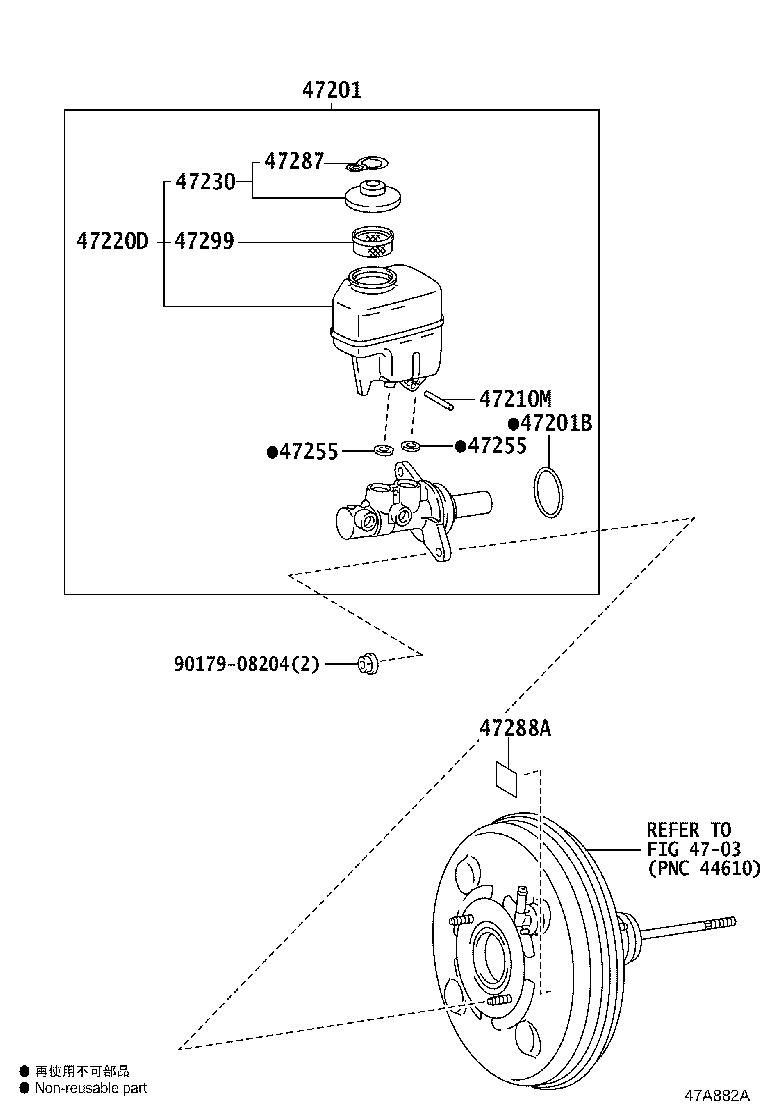

(1708- )TRJ150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-60A22 |
TRJ150..6FC |
1 | ||
| 47025-60820 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
TRJ150 |
1 | ||
| 47210M - PIN, RING(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-15803 |
TRJ150 |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-60180 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47220-60230 |
TRJ150..6FC |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47230-20140 |
TRJ150 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
2 | ||
| 90029-48001 |
TRJ150 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
2 | ||
| 90029-48001 |
TRJ150 |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-60182 |
TRJ150..6FC TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL) |
1 | ||
| 47287-02360 |
TRJ150 |
1 | ||
| 47288A - LABEL, BRAKE FLUID NOTICE | ||||
| 47288-60040 |
TRJ150 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
TRJ150 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
