TRJ150L-GKTEKX (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )TRJ150

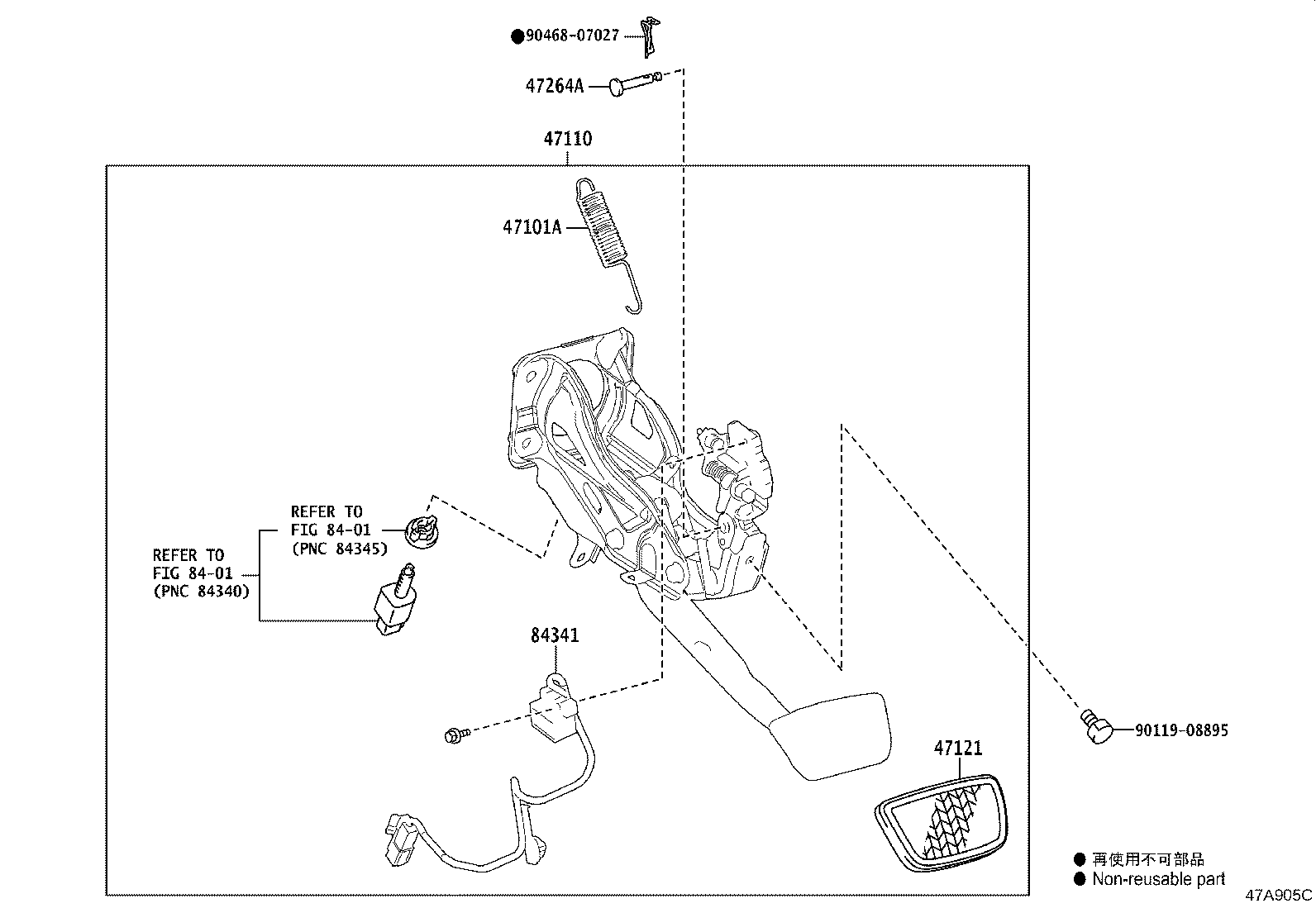

Click highlighted areas on diagram

diagram 47101A 47110 47121 47264A 8401 8401 84341 9011908895 9046807027
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-20034

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-60650

TRJ150..6FC

 1
47110-60651

TRJ150..6FC

 1
47110-60610

TRJ150..6FC

TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL)

 1
47121 - PAD, BRAKE PEDAL
47121-50020

KDJ150..RHD;GDJ15#,GRJ150,TRJ150..6FC

 1
47264A - PIN(FOR PUSH ROD)
90249-06180

TRJ150

 1
90240-06027

TRJ150..6FC

TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL)

 1
84341 - SWITCH, BRAKE PEDAL ROAD SENSING
84341-60021

TRJ150

 1
Common parts
90119-08895
90468-07027
Linked diagrams
8401

(2008- )TRJ150..6FC

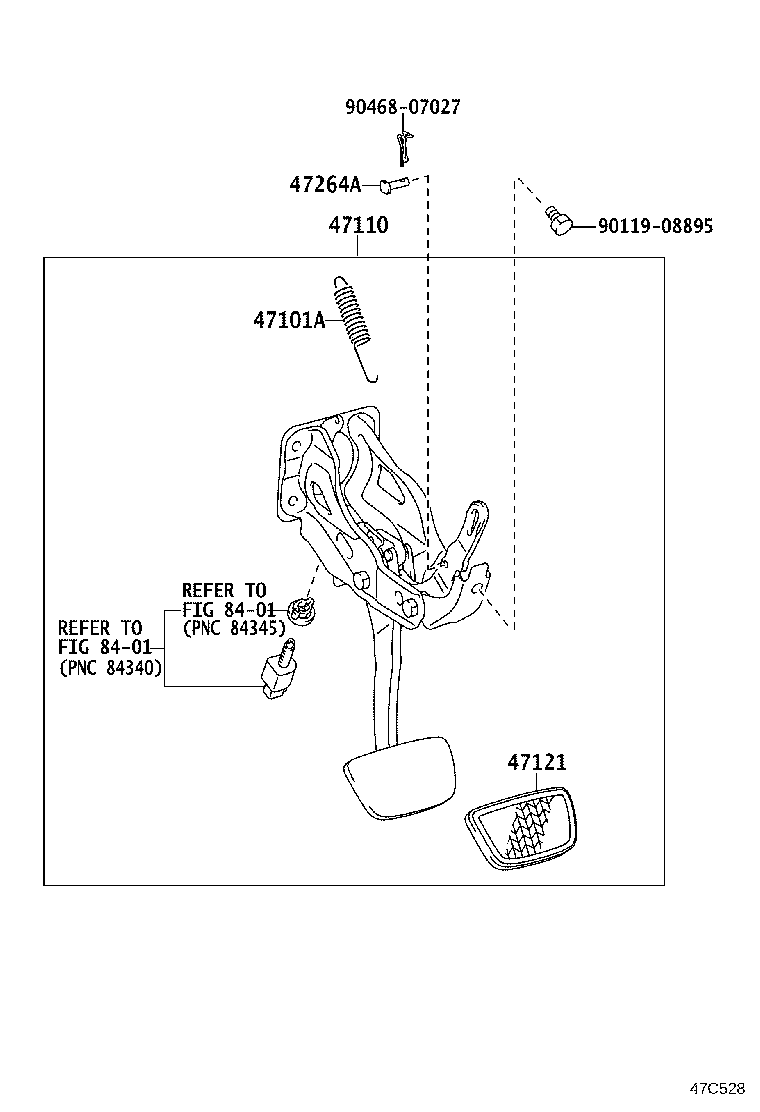

Click highlighted areas on diagram

W(ACTIVE TRACTION CONTROL)

diagram 47101A 47110 47121 47264A 8401 8401 9011908895 9046807027
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-20034

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-60650

TRJ150..6FC

 1
47110-60651

TRJ150..6FC

 1
47110-60610

TRJ150..6FC

TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL)

 1
47121 - PAD, BRAKE PEDAL
47121-50020

KDJ150..RHD;GDJ15#,GRJ150,TRJ150..6FC

 1
47264A - PIN(FOR PUSH ROD)
90249-06180

TRJ150

 1
90240-06027

TRJ150..6FC

TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL)

 1
Common parts
90119-08895
90468-07027
Linked diagrams
8401
