TRJ150L-GKTEKX (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )LHD

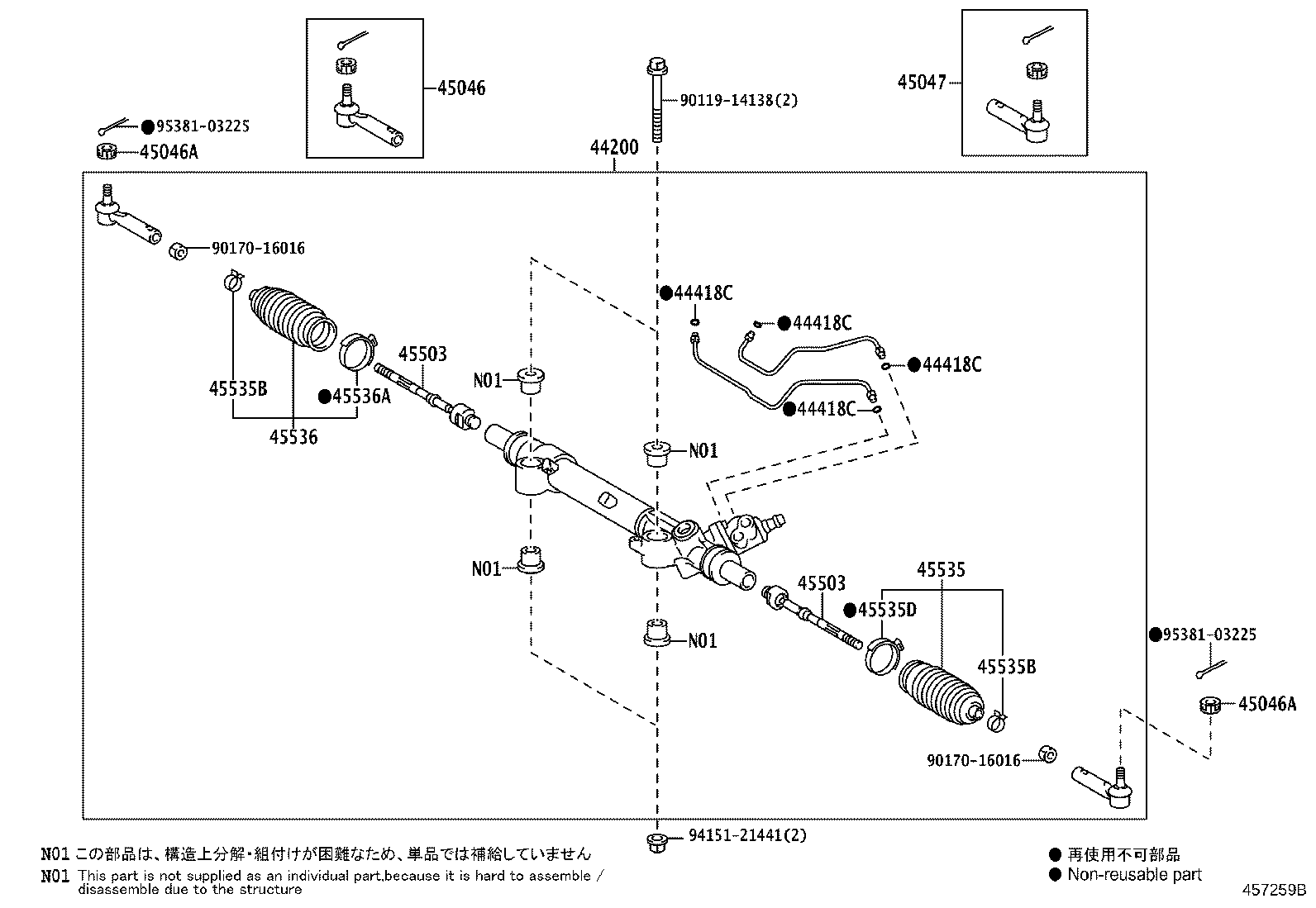

Click highlighted areas on diagram

diagram 44200 44418C 44418C 44418C 44418C 45046 45046A 45046A 45047 45503 45503 45535 45535B 45535B 45535D 45536 45536A 9011914138 9017016016 9017016016 9415121441 9538103225 9538103225
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-60223

GDJ15#,GRJ150,TRJ150..LHD

 1
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-03001

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 4
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-03001

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 4
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-03001

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 4
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-03001

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 4
45046 - END SUB-ASSY, TIE ROD, RH
45046-69245

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-69245

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 1
45503 - END SUB-ASSY, STEERING RACK
45503-60040

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 2
45503 - END SUB-ASSY, STEERING RACK
45503-60040

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 2
45535 - BOOT, STEERING RACK, NO.1
45535-69025

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-60008

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 1
45536 - BOOT, STEERING RACK, NO.2
45535-69015

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-60008

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 1
Common parts
90119-14138
90170-16016
94151-21441
95381-03225
