TRJ150L-GKTEKX (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )TRJ150

Click highlighted areas on diagram

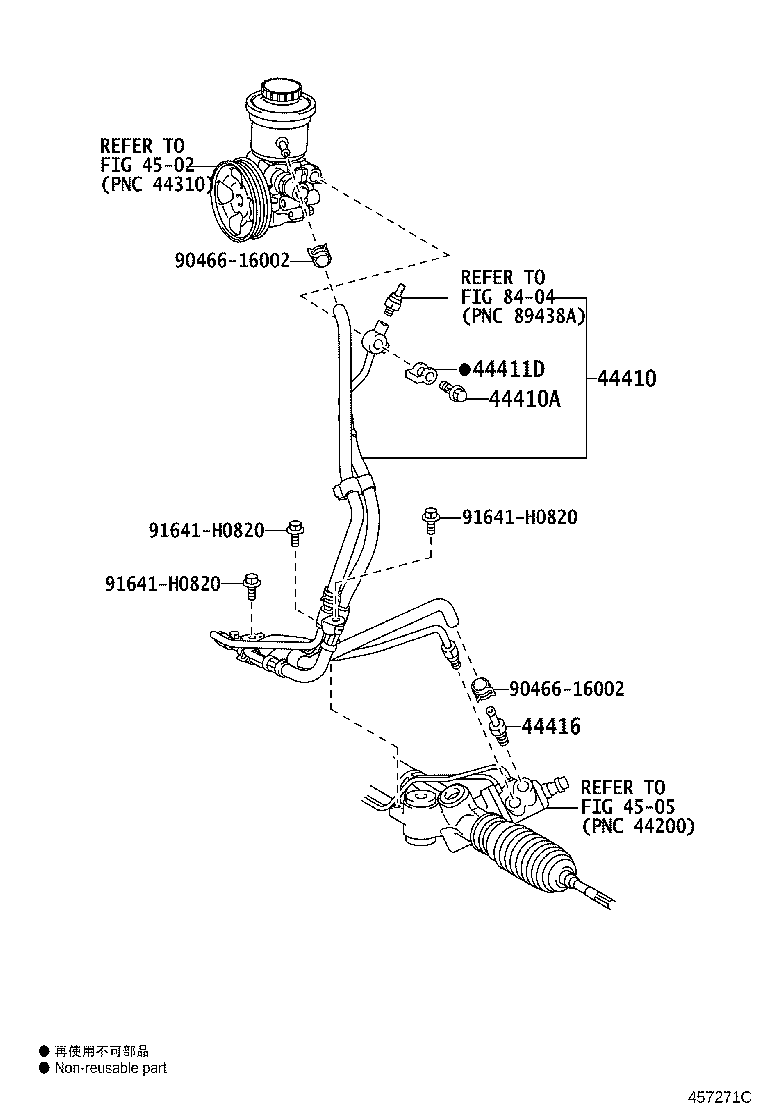

diagram 44410 44410A 44411D 44416 4502 4505 8404 9046616002 9046616002 91641H0820 91641H0820 91641H0820
Part # Description Qty Price
44410 - TUBE ASSY, PRESSURE FEED
44410-60790

TRJ150

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034

GDJ15#,GRJ150,KDJ150,TRJ150

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30040

GDJ15#,GRJ150,KDJ150,TRJ150

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60450

GDJ15#,GRJ150,KDJ150,TRJ150

 1
Common parts
90466-16002
91641-H0820
Linked diagrams
4502
4505
8404
