TRJ150L-GKTEKX (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )

Click highlighted areas on diagram

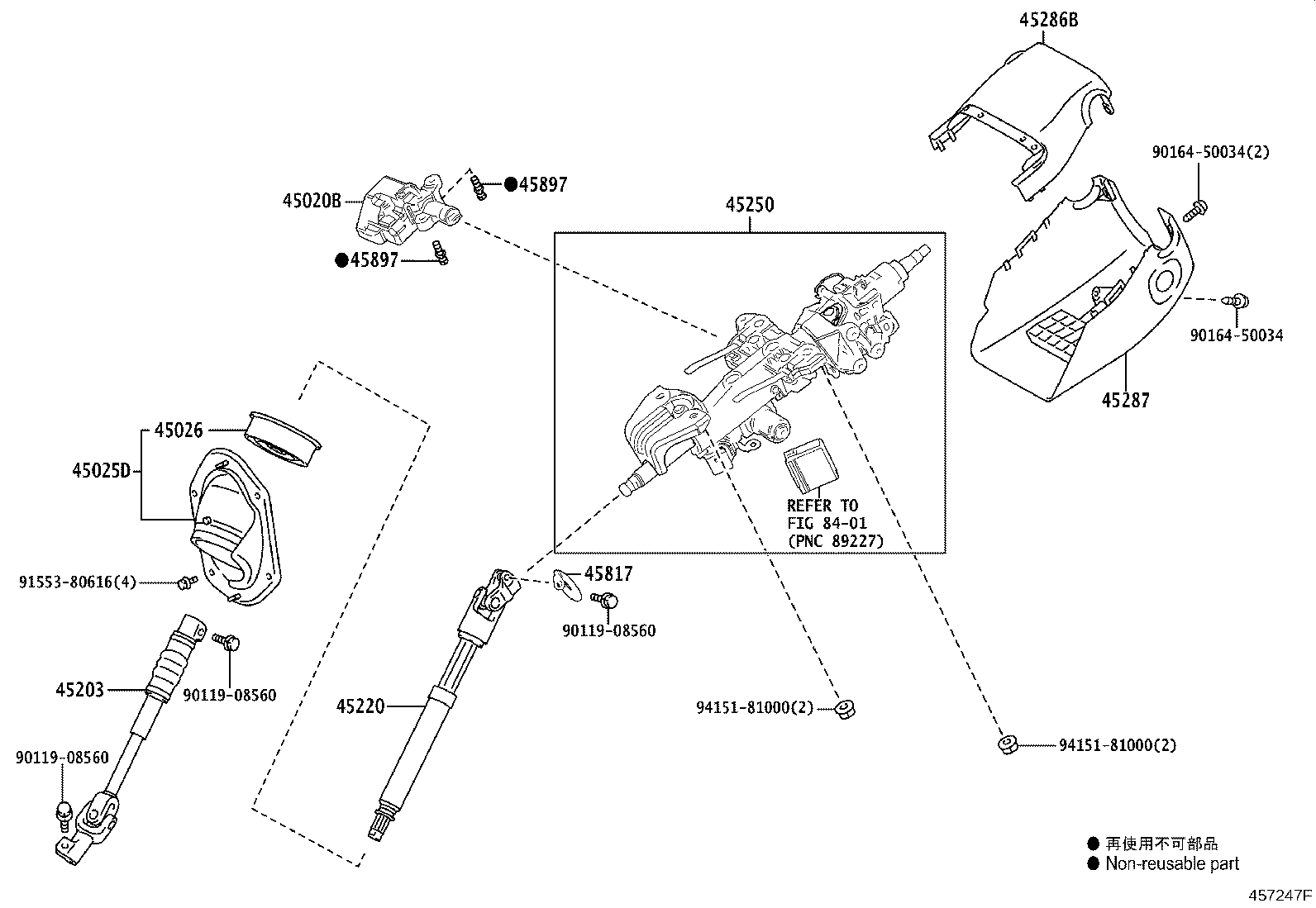

ELECTRIC TILT & TELESCOPIC

diagram 45020B 45025D 45026 45203 45220 45250 45286B 45287 45817 45897 45897 8401 9011908560 9011908560 9011908560 9016450034 9016450034 9155380616 9415181000 9415181000
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-42151

TRJ150..6FC

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-60212

GDJ15#,GRJ150,TRJ150..LHD

 1
45025-60211

GDJ15#,GRJ150,KDJ150,TRJ150..LHD

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-60041

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 1
45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45203-60181

GDJ15#,GRJ150,TRJ150..LHD

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-60280

GDJ15#,GRJ150,TRJ150..LHD

 1
45250 - COLUMN ASSY, STEERING
45250-60C90

TRJ150

 1
45286B - COVER, STEERING COLUMN, UPR
45286-60550E0

TRJ150..6FC

VX PACKAGE,ORCHID BROWN,TRIM4#

 1
45286-60550C0

TRJ150..6FC

VX PACKAGE,BLACK,TRIM2#

 1
45286-60550C0

KDJ150..LHD;GDJ15#,GRJ150,TRJ150

BLACK,TRIM2#

 1
45286-60550E0

KDJ150..LHD;GDJ15#,GRJ150,TRJ150

ORCHID BROWN,TRIM4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-60600E0

TRJ150..6FC

VX PACKAGE,ORCHID BROWN,TRIM4#

 1
45287-60600C0

TRJ150

BLACK,TRIM2#

 1
45287-60600C0

TRJ150..6FC

VX PACKAGE,BLACK,TRIM2#

 1
45287-60600E0

TRJ150

ORCHID BROWN,TRIM4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

KDJ150..LHD;GDJ15#,GRJ150,TRJ150

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

KDJ150..LHD;GDJ15#,GRJ150,TRJ150

 1
Common parts
90119-08560
90164-50034
91553-80616
94151-81000
Linked diagrams
8401

(1708- )

Click highlighted areas on diagram

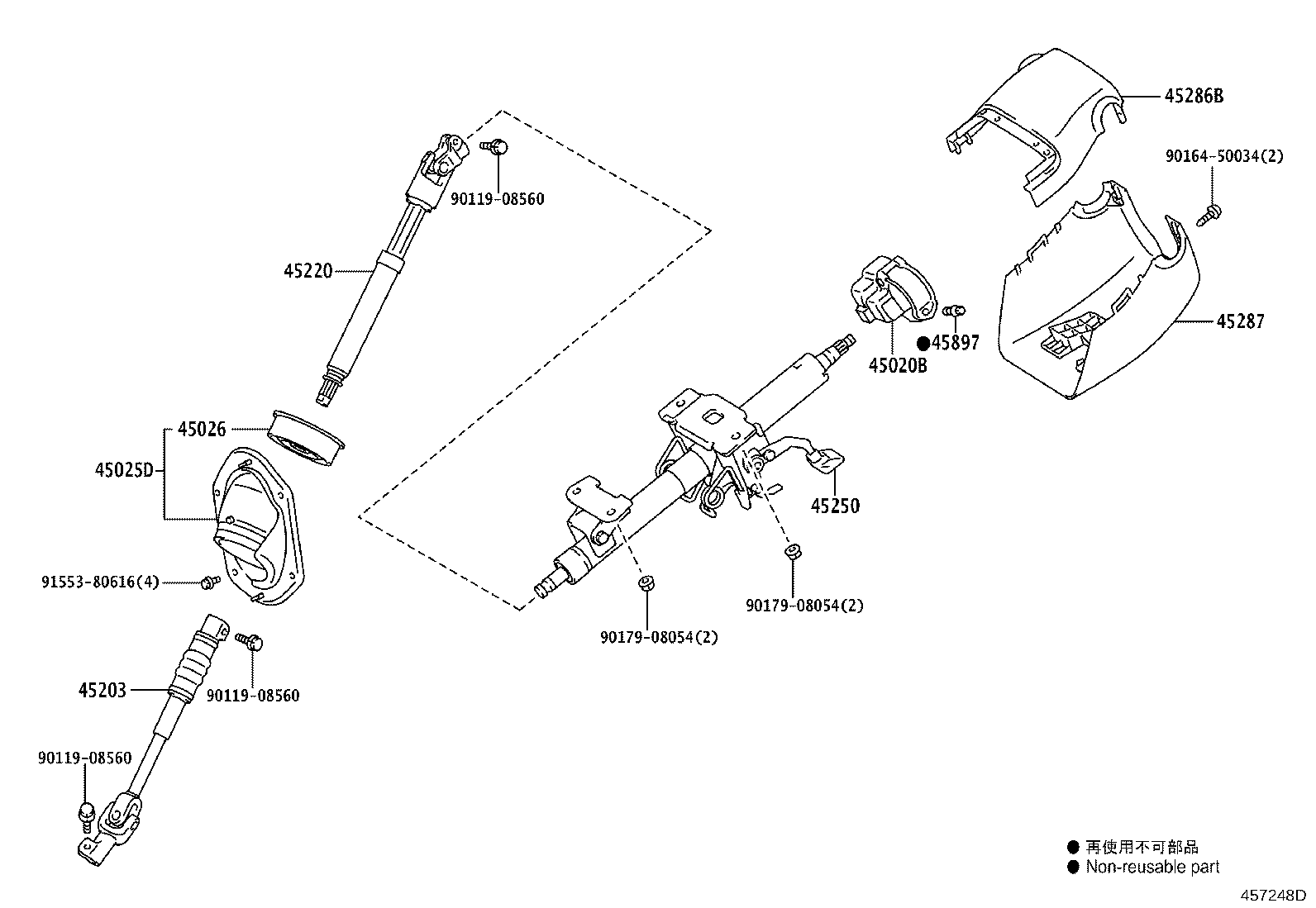

MANUAL TILT&TELESCOPIC(W(SMART))

diagram 45020B 45025D 45026 45203 45220 45250 45286B 45287 45897 9011908560 9011908560 9011908560 9016450034 9017908054 9017908054 9155380616
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-42151

TRJ150..6FC

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-60212

GDJ15#,GRJ150,TRJ150..LHD

 1
45025-60211

GDJ15#,GRJ150,KDJ150,TRJ150..LHD

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-60041

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 1
45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45203-60181

GDJ15#,GRJ150,TRJ150..LHD

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-60280

GDJ15#,GRJ150,TRJ150..LHD

 1
45250 - COLUMN ASSY, STEERING
45250-60C90

TRJ150

 1
45286B - COVER, STEERING COLUMN, UPR
45286-60550E0

TRJ150..6FC

VX PACKAGE,ORCHID BROWN,TRIM4#

 1
45286-60550C0

TRJ150..6FC

VX PACKAGE,BLACK,TRIM2#

 1
45286-60550C0

KDJ150..LHD;GDJ15#,GRJ150,TRJ150

BLACK,TRIM2#

 1
45286-60550E0

KDJ150..LHD;GDJ15#,GRJ150,TRJ150

ORCHID BROWN,TRIM4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-60600E0

TRJ150..6FC

VX PACKAGE,ORCHID BROWN,TRIM4#

 1
45287-60600C0

TRJ150

BLACK,TRIM2#

 1
45287-60600C0

TRJ150..6FC

VX PACKAGE,BLACK,TRIM2#

 1
45287-60600E0

TRJ150

ORCHID BROWN,TRIM4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

KDJ150..LHD;GDJ15#,GRJ150,TRJ150

 1
Common parts
90119-08560
90164-50034
90179-08054
91553-80616

(1708- )

Click highlighted areas on diagram

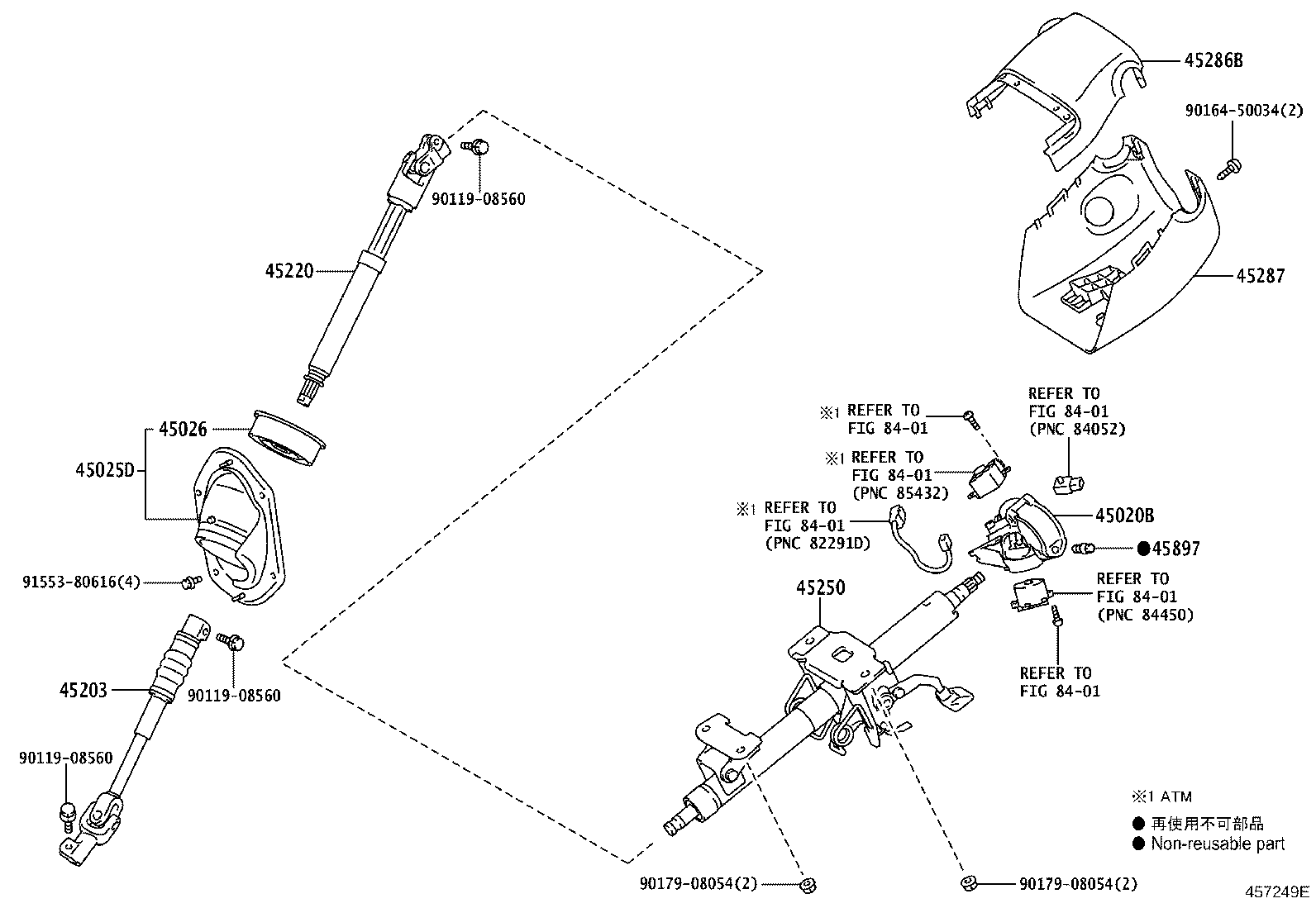

MANUAL TILT&TELESCOPIC(W/O(SMART))

diagram 45020B 45025D 45026 45203 45220 45250 45286B 45287 45897 8401 8401 8401 8401 8401 8401 9011908560 9011908560 9011908560 9016450034 9017908054 9017908054 9155380616
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-42151

TRJ150..6FC

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-60212

GDJ15#,GRJ150,TRJ150..LHD

 1
45025-60211

GDJ15#,GRJ150,KDJ150,TRJ150..LHD

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-60041

KDJ150..RHD;GDJ15#,GRJ150,TRJ150

 1
45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45203-60181

GDJ15#,GRJ150,TRJ150..LHD

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-60280

GDJ15#,GRJ150,TRJ150..LHD

 1
45250 - COLUMN ASSY, STEERING
45250-60C90

TRJ150

 1
45286B - COVER, STEERING COLUMN, UPR
45286-60550E0

TRJ150..6FC

VX PACKAGE,ORCHID BROWN,TRIM4#

 1
45286-60550C0

TRJ150..6FC

VX PACKAGE,BLACK,TRIM2#

 1
45286-60550C0

KDJ150..LHD;GDJ15#,GRJ150,TRJ150

BLACK,TRIM2#

 1
45286-60550E0

KDJ150..LHD;GDJ15#,GRJ150,TRJ150

ORCHID BROWN,TRIM4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-60600E0

TRJ150..6FC

VX PACKAGE,ORCHID BROWN,TRIM4#

 1
45287-60600C0

TRJ150

BLACK,TRIM2#

 1
45287-60600C0

TRJ150..6FC

VX PACKAGE,BLACK,TRIM2#

 1
45287-60600E0

TRJ150

ORCHID BROWN,TRIM4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

KDJ150..LHD;GDJ15#,GRJ150,TRJ150

 1
Common parts
90119-08560
90164-50034
90179-08054
91553-80616
Linked diagrams
8401
