TRJ150L-GKTEKX (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1708- )

Click highlighted areas on diagram

WHEEL HUB ORNAMENT

diagram 42603
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35740

GRJ150..RUS;GDJ15#,TRJ150

*STE,TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM, ACCESSORY,TYPE A:REFER ILLUST.

 4
42603-35740

GRJ150..RUS;KDJ150..LHD;GDJ150,TRJ150

*STE,TYPE A:REFER ILLUST.

 4
4260B-60300

GDJ15#,GRJ150,KDJ150,TRJ150..LHD

*ALU,TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM,TYPE B:REFER ILLUST.

 4
4260B-60530

GDJ150,GRJ150,TRJ150..LHD..6FC

*ALU,TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE B:REFER ILLUST.

 4
4260B-60290

GRJ150..RUS;KDJ150..LHD;GDJ150,TRJ150

*ALU,TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM,TYPE B:REFER ILLUST.

 4

ILLUST NO. 3 OF 3(1708- )RUS

Click highlighted areas on diagram

BALANCE WEIGHT

diagram 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203167 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203267 9094203273 9094203360 9094203361 9094203362 9094203363 9094203364 9094203365 9094203366 9094203367 9094203368 9094203369
Part # Description Qty Price
Common parts
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273
90942-03360
90942-03361
90942-03362
90942-03363
90942-03364
90942-03365
90942-03366
90942-03367
90942-03368
90942-03369

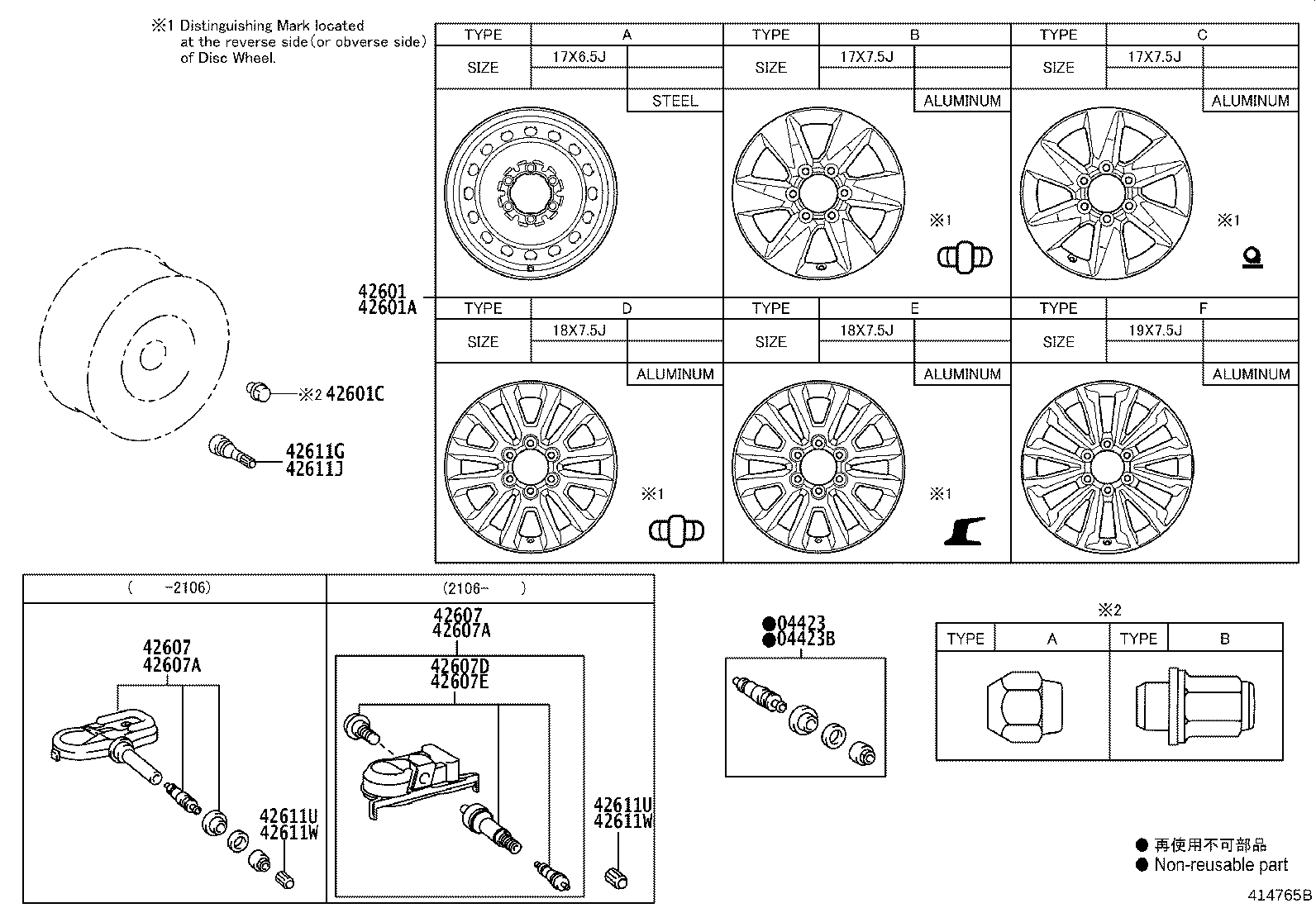

ILLUST NO. 1 OF 3(1708- )

Click highlighted areas on diagram

DISC WHEEL

diagram 04423 04423B 42601 42601A 42601C 42607 42607 42607A 42607A 42607D 42607E 42611G 42611J 42611U 42611U 42611W 42611W
Part # Description Qty Price
42601 - WHEEL, DISC
42611-60B70

GRJ150..RUS;KDJ150..LHD;GDJ15#,TRJ150

17X6.5J, #,TYPE A:REFER ILLUST.

 4
4261A-60190

GDJ150..RUS;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD

18X7.5J, #,TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM,TYPE D:REFER ILLUST.

 4
4261A-60210

GDJ150..RUS;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD

18X7.5J, #,TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM,TYPE E:REFER ILLUST.

 4
42611-60D80

GDJ150..RHD;GDJ150,GRJ150,TRJ150..RUS

17X7.5J, #,TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM,TYPE C:REFER ILLUST.

 4
42611-60B71

GRJ150..RUS;GDJ150,KDJ150,TRJ150

17X6.5J, #,TYPE A:REFER ILLUST.

 4
42611-60D60

GDJ150..RHD;GDJ150,GRJ150,TRJ150..RUS

17X7.5J, #,TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM,TYPE B:REFER ILLUST.

 4
42611-60F80

TRJ150..6FC;GDJ150..LHD..6FC..EUR

18X7.5J,#,TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE E:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
4261A-60210

GDJ150..RUS;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD

18X7.5J, #,TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM,TYPE E:REFER ILLUST.

 1
42611-60B70

GRJ150..RUS;KDJ150..LHD;GDJ15#,TRJ150

17X6.5J, #,TYPE A:REFER ILLUST.

 1
4261A-60190

GDJ150..RUS;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD

18X7.5J, #,TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM,TYPE D:REFER ILLUST.

 1
42611-60B71

GRJ150..RUS;GDJ150,KDJ150,TRJ150

17X6.5J, #,TYPE A:REFER ILLUST.

 1
42611-60D60

GDJ150..RHD;GDJ150,GRJ150,TRJ150..RUS

17X7.5J, #,TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM,TYPE B:REFER ILLUST.

 1
42611-60D80

GDJ150..RHD;GDJ150,GRJ150,TRJ150..RUS

17X7.5J, #,TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM,TYPE C:REFER ILLUST.

 1
42611-60F80

GDJ150,GRJ150,TRJ150..LHD..6FC

18X7.5J,#,TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE E:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01058

GRJ150..RUS;KDJ150..LHD;GDJ150,TRJ150

TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM,TYPE B:REFER ILLUST.

 24
90942-01104

GRJ150..RUS;KDJ150..LHD;GDJ150,TRJ150

TYPE A:REFER ILLUST.

 24
90942-01058

GDJ150..LHD..6FC;GRJ150,TRJ150..6FC..RUS

TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE B:REFER ILLUST.

 24
90942-01058

GRJ150..RUS;GDJ15#,KDJ150,TRJ150..LHD

TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM,TYPE B:REFER ILLUST.

 24
90942-01104

GRJ150..RUS;GDJ15#,TRJ150

TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM, ACCESSORY,TYPE A:REFER ILLUST.

 24
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

TRJ150

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

TRJ150

 1
