TRJ150L-GKTEKX (2017)
Toyota Land Cruiser

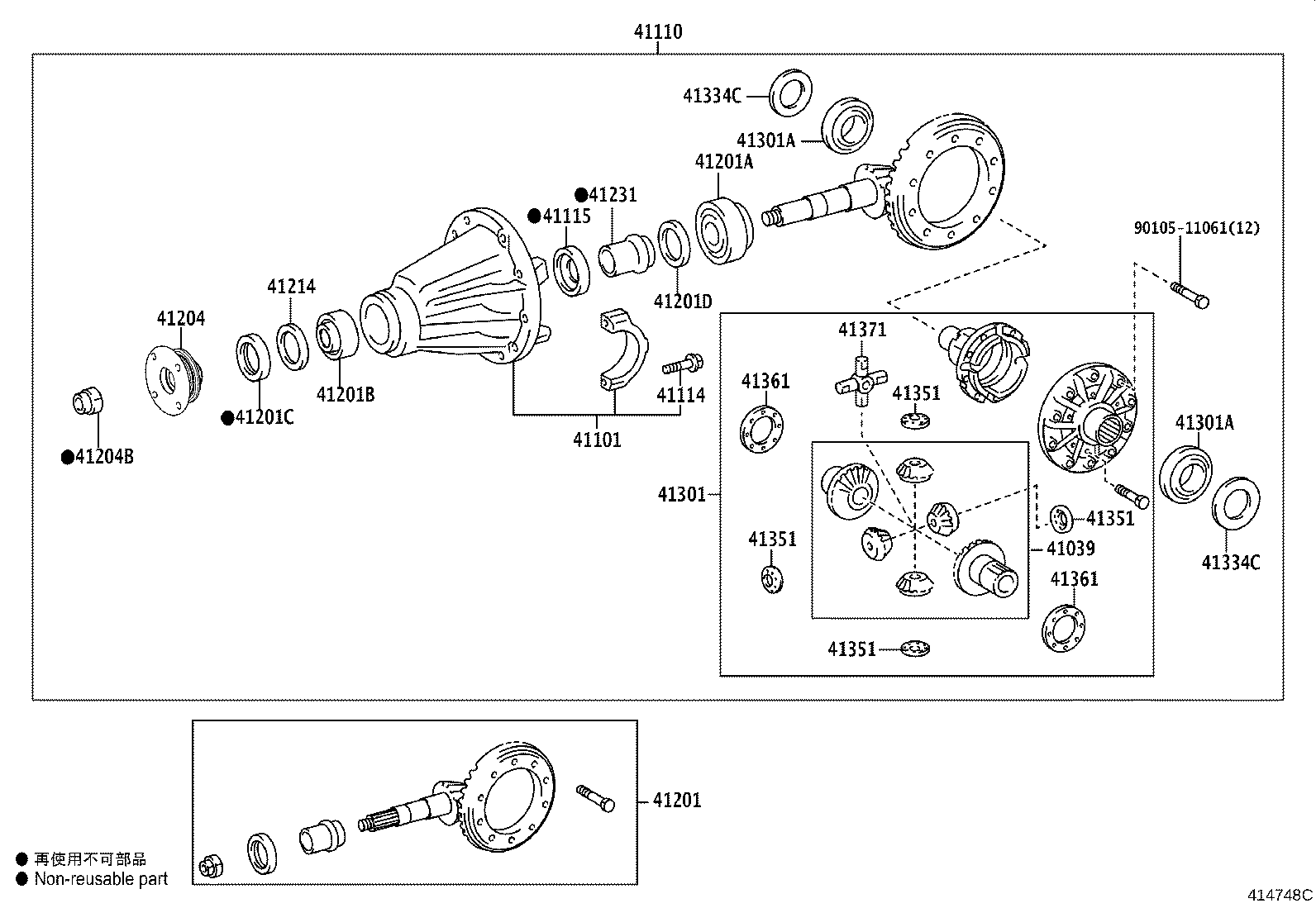

ILLUST NO. 1 OF 2(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34080 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35180 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60C60 |
TRJ150..6FC *FGR=43:9=4.777 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-60020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80784 |
TRJ150..6FC *FGR=43:9=4.777 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40132 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-35157 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-44008 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-64062 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=1.85 |
1 | ||
| 90564-64070 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=1.93 |
1 | ||
| 90564-64072 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=1.95 |
1 | ||
| 90564-64076 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=1.99 |
1 | ||
| 90564-64064 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=1.87 |
1 | ||
| 90564-64082 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.05 |
1 | ||
| 90564-64078 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.01 |
1 | ||
| 90564-64068 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=1.91 |
1 | ||
| 90564-64090 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.13 |
1 | ||
| 90564-64088 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.11 |
1 | ||
| 90564-64084 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.07 |
1 | ||
| 90564-64098 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.21 |
1 | ||
| 90564-64074 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=1.97 |
1 | ||
| 90564-64102 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.25 |
1 | ||
| 90564-64108 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.31 |
1 | ||
| 90564-64086 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.09 |
1 | ||
| 90564-64080 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.03 |
1 | ||
| 90564-64066 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=1.89 |
1 | ||
| 90564-64100 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.23 |
1 | ||
| 90564-64096 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.19 |
1 | ||
| 90564-64094 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.17 |
1 | ||
| 90564-64104 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.27 |
1 | ||
| 90564-64092 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.15 |
1 | ||
| 90564-64106 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.29 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35120 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-22029 |
GDJ15#,GRJ150,KDJ150,TRJ150 OD=43 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-35030 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-35050 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-35180 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50130 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50130 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-52005 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.70,MARK 05 |
2 | ||
| 90201-52003 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.64,MARK 03 |
2 | ||
| 90564-46014 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.60,MARK 32 |
2 | ||
| 90201-52001 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.58,MARK 01 |
2 | ||
| 90564-46016 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.66,MARK 34 |
2 | ||
| 90564-46046 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.46,MARK 64 |
2 | ||
| 90564-46017 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.68,MARK 35 |
2 | ||
| 90564-46044 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.42,MARK 62 |
2 | ||
| 90201-52007 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.76,MARK 07 |
2 | ||
| 90564-46015 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.62,MARK 33 |
2 | ||
| 90564-46049 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.52,MARK 67 |
2 | ||
| 90564-46018 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.72,MARK 36 |
2 | ||
| 90564-46048 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.50,MARK 66 |
2 | ||
| 90564-46045 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.44,MARK 63 |
2 | ||
| 90564-46051 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.56,MARK 69 |
2 | ||
| 90564-46047 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.48,MARK 65 |
2 | ||
| 90564-46053 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.08,MARK 71 |
2 | ||
| 90564-46060 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.22,MARK 78 |
2 | ||
| 90564-46056 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.14,MARK 74 |
2 | ||
| 90564-46058 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.18,MARK 76 |
2 | ||
| 90564-46055 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.12,MARK 73 |
2 | ||
| 90564-46061 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.24,MARK 79 |
2 | ||
| 90564-46057 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.16,MARK 75 |
2 | ||
| 90564-46019 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.74,MARK 37 |
2 | ||
| 90564-46052 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.06,MARK 70 |
2 | ||
| 90564-46063 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.28,MARK 81 |
2 | ||
| 90564-46065 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.32,MARK 83 |
2 | ||
| 90564-46050 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.54,MARK 68 |
2 | ||
| 90564-46054 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.10,MARK 72 |
2 | ||
| 90564-46059 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.20,MARK 77 |
2 | ||
| 90564-46069 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.40,MARK 87 |
2 | ||
| 90564-46064 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.30,MARK 82 |
2 | ||
| 90564-46066 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.34,MARK 84 |
2 | ||
| 90564-46067 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.36,MARK 85 |
2 | ||
| 90564-46068 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.38,MARK 86 |
2 | ||
| 90564-46062 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.26,MARK 80 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-52005 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.70,MARK 05 |
2 | ||
| 90201-52003 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.64,MARK 03 |
2 | ||
| 90564-46014 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.60,MARK 32 |
2 | ||
| 90201-52001 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.58,MARK 01 |
2 | ||
| 90564-46016 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.66,MARK 34 |
2 | ||
| 90564-46046 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.46,MARK 64 |
2 | ||
| 90564-46017 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.68,MARK 35 |
2 | ||
| 90564-46044 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.42,MARK 62 |
2 | ||
| 90201-52007 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.76,MARK 07 |
2 | ||
| 90564-46015 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.62,MARK 33 |
2 | ||
| 90564-46049 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.52,MARK 67 |
2 | ||
| 90564-46018 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.72,MARK 36 |
2 | ||
| 90564-46048 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.50,MARK 66 |
2 | ||
| 90564-46045 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.44,MARK 63 |
2 | ||
| 90564-46051 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.56,MARK 69 |
2 | ||
| 90564-46047 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.48,MARK 65 |
2 | ||
| 90564-46053 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.08,MARK 71 |
2 | ||
| 90564-46060 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.22,MARK 78 |
2 | ||
| 90564-46056 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.14,MARK 74 |
2 | ||
| 90564-46058 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.18,MARK 76 |
2 | ||
| 90564-46055 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.12,MARK 73 |
2 | ||
| 90564-46061 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.24,MARK 79 |
2 | ||
| 90564-46057 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.16,MARK 75 |
2 | ||
| 90564-46019 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.74,MARK 37 |
2 | ||
| 90564-46052 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.06,MARK 70 |
2 | ||
| 90564-46063 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.28,MARK 81 |
2 | ||
| 90564-46065 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.32,MARK 83 |
2 | ||
| 90564-46050 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.54,MARK 68 |
2 | ||
| 90564-46054 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.10,MARK 72 |
2 | ||
| 90564-46059 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.20,MARK 77 |
2 | ||
| 90564-46069 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.40,MARK 87 |
2 | ||
| 90564-46064 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.30,MARK 82 |
2 | ||
| 90564-46066 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.34,MARK 84 |
2 | ||
| 90564-46067 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.36,MARK 85 |
2 | ||
| 90564-46068 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.38,MARK 86 |
2 | ||
| 90564-46062 |
GDJ15#,GRJ150,KDJ150,TRJ150 T=2.26,MARK 80 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35310 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 T=0.9 |
2 | ||
| 41361-35320 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 T=1.0 |
2 | ||
| 41361-35330 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 T=1.1 |
2 | ||
| 41361-35340 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 T=1.2 |
2 | ||
| 41361-35350 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 T=1.3 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35310 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 T=0.9 |
2 | ||
| 41361-35320 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 T=1.0 |
2 | ||
| 41361-35330 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 T=1.1 |
2 | ||
| 41361-35340 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 T=1.2 |
2 | ||
| 41361-35350 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 T=1.3 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-35040 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 90105-11061 | ||||

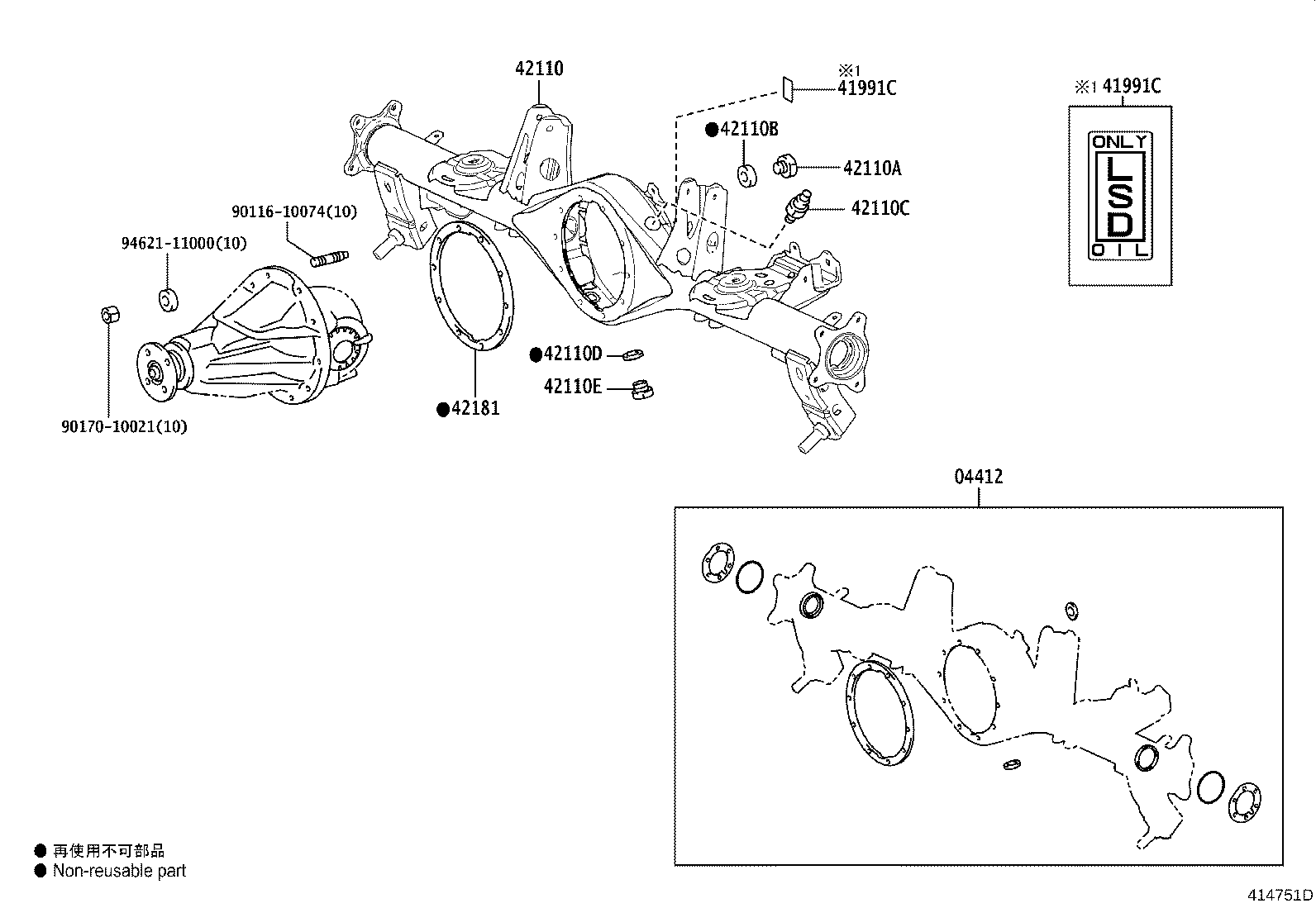

ILLUST NO. 2 OF 2(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-60501 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60A91 |
GDJ150,GRJ150,TRJ150..RUS UKRAINE SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM |
1 | ||
| 42110-60A91 |
GDJ150,GRJ150,TRJ150..RUS TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM |
1 | ||
| 42110-60A91 |
TRJ150..6FC WITHOUT(DESTINATION PACKAGE(EUROPE))&VIETNAM SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM |
1 | ||
| 42110-60A81 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 42110-60A91 |
GDJ150,GRJ150,TRJ150..6FC..RUS TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK) |
1 | ||
| 42110-60A91 |
GDJ150,GRJ150,TRJ150..6FC..RUS UKRAINE SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK) |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60140 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 90116-10074 | ||||
| 90170-10021 | ||||
| 94621-11000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
