TRJ150L-GKTEKX (2017)
Toyota Land Cruiser
Production
Aug 2017
-
Sep 9999
Engine
2TRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1708- )TRJ150..6FC

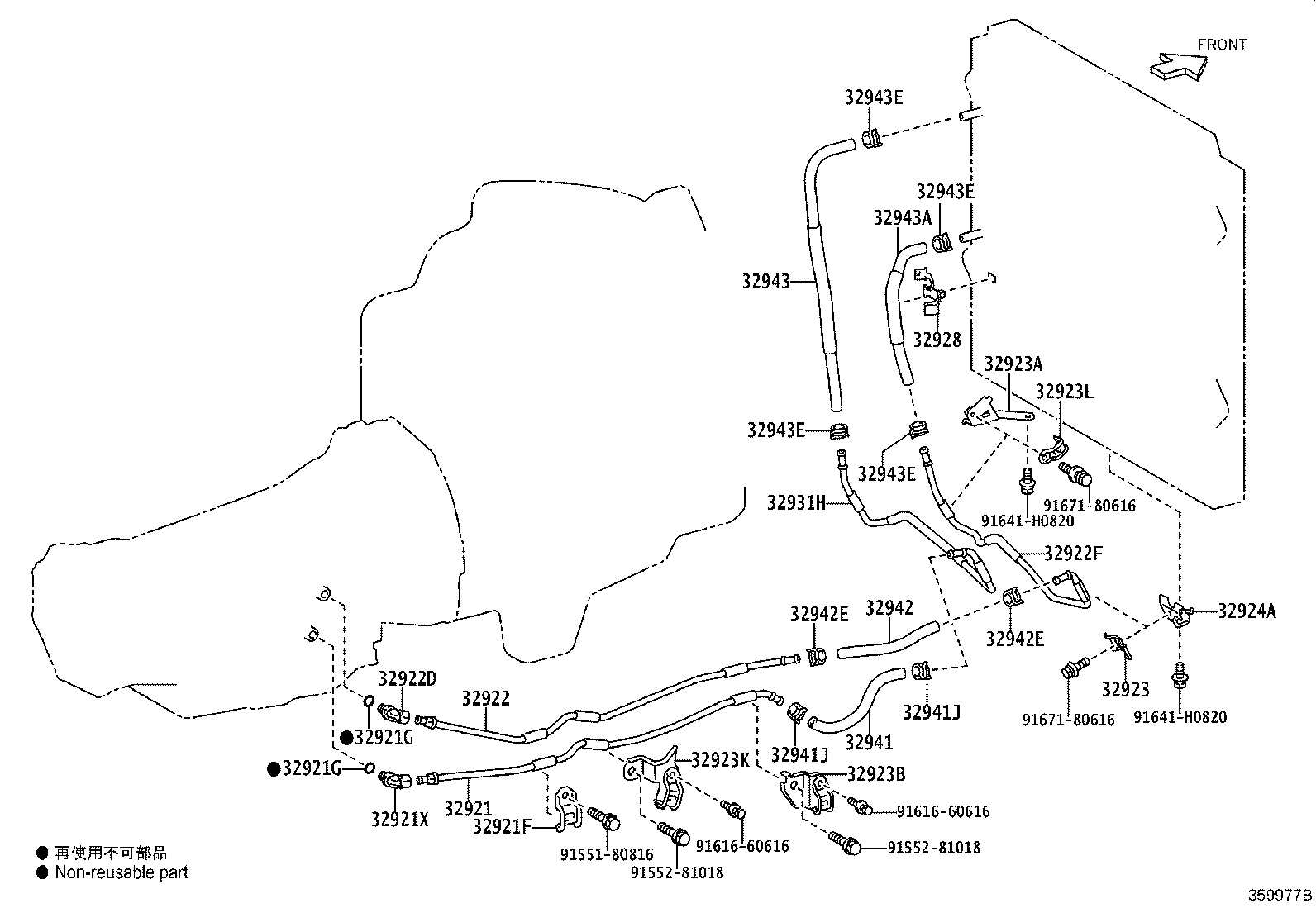

Click highlighted areas on diagram
AC60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-60500 |
TRJ150..6FC |
1 | ||
| 32921F - CLAMP(FOR OIL COOLER TUBE) | ||||
| 32928-60190 |
GDJ15#,TRJ150..6FC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
GDJ15#,GRJ150,KDJ150,TRJ150..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
GDJ15#,GRJ150,KDJ150,TRJ150..ATM |
2 | ||
| 32921X - UNION OR ELBOW, OIL COOLER INLET | ||||
| 90407-16009 |
GDJ15#,TRJ150..6FC |
1 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-60530 |
TRJ150..6FC |
1 | ||
| 32922D - UNION OR ELBOW, OIL COOLER OUTLET | ||||
| 90407-16009 |
GDJ15#,TRJ150..6FC |
1 | ||
| 32922F - TUBE, OIL COOLER OUTLET, NO.2 | ||||
| 32922-60480 |
TRJ150..6FC |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32928-60170 |
TRJ150..6FC |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-60190 |
TRJ150..6FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32909-60240 |
TRJ150..6FC |
1 | ||
| 32923K - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2 | ||||
| 32909-60300 |
TRJ150..6FC |
1 | ||
| 32923L - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3 | ||||
| 32928-60180 |
TRJ150..6FC |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 32924-60170 |
TRJ150..6FC |
1 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-60100 |
TRJ150..6FC |
1 | ||
| 32931H - TUBE, OIL COOLER INLET, NO.2 | ||||
| 32921-60450 |
TRJ150..6FC |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-60410 |
TRJ150..6FC |
1 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
KDJ150..RHD;GDJ15#,TRJ150..6FC |
2 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
KDJ150..RHD;GDJ15#,TRJ150..6FC |
2 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-60570 |
TRJ150..6FC |
1 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
KDJ150..RHD;TRJ150..6FC |
2 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
KDJ150..RHD;TRJ150..6FC |
2 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-60710 |
TRJ150..6FC |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32943-60720 |
TRJ150..6FC |
1 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRJ150..6FC |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRJ150..6FC |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRJ150..6FC |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRJ150..6FC |
4 | ||
| Common parts | ||||
| 91551-80816 | ||||
| 91552-81018 | ||||
| 91616-60616 | ||||
| 91641-H0820 | ||||
| 91671-80616 | ||||
