TRJ150L-GKTEKX (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )ATM

Click highlighted areas on diagram

diagram 33504F 33550 33820B 33823 33823 33823C 33823C 3513 8401 9017806012 9017806012 9017908054 9046812023 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60540E0

GDJ150,TRJ150..6FC..RUS

VX PACKAGE OR TX-L PACKAGE,ORCHID BROWN,TRIM4#

 1
33504-60540E0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*LES(COLOR) & WITHOUT(AVS),ORCHID BROWN,TRIM4#

 1
33504-60540C0

GDJ150,TRJ150..6FC..RUS

VX PACKAGE OR TX-L PACKAGE,BLACK,TRIM2#

 1
33504-60540C0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*LES(COLOR) & WITHOUT(AVS),BLACK,TRIM2#

 1
33504-60540C0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*LES & WITHOUT(AVS),BLACK,TRIM2#

 1
33504-60530E0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

ORCHID BROWN,TRIM4#

 1
33504-60540C0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*LES & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#

 1
33504-60540C0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2#

 1
33504-60540E0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4#

 1
33504-60540C0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*FAS & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#

 1
33504-60530C0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

BLACK,TRIM2#

 1
33504-60540E0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*LES & WITHOUT(AVS),ORCHID BROWN,TRIM4#

 1
33504-60540E0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*LES & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM4#

 1
33504-60540E0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*FAS & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM4#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-60C40

TRJ150..6FC

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-60200

TRJ150..6FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-60030

GDJ15#,GRJ150,TRJ150..6FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-60030

GDJ15#,GRJ150,TRJ150..6FC

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

KDJ150..RHD;GDJ15#,GRJ150,TRJ150..6FC

 2
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

KDJ150..RHD;GDJ15#,GRJ150,TRJ150..6FC

 2
Common parts
90178-06012
90179-08054
90468-12023
91631-60825
Linked diagrams
3513
8401

(1708- )6F

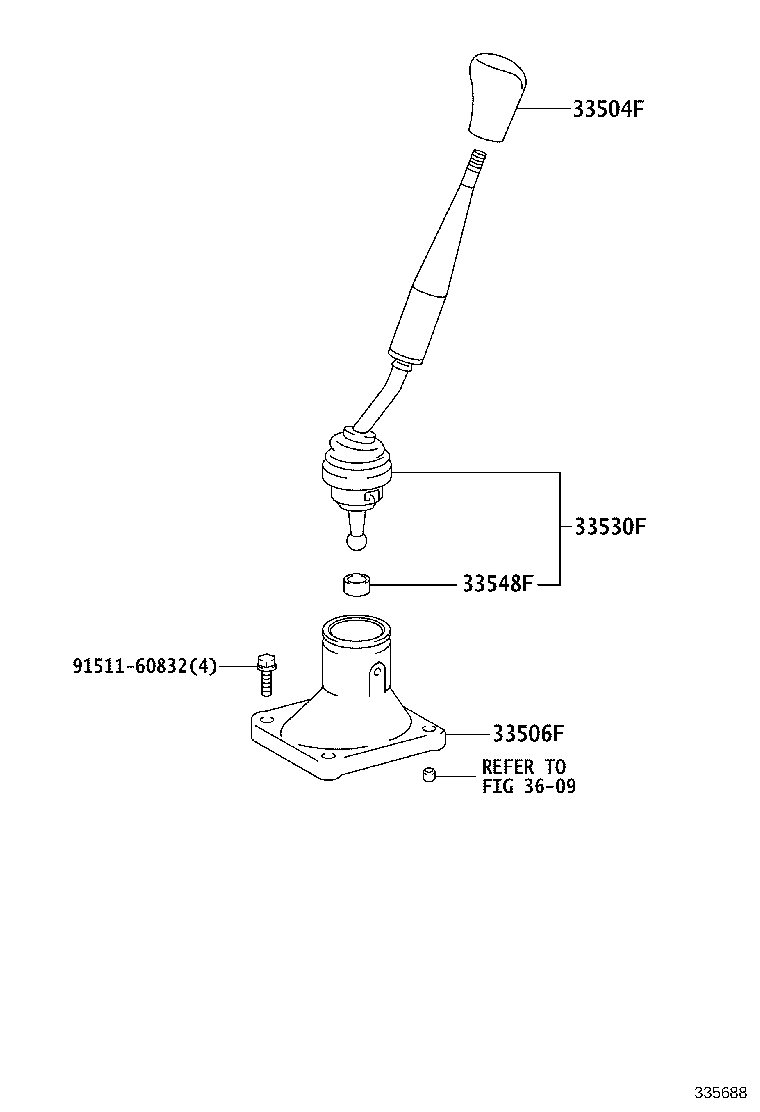

Click highlighted areas on diagram

diagram 33504F 33506F 33530F 33548F 3609 9151160832
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60540E0

GDJ150,TRJ150..6FC..RUS

VX PACKAGE OR TX-L PACKAGE,ORCHID BROWN,TRIM4#

 1
33504-60540E0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*LES(COLOR) & WITHOUT(AVS),ORCHID BROWN,TRIM4#

 1
33504-60540C0

GDJ150,TRJ150..6FC..RUS

VX PACKAGE OR TX-L PACKAGE,BLACK,TRIM2#

 1
33504-60540C0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*LES(COLOR) & WITHOUT(AVS),BLACK,TRIM2#

 1
33504-60540C0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*LES & WITHOUT(AVS),BLACK,TRIM2#

 1
33504-60530E0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

ORCHID BROWN,TRIM4#

 1
33504-60540C0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*LES & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#

 1
33504-60540C0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2#

 1
33504-60540E0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4#

 1
33504-60540C0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*FAS & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#

 1
33504-60530C0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

BLACK,TRIM2#

 1
33504-60540E0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*LES & WITHOUT(AVS),ORCHID BROWN,TRIM4#

 1
33504-60540E0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*LES & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM4#

 1
33504-60540E0

KDJ150..LHD..5FC;GDJ15#,TRJ150..6FC

*FAS & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM4#

 1
Common parts
91511-60832
Linked diagrams
3609
