TRJ150L-GKTEKX (2017)
Toyota Land Cruiser
Production
Aug 2017
-
Sep 9999
Engine
2TRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1708- )2TRFE

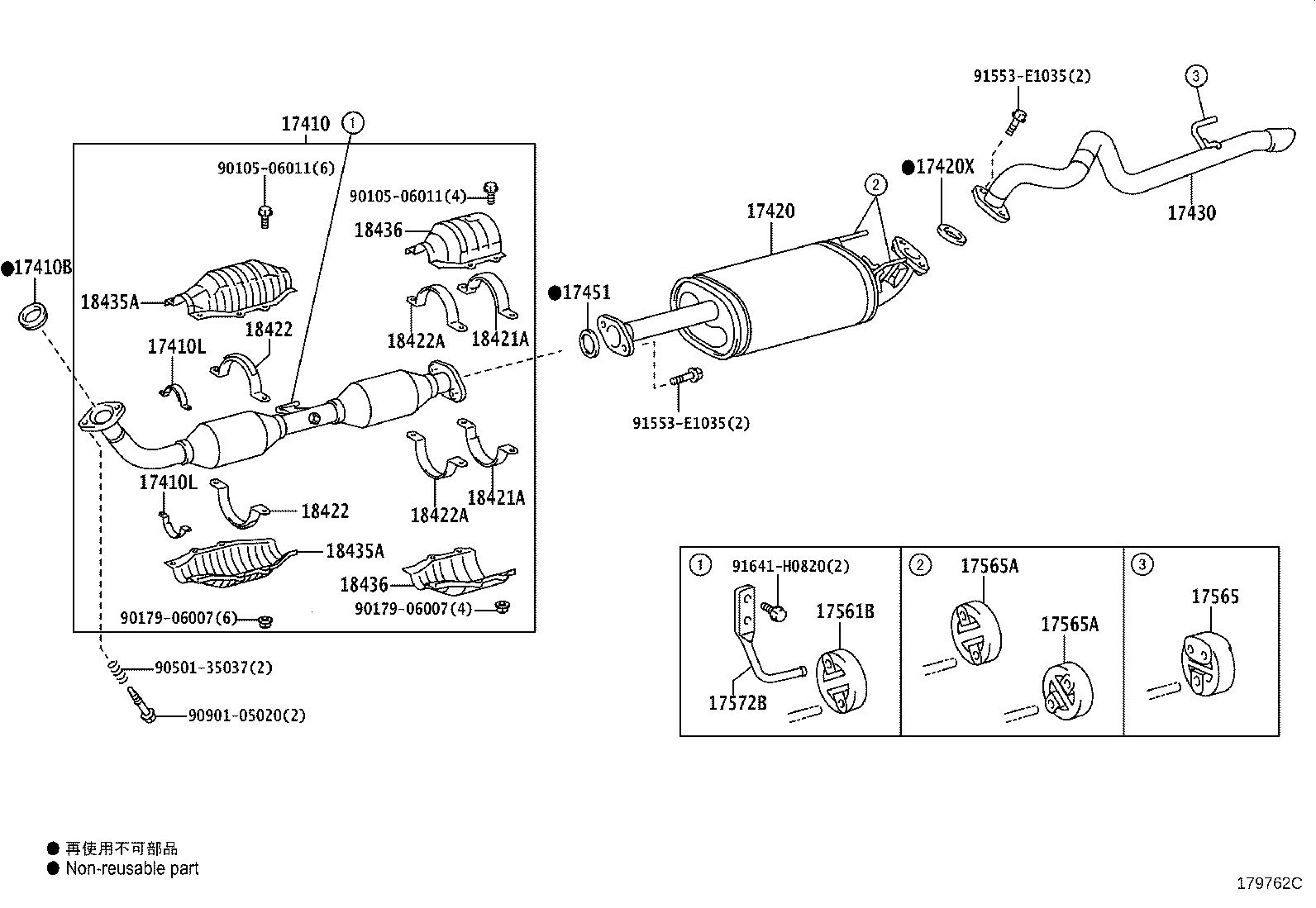

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-75690 |
2TRFE..TRJ150 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-22070 |
1GDFTV,2TRFE..GDJ15#,TRJ150 |
1 | ||
| 17410L - STAY, EXHAUST PIPE PROTECTOR (FOR FRONT) | ||||
| 17541-75030 |
2TRFE..TRJ150 |
2 | ||
| 17410L - STAY, EXHAUST PIPE PROTECTOR (FOR FRONT) | ||||
| 17541-75030 |
2TRFE..TRJ150 |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-75650 |
2TRFE..TRJ150 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06090 |
1KDFTV..KDJ150..RHD;1G#,2TRFE..GDJ15#,GRJ150,TRJ150 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-31870 |
1KDFTV..KDJ150..RHD;1G#,2TRFE..GDJ150,GRJ150,TRJ150 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06090 |
1GDFTV,2TRFE..GDJ15#,TRJ150 |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17565-22040 |
1KDFTV..KDJ150..RHD;1GDFTV,2TRFE..GDJ15#,TRJ150 |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-31050 |
1GRFE,2TRFE..GRJ150,TRJ150 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-22040 |
1GDFTV,2TRFE..GDJ155,TRJ150 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-22040 |
1GDFTV,2TRFE..GDJ155,TRJ150 |
2 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-75290 |
2TRFE..TRJ150 |
1 | ||
| 18421A - STAY, CONVERTER PROTECTOR, LH | ||||
| 18421-75010 |
1GRFE,2TRFE..GRJ150,TRJ150 |
2 | ||
| 18421A - STAY, CONVERTER PROTECTOR, LH | ||||
| 18421-75010 |
1GRFE,2TRFE..GRJ150,TRJ150 |
2 | ||
| 18422 - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-75020 |
2TRFE..TRJ150 |
2 | ||
| 18422 - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-75020 |
2TRFE..TRJ150 |
2 | ||
| 18422A - STAY, CONVERTER PROTECTOR, NO.3 | ||||
| 18421-75040 |
2TRFE..TRJ150 |
2 | ||
| 18422A - STAY, CONVERTER PROTECTOR, NO.3 | ||||
| 18421-75040 |
2TRFE..TRJ150 |
2 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18435-75140 |
2TRFE..TRJ150 |
2 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18435-75140 |
2TRFE..TRJ150 |
2 | ||
| 18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1 | ||||
| 18445-75040 |
2TRFE..TRJ150 |
2 | ||
| 18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1 | ||||
| 18445-75040 |
2TRFE..TRJ150 |
2 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90179-06007 | ||||
| 90501-35037 | ||||
| 90901-05020 | ||||
| 91553-E1035 | ||||
| 91641-H0820 | ||||
