TRJ150L-GKMEKX (2017)
Toyota Land Cruiser
Production
Aug 2017
-
Sep 9999
Engine
2TRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1708- )

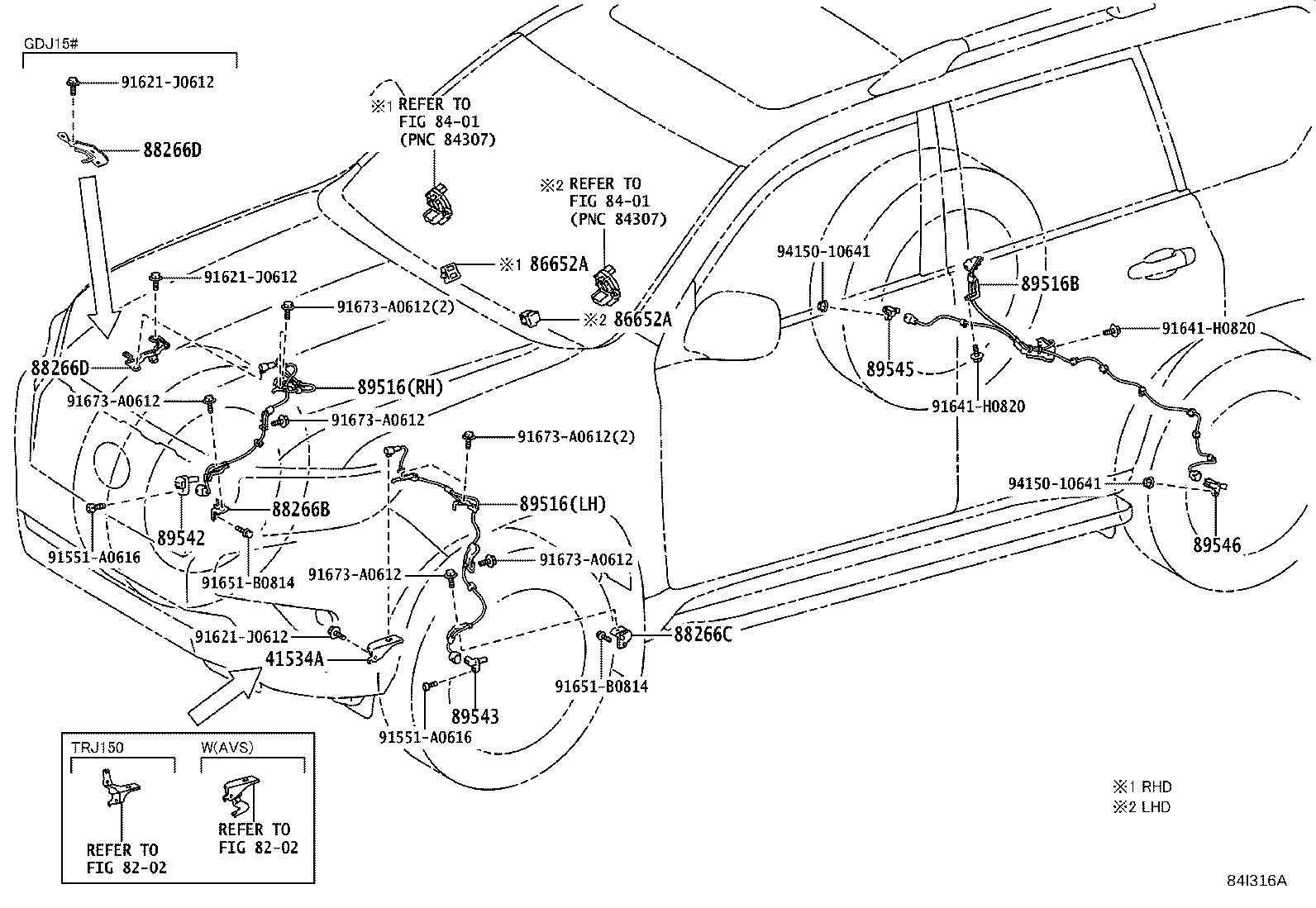

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88266B - CLAMP, SKID CONTROL SENSOR, NO.1 | ||||
| 88266-60A00 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 88266C - CLAMP, SKID CONTROL SENSOR, NO.2 | ||||
| 88266-60A10 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 88266D - CLAMP, SKID CONTROL SENSOR, NO.3 | ||||
| 88266-60790 |
KDJ150..RHD;GRJ150,TRJ150 |
1 | ||
| 88266D - CLAMP, SKID CONTROL SENSOR, NO.3 | ||||
| 88266-60790 |
KDJ150..RHD;GRJ150,TRJ150 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-60290 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 LH |
1 | ||
| 89516-60280 |
KDJ150..RHD;GRJ150,TRJ150 RH |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-60290 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 LH |
1 | ||
| 89516-60280 |
KDJ150..RHD;GRJ150,TRJ150 RH |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-60300 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-60050 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-60050 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89542-60050 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89543-60050 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 91551-A0616 | ||||
| 91621-J0612 | ||||
| 91641-H0820 | ||||
| 91651-B0814 | ||||
| 91673-A0612 | ||||
| 94150-10641 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
