TRJ150L-GKMEKX (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )

Click highlighted areas on diagram

SPARE TIRE = UNDER FRAME

diagram 51900 51920C 5853 5853 91641H0820 91641H0820
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-60332

GDJ150,GRJ150,KDJ150,TRJ150

 1
51900-60333

KDJ150..RHD;GDJ150,GRJ150,TRJ150

 1
51920C - BRACKET ASSY, SPARE WHEEL CARRIER
51920-60040

KDJ150..RHD;GDJ150,GRJ150,TRJ150

 1
Common parts
91641-H0820
Linked diagrams
5853

(1708- )

Click highlighted areas on diagram

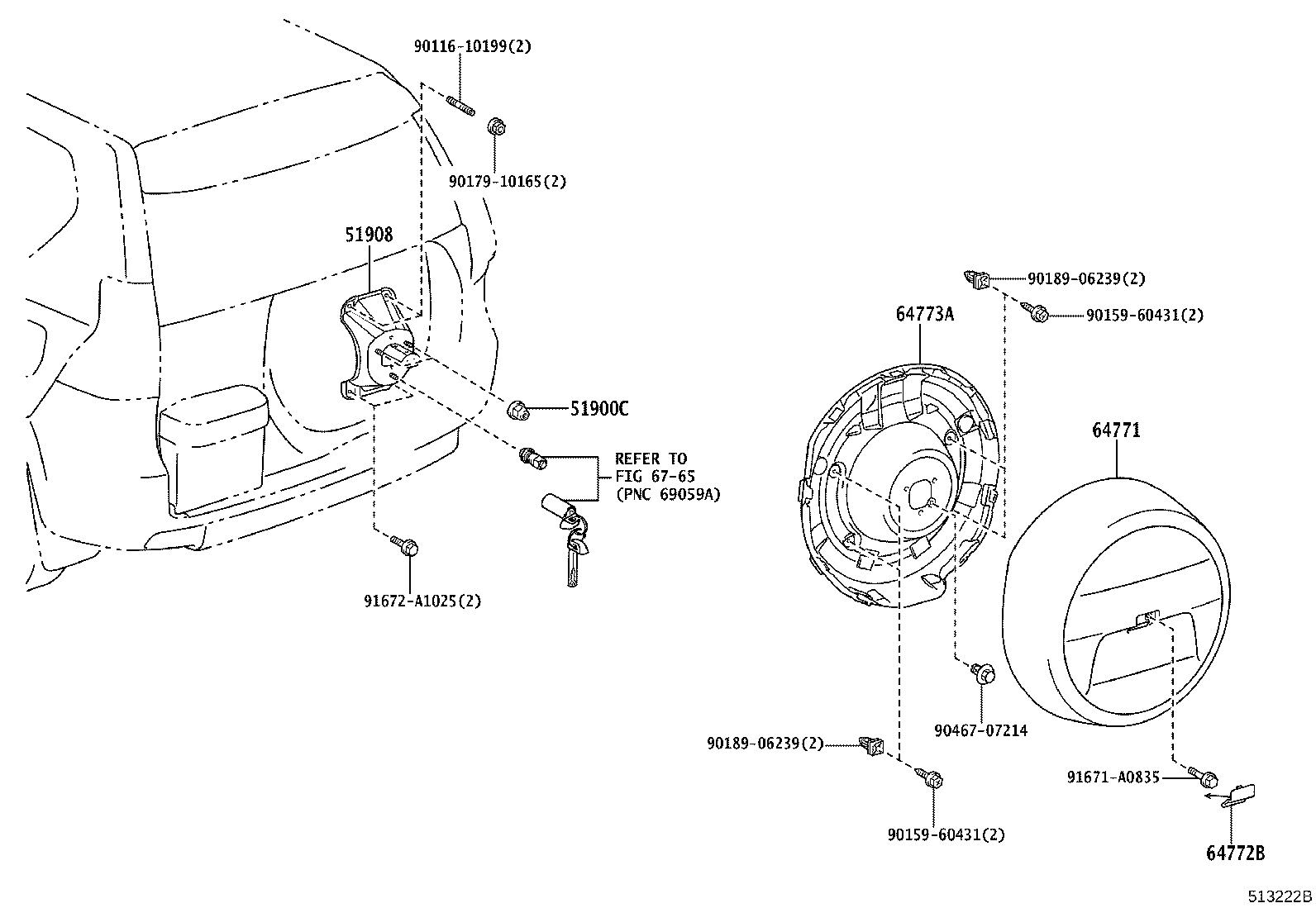

SPARE TIRE = BACK DOOR

diagram 51900C 51908 64771 64772B 64773A 6765 9011610199 9015960431 9015960431 9017910165 9018906239 9018906239 9046707214 91671A0835 91672A1025
Part # Description Qty Price
Common parts
90116-10199
90159-60431
90179-10165
90189-06239
90467-07214
91671-A0835
91672-A1025
Linked diagrams
6765
