RJ73LV-MNEW (1990)

Toyota Land Cruiser

Production Jan 1990 - Apr 1996
Engine 22RE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

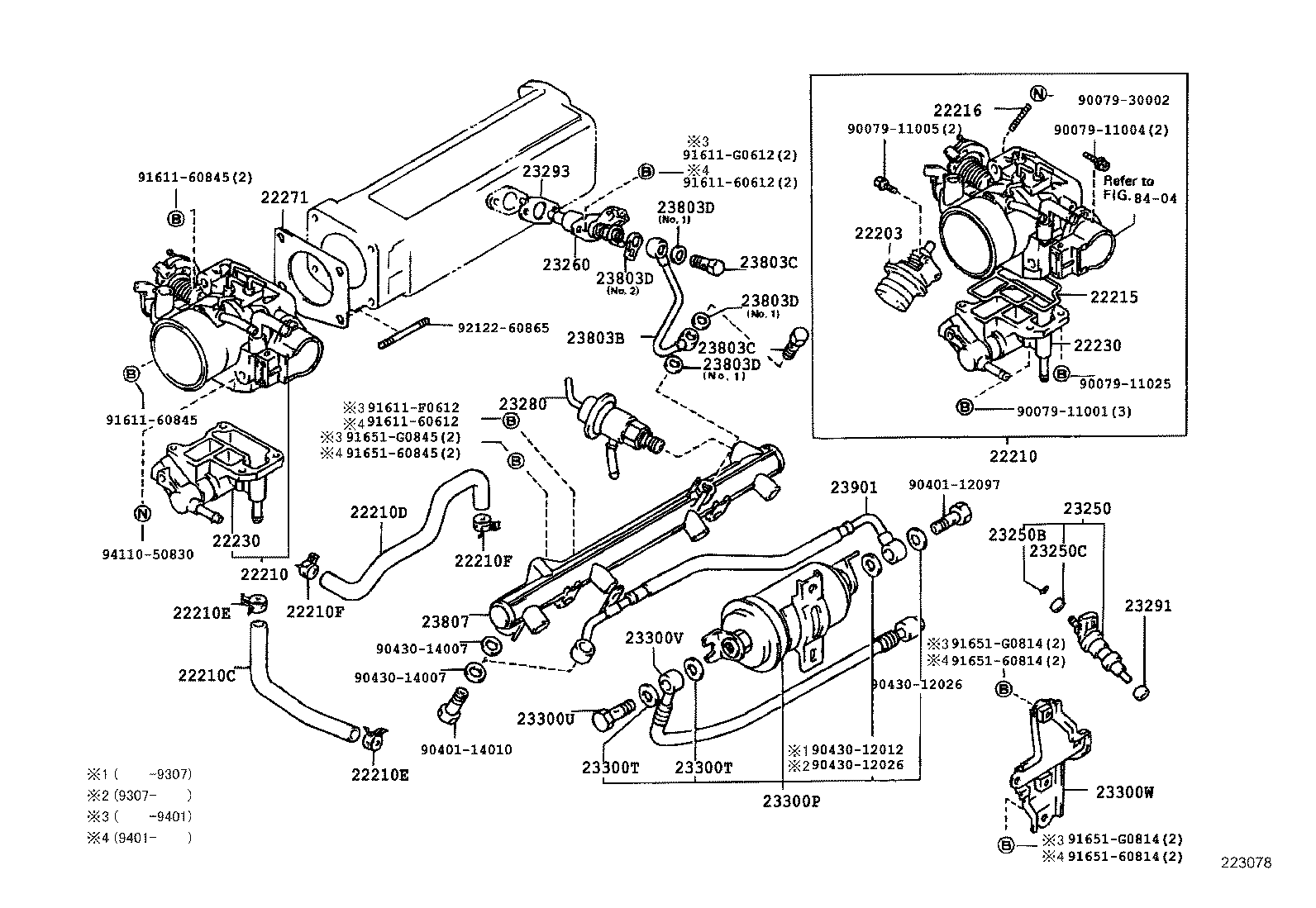

ILLUST NO. 1 OF 2(9001-9305)22RE

Click highlighted areas on diagram

diagram 22203 22210 22210 22210C 22210D 22210E 22210E 22210F 22210F 22215 22216 22230 22230 22271 23250 23250B 23250C 23260 23280 23291 23293 23300P 23300T 23300T 23300U 23300V 23300W 23803B 23803C 23803C 23803D 23803D 23803D 23803D 23807 23901 8404 9007911001 9007911004 9007911005 9007911016 9007911025 9007930002 9040112026 9040114010 9043012012 9043012026 9043014007 9043014007 91611F0612 91611G0612 91611G0845 91611G0845 91651G0814 91651G0814 91651G0845 92122G0865 9411050830
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22202-35271

22RE..RJ7#

 1
22202-35300

22RE..RJ7#

 1
22202-35271

22RE..RJ7#

 1
22210 - BODY ASSY, THROTTLE
22210-35270

22RE..RJ7#

 1
22210-35300

22RE..RJ7#

 1
22210-35301

22RE..RJ7#

 1
22210-35300

22RE..RJ7#

 1
22210 - BODY ASSY, THROTTLE
22210-35270

22RE..RJ7#

 1
22210-35300

22RE..RJ7#

 1
22210-35301

22RE..RJ7#

 1
22210-35300

22RE..RJ7#

 1
22210C - HOSE, WATER BY-PASS, NO.1
16267-35030

22RE..RJ7#

 1
16267-35030

22RE..RJ7#

 1
22210D - HOSE, WATER BY-PASS, NO.2
16264-35030

22RE..RJ7#

 1
16264-35030

22RE..RJ7#

 1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

22RE..RJ7#

 2
90467-13001

22RE..RJ7#

 2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

22RE..RJ7#

 2
90467-13001

22RE..RJ7#

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

22RE..RJ7#

 2
90467-13001

22RE..RJ7#

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

22RE..RJ7#

 2
90467-13001

22RE..RJ7#

 2
22215 - GASKET, THROTTLE BODY COVER
22215-35270

22RE..RJ7#

 1
22215-35270

22RE..RJ7#

 1
22216 - SCREW, DASH POT ADJUSTING
22216-74010

22RE..RJ7#

 2
22216-35300

22RE..RJ7#

 2
22216-74010

22RE..RJ7#

 2
22230 - VALVE ASSY, AUXILIARY AIR
22230-35030

22RE..RJ7#

 1
22230-35030

22RE..RJ7#

 1
22230 - VALVE ASSY, AUXILIARY AIR
22230-35030

22RE..RJ7#

 1
22230-35030

22RE..RJ7#

 1
22271 - GASKET, THROTTLE BODY
22271-35020

22RE..RJ7#

 1
22271-35020

22RE..RJ7#

 1
23250 - INJECTOR ASSY, FUEL
23209-35040

22RE..RJ7#

 4
23209-35040

22RE..RJ7#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

22RE..RJ7#

 4
90301-07001

22RE..RJ7#

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

22RE..RJ7#

 4
90480-13005

22RE..RJ7#

 4
23260 - INJECTOR ASSY, COLD START FUEL
23260-39065

22RE..RJ7#

 1
23260-39075

22RE..RJ7#

 1
23260-39075

22RE..RJ7#

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-35030

22RE..RJ7#

 1
23280-35030

22RE..RJ7#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

22RE..RJ7#

 4
23291-41010

22RE..RJ7#

 4
23293 - GASKET, COLD START INJECTOR
23293-35020

22RE..RJ7#

 1
23293-35020

22RE..RJ7#

 1
23300P - FILTER, FUEL(FOR EFI)
23300-39035

22RE..RJ7#

 1
23300-39035

22RE..RJ7#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

22RE..RJ7#

 2
90430-12005

22RE..RJ7#

 2
90430-12026

22RE..RJ7#

 2
90430-12026

22RE..RJ7#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12005

22RE..RJ7#

 2
90430-12005

22RE..RJ7#

 2
90430-12026

22RE..RJ7#

 2
90430-12026

22RE..RJ7#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

22RE..RJ7#

 1
90401-12029

22RE..RJ7#

 1
90401-12097

22RE..RJ7#

 1
90401-12097

22RE..RJ7#

 1
23300V - HOSE, FUEL(FOR FUEL INLET)
23906-35020

22RE..RJ7#

 1
23906-35030

22RE..RJ7#

 1
23300W - BRACKET, FUEL FILTER
23264-35020

22RE..RJ7#

 1
23264-35020

22RE..RJ7#

 1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23801-35010

22RE..RJ7#

 1
23801-35010

22RE..RJ7#

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

22RE..RJ7#

 2
90401-08003

22RE..RJ7#

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

22RE..RJ7#

 2
90401-08003

22RE..RJ7#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08015

22RE..RJ7#

NO.2

 1
90430-08014

22RE..RJ7#

NO.1

 3
90430-08009

22RE..RJ7#

NO.1

 3
90430-08014

22RE..RJ7#

NO.1

 3
90430-08015

22RE..RJ7#

NO.2

 1
90430-08011

22RE..RJ7#

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08015

22RE..RJ7#

NO.2

 1
90430-08014

22RE..RJ7#

NO.1

 3
90430-08009

22RE..RJ7#

NO.1

 3
90430-08014

22RE..RJ7#

NO.1

 3
90430-08015

22RE..RJ7#

NO.2

 1
90430-08011

22RE..RJ7#

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08015

22RE..RJ7#

NO.2

 1
90430-08014

22RE..RJ7#

NO.1

 3
90430-08009

22RE..RJ7#

NO.1

 3
90430-08014

22RE..RJ7#

NO.1

 3
90430-08015

22RE..RJ7#

NO.2

 1
90430-08011

22RE..RJ7#

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08015

22RE..RJ7#

NO.2

 1
90430-08014

22RE..RJ7#

NO.1

 3
90430-08009

22RE..RJ7#

NO.1

 3
90430-08014

22RE..RJ7#

NO.1

 3
90430-08015

22RE..RJ7#

NO.2

 1
90430-08011

22RE..RJ7#

NO.2

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-35020

22RE..RJ7#

 1
23807-35020

22RE..RJ7#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-35010

22RE..RJ7#

 1
23901-35010

22RE..RJ7#

 1
Common parts
90079-11001
90079-11004
90079-11005
90079-11016
90079-11025
90079-30002
90401-12026
90401-14010
90430-12012
90430-12026
90430-14007
91611-F0612
91611-G0612
91611-G0845
91651-G0814
91651-G0845
92122-G0865
94110-50830
Linked diagrams
8404

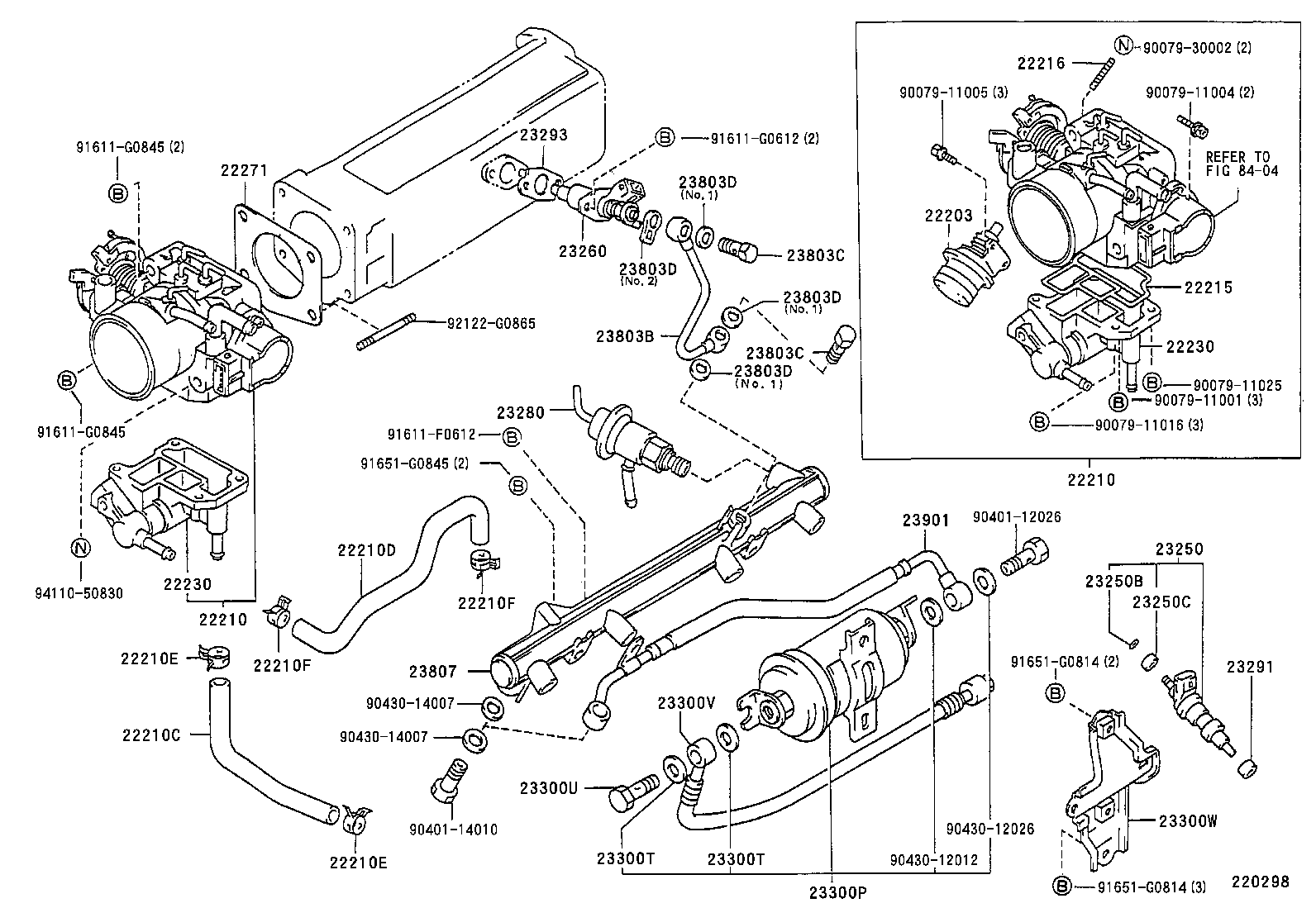

ILLUST NO. 1 OF 2(9305- )22RE

Click highlighted areas on diagram

diagram 22203 22210 22210 22210C 22210D 22210E 22210E 22210F 22210F 22215 22216 22230 22230 22271 23250 23250B 23250C 23260 23280 23291 23293 23300P 23300T 23300T 23300U 23300V 23300W 23803B 23803C 23803C 23803D 23803D 23803D 23803D 23807 23901 8404 9007911001 9007911004 9007911005 9007911025 9007930002 9040112097 9040114010 9043012012 9043012026 9043012026 9043014007 9043014007 9161160612 9161160612 9161160845 9161160845 91611F0612 91611G0612 9165160814 9165160814 9165160845 91651G0814 91651G0814 91651G0845 9212260865 9411050830
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22202-35271

22RE..RJ7#

 1
22202-35300

22RE..RJ7#

 1
22202-35271

22RE..RJ7#

 1
22210 - BODY ASSY, THROTTLE
22210-35270

22RE..RJ7#

 1
22210-35300

22RE..RJ7#

 1
22210-35301

22RE..RJ7#

 1
22210-35300

22RE..RJ7#

 1
22210 - BODY ASSY, THROTTLE
22210-35270

22RE..RJ7#

 1
22210-35300

22RE..RJ7#

 1
22210-35301

22RE..RJ7#

 1
22210-35300

22RE..RJ7#

 1
22210C - HOSE, WATER BY-PASS, NO.1
16267-35030

22RE..RJ7#

 1
16267-35030

22RE..RJ7#

 1
22210D - HOSE, WATER BY-PASS, NO.2
16264-35030

22RE..RJ7#

 1
16264-35030

22RE..RJ7#

 1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

22RE..RJ7#

 2
90467-13001

22RE..RJ7#

 2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

22RE..RJ7#

 2
90467-13001

22RE..RJ7#

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

22RE..RJ7#

 2
90467-13001

22RE..RJ7#

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

22RE..RJ7#

 2
90467-13001

22RE..RJ7#

 2
22215 - GASKET, THROTTLE BODY COVER
22215-35270

22RE..RJ7#

 1
22215-35270

22RE..RJ7#

 1
22216 - SCREW, DASH POT ADJUSTING
22216-74010

22RE..RJ7#

 2
22216-35300

22RE..RJ7#

 2
22216-74010

22RE..RJ7#

 2
22230 - VALVE ASSY, AUXILIARY AIR
22230-35030

22RE..RJ7#

 1
22230-35030

22RE..RJ7#

 1
22230 - VALVE ASSY, AUXILIARY AIR
22230-35030

22RE..RJ7#

 1
22230-35030

22RE..RJ7#

 1
22271 - GASKET, THROTTLE BODY
22271-35020

22RE..RJ7#

 1
22271-35020

22RE..RJ7#

 1
23250 - INJECTOR ASSY, FUEL
23209-35040

22RE..RJ7#

 4
23209-35040

22RE..RJ7#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

22RE..RJ7#

 4
90301-07001

22RE..RJ7#

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

22RE..RJ7#

 4
90480-13005

22RE..RJ7#

 4
23260 - INJECTOR ASSY, COLD START FUEL
23260-39065

22RE..RJ7#

 1
23260-39075

22RE..RJ7#

 1
23260-39075

22RE..RJ7#

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-35030

22RE..RJ7#

 1
23280-35030

22RE..RJ7#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

22RE..RJ7#

 4
23291-41010

22RE..RJ7#

 4
23293 - GASKET, COLD START INJECTOR
23293-35020

22RE..RJ7#

 1
23293-35020

22RE..RJ7#

 1
23300P - FILTER, FUEL(FOR EFI)
23300-39035

22RE..RJ7#

 1
23300-39035

22RE..RJ7#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

22RE..RJ7#

 2
90430-12005

22RE..RJ7#

 2
90430-12026

22RE..RJ7#

 2
90430-12026

22RE..RJ7#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12005

22RE..RJ7#

 2
90430-12005

22RE..RJ7#

 2
90430-12026

22RE..RJ7#

 2
90430-12026

22RE..RJ7#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

22RE..RJ7#

 1
90401-12029

22RE..RJ7#

 1
90401-12097

22RE..RJ7#

 1
90401-12097

22RE..RJ7#

 1
23300V - HOSE, FUEL(FOR FUEL INLET)
23906-35020

22RE..RJ7#

 1
23906-35030

22RE..RJ7#

 1
23300W - BRACKET, FUEL FILTER
23264-35020

22RE..RJ7#

 1
23264-35020

22RE..RJ7#

 1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23801-35010

22RE..RJ7#

 1
23801-35010

22RE..RJ7#

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

22RE..RJ7#

 2
90401-08003

22RE..RJ7#

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

22RE..RJ7#

 2
90401-08003

22RE..RJ7#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08015

22RE..RJ7#

NO.2

 1
90430-08014

22RE..RJ7#

NO.1

 3
90430-08009

22RE..RJ7#

NO.1

 3
90430-08014

22RE..RJ7#

NO.1

 3
90430-08015

22RE..RJ7#

NO.2

 1
90430-08011

22RE..RJ7#

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08015

22RE..RJ7#

NO.2

 1
90430-08014

22RE..RJ7#

NO.1

 3
90430-08009

22RE..RJ7#

NO.1

 3
90430-08014

22RE..RJ7#

NO.1

 3
90430-08015

22RE..RJ7#

NO.2

 1
90430-08011

22RE..RJ7#

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08015

22RE..RJ7#

NO.2

 1
90430-08014

22RE..RJ7#

NO.1

 3
90430-08009

22RE..RJ7#

NO.1

 3
90430-08014

22RE..RJ7#

NO.1

 3
90430-08015

22RE..RJ7#

NO.2

 1
90430-08011

22RE..RJ7#

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08015

22RE..RJ7#

NO.2

 1
90430-08014

22RE..RJ7#

NO.1

 3
90430-08009

22RE..RJ7#

NO.1

 3
90430-08014

22RE..RJ7#

NO.1

 3
90430-08015

22RE..RJ7#

NO.2

 1
90430-08011

22RE..RJ7#

NO.2

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-35020

22RE..RJ7#

 1
23807-35020

22RE..RJ7#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-35010

22RE..RJ7#

 1
23901-35010

22RE..RJ7#

 1
Common parts
90079-11001
90079-11004
90079-11005
90079-11025
90079-30002
90401-12097
90401-14010
90430-12012
90430-12026
90430-14007
91611-60612
91611-60845
91611-F0612
91611-G0612
91651-60814
91651-60845
91651-G0814
91651-G0845
92122-60865
94110-50830
Linked diagrams
8404

ILLUST NO. 2 OF 2(9001- )22RE

Click highlighted areas on diagram

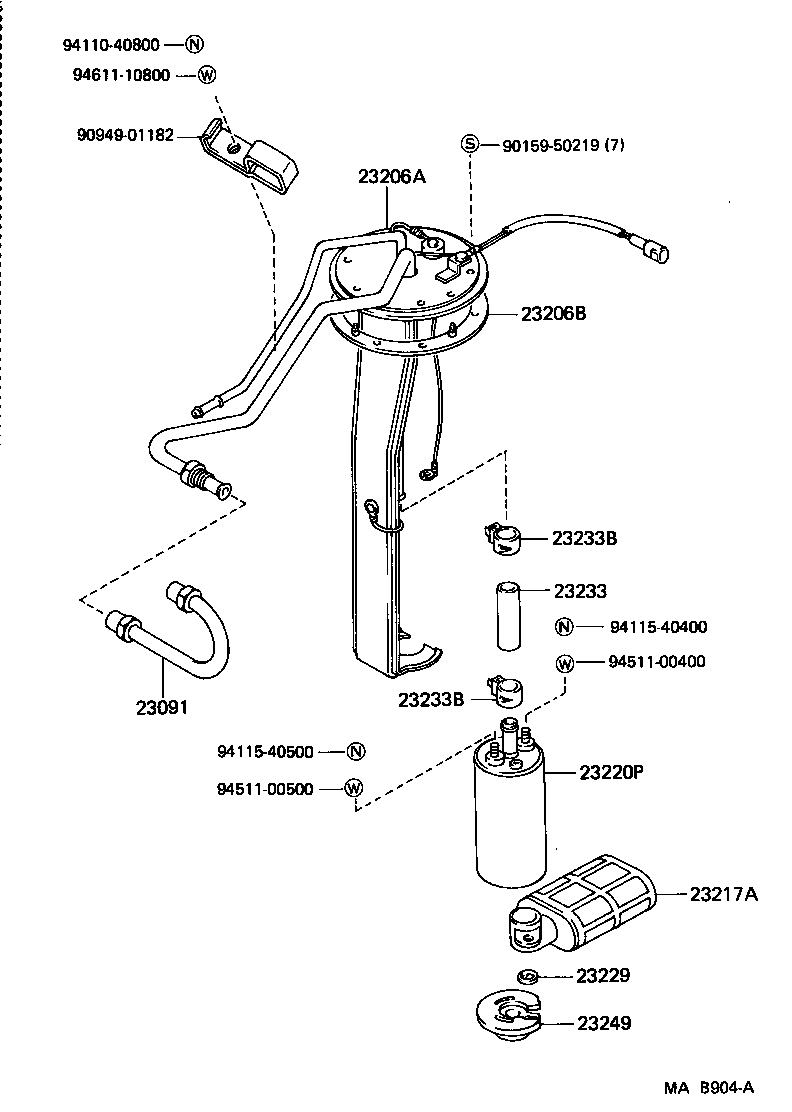

diagram 23091 23206A 23206B 23217A 23220P 23229 23233 23233B 23233B 23249 9015950219 9094901182 9411040800 9411540400 9411540500 9451100400 9451100500 9461110800
Part # Description Qty Price
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-35070

22RE..RJ7#

 1
23091-35070

22RE..RJ7#

 1
23206A - BRACKET, FUEL PUMP
23206-35200

22RE..RJ7#

 1
23206-35200

22RE..RJ7#

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-14010

22RE..RJ7#

 1
77169-14010

22RE..RJ7#

 1
23217A - FILTER, FUEL PUMP
23217-16043

22RE..RJ7#

AISAN

 1
23217-16030

22RE..RJ7#

DENSO

 1
23217-16043

22RE..RJ7#

AISAN

 1
23217-16030

22RE..RJ7#

DENSO

 1
23220P - PUMP ASSY, FUEL
23220-43070

22RE..RJ7#

NIPPON DENSO

 1
23220-43070

22RE..RJ7#

NIPPON DENSO

 1
23220-16084

22RE..RJ7#

AISAN

 1
23220-16084

22RE..RJ7#

AISAN

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

22RE..RJ7#

 1
23229-16010

22RE..RJ7#

 1
23233 - HOSE, FUEL PUMP
23239-16010

22RE..RJ7#

 1
23239-16010

22RE..RJ7#

 1
23239-11010

22RE..RJ7#

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

22RE..RJ7#

 2
90467-13054

22RE..RJ7#

 2
90467-12067

22RE..RJ7#

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

22RE..RJ7#

 2
90467-13054

22RE..RJ7#

 2
90467-12067

22RE..RJ7#

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74150

22RE..RJ7#

 1
23249-74150

22RE..RJ7#

 1
Common parts
90159-50219
90949-01182
94110-40800
94115-40400
94115-40500
94511-00400
94511-00500
94611-10800
