Toyota Land cruiser RJ73 MANIFOLD

RJ73LV-MNEW (1990)

Toyota Land Cruiser

Production Jan 1990 - Apr 1996

Engine 22RE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

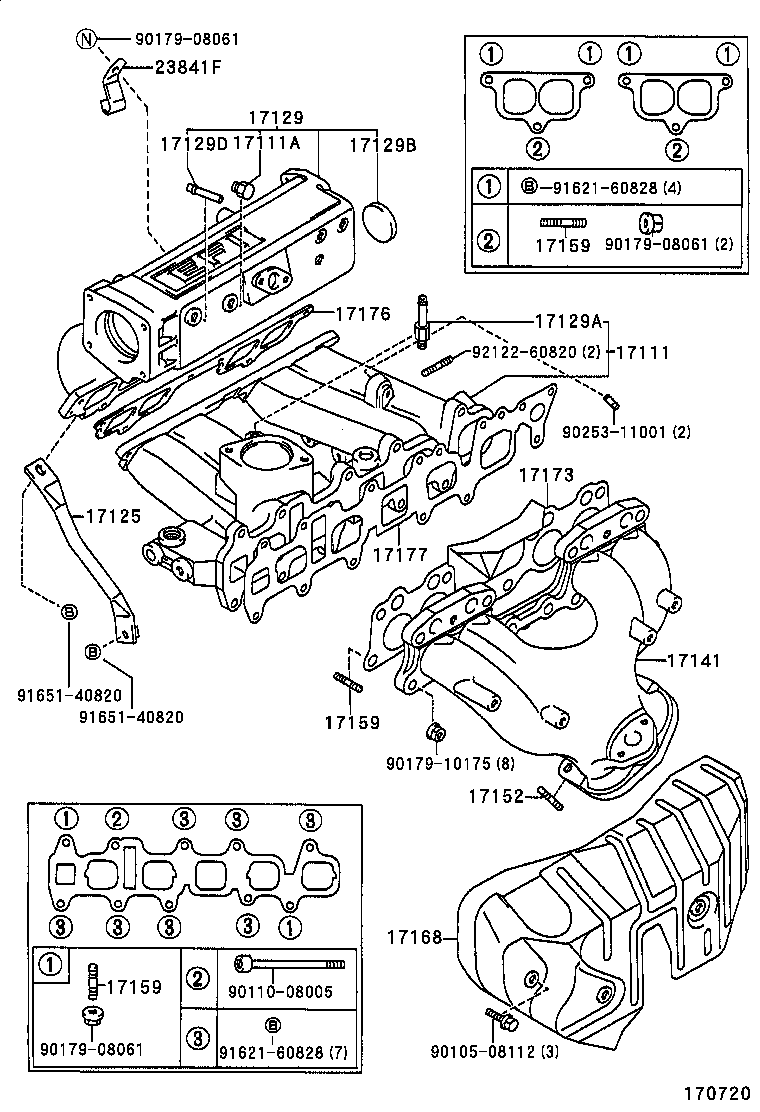

(9001-9604)22RE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-35050	22RE..RJ7#	01/1990 - 05/1993	1
17101-35050	22RE..RJ7#	05/1993 - 04/1996	1
17111A - PLUG, NO.1
90345-51006	22R#..RJ7#	01/1990 - 05/1993	1
90345-51006	22RE..RJ7#	05/1993 - 04/1996	1
17125 - STAY, SURGE TANK, NO.1
17125-35030	22RE..RJ7#	01/1990 - 05/1993	1
17125-35030	22RE..RJ7#	05/1993 - 04/1996	1
17129 - TANK, INTAKE AIR SURGE
17109-35040	22RE..RJ7#	05/1993 - 04/1996	1
17109-35040	22RE..RJ7#	01/1990 - 05/1993	1
17129A - UNION, NO.1
90404-51060	22RE..RJ7#	01/1990 - 05/1993	1
90404-51060	22RE..RJ7#	05/1993 - 04/1996	1
17129B - PLUG
96411-44000	22RE..RJ7#	05/1993 - 04/1996	1
96411-44000	22RE..RJ7#	01/1990 - 05/1993	1
17129D - UNION, NO.2
90406-06001	22RE..RJ7#	01/1990 - 05/1993	1
90406-06001	22RE..RJ7#	05/1993 - 04/1996	1
17141 - MANIFOLD, EXHAUST
17141-35100	22R#..RJ7#	01/1990 - 05/1993	1
17141-35100	22RE..RJ7#	05/1993 - 04/1996	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087	22R#..RJ7#	01/1990 - 05/1993	3
90116-10087	22RE..RJ7#	05/1993 - 04/1996	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10067	22R#..RJ7# EXHAUST MANIFOLD UPR	01/1990 - 05/1993	4
90116-08172	22R#..RJ7# INTAKE MANIFOLD	01/1990 - 05/1993	2
90116-10064	22R#..RJ7# EXHAUST MANIFOLD LWR	01/1990 - 05/1993	4
90116-10067	22RE..RJ7# EXHAUST MANIFOLD UPR	05/1993 - 04/1996	4
90116-08172	22RE..RJ7# INTATE MANIFOLD	05/1993 - 04/1996	2
92122-60825	22RE..RJ7#	01/1990 - 05/1993	2
90116-10064	22RE..RJ7# EXHAUST MANIFOLD LWR	05/1993 - 04/1996	4
92122-60825	22RE..RJ7#	05/1993 - 04/1996	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10067	22R#..RJ7# EXHAUST MANIFOLD UPR	01/1990 - 05/1993	4
90116-08172	22R#..RJ7# INTAKE MANIFOLD	01/1990 - 05/1993	2
90116-10064	22R#..RJ7# EXHAUST MANIFOLD LWR	01/1990 - 05/1993	4
90116-10067	22RE..RJ7# EXHAUST MANIFOLD UPR	05/1993 - 04/1996	4
90116-08172	22RE..RJ7# INTATE MANIFOLD	05/1993 - 04/1996	2
92122-60825	22RE..RJ7#	01/1990 - 05/1993	2
90116-10064	22RE..RJ7# EXHAUST MANIFOLD LWR	05/1993 - 04/1996	4
92122-60825	22RE..RJ7#	05/1993 - 04/1996	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10067	22R#..RJ7# EXHAUST MANIFOLD UPR	01/1990 - 05/1993	4
90116-08172	22R#..RJ7# INTAKE MANIFOLD	01/1990 - 05/1993	2
90116-10064	22R#..RJ7# EXHAUST MANIFOLD LWR	01/1990 - 05/1993	4
90116-10067	22RE..RJ7# EXHAUST MANIFOLD UPR	05/1993 - 04/1996	4
90116-08172	22RE..RJ7# INTATE MANIFOLD	05/1993 - 04/1996	2
92122-60825	22RE..RJ7#	01/1990 - 05/1993	2
90116-10064	22RE..RJ7# EXHAUST MANIFOLD LWR	05/1993 - 04/1996	4
92122-60825	22RE..RJ7#	05/1993 - 04/1996	2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35180	22RE..RJ7#	05/1993 - 04/1996	1
17167-35180	22RE..RJ7#	01/1990 - 05/1993	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35120	22RE..RJ7#	05/1993 - 04/1996	1
17173-35120	22R#..RJ7#	01/1990 - 05/1993	1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-35020	22RE..RJ7#	05/1993 - 04/1996	1
17176-35020	22RE..RJ7#	01/1990 - 05/1993	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35030	22R#..RJ7#	01/1990 - 03/1990	1
17177-35050	22RE..RJ7#	05/1993 - 04/1996	1
17177-35050	22R#..RJ7#	03/1990 - 05/1993	1
23841F - CLAMP, FUEL HOSE
23841-35040	22RE..RJ7#	05/1993 - 04/1996	1
23841-35040	22RE..RJ7#	01/1990 - 05/1993	1
Common parts
90105-08112
90110-08005
90179-08061
90179-10175
90253-11001
91621-60828
91651-40820
92122-60820

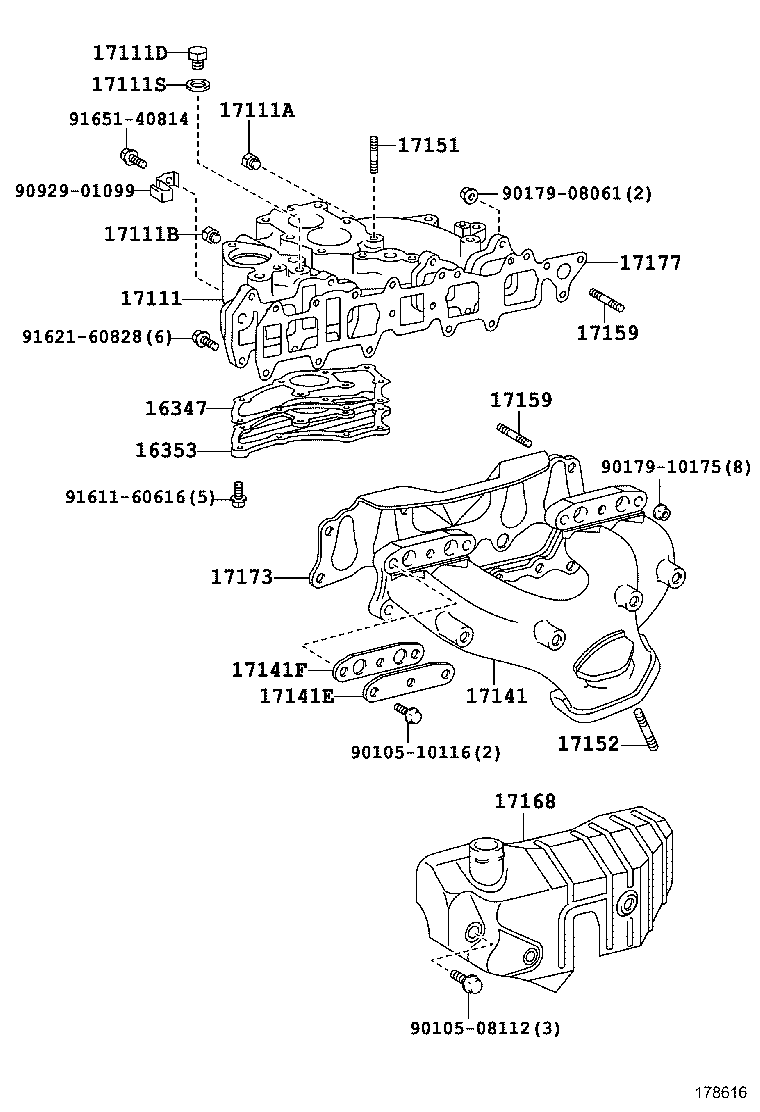

(9001-9305)22R

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-35050	22RE..RJ7#	01/1990 - 05/1993	1
17101-35050	22RE..RJ7#	05/1993 - 04/1996	1
17111A - PLUG, NO.1
90345-51006	22R#..RJ7#	01/1990 - 05/1993	1
90345-51006	22RE..RJ7#	05/1993 - 04/1996	1
17141 - MANIFOLD, EXHAUST
17141-35100	22R#..RJ7#	01/1990 - 05/1993	1
17141-35100	22RE..RJ7#	05/1993 - 04/1996	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087	22R#..RJ7#	01/1990 - 05/1993	3
90116-10087	22RE..RJ7#	05/1993 - 04/1996	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10067	22R#..RJ7# EXHAUST MANIFOLD UPR	01/1990 - 05/1993	4
90116-08172	22R#..RJ7# INTAKE MANIFOLD	01/1990 - 05/1993	2
90116-10064	22R#..RJ7# EXHAUST MANIFOLD LWR	01/1990 - 05/1993	4
90116-10067	22RE..RJ7# EXHAUST MANIFOLD UPR	05/1993 - 04/1996	4
90116-08172	22RE..RJ7# INTATE MANIFOLD	05/1993 - 04/1996	2
92122-60825	22RE..RJ7#	01/1990 - 05/1993	2
90116-10064	22RE..RJ7# EXHAUST MANIFOLD LWR	05/1993 - 04/1996	4
92122-60825	22RE..RJ7#	05/1993 - 04/1996	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10067	22R#..RJ7# EXHAUST MANIFOLD UPR	01/1990 - 05/1993	4
90116-08172	22R#..RJ7# INTAKE MANIFOLD	01/1990 - 05/1993	2
90116-10064	22R#..RJ7# EXHAUST MANIFOLD LWR	01/1990 - 05/1993	4
90116-10067	22RE..RJ7# EXHAUST MANIFOLD UPR	05/1993 - 04/1996	4
90116-08172	22RE..RJ7# INTATE MANIFOLD	05/1993 - 04/1996	2
92122-60825	22RE..RJ7#	01/1990 - 05/1993	2
90116-10064	22RE..RJ7# EXHAUST MANIFOLD LWR	05/1993 - 04/1996	4
92122-60825	22RE..RJ7#	05/1993 - 04/1996	2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35180	22RE..RJ7#	05/1993 - 04/1996	1
17167-35180	22RE..RJ7#	01/1990 - 05/1993	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35120	22RE..RJ7#	05/1993 - 04/1996	1
17173-35120	22R#..RJ7#	01/1990 - 05/1993	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35030	22R#..RJ7#	01/1990 - 03/1990	1
17177-35050	22RE..RJ7#	05/1993 - 04/1996	1
17177-35050	22R#..RJ7#	03/1990 - 05/1993	1
Common parts
90105-08112
90105-10116
90179-08061
90179-10175
90929-01099
91611-60616
91621-60828
91651-40814

RJ73LV-MNEW (1990)

(9001-9604)22RE

(9001-9305)22R
