RJ70LV-MRW (1984)
Toyota Land Cruiser

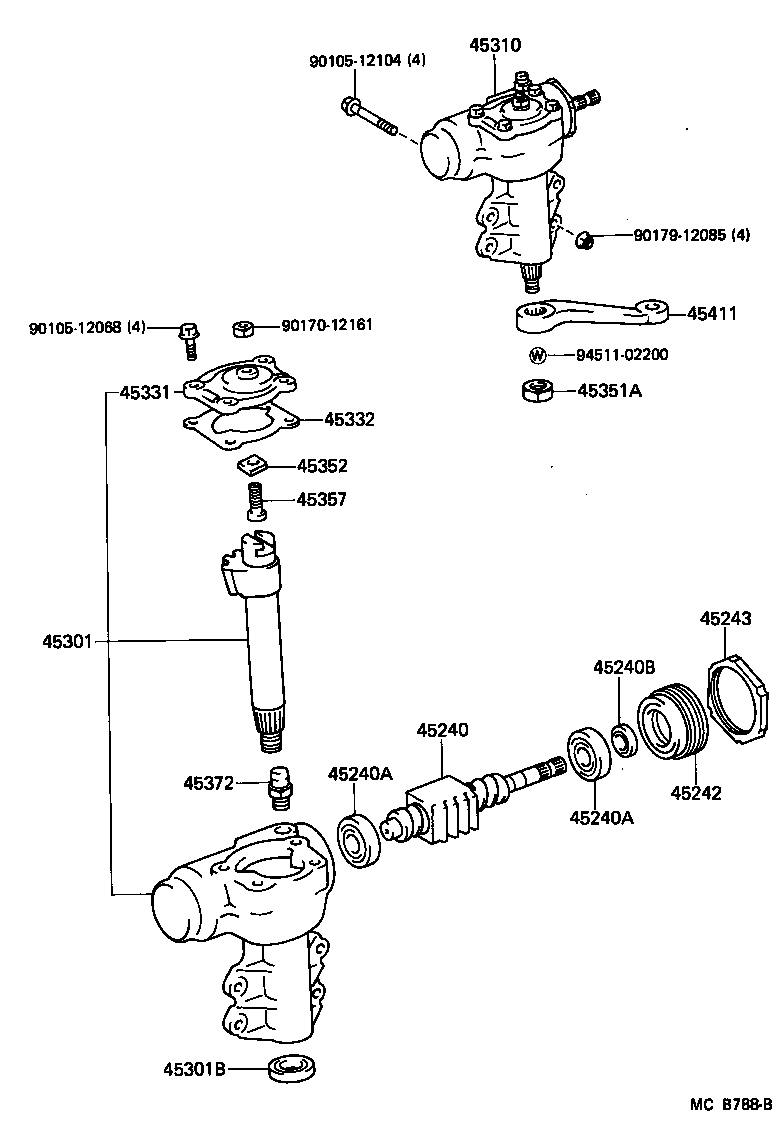

ILLUST NO. 2 OF 3(8411- )LX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-60030 |
LJ7#,RJ7#..LHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
BJ7#,LJ7#,RJ7#..LX,STD |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
BJ7#,LJ7#,RJ7#..LX,STD |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18001 |
BJ7#,LJ7#,RJ7#..LX,STD |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-60020 |
BJ7#,LJ7#,RJ7#..LX,STD |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-60020 |
BJ7#,LJ7#,RJ7#..LX,STD |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-60070 |
BJ7#,LJ7#,RJ7#..LHD..(LX,STD) |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-36001 |
BJ7#,LJ7#,RJ7#..LX,STD |
1 | ||
| 90310-36002 |
BJ7#,LJ7#,RJ70..LX,STD |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-60100 |
LJ7#,RJ7#..LHD |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-26020 |
BJ7#,LJ7#,RJ7#..LX,STD MARK 2 |
1 | ||
| 45304-26040 |
BJ7#,LJ7#,RJ7#..LX,STD MARK 4 |
1 | ||
| 45304-26010 |
BJ7#,LJ7#,RJ7#..LX,STD MARK 1 |
1 | ||
| 45304-26030 |
BJ7#,LJ7#,RJ7#..LX,STD MARK 3 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-26010 |
BJ7#,LJ7#,RJ7#..LX,STD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
BJ7#,LJ7#,RJ7#..LX,STD |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-37010 |
BJ7#,LJ7#,RJ7#..LX,STD T=2.00,T=2.00 |
1 | ||
| 45354-37010 |
BJ7#,LJ7#,RJ7#..LX,STD T=2.05,T=2.05 |
1 | ||
| 45352-37010 |
BJ7#,LJ7#,RJ7#..LX,STD T=1.95,T=1.95 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
BJ7#,LJ7#,RJ7#..LX,STD |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
BJ7#,LJ7#,RJ7#..LX,STD |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-60140 |
LJ7#,RJ7#..LHD |
1 | ||
| Common parts | ||||
| 90105-12068 | ||||
| 90105-12104 | ||||
| 90170-12161 | ||||
| 90179-12085 | ||||
| 94511-02200 | ||||

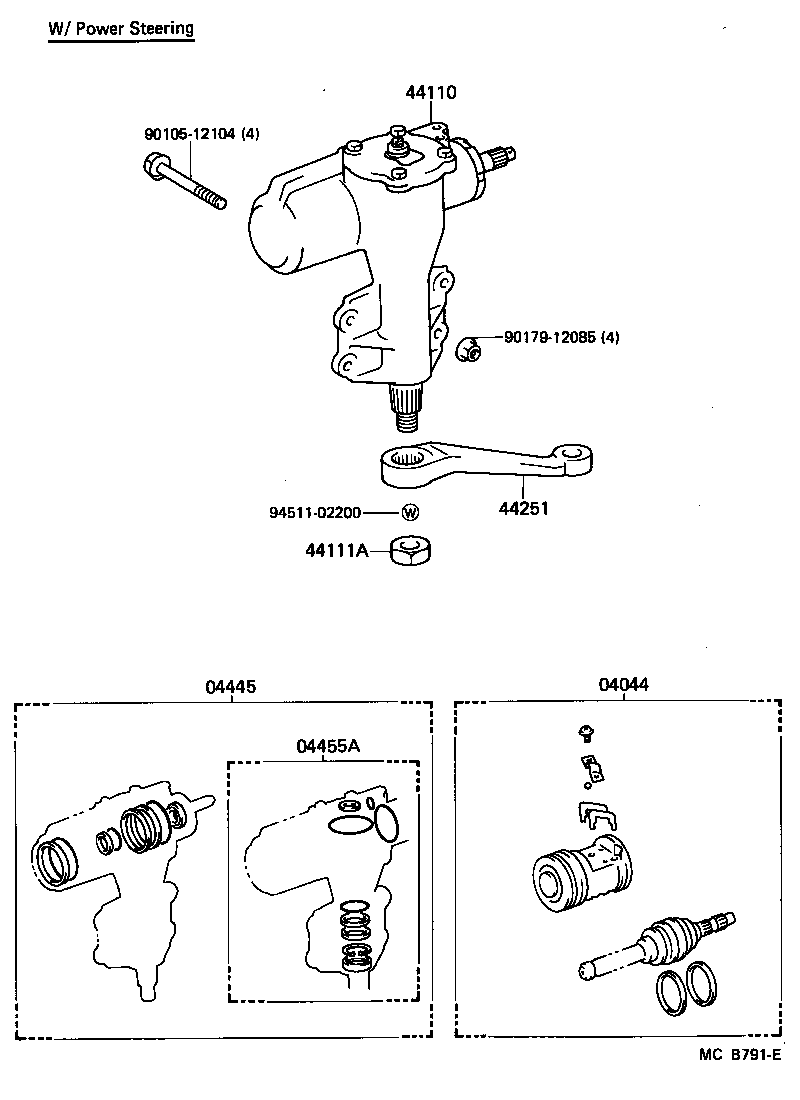

ILLUST NO. 2 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04044 - WARM KIT, POWER STEERING | ||||
| 04044-60100 |
LJ7#,RJ7#..LHD |
1 | ||
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-60030 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-60020 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-60100 |
LJ7#,RJ7#..LHD |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45411-60140 |
LJ7#,RJ7#..LHD |
1 | ||
| Common parts | ||||
| 90105-12104 | ||||
| 90179-12085 | ||||
| 94511-02200 | ||||
ILLUST NO. 3 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-48001 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-48001 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 44104 - PLUG SUB-ASSY, ADJUSTER | ||||
| 44104-22011 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-30060 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-60060 |
BJ7#,LJ7#,RJ7#..LHD |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
BJ7#,LJ7#,RJ7# ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 96711-19010 |
BJ7#,LJ7#,RJ7# ID=9.8,OD=13.6,OD=13.6,T=1.9 |
1 | ||
| 90301-33002 |
BJ7#,LJ7#,RJ7# ID=33.7,OD=40.7,OD=40.7,T=3.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
BJ7#,LJ7#,RJ7# ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 96711-19010 |
BJ7#,LJ7#,RJ7# ID=9.8,OD=13.6,OD=13.6,T=1.9 |
1 | ||
| 90301-33002 |
BJ7#,LJ7#,RJ7# ID=33.7,OD=40.7,OD=40.7,T=3.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
BJ7#,LJ7#,RJ7# ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 96711-19010 |
BJ7#,LJ7#,RJ7# ID=9.8,OD=13.6,OD=13.6,T=1.9 |
1 | ||
| 90301-33002 |
BJ7#,LJ7#,RJ7# ID=33.7,OD=40.7,OD=40.7,T=3.5 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32002 |
BJ7#,LJ7#,RJ7# ID=32,OD=40,OD=40,T=3 |
1 | ||
| 90562-31002 |
BJ7#,LJ7#,RJ7# ID=31.7,OD=34.1,T=4,OD=34.1,T=4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32002 |
BJ7#,LJ7#,RJ7# ID=32,OD=40,OD=40,T=3 |
1 | ||
| 90562-31002 |
BJ7#,LJ7#,RJ7# ID=31.7,OD=34.1,T=4,OD=34.1,T=4 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32002 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-60040 |
LJ70,RJ70 |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67001 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-63001 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
BJ7#,LJ7#,RJ7# |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-14010 |
LJ7#,RJ7#..LHD |
2 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-14010 |
LJ7#,RJ7#..LHD |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22004 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-60080 |
LJ7#,RJ7#..LHD |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-22010 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
BJ7#,LJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90159-50010 | ||||
| 90170-10208 | ||||

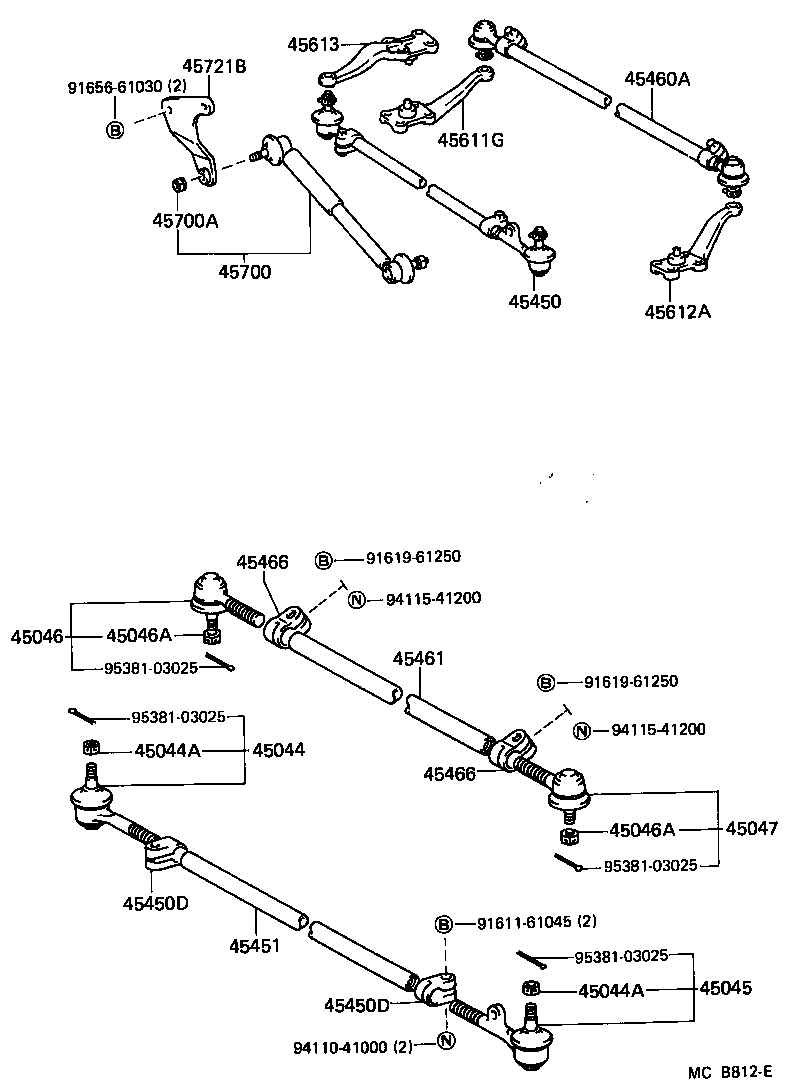

ILLUST NO. 1 OF 3(8411- )LJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45044 - END SUB-ASSY, STEERING RELAY ROD, RH | ||||
| 45045-69055 |
LJ7#,RJ7#..LHD |
1 | ||
| 45044A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-14042 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 45044A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-14042 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 45045 - END SUB-ASSY, STEERING RELAY ROD, LH | ||||
| 45044-69105 |
LJ7#,RJ7#..LHD |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45047-69065 |
LJ7#,RJ7# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-69125 |
LJ7#,RJ7# |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-69105 |
LJ7#,RJ7#..LHD |
1 | ||
| 45450D - CLAMP, STEERING RELAY ROD END | ||||
| 45466-55010 |
LJ7#,RJ7# |
2 | ||
| 45450D - CLAMP, STEERING RELAY ROD END | ||||
| 45466-55010 |
LJ7#,RJ7# |
2 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-60110 |
LJ7#,RJ7# |
1 | ||
| 45460A - ROD ASSY, TIE | ||||
| 45460-69115 |
LJ70,RJ70 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-60090 |
LJ70,RJ70 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36010 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36010 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 45611G - ARM, STEERING KNUCKLE, NO.1 | ||||
| 45611-60050 |
LJ70,RJ70 |
1 | ||
| 45612A - ARM, STEERING KNUCKLE, NO.2 | ||||
| 45612-60050 |
LJ70,RJ70 |
1 | ||
| 45613 - ARM, STEERING KNUCKLE, NO.3 | ||||
| 45613-60020 |
LJ7#,RJ7#..LHD |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-69025 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 94184-61200 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 45721B - BRACKET, STEERING DAMPER, NO.3 | ||||
| 45721-60050 |
LJ7#,RJ7#..LHD |
1 | ||
| Common parts | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
| 91656-61030 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 95381-03025 | ||||

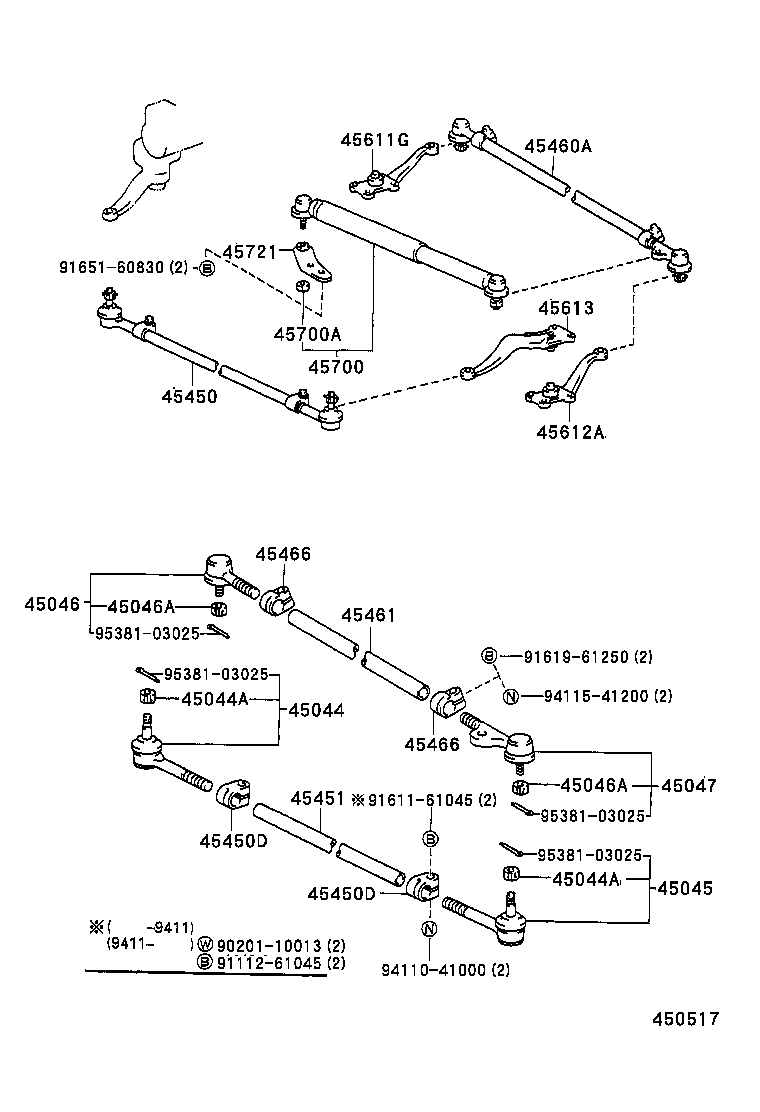

ILLUST NO. 3 OF 3(9001-9604)KZJ7#,LJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90201-10013 | ||||
| 91112-61045 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
| 91651-60830 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 95381-03025 | ||||
