RJ70LV-MRW (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1988
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

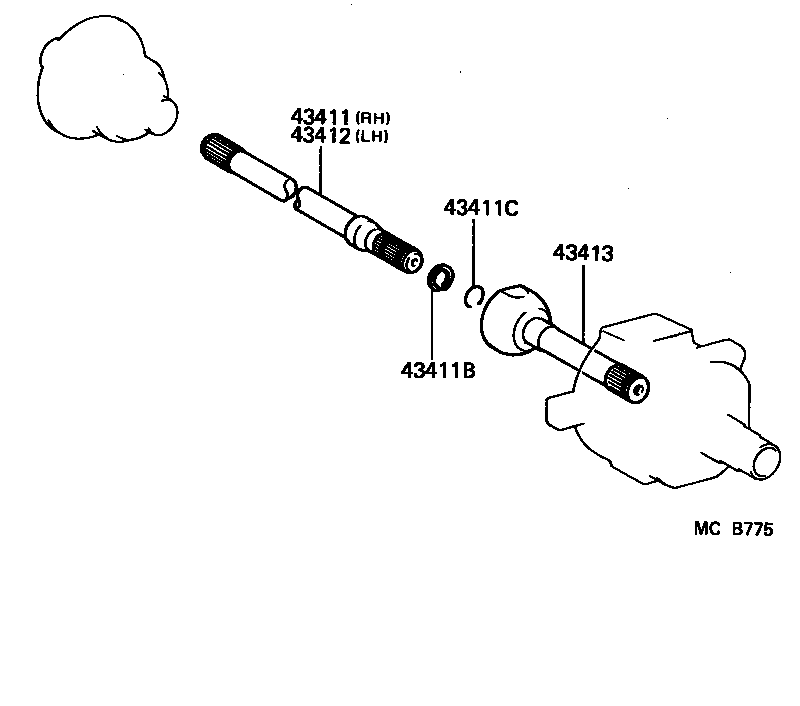

Click highlighted areas on diagram

diagram 43411 43411B 43411C 43412 43413
Part # Description Qty Price
43411 - SHAFT, FRONT AXLE, INNER RH
43411-60030

LJ7#,RJ7#

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-28036

BJ7#,LJ7#,RJ7#

 2
43411C - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)
90520-27091

BJ7#,LJ7#,RJ7#

 2
43412 - SHAFT, FRONT AXLE, INNER LH
43412-60030

LJ7#,RJ7#

 1
43413 - SHAFT, DRIVE
43405-60015

BJ7#,LJ7#,RJ7#

 2
