RJ70LV-MRW (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Aug 1988
Engine
22R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

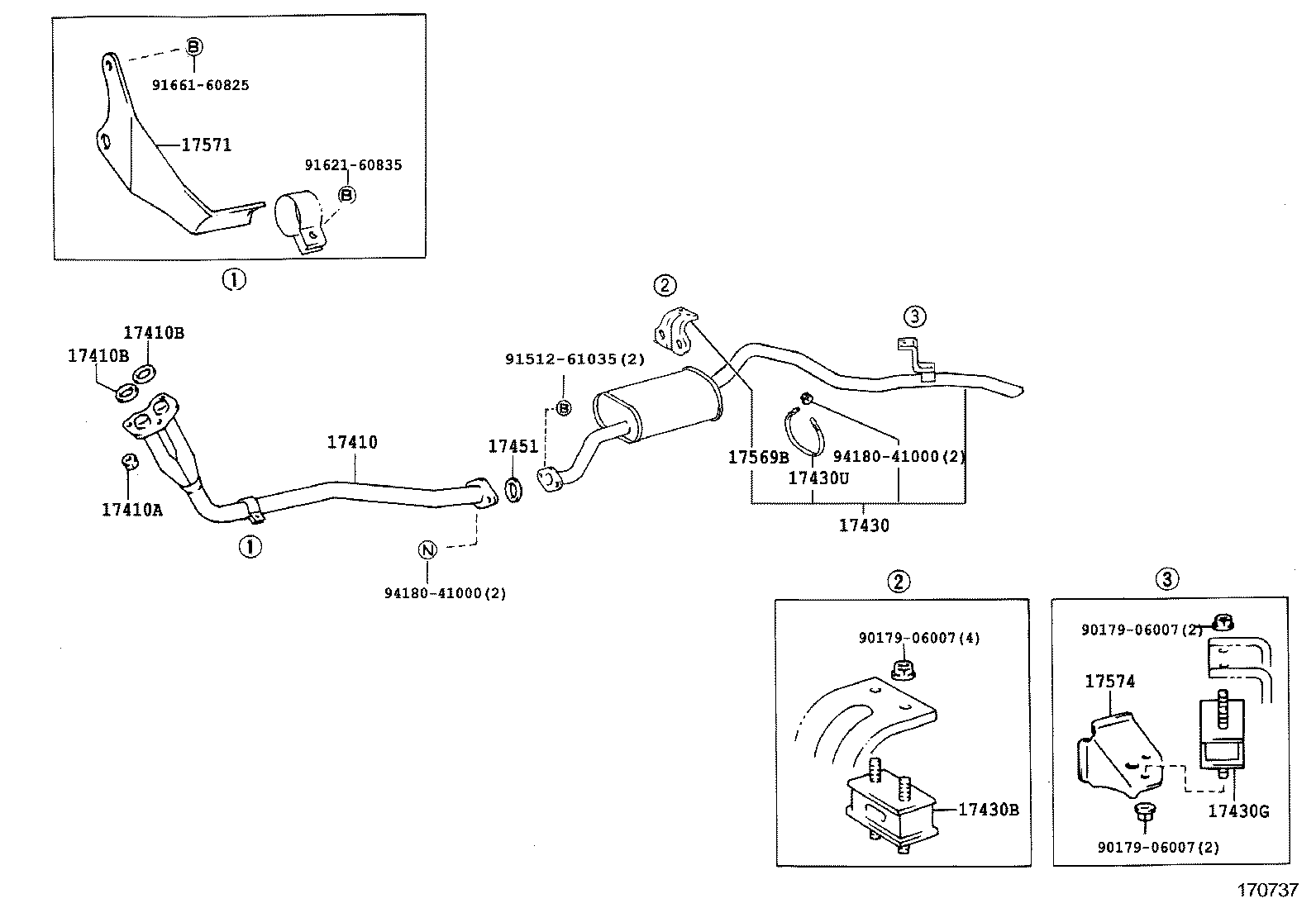

(8411- )22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-35040 |
22R..RJ7# |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
22R#,13BT,3B,2L#..BJ7#,LJ7#,RJ7# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
22R#..RJ7# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
22R#..RJ7# |
2 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-35060 |
22R..RJ7# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-35330 |
22R..RJ70 |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17567-61030 |
22R#,13BT,3B,2L#..BJ7#,LJ7#,RJ7# |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
22R#,13BT,3B,2L#..BJ7#,LJ7#,RJ7# |
1 | ||
| 17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17504-61020 |
22R#,13BT,3B,2L#..BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
22R,2L..LJ70,RJ7# |
1 | ||
| 17569B - STAY, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17569-61020 |
22R#,13BT,3B,2L#..BJ70,71,73,LJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 91511-61035 | ||||
| 91611-60835 | ||||
| 91661-60825 | ||||
| 94180-41000 | ||||

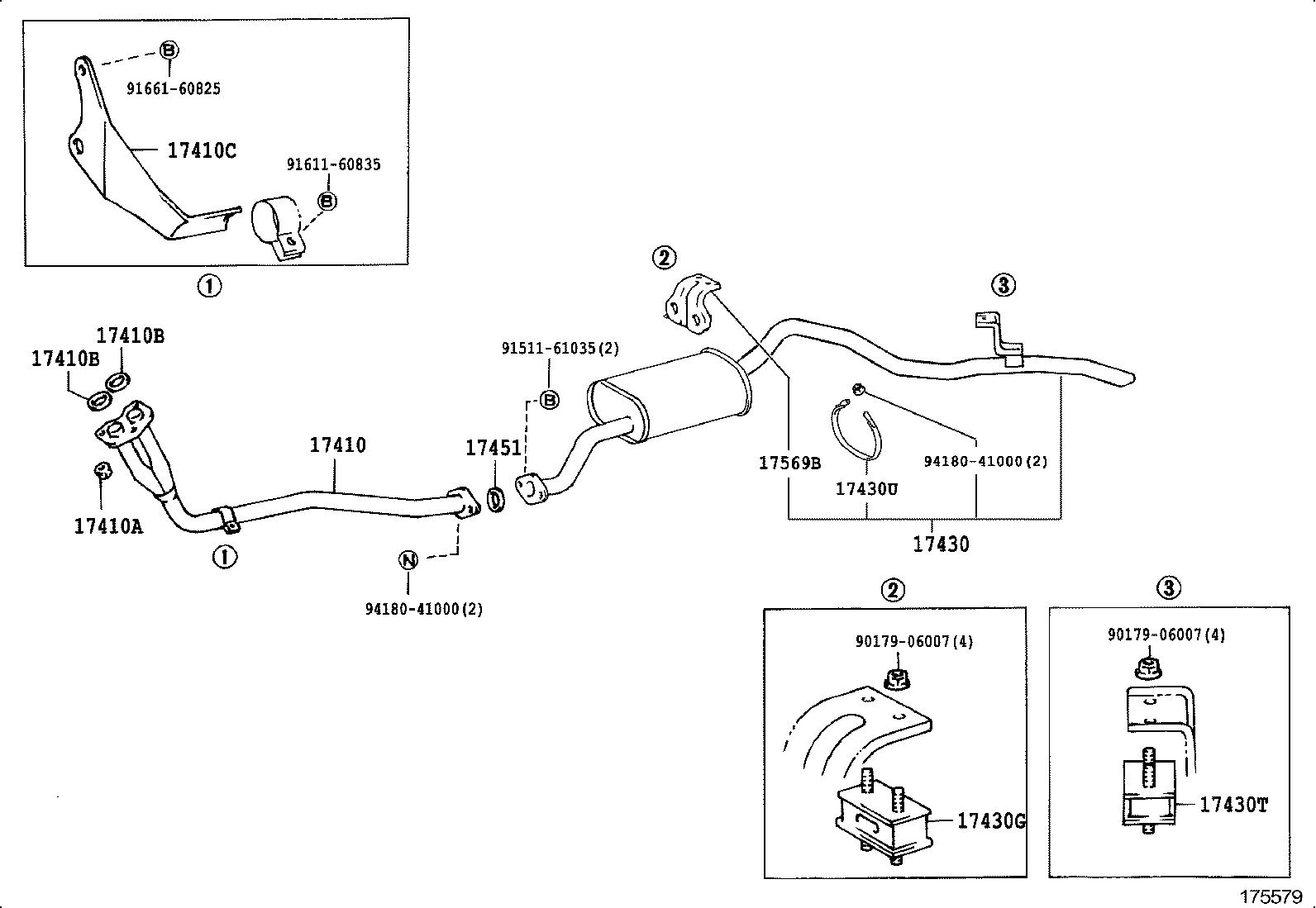

(9001-9305)22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06007 | ||||
| 91512-61035 | ||||
| 91621-60835 | ||||
| 91661-60825 | ||||
| 94180-41000 | ||||
