RJ70LV-MNW (1990)

Toyota Land Cruiser

Production Jan 1990 - May 1993
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

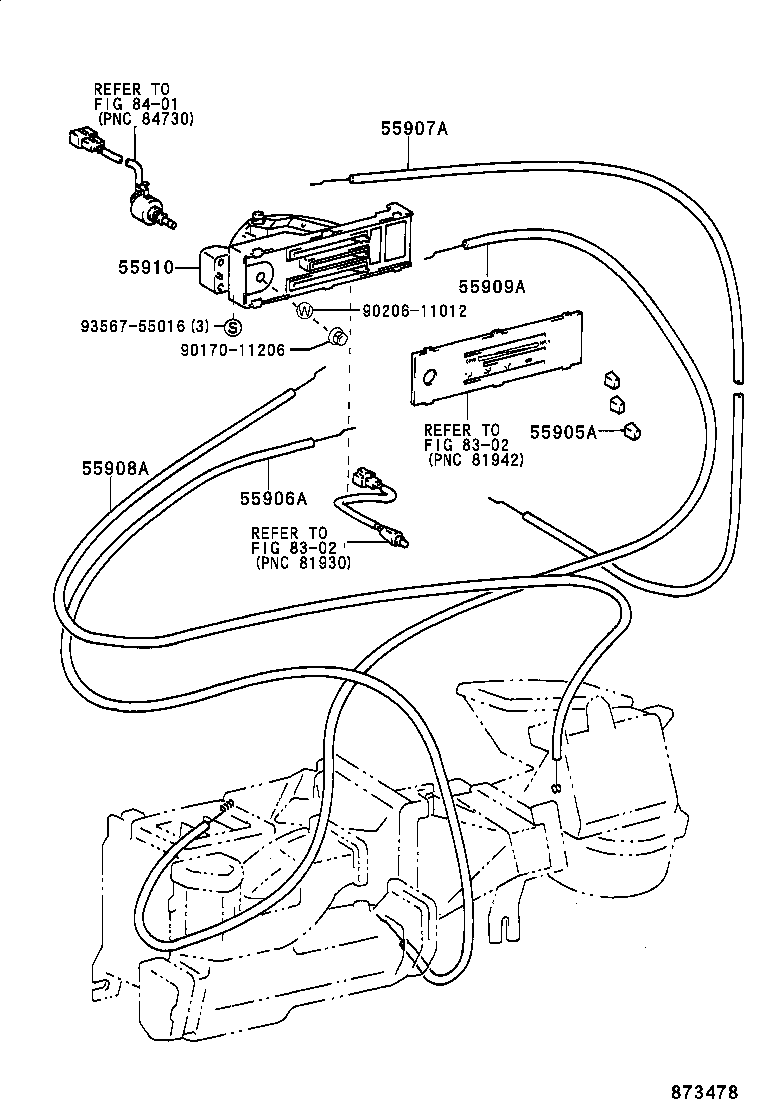

CONTROL ASSY,KNOB & CONTROL CABLE

diagram 55905A 55906A 55907A 55908A 55909A 55910 8302 8302 8401 9017011206 9020611012 9356755016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-12080

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

DEF-VENT,WARM-COOL

 2
55905-90K00

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

FRESH-RECIRC

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-90K01

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-90K01

BJ73,HZJ7#,PZJ7#,RJ7#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-90K01

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-90K03

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-90K02

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
Common parts
90170-11206
90206-11012
93567-55016
Linked diagrams
8302
8401

ILLUST NO. 2 OF 2(9001- )LHD

Click highlighted areas on diagram

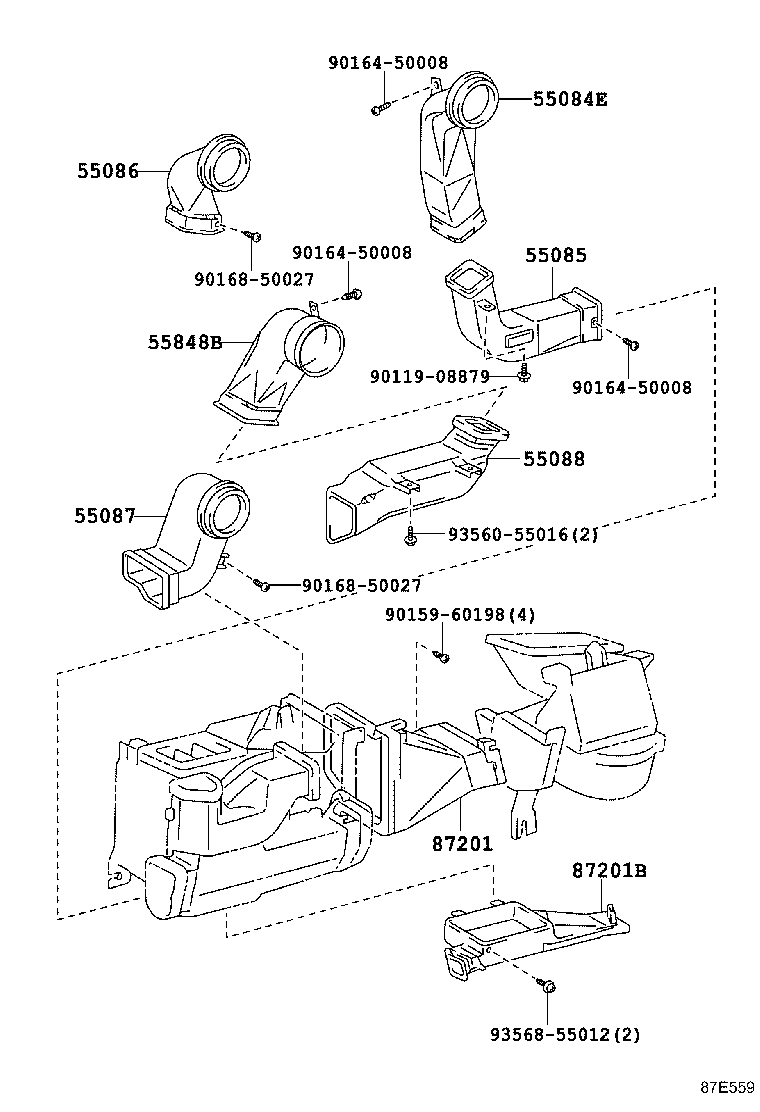

AIR DUCT

diagram 55084E 55085 55086 55087 55088 55848B 87201 87201B 9011908879 9015960198 9016450008 9016450008 9016450008 9016850027 9016850027 9356055016 9356855012
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-90K05

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55844-90K09

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-90K01

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4
55087-90K01

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
55088 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.5
55088-90K01

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
55848B - DUCT, HEATER TO REGISTER, NO.6
55848-90K01

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-90K01

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-60050

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
Common parts
90119-08879
90159-60198
90164-50008
90168-50027
93560-55016
93568-55012
