RJ70LV-MNW (1990)
Toyota Land Cruiser

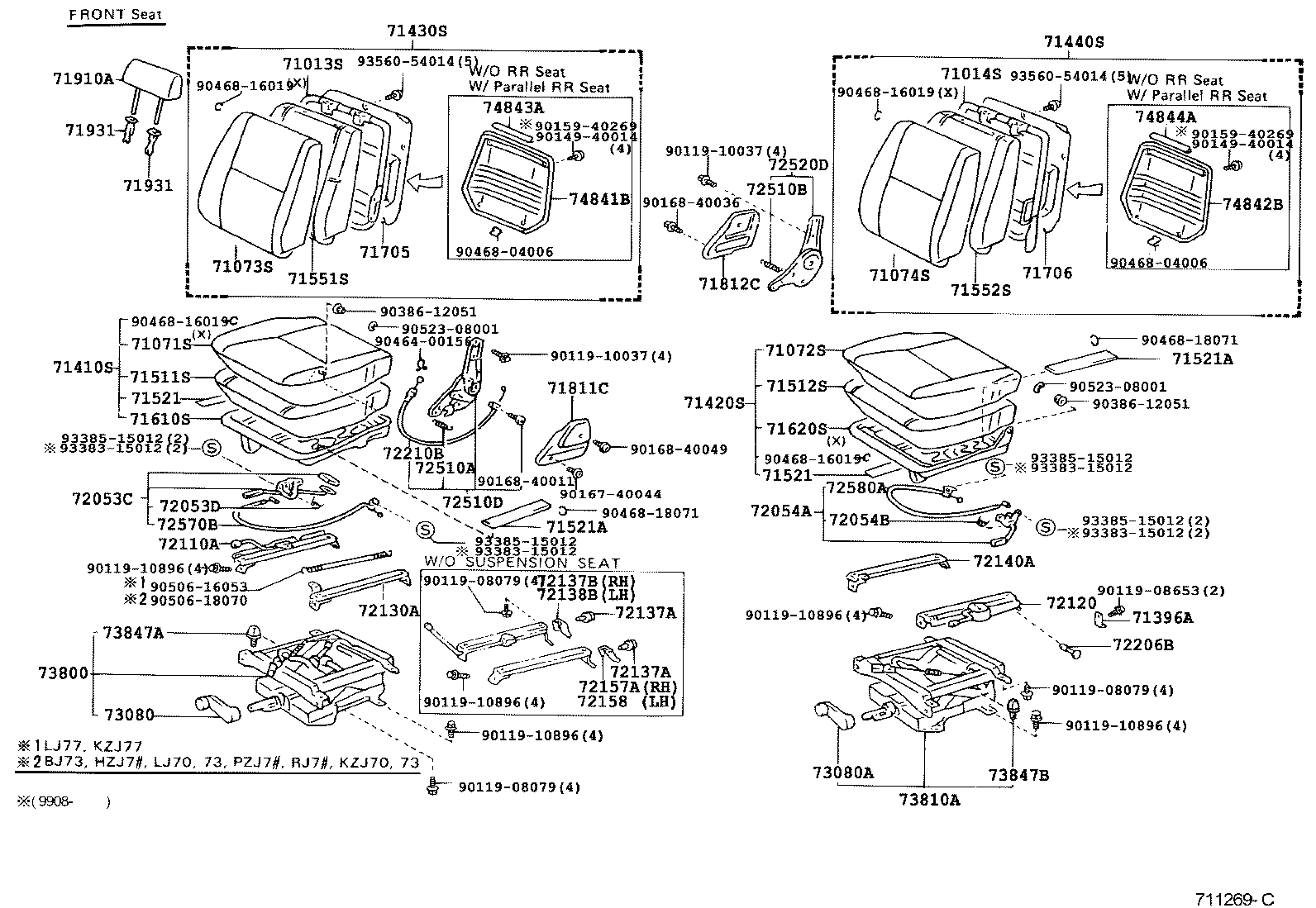

ILLUST NO. 1 OF 3(9001- )LHD..HT,SOT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-60120 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-60110 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-6031006 |
BJ73,HZJ70,73,LJ7#,RJ7#..LX,VM SABLE,TRIM4# |
1 | ||
| 71071-6031003 |
BJ73,HZJ70,73,LJ7#,RJ7#..LX,VM BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-6024006 |
BJ73,HZJ70,73,LJ7#,RJ7#..LX,VM SABLE,TRIM4# |
1 | ||
| 71072-6024003 |
BJ73,HZJ70,73,LJ7#,RJ7#..LX,VM BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-6034006 |
RJ73;HZJ7#,RJ70..CBR,DSL W/O(REAR SEAT),SABLE,TRIM4# |
1 | ||
| 71073-6034003 |
RJ73;HZJ7#,RJ70..CBR,DSL W/O(REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6025003 |
BJ73,HZJ70,73,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6025006 |
BJ73,HZJ70,73,RJ7# SABLE,TRIM4# |
1 | ||
| 71073-6034006 |
HZJ70,73,RJ70..CBR,DSL W/O(REAR SEAT),SABLE,TRIM4# |
1 | ||
| 71073-6034003 |
HZJ70,73,RJ70..CBR,DSL W/O(REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-6018003 |
RJ73;HZJ7#,RJ70..CBR,DSL W/O(REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6018006 |
RJ73;HZJ7#,RJ70..CBR,DSL W/O(REAR SEAT),SABLE,TRIM4# |
1 | ||
| 71074-6025003 |
BJ73,HZJ70,73,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6025006 |
BJ73,HZJ70,73,RJ7# SABLE,TRIM4# |
1 | ||
| 71074-6018003 |
HZJ70,73,RJ70..CBR,DSL W/O(REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6018006 |
HZJ70,73,RJ70..CBR,DSL W/O(REAR SEAT),SABLE,TRIM4# |
1 | ||
| 71396A - PLATE, REAR SEAT BAND HOOK | ||||
| 71396-90K00 |
BJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-6066003 |
HZJ70,73,LJ70,73,RJ7#..LHD..LX W(SUSPENSION SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6065003 |
BJ73,HZJ70,73,LJ70,73,RJ7#..LHD..(LX,VM) BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6066006 |
HZJ70,73,LJ70,73,RJ7#..LHD..LX W(SUSPENSION SEAT),SABLE,TRIM4# |
1 | ||
| 71410-6065006 |
BJ73,HZJ70,73,LJ70,73,RJ7#..LHD..(LX,VM) SABLE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-6058006 |
BJ73,HZJ70,73,LJ7#,RJ7#..LHD..(LX,VM) SABLE,TRIM4# |
1 | ||
| 71420-6059003 |
HZJ70,73,LJ7#,RJ7#..LHD..LX W(SUSPENSION SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6058003 |
BJ73,HZJ70,73,LJ7#,RJ7#..LHD..(LX,VM) BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6059006 |
HZJ70,73,LJ7#,RJ7#..LHD..LX W(SUSPENSION SEAT),SABLE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-6035006 |
RJ73;HZJ7#,RJ70..CBR,DSL W/O(REAR SEAT),SABLE,TRIM4# |
1 | ||
| 71430-6035003 |
RJ73;HZJ7#,RJ70..CBR,DSL W/O(REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6035006 |
HZJ7#,RJ70..CBR,DSL W/O(REAR SEAT),SABLE,TRIM4# |
1 | ||
| 71430-6031003 |
BJ73,HZJ70,73,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6035003 |
HZJ7#,RJ70..CBR,DSL W/O(REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6031006 |
BJ73,HZJ70,73,RJ7# SABLE,TRIM4# |
1 | ||
| 71430-60730B0 |
HZJ70,73,RJ70..CBR,DSL W/O(REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60730E0 |
HZJ70,73,RJ70..CBR,DSL W/O(REAR SEAT),SABLE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-6047003 |
RJ73;HZJ7#,RJ70..CBR,DSL W/O(REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6047006 |
RJ73;HZJ7#,RJ70..CBR,DSL W/O(REAR SEAT),SABLE,TRIM4# |
1 | ||
| 71440-6047006 |
HZJ7#,RJ70..CBR,DSL W/O(REAR SEAT),SABLE,TRIM4# |
1 | ||
| 71440-6047003 |
HZJ7#,RJ70..CBR,DSL W/O(REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6044003 |
BJ73,HZJ70,73,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6044006 |
BJ73,HZJ70,73,RJ7# SABLE,TRIM4# |
1 | ||
| 71440-60471B0 |
HZJ70,73,RJ70..CBR,DSL W/O(REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60471E0 |
HZJ70,73,RJ70..CBR,DSL W/O(REAR SEAT),SABLE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60040 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-90K00 |
LJ70..LHD..LX;BJ73,HZJ7#,LJ73,RJ7#..LX,STD,VM |
2 | ||
| 71521-90K00 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# |
4 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-90K00 |
LJ70..LHD..LX;BJ73,HZJ7#,LJ73,RJ7#..LX,STD,VM |
2 | ||
| 71521-90K00 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# |
4 | ||
| 71521A - PAD,FRONT SEAT CUSHION SILENCER | ||||
| 71521-60020 |
LJ70..LHD..VX;LJ70..HT..(LX,STD);HZJ70,73,LJ73,RJ7# |
1 | ||
| 71521A - PAD,FRONT SEAT CUSHION SILENCER | ||||
| 71521-60020 |
LJ70..LHD..VX;LJ70..HT..(LX,STD);HZJ70,73,LJ73,RJ7# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60010 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60010 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60120 |
HZJ70,73,LJ70,73,RJ7#..LHD..HT W(SUSPENSION SEAT) |
1 | ||
| 71610-60110 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7#..LHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60090 |
BJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7#..LHD |
1 | ||
| 71620-60100 |
HZJ70,73,LJ7#,RJ7#..LHD..HT W(SUSPENSION SEAT) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-60070 |
LJ70..LX,STD;LJ70..LHD..VX;HZJ70,73,LJ73,RJ70..CBR,DSL W/O(REAR SEAT) |
1 | ||
| 71771-90K00 |
BJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-90K00 |
BJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 71771-60070 |
LJ70..LX,STD;LJ70..LHD..VX;HZJ70,73,LJ73,RJ70..CBR,DSL W/O(REAR SEAT) |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-6002003 |
HZJ75,PZJ75..PIC;BJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 71811-6002006 |
HZJ75,PZJ75..PIC;BJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7# SABLE,TRIM4# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-6002003 |
LJ70..STD,VX;LJ70..LHD..LX;BJ73,HZJ7#,LJ73,77,PZJ7#,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 71812-6002006 |
LJ70..STD,VX;LJ70..LHD..LX;BJ73,HZJ7#,LJ73,77,PZJ7#,RJ7# SABLE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-90K0116 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) SABLE,TRIM4# |
2 | ||
| 71910-90K0113 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) BLUISH GRAY,TRIM1# |
2 | ||
| 71910-90K0116 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD..(HT,SOT)..(LX,STD,VM) SABLE,TRIM4# |
2 | ||
| 71910-90K0113 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD..(HT,SOT)..(LX,STD,VM) BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001047 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# W/O(LOCK),BLUEISH GRAY,TRIM1# |
2 | ||
| 71930-22040B0 |
BJ73,HZJ7#,LJ7#,RJ7# W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-1001050 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-2201006 |
BJ73,HZJ7#,LJ7#,RJ7# W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-22010B1 |
BJ73,HZJ7#,LJ7#,RJ7# W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-1006050 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-2204006 |
BJ73,HZJ7#,LJ7#,RJ7# W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1006047 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# W(LOCK),BLUEISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001047 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# W/O(LOCK),BLUEISH GRAY,TRIM1# |
2 | ||
| 71930-22040B0 |
BJ73,HZJ7#,LJ7#,RJ7# W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-1001050 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-2201006 |
BJ73,HZJ7#,LJ7#,RJ7# W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-22010B1 |
BJ73,HZJ7#,LJ7#,RJ7# W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-1006050 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-2204006 |
BJ73,HZJ7#,LJ7#,RJ7# W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1006047 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# W(LOCK),BLUEISH GRAY,TRIM1# |
2 | ||
| 72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH | ||||
| 72053-90K0216 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7#..LHD SABLE,TRIM4# |
1 | ||
| 72053-90K0213 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7#..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 72053D - SPRING(FOR RECLINING REMOTE CONTROL LEVER RH) | ||||
| 90508-16079 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-90K0016 |
LJ70..LX,STD;LJ70..LHD..VX;BJ73,HZJ7#,LJ73,77,PZJ7#,RJ7# SABLE,TRIM4# |
1 | ||
| 72054-90K0013 |
LJ70..LX,STD;LJ70..LHD..VX;BJ73,HZJ7#,LJ73,77,PZJ7#,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 72054B - SPRING(FOR RECLINING REMOTE CONTROL LEVER LH) | ||||
| 90508-16080 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-60110 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7#..LHD |
1 | ||
| 72110-60120 |
HZJ70,73,LJ70,73,RJ7#..LHD..HT W(SUSPENSION SEAT) |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-90K14 |
BJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7#..LHD |
1 | ||
| 72120-90K16 |
HZJ70,73,LJ7#,RJ7#..LHD..HT W(SUSPENSION SEAT) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-60080 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7#..LHD |
1 | ||
| 72130-60090 |
HZJ70,73,LJ70,73,RJ7#..LHD..HT W(SUSPENSION SEAT) |
1 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-0509003 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# BLUISH GRAY,TRIM1# |
4 | ||
| 90467-0509006 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# SABLE,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-0509003 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# BLUISH GRAY,TRIM1# |
4 | ||
| 90467-0509006 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# SABLE,TRIM4# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-6002003 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 72137-6002006 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7# SABLE,TRIM4# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-90K0213 |
BJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 72137-90K0216 |
BJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7# SABLE,TRIM4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-90K03 |
HZJ70,73,LJ7#,RJ7#..LHD..HT W(SUSPENSION SEAT) |
1 | ||
| 72140-90K00 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7#..LHD |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-6002003 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 72157-6002006 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7# SABLE,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-90K0013 |
BJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 72157-90K0016 |
BJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7# SABLE,TRIM4# |
1 | ||
| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-90K00 |
BJ73,HZJ70,71,73,74,75,LJ70,73,PZJ7#,RJ7#..LHD..(HT,SOT) |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-16007 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 72510B - SPRING, TENSION, NO.2(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-16007 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-90K07 |
BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7#..LHD W(WALK-IN SEAT) |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-90K00 |
BJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..LHD..(HT,SOT) |
1 | ||
| 72570B - CABLE ASSY, RECLINING ADJUSTING, RH | ||||
| 72570-90K00 |
HZJ79;BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 72580A - CABLE ASSY, RECLINING ADJUSTING, LH | ||||
| 72580-90K00 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 73080 - HANDLE, SEAT SUSPENSION CONTROL, RH | ||||
| 73080-90K00 |
LJ70..LHD..VX;LJ70..HT..(LX,STD);HZJ70,73,LJ73,77,RJ7# |
1 | ||
| 73080A - HANDLE, SEAT SUSPENSION CONTROL, LH | ||||
| 73080-90K00 |
LJ70..LHD..VX;LJ70..HT..(LX,STD);HZJ70,73,LJ73,77,RJ7# |
1 | ||
| 73800 - SUSPENSION ASSY, SEAT, RH | ||||
| 73800-60010 |
LJ70..LHD..VX;LJ70..HT..(LX,STD);HZJ70,73,LJ73,77,RJ7# |
1 | ||
| 73810A - SUSPENSION ASSY, SEAT, LH | ||||
| 73810-60010 |
LJ70..LHD..VX;LJ70..HT..(LX,STD);HZJ70,73,LJ73,77,RJ7# |
1 | ||
| 73847A - CUSHION, SEAT SUSPENSION STOPPER, RH | ||||
| 73847-90K00 |
LJ70..LHD..VX;LJ70..HT..(LX,STD);HZJ7#,LJ73,77,RJ7# |
1 | ||
| 73847-90K00 |
LJ70..LHD..VX;LJ70..HT..(LX,STD);HZJ70,73,LJ73,77,RJ7# |
2 | ||
| 73847B - CUSHION, SEAT SUSPENSION STOPPER, LH | ||||
| 73847-90K00 |
LJ70..LHD..VX;LJ70..HT..(LX,STD);HZJ7#,LJ73,77,RJ7# |
1 | ||
| 73847-90K00 |
LJ70..LHD..VX;LJ70..HT..(LX,STD);HZJ70,73,LJ73,77,RJ7# |
2 | ||
| 74841B - PANEL, FRONT SEAT BACK | ||||
| 74841-90K0013 |
LJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#..HT BLUISH GRAY,TRIM1# |
1 | ||
| 74841-90K0016 |
LJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#..HT SABLE,TRIM4# |
1 | ||
| 74842B - PANEL, FRONT SEAT BACK, A | ||||
| 74841-90K0016 |
LJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#..HT SABLE,TRIM4# |
1 | ||
| 74841-90K0013 |
LJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#..HT BLUISH GRAY,TRIM1# |
1 | ||
| 74843A - ORNAMENT, FRONT SEAT BACK PANEL | ||||
| 74844-90K0016 |
LJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#..HT SABLE,TRIM4# |
1 | ||
| 74844-90K0013 |
LJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#..HT BLUISH GRAY,TRIM1# |
1 | ||
| 74844A - ORNAMENT, FRONT SEAT BACK PANEL, A | ||||
| 74844-90K0013 |
LJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#..HT BLUISH GRAY,TRIM1# |
1 | ||
| 74844-90K0016 |
LJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#..HT SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08653 | ||||
| 90119-10037 | ||||
| 90119-10896 | ||||
| 90149-40014 | ||||
| 90159-40269 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90386-12051 | ||||
| 90464-00156 | ||||
| 90468-04006 | ||||
| 90468-16019 | ||||
| 90468-18071 | ||||
| 90506-16053 | ||||
| 90506-18070 | ||||
| 90523-08001 | ||||
| 93383-15012 | ||||
| 93385-15012 | ||||
| 93560-54014 | ||||

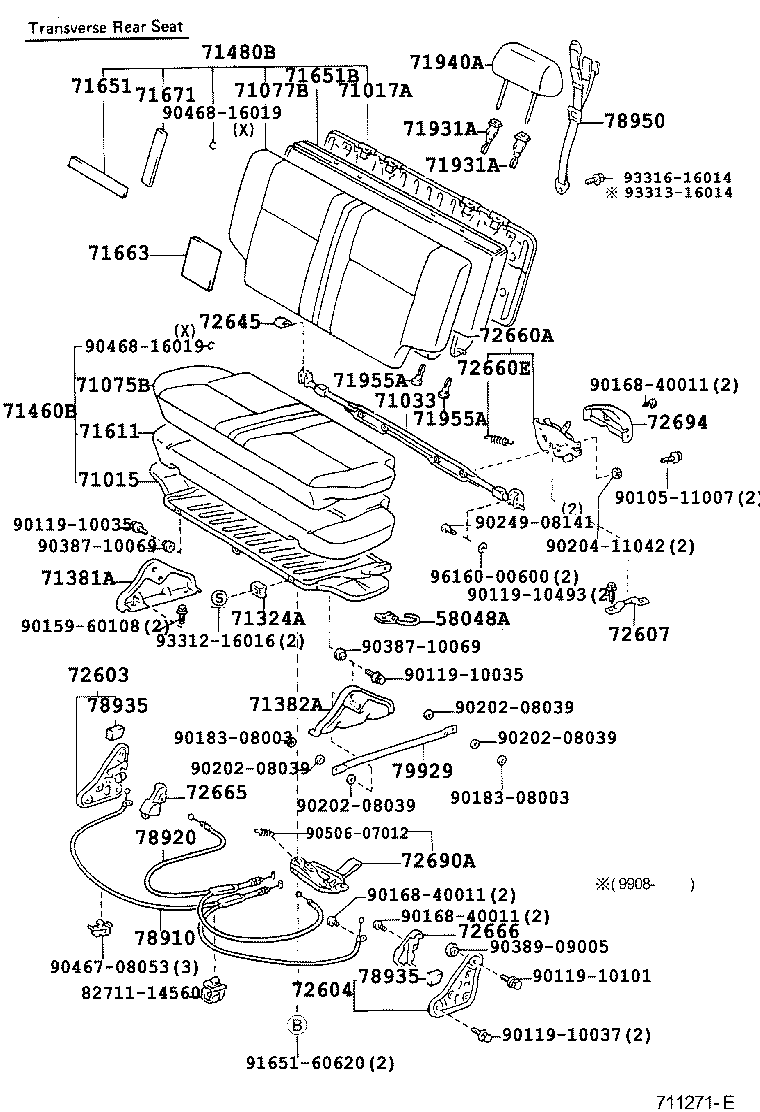

ILLUST NO. 2 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58048A - HOOK SUB-ASSY, ROPE, NO.1 | ||||
| 58048-90K00 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7# |
2 | ||
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-90K00 |
LJ73..VX;HZJ70,71,LJ70,PZJ70,RJ70 |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-90K08 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7# |
1 | ||
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-90K0201 |
BJ73,HZJ7#,LJ70,73,PZJ70,73,RJ7# BLACK,TRIM1#,4# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-6039003 |
HZJ70,LJ70,RJ70..LX BLUISH GRAY,TRIM1# |
1 | ||
| 71075-6039006 |
HZJ70,LJ70,RJ70..LX SABLE,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-6029003 |
BJ73,HZJ70,73,LJ70,73,RJ7#..LX,VM BLUISH GRAY,TRIM1# |
1 | ||
| 71077-6029006 |
BJ73,HZJ70,73,LJ70,73,RJ7#..LX,VM SABLE,TRIM4# |
1 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-90K00 |
BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7# |
2 | ||
| 71381A - BRACKET, REAR SEAT CUSHION SET, RH | ||||
| 71381-90K02 |
HZJ70,71,LJ70,PZJ70,RJ70 |
1 | ||
| 71382A - BRACKET, REAR SEAT CUSHION SET, LH | ||||
| 71308-90K00 |
HZJ70,71,LJ70,PZJ70,RJ70 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-6019006 |
HZJ70,LJ70,RJ70..LX SABLE,TRIM4# |
1 | ||
| 71460-6019003 |
HZJ70,LJ70,RJ70..LX BLUISH GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-6057003 |
BJ73,HZJ70,73,LJ70,73,RJ7#..LX,VM BLUISH GRAY,TRIM1# |
1 | ||
| 71480-6057006 |
BJ73,HZJ70,73,LJ70,73,RJ7#..LX,VM SABLE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-90K03 |
HZJ70,71,LJ70,PZJ70,RJ70 |
1 | ||
| 71651 - PAD, REAR NO.1 SEAT BACK | ||||
| 71651-90K00 |
LJ73..VX;HZJ70,LJ70,PZJ75,RJ70..HT,SOT |
2 | ||
| 71651-90K00 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-90K10 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1001050 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1006050 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1006047 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT W(LOCK),BLUEISH GRAY,TRIM1# |
2 | ||
| 71930-2204006 |
BJ73,HZJ7#,LJ70,73,RJ7#..HT,SOT W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1001047 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT W/O(LOCK),BLUEISH GRAY,TRIM1# |
2 | ||
| 71931-2201006 |
BJ73,HZJ7#,LJ70,73,RJ7#..HT,SOT W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-22040B0 |
BJ73,HZJ7#,LJ70,73,RJ7#..HT,SOT W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-22010B1 |
BJ73,HZJ7#,LJ70,73,RJ7#..HT,SOT W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1001050 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1006050 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1006047 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT W(LOCK),BLUEISH GRAY,TRIM1# |
2 | ||
| 71930-2204006 |
BJ73,HZJ7#,LJ70,73,RJ7#..HT,SOT W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1001047 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT W/O(LOCK),BLUEISH GRAY,TRIM1# |
2 | ||
| 71931-2201006 |
BJ73,HZJ7#,LJ70,73,RJ7#..HT,SOT W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-22040B0 |
BJ73,HZJ7#,LJ70,73,RJ7#..HT,SOT W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-22010B1 |
BJ73,HZJ7#,LJ70,73,RJ7#..HT,SOT W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-90K0113 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) BLUISH GRAY,TRIM1# |
2 | ||
| 71910-90K0116 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) SABLE,TRIM4# |
2 | ||
| 71955A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-90K0001 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT BLACK,TRIM1#,4# |
4 | ||
| 71955A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-90K0001 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT BLACK,TRIM1#,4# |
4 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-60010 |
BJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72607-90K00 |
BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 72645 - CUSHION, REAR SEAT BACK LOCK | ||||
| 72645-60010 |
BJ73,HZJ70,73,LJ70,73,RJ7# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-90K00 |
BJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 72660E - SPRING(FOR REAR SEAT CUSHION SUPPORT) | ||||
| 90506-09035 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-90K00 |
BJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-90K00 |
BJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-90K0116 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT SABLE,TRIM4# |
1 | ||
| 72690-90K0113 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT BLUISH GRAY,TRIM1# |
1 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-90K00 |
BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7# |
2 | ||
| 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 | ||||
| 78910-90K00 |
BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7# |
1 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78920-90K00 |
BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7# |
1 | ||
| 78935 - CUSHION, FOLD SEAT BACK LOCK | ||||
| 78935-90K00 |
BJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 78935 - CUSHION, FOLD SEAT BACK LOCK | ||||
| 78935-90K00 |
BJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-90K0016 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT SABLE,TRIM4# |
1 | ||
| 78950-90K0013 |
BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT,SOT BLUISH GRAY,TRIM1# |
1 | ||
| 79929 - FRAME, FOLD SEAT LEG STOPPER | ||||
| 79929-90K03 |
BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7# |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 90105-11007 | ||||
| 90119-10035 | ||||
| 90119-10037 | ||||
| 90119-10101 | ||||
| 90119-10493 | ||||
| 90159-60108 | ||||
| 90168-40011 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90204-11042 | ||||
| 90249-08141 | ||||
| 90387-10069 | ||||
| 90389-09005 | ||||
| 90467-08053 | ||||
| 90468-16019 | ||||
| 90506-07012 | ||||
| 91651-60620 | ||||
| 93312-16016 | ||||
| 93313-16014 | ||||
| 93316-16014 | ||||
| 96160-00600 | ||||
ILLUST NO. 3 OF 3(9001- )HZJ71,74,RJ7# ; (9608-9702)HZJ70,73
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 79977-60040 | ||||
| 90119-08364 | ||||
| 90249-08141 | ||||
| 90468-14018 | ||||
| 90468-18071 | ||||
| 90508-20072 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
