RJ70LV-MNW (1990)
Toyota Land Cruiser

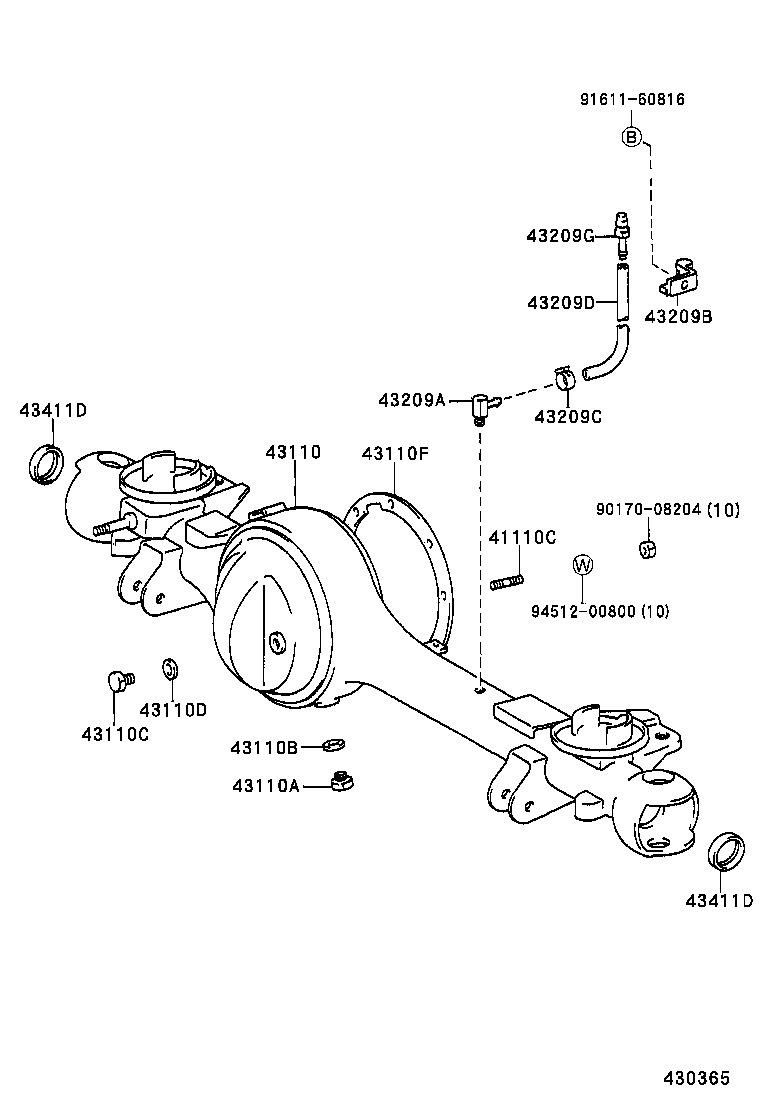

ILLUST NO. 2 OF 2(9001- )KZJ7#,LJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110C - BOLT, STUD (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90116-08329 |
HZJ7#,LJ7#,PZJ7#,RJ7# S=17 & 12,L=37 |
8 | ||
| 90116-08233 |
HZJ7#,LJ7#,PZJ7#,RJ7# S=14 & 14,L=42 |
2 | ||
| 43110 - HOUSING ASSY, FRONT AXLE | ||||
| 43110-60202 |
LJ7#,RJ7#..LHD |
1 | ||
| 43110A - PLUG SUB-ASSY, DRAIN | ||||
| 90341-18040 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 43110B - GASKET, DRAIN | ||||
| 12157-10010 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 43110C - PLUG (FOR FRONT AXLE HOUSING) | ||||
| 90341-18006 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 43110D - GASKET (FOR FRONT AXLE HOUSING PLUG) | ||||
| 12157-10010 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 43110F - GASKET, FRONT DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
LJ7#,RJ7# |
1 | ||
| 43209A - UNION (FOR FRONT AXLE BREATHER HOSE) | ||||
| 90404-51073 |
LJ7#,RJ7# |
1 | ||
| 90404-10019 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 43209B - CLAMP (FOR FRONT AXLE BREATHER HOSE) | ||||
| 90461-10387 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 43209C - CLIP, HOSE (FOR FRONT AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 43209D - HOSE, NO.1 (FOR FRONT AXLE BREATHER) | ||||
| 95333-06040 |
BJ73,LJ7#,RJ7# *H,L=400 |
1 | ||
| 95333-06040 |
LJ7#,RJ7# *H,L=320 |
1 | ||
| 95333-06040 |
LJ7#,RJ7# *H,L=340 |
1 | ||
| 43209G - PLUG, BREATHER (FOR FRONT AXLE) | ||||
| 90930-03097 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 43411D - SEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90310-35005 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 43411D - SEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90310-35005 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 91611-60816 | ||||
| 94512-00800 | ||||

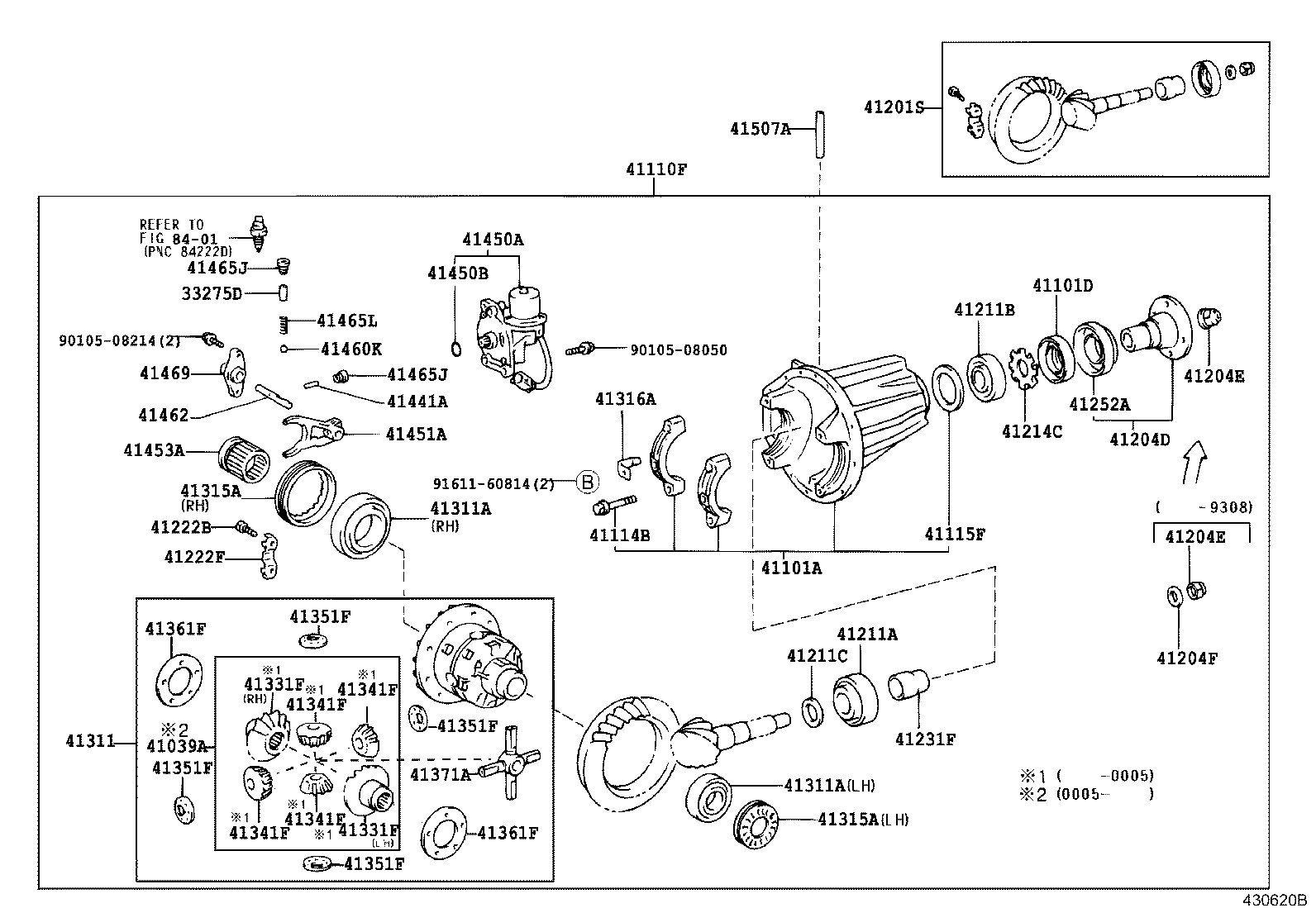

ILLUST NO. 1 OF 2(9001- )
W(DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-60031 |
LJ7#,RJ7# |
1 | ||
| 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90311-38035 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-60141 |
RJ7# *FGR=41:9=4.555 |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
4 | ||
| 41201S - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-69325 |
RJ7# *FGR=41:9=4.556 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-35040 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90179-20001 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90179-20001 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41204F - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90201-20005 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35044 |
LJ7#,RJ7# |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30022 |
LJ7#,RJ7# |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90201-35498 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.73 |
1 | ||
| 90201-35508 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.03 |
1 | ||
| 90201-35499 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.76 |
1 | ||
| 90201-35509 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.06 |
1 | ||
| 90201-35514 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.21 |
1 | ||
| 90201-35497 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.70 |
1 | ||
| 90201-35507 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.00 |
1 | ||
| 90201-35500 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.79 |
1 | ||
| 90201-35506 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.97 |
1 | ||
| 90201-35516 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35501 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.82 |
1 | ||
| 90201-35510 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.09 |
1 | ||
| 90201-35503 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.88 |
1 | ||
| 90201-35511 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.12 |
1 | ||
| 90201-35512 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.15 |
1 | ||
| 90201-35505 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.94 |
1 | ||
| 90201-35504 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.91 |
1 | ||
| 90201-35518 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35515 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35517 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35502 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.85 |
1 | ||
| 90201-35513 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.18 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-60010 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
10 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
5 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-40011 |
LJ7#,RJ7# |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-35020 |
BJ73,HZJ7#,LJ7#,RJ7# |
1 | ||
| 41252-35010 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-40020 |
LJ7#,RJ7# |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LJ7#,RJ7# |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LJ7#,RJ7# |
2 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LJ7#,RJ7# |
2 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LJ7#,RJ7# |
2 | ||
| 41316A - LOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
LJ7#,RJ7# |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-35011 |
HZJ7#,KZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-35011 |
HZJ7#,KZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-35020 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-35020 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-35020 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-35020 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
HZJ7#,LJ7#,PZJ7#,RJ7# T=1.6 |
2 | ||
| 41363-40021 |
HZJ7#,LJ7#,PZJ7#,RJ7# T=1.8 |
2 | ||
| 41362-40021 |
HZJ7#,LJ7#,PZJ7#,RJ7# T=1.7 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
HZJ7#,LJ7#,PZJ7#,RJ7# T=1.6 |
2 | ||
| 41363-40021 |
HZJ7#,LJ7#,PZJ7#,RJ7# T=1.8 |
2 | ||
| 41362-40021 |
HZJ7#,LJ7#,PZJ7#,RJ7# T=1.7 |
2 | ||
| Common parts | ||||
| 90105-08050 | ||||
| 90105-08214 | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 8401 | ||||

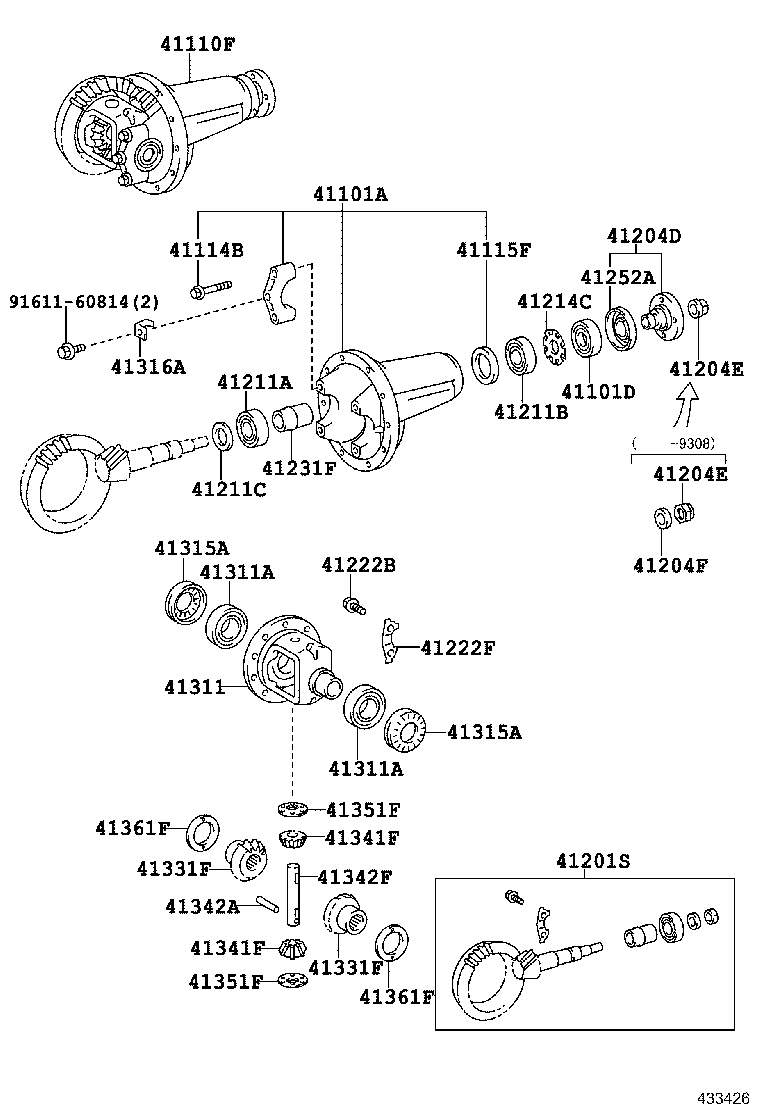

ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-60031 |
LJ7#,RJ7# |
1 | ||
| 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90311-38035 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-60141 |
RJ7# *FGR=41:9=4.555 |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
4 | ||
| 41201S - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-69325 |
RJ7# *FGR=41:9=4.556 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-35040 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90179-20001 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90179-20001 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41204F - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90201-20005 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35044 |
LJ7#,RJ7# |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30022 |
LJ7#,RJ7# |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90201-35498 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.73 |
1 | ||
| 90201-35508 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.03 |
1 | ||
| 90201-35499 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.76 |
1 | ||
| 90201-35509 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.06 |
1 | ||
| 90201-35514 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.21 |
1 | ||
| 90201-35497 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.70 |
1 | ||
| 90201-35507 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.00 |
1 | ||
| 90201-35500 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.79 |
1 | ||
| 90201-35506 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.97 |
1 | ||
| 90201-35516 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35501 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.82 |
1 | ||
| 90201-35510 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.09 |
1 | ||
| 90201-35503 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.88 |
1 | ||
| 90201-35511 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.12 |
1 | ||
| 90201-35512 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.15 |
1 | ||
| 90201-35505 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.94 |
1 | ||
| 90201-35504 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.91 |
1 | ||
| 90201-35518 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35515 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35517 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35502 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=1.85 |
1 | ||
| 90201-35513 |
HZJ7#,LJ7#,PZJ7#,RJ7# OD=47,T=2.18 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-60010 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
10 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
5 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-40011 |
LJ7#,RJ7# |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-35020 |
BJ73,HZJ7#,LJ7#,RJ7# |
1 | ||
| 41252-35010 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-40020 |
LJ7#,RJ7# |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LJ7#,RJ7# |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LJ7#,RJ7# |
2 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LJ7#,RJ7# |
2 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LJ7#,RJ7# |
2 | ||
| 41316A - LOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
LJ7#,RJ7# |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-35011 |
HZJ7#,KZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-35011 |
HZJ7#,KZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-35020 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-35020 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06085 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-39610 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
HZJ7#,LJ7#,PZJ7#,RJ7# T=1.6 |
2 | ||
| 41363-40021 |
HZJ7#,LJ7#,PZJ7#,RJ7# T=1.8 |
2 | ||
| 41362-40021 |
HZJ7#,LJ7#,PZJ7#,RJ7# T=1.7 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
HZJ7#,LJ7#,PZJ7#,RJ7# T=1.6 |
2 | ||
| 41363-40021 |
HZJ7#,LJ7#,PZJ7#,RJ7# T=1.8 |
2 | ||
| 41362-40021 |
HZJ7#,LJ7#,PZJ7#,RJ7# T=1.7 |
2 | ||
| Common parts | ||||
| 91611-60814 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
