RJ70LV-MNEW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Apr 1996
Engine
22RE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )BJ73,RJ7#

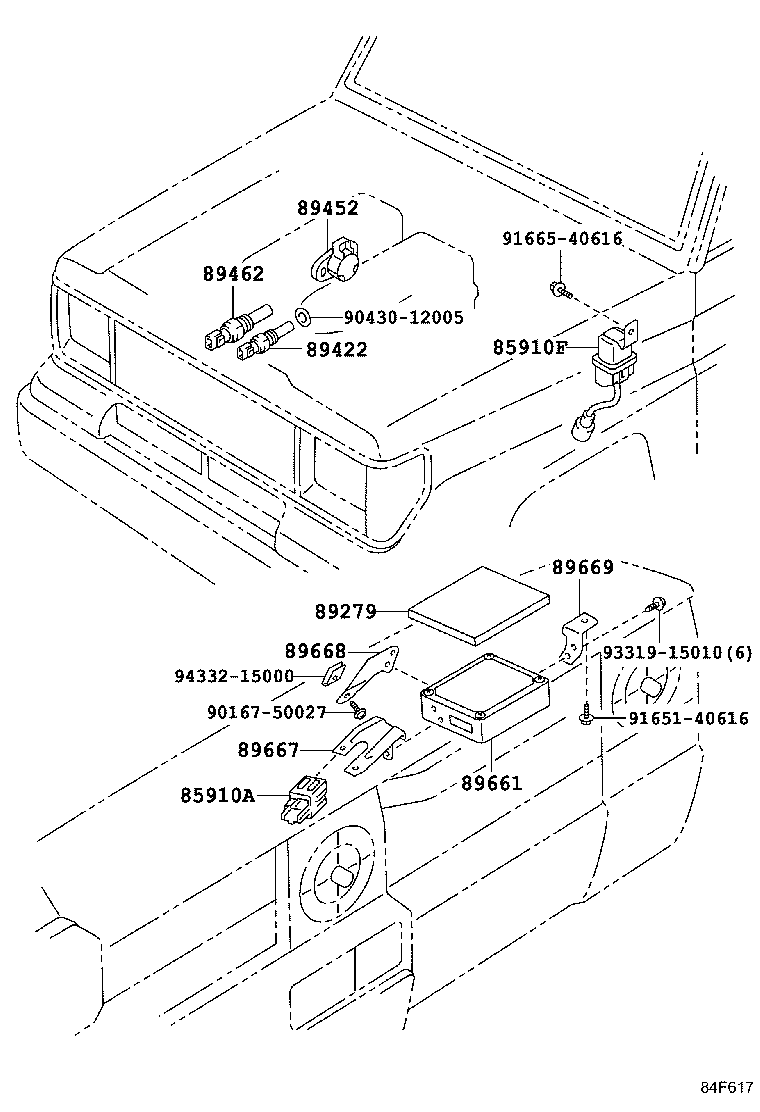

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
RJ7# |
1 | ||
| 85910-30050 |
RJ7#..EFI |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 85915-60020 |
RJ7# |
1 | ||
| 85915-60020 |
RJ7#..EFI |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-60010 |
RJ7#..EFI |
1 | ||
| 89279-60010 |
RJ7# |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-20010 |
RJ7# |
1 | ||
| 89422-20010 |
RJ7#..EFI |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-14050 |
RJ7#..EFI |
1 | ||
| 89452-12040 |
RJ7#..EFI |
1 | ||
| 89452-12040 |
RJ7# |
1 | ||
| 89452-22090 |
RJ7# |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-20040 |
RJ7#..EFI |
1 | ||
| 89462-20040 |
RJ7# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-60050 |
RJ7# |
1 | ||
| 89661-60050 |
RJ7#..EFI |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-60030 |
RJ7# |
1 | ||
| 89667-60030 |
RJ7#..EFI |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-60030 |
RJ7# |
1 | ||
| 89668-60030 |
RJ7#..EFI |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89559-60020 |
RJ7# |
1 | ||
| 89559-60020 |
RJ7#..EFI |
1 | ||
| Common parts | ||||
| 90167-50027 | ||||
| 90430-12005 | ||||
| 91651-40616 | ||||
| 91665-40616 | ||||
| 93319-15010 | ||||
| 94332-15000 | ||||
