RJ70LV-MNEW (1990)

Toyota Land Cruiser

Production Jan 1990 - Apr 1996
Engine 22RE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9604)KZJ7#,LJ7#,RJ7#

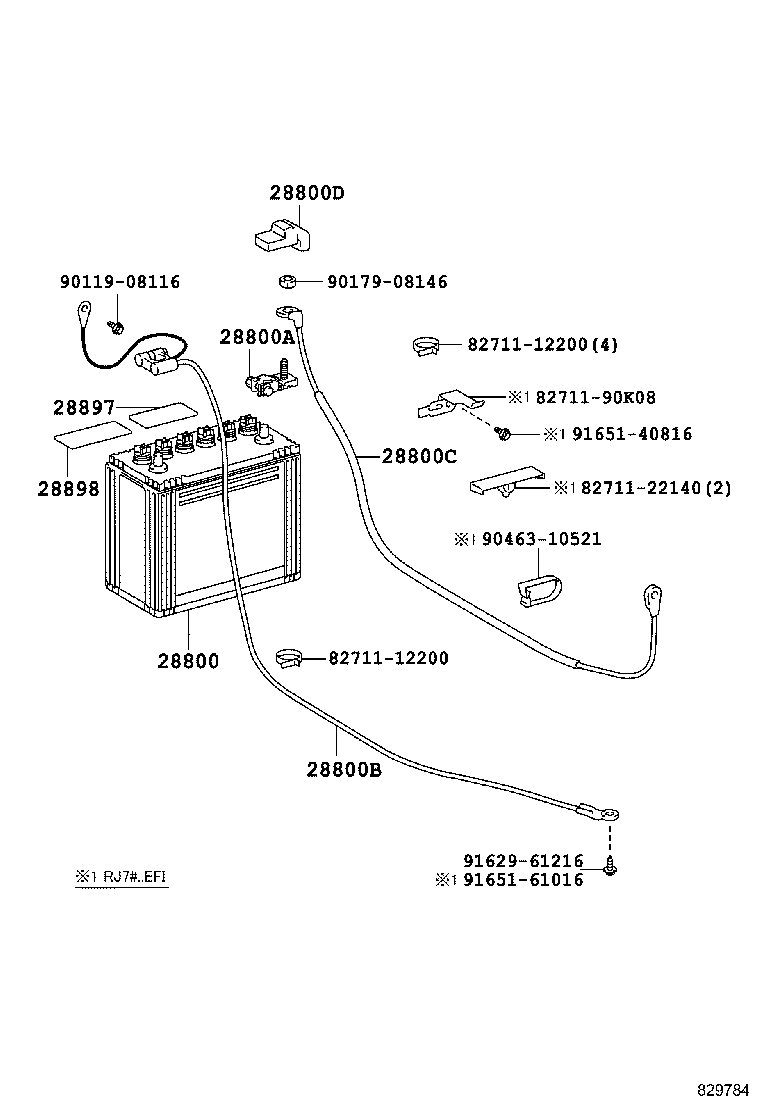

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800C 28800D 28897 28898 8271112200 8271112200 8271122140 8271190K08 9011908116 9017908146 9046310521 9162961216 9165140816 9165161016
Part # Description Qty Price
28800 - BATTERY
28800-42010

22R..RJ70

75D31L,75D31L

 1
28800-56040

22R..RJ70

48D26L

 1
28800-46012

2LT..LJ70..LX,STD;2LT..LJ70..LHD..VX;22RE,2LT..LJ73,77,RJ7#

75D31R

 1
28800-46050

22RE..RJ7#

75D31R

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05031

2LT..LJ70..LX,STD;2LT..LJ70..LHD..VX;22R#,3B,1HZ,2LT,1PZ..BJ73,HZJ7#,LJ73,77,PZJ7#,RJ7#

 1
28800B - CABLE, BATTERY TO GROUND
82123-90K09

22RE..RJ7#

 1
82123-90K06

22R..RJ70

 1
82123-90K09

22RE..RJ7#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-60070

2LT..LJ70..LX,STD;2LT..LJ70..LHD..VX;22R,2LT..LJ73,77,RJ70

 1
82122-60070

22R..RJ70

 1
82122-60120

22RE..RJ7#

 1
82122-60122

22RE..RJ7#

 1
82122-60121

22RE..RJ7#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

2LT..LJ70..LX,STD;2LT..LJ70..LHD..VX;22R#,3B,1HZ,2LT,1PZ..BJ73,HZJ7#,LJ73,77,PZJ7#,RJ7#

 1
Common parts
82711-12200
82711-22140
82711-90K08
90119-08116
90179-08146
90463-10521
91629-61216
91651-40816
91651-61016
