RJ70LV-MNEW (1990)

Toyota Land Cruiser

Production Jan 1990 - Apr 1996
Engine 22RE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

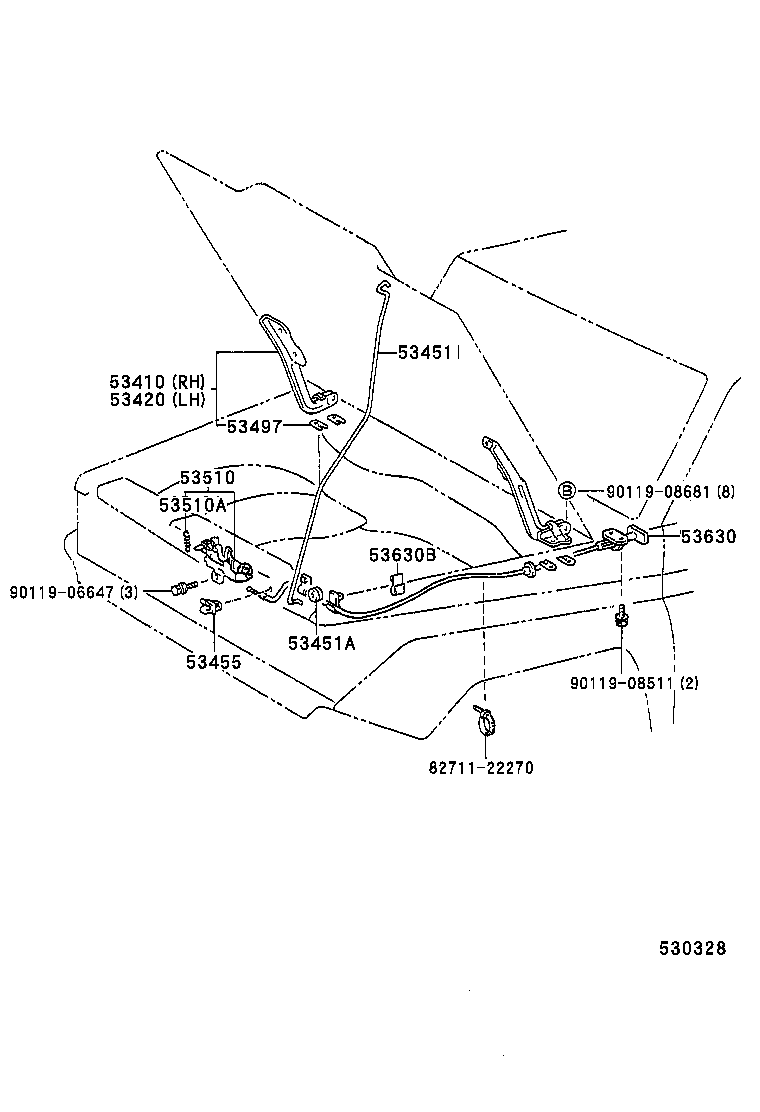

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53455 53497 53510 53510A 53630 53630B 8271122270 9011906647 9011908511 9011908681
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-90K01

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
53420 - HINGE ASSY, HOOD, LH
53420-90K01

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
53451 - ROD, HOOD SUPPORT
53451-90K00

LJ7#,RJ7#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15296

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-14020

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-90K02

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

T=0.5

 1
53510 - LOCK ASSY, HOOD
53510-60051

LJ7#,RJ7#..LHD

 1
53510-60051

KZJ7#,LJ7#,RJ7#..LHD

 1
53510-60050

LJ7#,RJ7#..LHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09039

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

WD=0.9,CW=21.25

 2
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-90K02

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
53630-90K02

KZJ70..RHD;BJ73,HZJ7#,LJ7#,RJ7#

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
69749-12010

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 4
69749-12010

KZJ7#,LJ7#,RJ7#..LHD

 3
69749-12010

LJ7#,RJ7#..LHD

 3
Common parts
82711-22270
90119-06647
90119-08511
90119-08681
