PZJ75LV-MRW (1990)
Toyota Land Cruiser

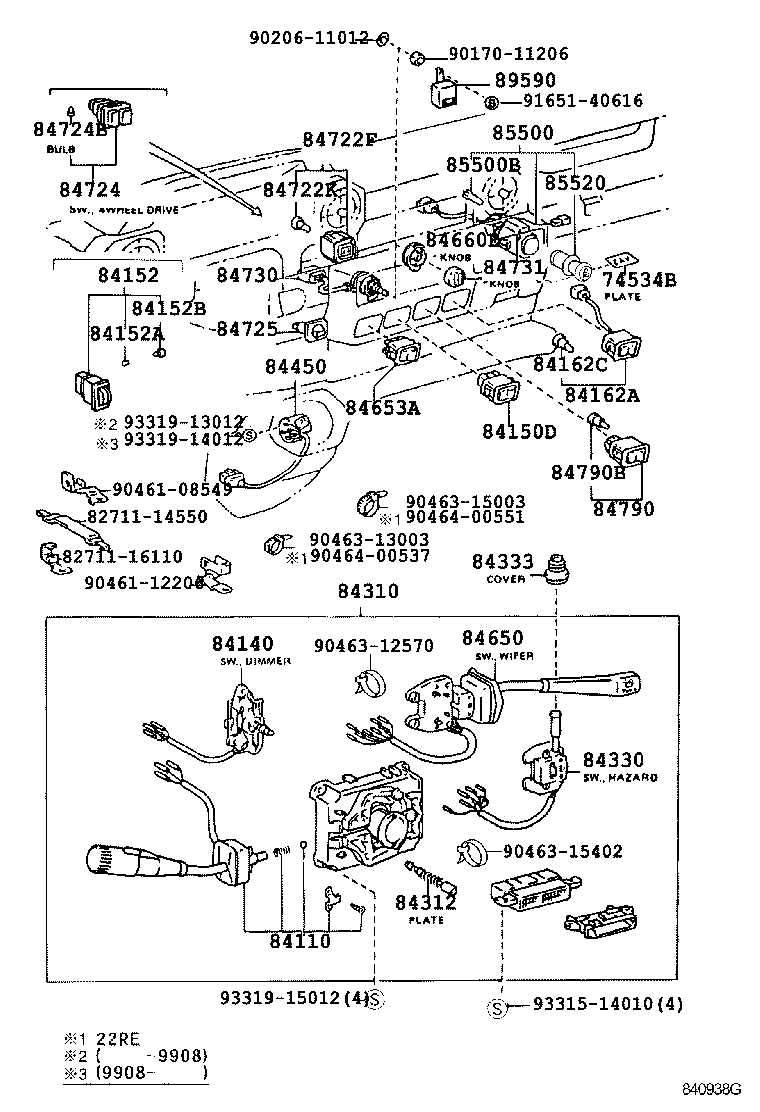

ILLUST NO. 2 OF 5(9001- )
INSTRUMENT PANEL SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74534B - PLATE, VOLTAGE CAUTION | ||||
| 74534-90K00 |
HZJ7#,PZJ7# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69355 |
HZJ7#,LJ7#,PZJ7#,RJ7#..LHD..(HT,PIC) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-69105 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-90K00 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84160-60080 |
HZJ7#,PZJ7#..HT |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60571 |
HZJ7#,LJ7#,PZJ7#,RJ7#..LHD..(HT,PIC) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
HZJ7#,LJ7#,PZJ7#,RJ7#..HT,PIC |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-69115 |
HZJ7#,LJ7#,PZJ7#,RJ7#..LHD..(HT,PIC) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-60120 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ70..CBR,DSL |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69445 |
HZJ7#,LJ7#,PZJ7#,RJ7#..LHD..(HT,PIC) |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-90K00 |
BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT |
1 | ||
| 84660E - KNOB, COOLER SWITCH | ||||
| 84731-12032 |
BJ73,HZJ7#,LJ70,73,PZJ73,75..LHD..(LX,STD,VM) |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-60060 |
PZJ7# |
1 | ||
| 84722K - BULB, TRANSMISSION CONTROL SWITCH | ||||
| 84999-10100 |
PZJ7# 24V 1.12W |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-60020 |
HZJ7#,PZJ7# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-90K01 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 84731-20030 |
BJ73,HZJ7#,LJ70,73,PZJ73,75..LHD..(LX,STD,VM) W(AIR CONDITIONER) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-90K00 |
HZJ7#,PZJ7#..HT COLD AREA SPEC |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10100 |
HZJ7#,PZJ7#..HT 24V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-90K00 |
HZJ7#,PZJ7# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-16020 |
HZJ7#,PZJ7# 24V 1.8W |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
HZJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 82711-14550 | ||||
| 82711-16110 | ||||
| 90170-11206 | ||||
| 90206-11012 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90463-12570 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 90464-00537 | ||||
| 90464-00551 | ||||
| 91651-40616 | ||||
| 93315-14010 | ||||
| 93319-13012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

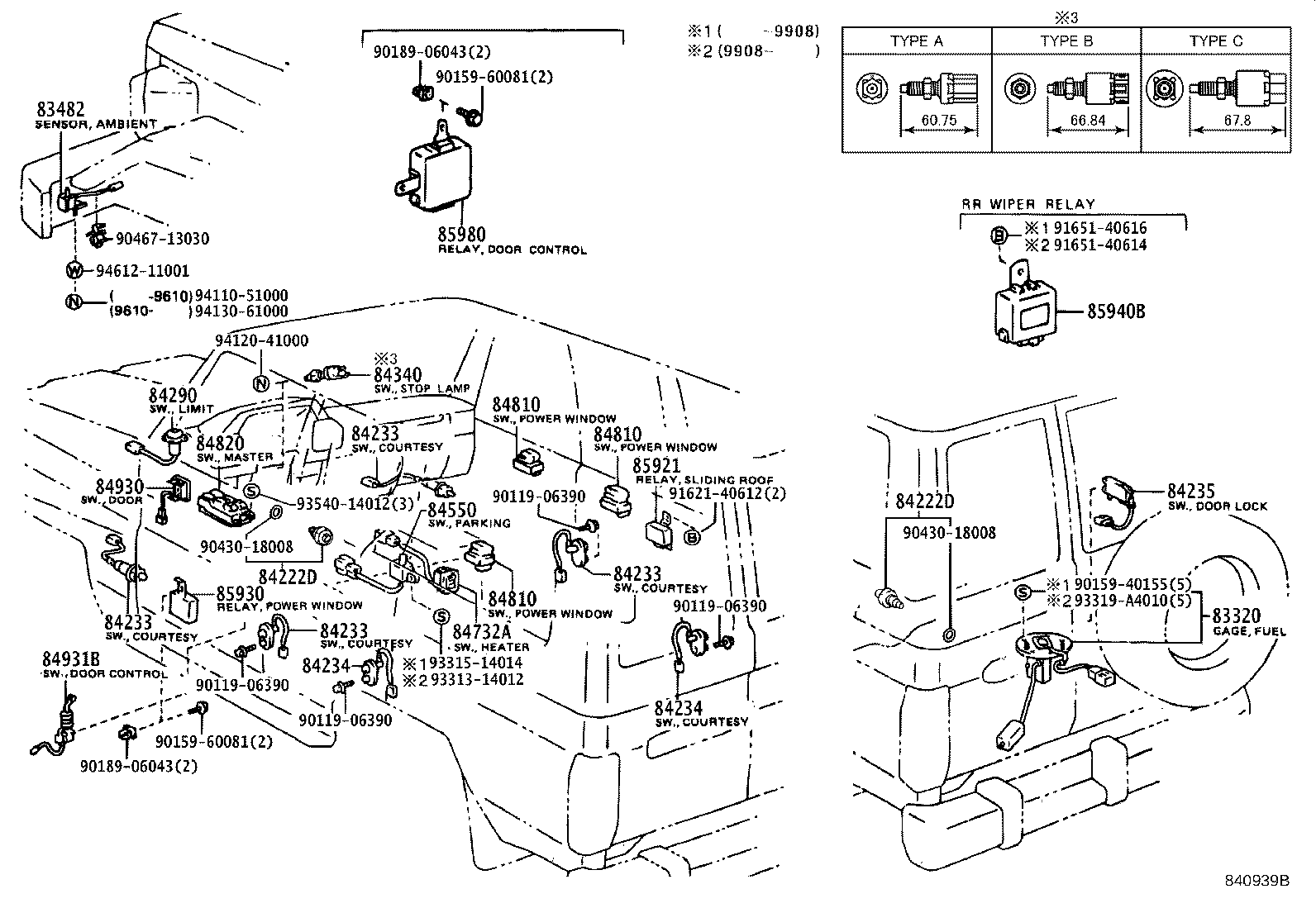

ILLUST NO. 4 OF 5(9001- )
DOOR,FLOOR SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80225 |
PZJ75 |
1 | ||
| 83320-80224 |
PZJ75 |
1 | ||
| 83320-69035 |
PZJ75 MAIN FUEL TANK |
1 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-12010 |
HZJ7#,PZJ7# |
2 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-12010 |
HZJ7#,PZJ7# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28010 |
LJ70..SOT;HZJ75,PZJ75 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28010 |
LJ70..SOT;HZJ75,PZJ75 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28010 |
LJ70..SOT;HZJ75,PZJ75 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28010 |
LJ70..SOT;HZJ75,PZJ75 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 84340-32050 |
BJ73,HZJ7#,LJ7#,PZJ75,RJ7# TYPE A:REFER ILLUST. |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# TOKAIRIKA |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-90K04 |
BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-6001003 |
LJ70..LX;LJ70..LHD..VX;BJ73,HZJ7#,LJ73,77,PZJ75,RJ7#..HT LIGHT GRAY,TRIM1# |
1 | ||
| 84930-6001006 |
LJ70..LX;LJ70..LHD..VX;BJ73,HZJ7#,LJ73,77,PZJ75,RJ7#..HT LIGHT SABLE,TRIM4# |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-90K05 |
HZJ7#,PZJ7#..HT |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-40155 | ||||
| 90159-60081 | ||||
| 90189-06043 | ||||
| 90430-18008 | ||||
| 90467-13030 | ||||
| 91621-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 93313-14012 | ||||
| 93315-14014 | ||||
| 93319-A4010 | ||||
| 93540-14012 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94130-61000 | ||||
| 94612-11001 | ||||

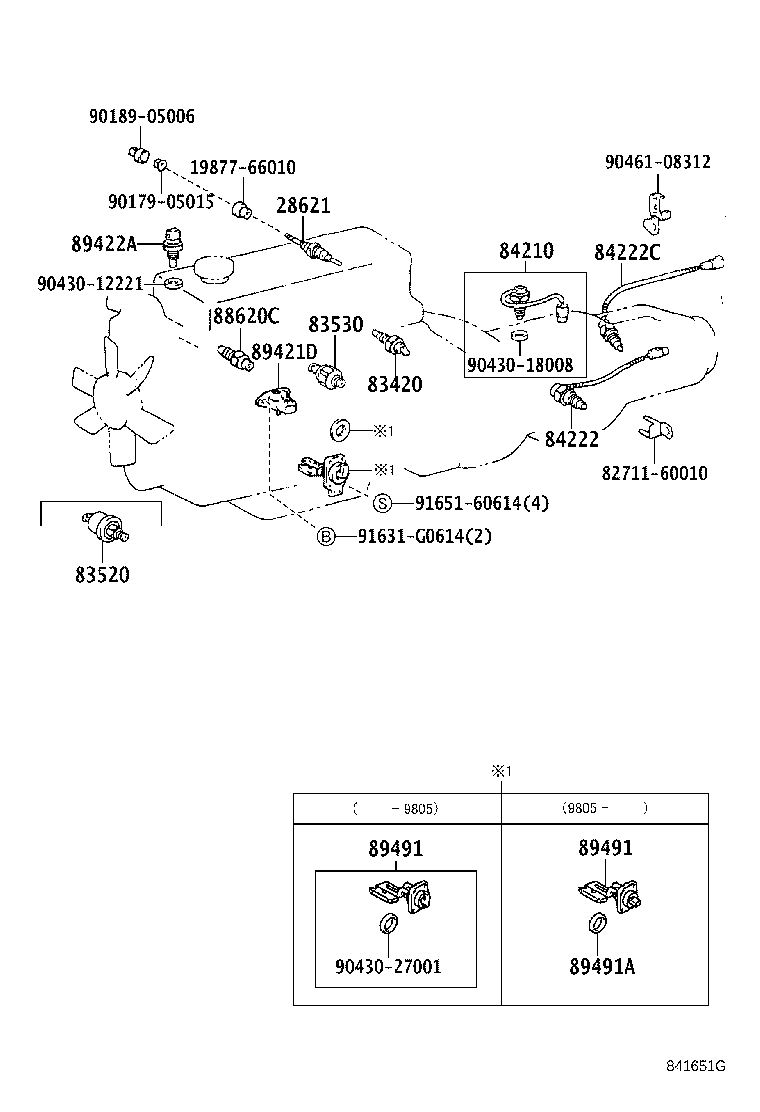

ILLUST NO. 1 OF 5(9001- )HZJ7#,PZJ7#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-68020 |
1HZ,1PZ..HZJ7#,PZJ7# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
HZJ75,PZJ7# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
HZJ71,74,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60022 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-60041 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
HZJ7#,LJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 82711-60010 | ||||
| 90179-05015 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
| 90461-08312 | ||||
| 91631-G0614 | ||||
| 91651-60614 | ||||

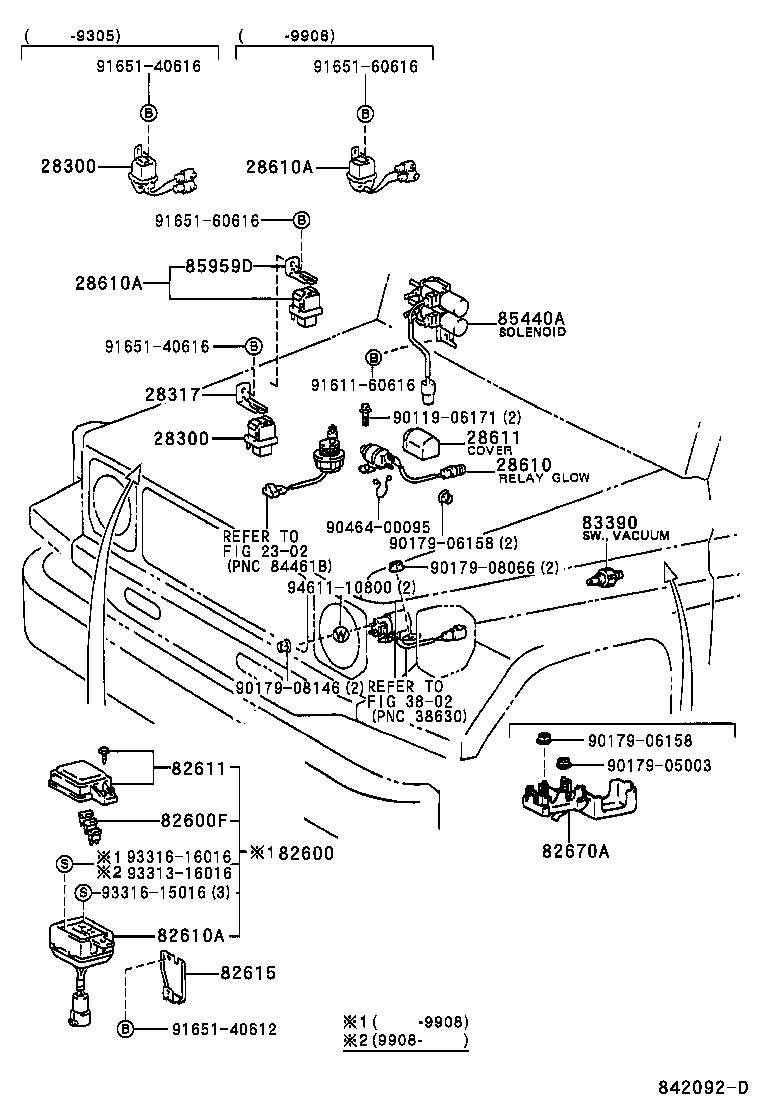

ILLUST NO. 1 OF 5(9001- )HZJ7#,PZJ7#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-56020 |
1HZ,1PZ..HZJ7#,PZJ7# |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-56020 |
1HZ,1PZ..HZJ7#,PZJ7# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-57090 |
1HZ,1PZ..HZJ7#,PZJ7# |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-17030 |
1HZ,1PZ..HZJ7#,PZJ7# |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-17030 |
1HZ,1PZ..HZJ7#,PZJ7# |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
3B,1HZ,1PZ..BJ73,HZJ7#,PZJ7# |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-60080 |
HZJ7#,PZJ7# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 10A |
1 | ||
| 90982-09004 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 20A,YELLOW |
1 | ||
| 90982-07011 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 30A,GREEN |
1 | ||
| 90982-09005 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 7.5A |
1 | ||
| 90982-09003 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 15A |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-60080 |
HZJ7#,PZJ7# |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-90K01 |
HZJ7#,PZJ7# |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-90K01 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-90K01 |
HZJ7#,LJ7#,PZJ7# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
BJ73,HZJ7#,LJ7#,PZJ7# |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-60180 |
HZJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90179-05003 | ||||
| 90179-06158 | ||||
| 90179-08066 | ||||
| 90179-08146 | ||||
| 90464-00095 | ||||
| 91611-60616 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 93313-16016 | ||||
| 93316-15016 | ||||
| 93316-16016 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 3802 | ||||

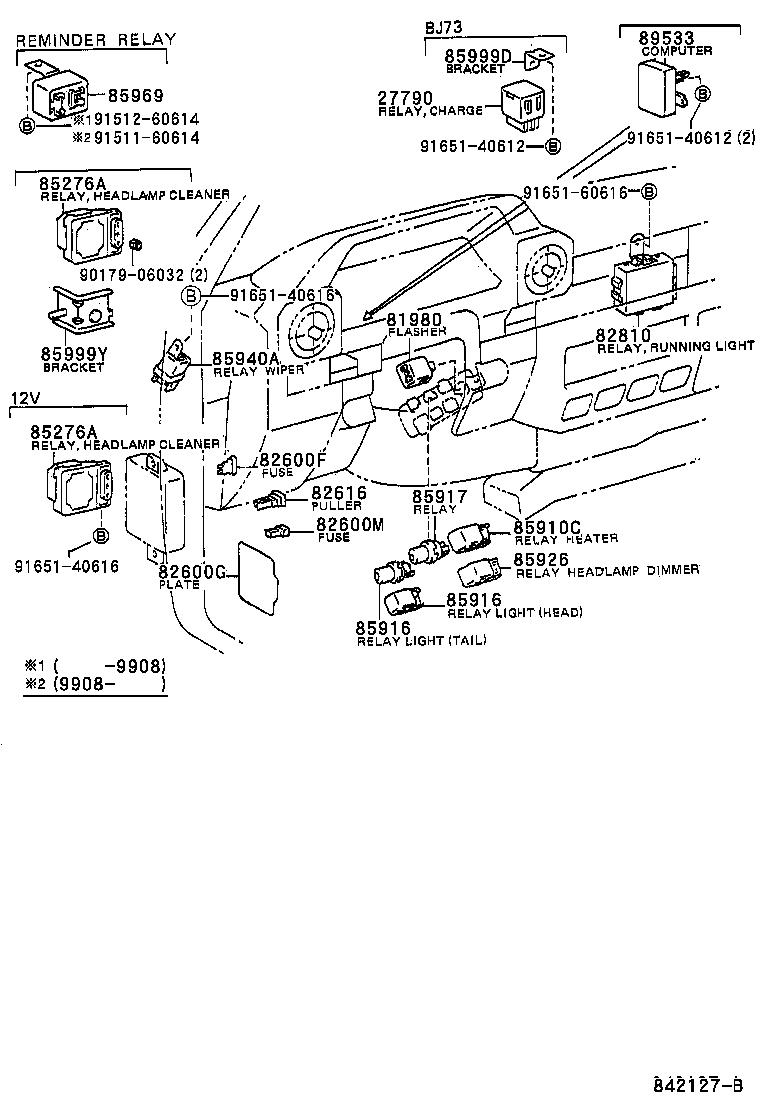

ILLUST NO. 3 OF 5(9001- )
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60010 |
HZJ7#,PZJ7# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 10A |
1 | ||
| 90982-09004 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 20A,YELLOW |
1 | ||
| 90982-07011 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 30A,GREEN |
1 | ||
| 90982-09005 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 7.5A |
1 | ||
| 90982-09003 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 15A |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-60041 |
BJ73,HZJ7#,LJ7#,PZJ75 |
1 | ||
| 82683-60040 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ70..CBR,DSL |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 30A,PINK |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-60040 |
PZJ75 SWEDEN SPEC OR DENMARK SPEC |
1 | ||
| 82810-60040 |
PZJ75 SWEDEN SPEC |
1 | ||
| 85276A - RELAY, CLEANER CONTROL | ||||
| 85276-90K00 |
HZJ7#,PZJ7# |
1 | ||
| 85276A - RELAY, CLEANER CONTROL | ||||
| 85276-90K00 |
HZJ7#,PZJ7# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-90K00 |
HZJ7#,PZJ7# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01004 |
HZJ7#,PZJ7# TAIL LAMP |
1 | ||
| 90987-02007 |
HZJ7#,PZJ7# HEAD LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01004 |
HZJ7#,PZJ7# TAIL LAMP |
1 | ||
| 90987-02007 |
HZJ7#,PZJ7# HEAD LAMP |
1 | ||
| 85917 - RELAY, FRONT DRIVE | ||||
| 90987-03002 |
HZJ7#,PZJ7# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-90K00 |
HZJ7#,PZJ7# |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-90K01 |
HZJ7#,PZJ7# |
1 | ||
| 85999Y - BRACKET,RELAY | ||||
| 85999-90K00 |
HZJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90179-06032 | ||||
| 91511-60614 | ||||
| 91512-60614 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||

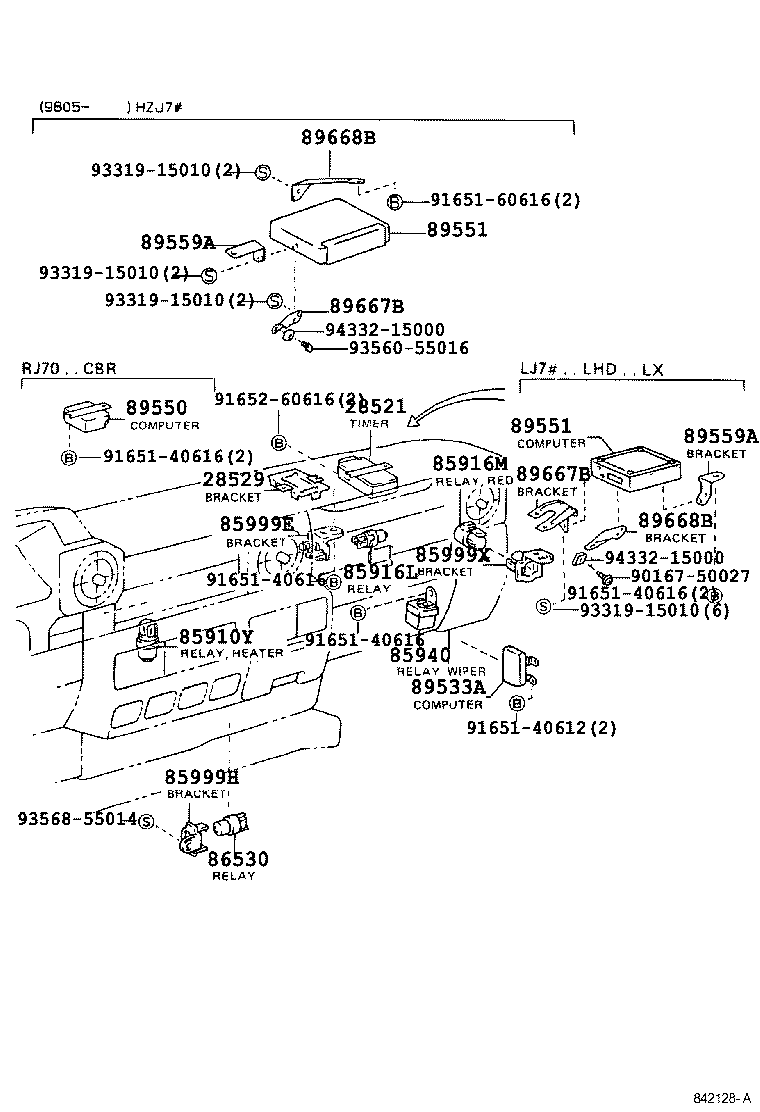

ILLUST NO. 3 OF 5(9001- )
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-17030 |
1HZ,1PZ..HZJ7#,PZJ7# |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02005 |
HZJ7#,PZJ7#..HT |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02005 |
HZJ7#,PZJ7#..HT |
1 | ||
| 85916M - RELAY, RED INDICATOR | ||||
| 90987-03002 |
HZJ7#,PZJ7# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90K03 |
HZJ7#,PZJ7# |
1 | ||
| 85999E - BRACKET, RELAY, NO.5 | ||||
| 85999-12050 |
LJ70..STD,VX;LJ70..LHD..LX;BJ73,HZJ7#,LJ73,77,PZJ7#,RJ7# |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-12050 |
HZJ7#,PZJ7# |
1 | ||
| 85999X - BRACKET, RELAY, NO.7 | ||||
| 85999-12050 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-01004 |
HZJ7#,PZJ7# TAIL LAMP |
1 | ||
| 89533A - COMPUTER, 4 WHEEL DRIVE CONTROL, NO.2 | ||||
| 89533-60050 |
HZJ75,PZJ7# |
1 | ||
| Common parts | ||||
| 90167-50027 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91652-60616 | ||||
| 93319-15010 | ||||
| 93560-55016 | ||||
| 93568-55014 | ||||
| 94332-15000 | ||||
ILLUST NO. 5 OF 5(9001- )
AMBIENT SENSOR & COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 90164-40074 | ||||
| 93540-24020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
