PZJ75LV-MRW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992
Engine 1PZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )HZJ75,PZJ75..HT ; (9908- )HZJ78,79

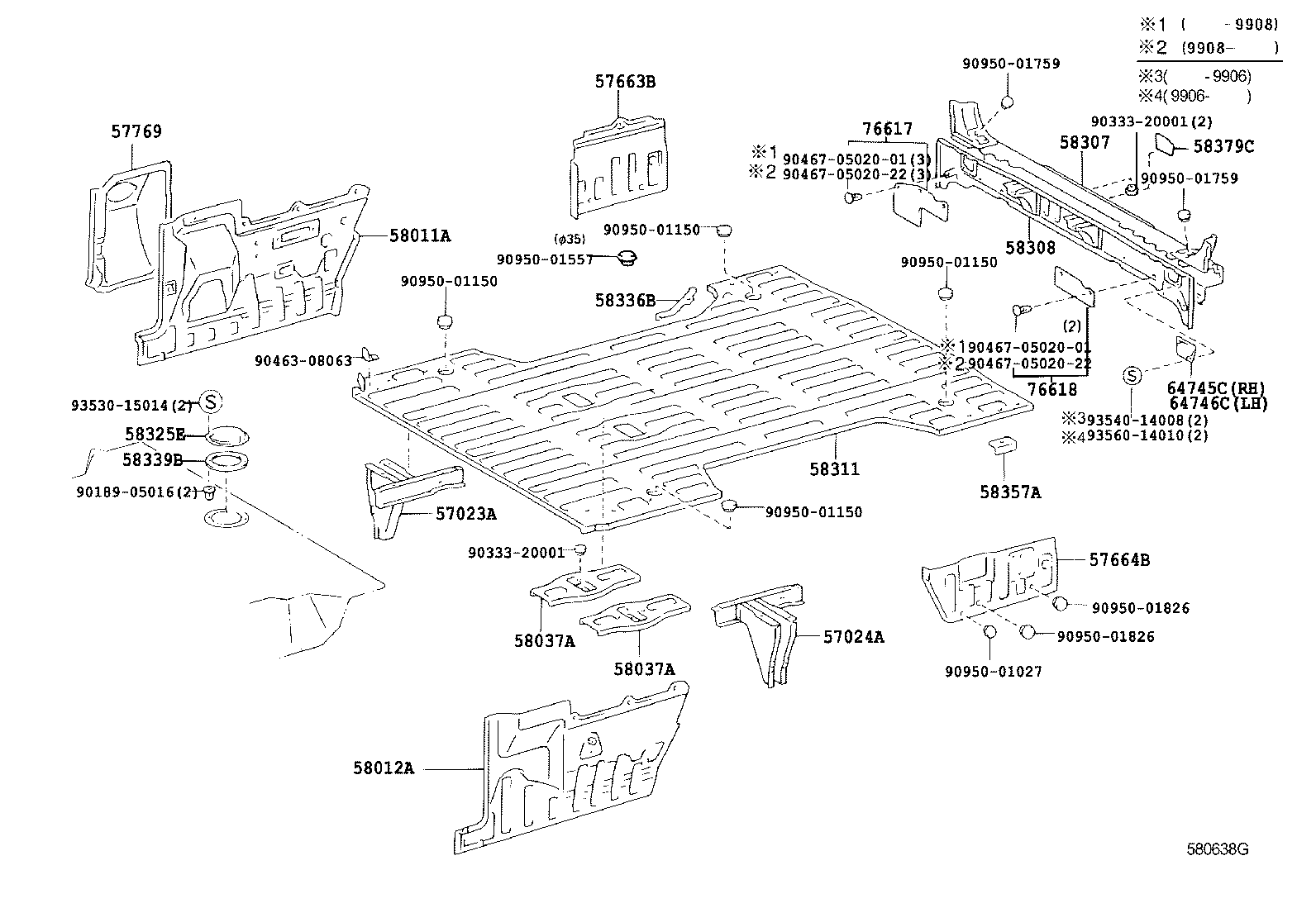

Click highlighted areas on diagram

diagram 57023A 57024A 57663B 57664B 57769 58011A 58012A 58037A 58037A 58307 58308 58311 58325E 58336B 58339B 58357A 58379C 64745C 64746C 76617 76618 9018905016 9033320001 9033320001 9046308063 904670502001 904670502001 904670502022 904670502022 9095001027 9095001150 9095001150 9095001150 9095001150 9095001557 9095001759 9095001759 9095001826 9095001826 9353015014 9354014008 9356014010
Part # Description Qty Price
57023A - MEMBER SUB-ASSY, REAR SIDE, RH
57023-90K00

HZJ75,78,PZJ75..HT

 1
57024A - MEMBER SUB-ASSY, REAR SIDE, LH
57024-90K00

HZJ75,78,PZJ75..HT

 1
57663B - PANEL, REAR FLOOR SIDE, REAR RH
57663-90K01

HZJ75,78,PZJ75..HT

 1
57664B - PANEL, REAR FLOOR SIDE, REAR LH
58306-90K01

HZJ75,78,PZJ75..HT

 1
57769 - GUSSET, FUEL INLET SEPARATOR
57769-90K00

HZJ75,78,PZJ75..HT

 1
58011A - PANEL SUB-ASSY, FLOOR PANEL SIDE, RH
58011-90K03

PZJ75..HT

W(FR & RR HEATER)

 1
58011-60030

HZJ75,78,PZJ75..HT

 1
58011-90K03

PZJ75..HT

W(REAR PARALLEL SEAT) & W(FR & RR HEATER)

 1
58012A - PANEL SUB-ASSY, FLOOR PANEL SIDE, LH
58012-90K05

HZJ75,PZJ75..HT

 1
58037A - RETAINER SUB-ASSY, REAR FLOOR SEAT LOCK
58037-90K00

HZJ75,78,PZJ75..HT

 2
58037A - RETAINER SUB-ASSY, REAR FLOOR SEAT LOCK
58037-90K00

HZJ75,78,PZJ75..HT

 2
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-60100

PZJ75..HT

W(*FFRS) OR W/O REAR SEAT

 1
58307-60110

HZJ75,78,PZJ75..HT

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-90K01

HZJ75,78,PZJ75..HT

 1
58311 - PAN, REAR FLOOR
58311-90K49

PZJ75..HT

W/O REAR SEAT

 1
58311-90K47

HZJ78,PZJ75..HT

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-90K00

BJ73,HZJ70,71,73,74,LJ7#,PZJ7#,RJ7#..HT,SOT

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-90K00

BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT

 1
58339B - PACKING, REAR FLOOR SERVICE HOLE
58339-90K00

BJ73,HZJ70,71,73,74,LJ7#,PZJ7#,RJ7#..HT,SOT

 1
58357A - REINFORCEMENT, JACK CARRIER
58357-90K01

BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT

 1
64745C - COVER, LOWER BACK SERVICE HOLE, RH
64745-90K00

BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT

 1
64746C - COVER, LOWER BACK SERVICE HOLE, LH
64746-90K00

BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT

 1
76617 - MUDGUARD, LOWER BACK PANEL, FRONT RH
76617-90K01

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT

 1
76618 - MUDGUARD, LOWER BACK PANEL, FRONT LH
76618-90K01

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT

 1
Common parts
90189-05016
90333-20001
90463-08063
90467-0502001
90467-0502022
90950-01027
90950-01150
90950-01557
90950-01759
90950-01826
93530-15014
93540-14008
93560-14010
