PZJ75LV-MRW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992
Engine 1PZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

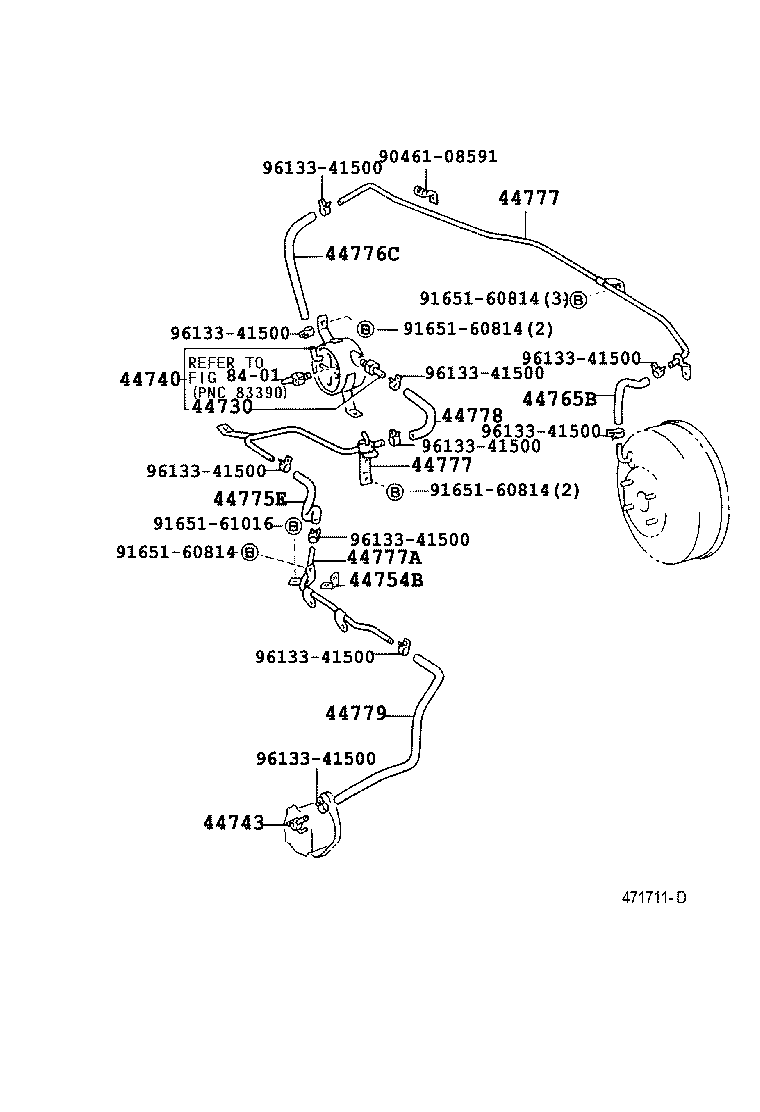

ILLUST NO. 2 OF 2(9001-9908)BJ73,HZJ7#,PZJ7#

Click highlighted areas on diagram

diagram 44730 44740 44743 44754B 44765B 44775E 44776C 44777 44777 44777A 44778 44779 8401 9046108591 9165160814 9165160814 9165160814 9165160814 9165161016 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

BJ73,HZJ7#,LJ7#,PZJ7#

 1
44740 - RESERVOIR ASSY, VACUUM
44740-60090

BJ73,HZJ7#,PZJ7#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09142

HZJ7#,PZJ73,75

W(AIR CONDITIONER)

 1
90405-09141

HZJ7#,PZJ7#

 1
44754B - BRACKET, VACUUM TUBE
44754-60010

HZJ7#,PZJ7#

 1
44765B - HOSE, CONNECTOR TO BRAKE BOOSTER
44778-60040

HZJ7#,LJ7#,PZJ7#..LHD

 1
44775E - HOSE, WAY TO CONNECTOR
44775-60050

PZJ7#

 1
44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR
95441-09190

HZJ7#,LJ7#,PZJ7#..LHD

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-60200

PZJ75

EPRON SIDE

 1
44777-60020

PZJ7#

W(*CLB),DASH SIDE

 1
44799-60090

HZJ7#,PZJ7#

W(*ELC),EPRON SIDE

 1
44777-60020

HZJ7#,LJ7#,PZJ7#..LHD

DASH PANEL SIDE

 1
44777-60200

HZJ7#,PZJ7#

EPRON SIDE

 1
44799-60070

HZJ7#,PZJ7#

W(*CLB & *ELC),EPRON SIDE

 1
44799-60080

HZJ7#,PZJ7#

W(*CLB),EPRON SIDE

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-60200

PZJ75

EPRON SIDE

 1
44777-60020

PZJ7#

W(*CLB),DASH SIDE

 1
44799-60090

HZJ7#,PZJ7#

W(*ELC),EPRON SIDE

 1
44777-60020

HZJ7#,LJ7#,PZJ7#..LHD

DASH PANEL SIDE

 1
44777-60200

HZJ7#,PZJ7#

EPRON SIDE

 1
44799-60070

HZJ7#,PZJ7#

W(*CLB & *ELC),EPRON SIDE

 1
44799-60080

HZJ7#,PZJ7#

W(*CLB),EPRON SIDE

 1
44777A - CONNECTOR, VACUUM HOSE, NO.2
44777-60220

HZJ7#,PZJ7#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60030

HZJ7#,LJ7#,PZJ7#

 1
44779 - HOSE, UNION TO CONNECTOR
44774-60130

HZJ7#,PZJ7#

 1
Common parts
90461-08591
91651-60814
91651-61016
96133-41500
Linked diagrams
8401

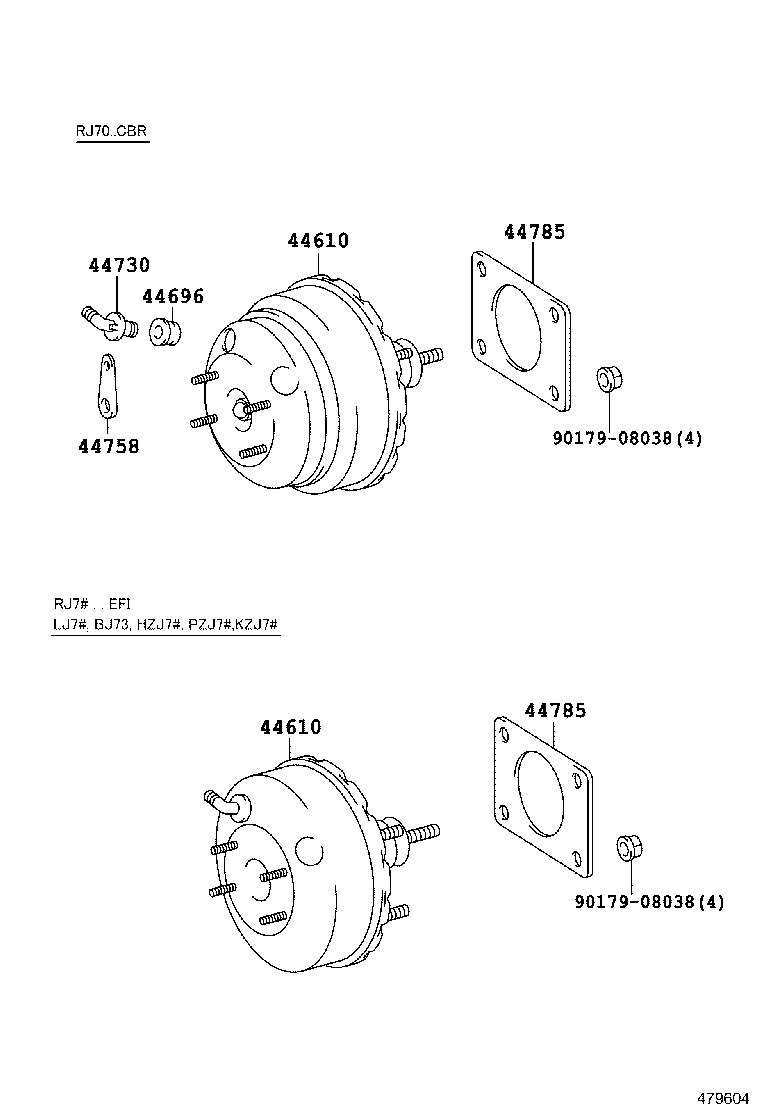

ILLUST NO. 1 OF 2(9001-9908)

Click highlighted areas on diagram

diagram 44610 44610 44696 44730 44758 44785 44785 9017908038 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-60540

HZJ7#,LJ7#,PZJ7#,RJ7#..LHD..(DSL,EFI)

 1
44610 - BOOSTER ASSY, BRAKE
44610-60540

HZJ7#,LJ7#,PZJ7#,RJ7#..LHD..(DSL,EFI)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

BJ73,HZJ7#,LJ7#,PZJ7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
Common parts
90179-08038
