PZJ75LP-MRW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Aug 1992
Engine
1PZ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )

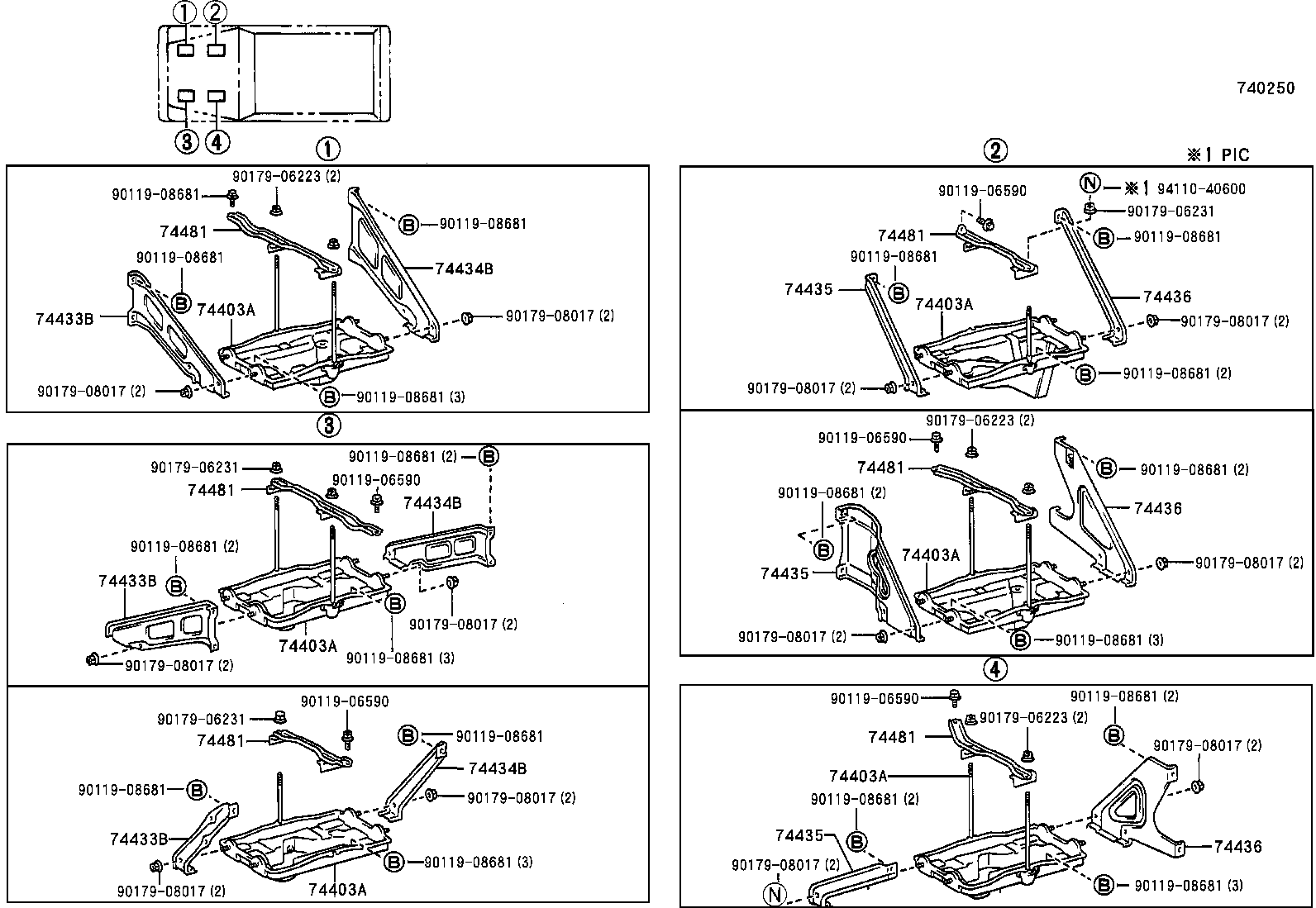

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74403A - CARRIER SUB-ASSY, BATTERY | ||||
| 74403-90K03 |
HZJ7#,PZJ7# RH |
1 | ||
| 74403-90K04 |
HZJ7#,PZJ7# LH |
1 | ||
| 74403A - CARRIER SUB-ASSY, BATTERY | ||||
| 74403-90K03 |
HZJ7#,PZJ7# RH |
1 | ||
| 74403-90K04 |
HZJ7#,PZJ7# LH |
1 | ||
| 74403A - CARRIER SUB-ASSY, BATTERY | ||||
| 74403-90K03 |
HZJ7#,PZJ7# RH |
1 | ||
| 74403-90K04 |
HZJ7#,PZJ7# LH |
1 | ||
| 74403A - CARRIER SUB-ASSY, BATTERY | ||||
| 74403-90K03 |
HZJ7#,PZJ7# RH |
1 | ||
| 74403-90K04 |
HZJ7#,PZJ7# LH |
1 | ||
| 74403A - CARRIER SUB-ASSY, BATTERY | ||||
| 74403-90K03 |
HZJ7#,PZJ7# RH |
1 | ||
| 74403-90K04 |
HZJ7#,PZJ7# LH |
1 | ||
| 74403A - CARRIER SUB-ASSY, BATTERY | ||||
| 74403-90K03 |
HZJ7#,PZJ7# RH |
1 | ||
| 74403-90K04 |
HZJ7#,PZJ7# LH |
1 | ||
| 74434B - SUPPORT, BATTERY TRAY, NO.2 | ||||
| 74434-90K03 |
HZJ7#,PZJ7# |
1 | ||
| 74434B - SUPPORT, BATTERY TRAY, NO.2 | ||||
| 74434-90K03 |
HZJ7#,PZJ7# |
1 | ||
| 74434B - SUPPORT, BATTERY TRAY, NO.2 | ||||
| 74434-90K03 |
HZJ7#,PZJ7# |
1 | ||
| 74435 - SUPPORT, BATTERY TRAY, NO.3 | ||||
| 74435-90K01 |
HZJ7#,PZJ7# RH |
1 | ||
| 74435-90K02 |
HZJ7#,PZJ7# LH |
1 | ||
| 74435 - SUPPORT, BATTERY TRAY, NO.3 | ||||
| 74435-90K01 |
HZJ7#,PZJ7# RH |
1 | ||
| 74435-90K02 |
HZJ7#,PZJ7# LH |
1 | ||
| 74435 - SUPPORT, BATTERY TRAY, NO.3 | ||||
| 74435-90K01 |
HZJ7#,PZJ7# RH |
1 | ||
| 74435-90K02 |
HZJ7#,PZJ7# LH |
1 | ||
| 74436 - SUPPORT, BATTERY TRAY, NO.4 | ||||
| 74436-90K01 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 74436 - SUPPORT, BATTERY TRAY, NO.4 | ||||
| 74436-90K01 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 74436 - SUPPORT, BATTERY TRAY, NO.4 | ||||
| 74436-90K01 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-90K01 |
HZJ7#,PZJ7# LH |
1 | ||
| 74405-90K01 |
HZJ7#,PZJ7# RH |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-90K01 |
HZJ7#,PZJ7# LH |
1 | ||
| 74405-90K01 |
HZJ7#,PZJ7# RH |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-90K01 |
HZJ7#,PZJ7# LH |
1 | ||
| 74405-90K01 |
HZJ7#,PZJ7# RH |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-90K01 |
HZJ7#,PZJ7# LH |
1 | ||
| 74405-90K01 |
HZJ7#,PZJ7# RH |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-90K01 |
HZJ7#,PZJ7# LH |
1 | ||
| 74405-90K01 |
HZJ7#,PZJ7# RH |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-90K01 |
HZJ7#,PZJ7# LH |
1 | ||
| 74405-90K01 |
HZJ7#,PZJ7# RH |
1 | ||
| Common parts | ||||
| 90119-06590 | ||||
| 90119-08681 | ||||
| 90179-06223 | ||||
| 90179-06231 | ||||
| 90179-08017 | ||||
| 94110-40600 | ||||
