PZJ75LP-MRW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992
Engine 1PZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )PIC

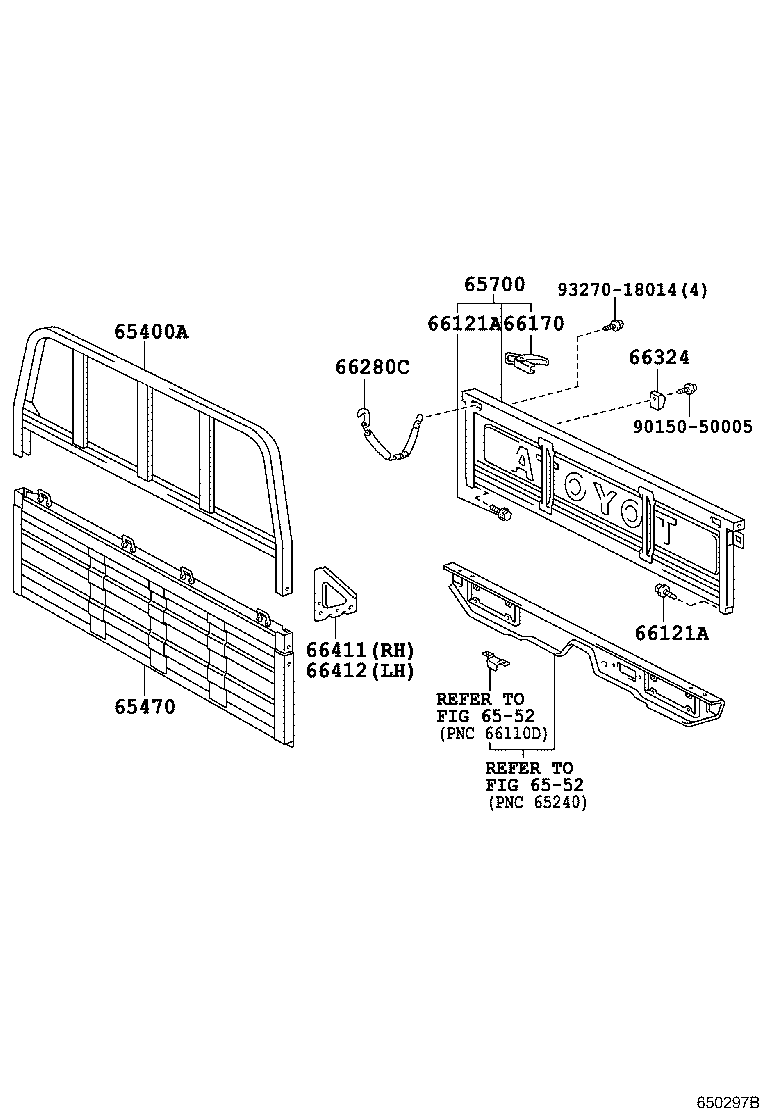

Click highlighted areas on diagram

diagram 65400A 65470 6552 6552 65700 66121A 66121A 66170 66280C 66324 66411 66412 9015050005 9327018014
Part # Description Qty Price
65400A - GUARD ASSY, REAR BODY
65410-90K00

HZJ75,79,PZJ75..PIC

 1
65470 - BOARD ASSY, HEADER
65470-90K02

HZJ75,79,PZJ75..PIC

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-90K01

PZJ75..PIC

 1
66121A - BOLT, TAIL GATE MALE
66121-95012

HZJ75,79,PZJ75..PIC

 2
66121A - BOLT, TAIL GATE MALE
66121-95012

HZJ75,79,PZJ75..PIC

 2
66170 - LATCH ASSY, REAR BODY TAIL GATE
66170-95402

HZJ75,79,PZJ75..PIC

 2
66280C - CHAIN ASSY, TAIL GATE
66280-37010

HZJ75,79,PZJ75..PIC

 2
66411 - BRACKET, GUARD FRAME, RH
66411-90K00

HZJ75,79,PZJ75..PIC

 1
66412 - BRACKET, GUARD FRAME, LH
66412-90K00

HZJ75,79,PZJ75..PIC

 1
Common parts
90150-50005
93270-18014
Linked diagrams
6552
