PZJ75LP-MRW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Aug 1992
Engine
1PZ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )PIC

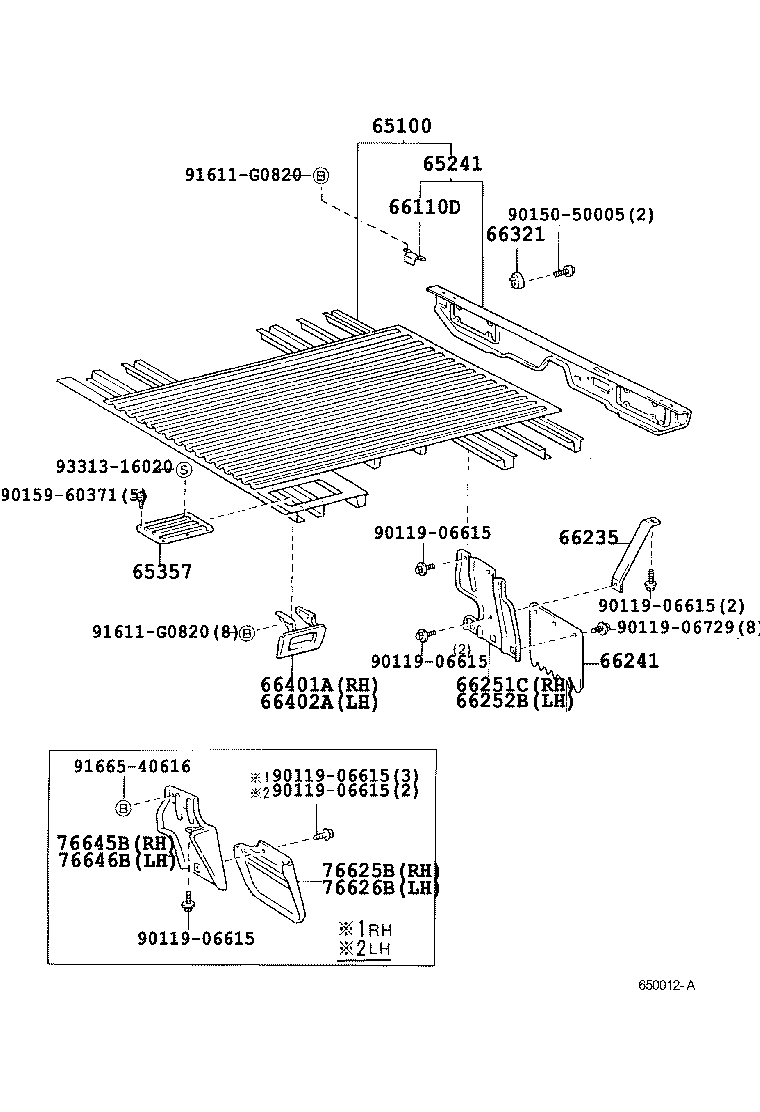

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-90K09 |
PZJ75..PIC BELGIM SPEC |
1 | ||
| 65100-90K12 |
HZJ75,PZJ75..PIC |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65240-90K02 |
HZJ75,79,PZJ75..PIC |
1 | ||
| 65240-90K01 |
PZJ75..PIC BELGIM SPEC |
1 | ||
| 65357 - COVER, FRONT FLOOR CORNER | ||||
| 65357-90K00 |
HZJ75,79,PZJ75..PIC |
2 | ||
| 66110D - HINGE ASSY, TAIL GATE | ||||
| 66110-95014 |
HZJ75,79,PZJ75..PIC |
2 | ||
| 66235 - STAY, REAR FENDER, NO.1 | ||||
| 66235-90K00 |
HZJ75,PZJ75..PIC |
2 | ||
| 66241 - MUDGUARD, REAR | ||||
| 66241-90K00 |
PZJ75..PIC |
2 | ||
| 66251C - SUPPORT, MUDGUARD REAR, RH | ||||
| 66251-90K00 |
HZJ75,PZJ75..PIC |
1 | ||
| 66252B - SUPPORT, MUDGUARD, REAR LH | ||||
| 66252-90K00 |
HZJ75,PZJ75..PIC |
1 | ||
| 66321 - BUMPER, GATE RUBBER | ||||
| 66321-90K00 |
HZJ75,79,PZJ75..PIC |
4 | ||
| 66401A - PANEL SUB-ASSY, DECK SIDE STEP, RH | ||||
| 66401-90K00 |
HZJ75,PZJ75..PIC |
1 | ||
| 66402A - PANEL SUB-ASSY, DECK SIDE STEP, LH | ||||
| 66402-90K00 |
HZJ75,PZJ75..PIC |
1 | ||
| 76625B - MUDGUARD, REAR BODY, RH | ||||
| 76625-90K02 |
HZJ75,PZJ75..PIC |
1 | ||
| 76626B - MUDGUARD, REAR BODY, LH | ||||
| 76626-90K02 |
HZJ75,PZJ75..PIC |
1 | ||
| 76645B - BRACKET, REAR BODY MUDGUARD, RH | ||||
| 76607-90K02 |
HZJ75,79,PZJ75..PIC |
1 | ||
| 76646B - BRACKET, REAR BODY MUDGUARD, LH | ||||
| 76608-90K02 |
HZJ75,79,PZJ75..PIC |
1 | ||
| Common parts | ||||
| 90119-06615 | ||||
| 90119-06729 | ||||
| 90150-50005 | ||||
| 90159-60371 | ||||
| 91611-G0820 | ||||
| 91665-40616 | ||||
| 93313-16020 | ||||
