PZJ75LP-MRW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Aug 1992
Engine
1PZ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

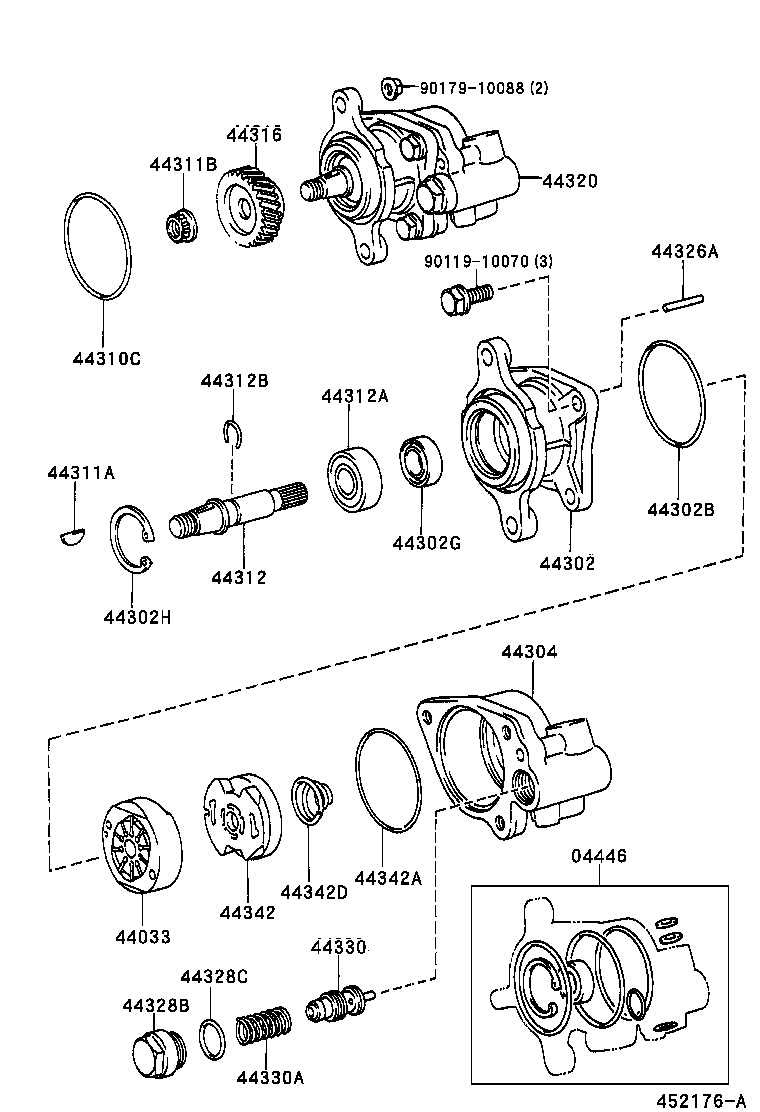

ILLUST NO. 1 OF 2(9001-9208)HZJ7#,PZJ7# ; (9208- )HZJ7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-60040 |
HZJ7#,PZJ7# |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-36030 |
HZJ7#,PZJ7# |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-36200 |
HZJ7#,PZJ7# |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20003 |
HZJ7#,PZJ7# |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21015 |
HZJ7#,PZJ7# |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 96151-04000 |
HZJ7#,PZJ7# |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-60240 |
HZJ7#,PZJ7# |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
HZJ7#,PZJ7# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90029-18002 |
HZJ7#,PZJ7# |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90179-14009 |
HZJ7#,PZJ7# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-89101 |
HZJ7#,PZJ7# |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36003 |
HZJ7#,PZJ7# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52402 |
HZJ7#,PZJ7# |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-60010 |
HZJ7#,PZJ7# |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-60220 |
HZJ7#,PZJ7# |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 44347-89101 |
HZJ7#,PZJ7# L=29.1 |
1 | ||
| 44328B - END, VANE PUMP HOUSING | ||||
| 44328-89101 |
HZJ7#,PZJ7# |
1 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 96711-19020 |
HZJ7#,PZJ7# |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36150 |
HZJ7#,PZJ7# ONE GROOVE |
1 | ||
| 44330-36140 |
HZJ7#,PZJ7# TWO GROOVE |
1 | ||
| 44330-36160 |
HZJ7#,PZJ7# NO GROOVE |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
HZJ7#,PZJ7# |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-89102 |
HZJ7#,PZJ7# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 96711-24060 |
HZJ7#,PZJ7# |
1 | ||
| 44342D - SPRING, COMPRESSION(FOR PRESSURE PLATE) | ||||
| 90029-60003 |
HZJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90179-10088 | ||||

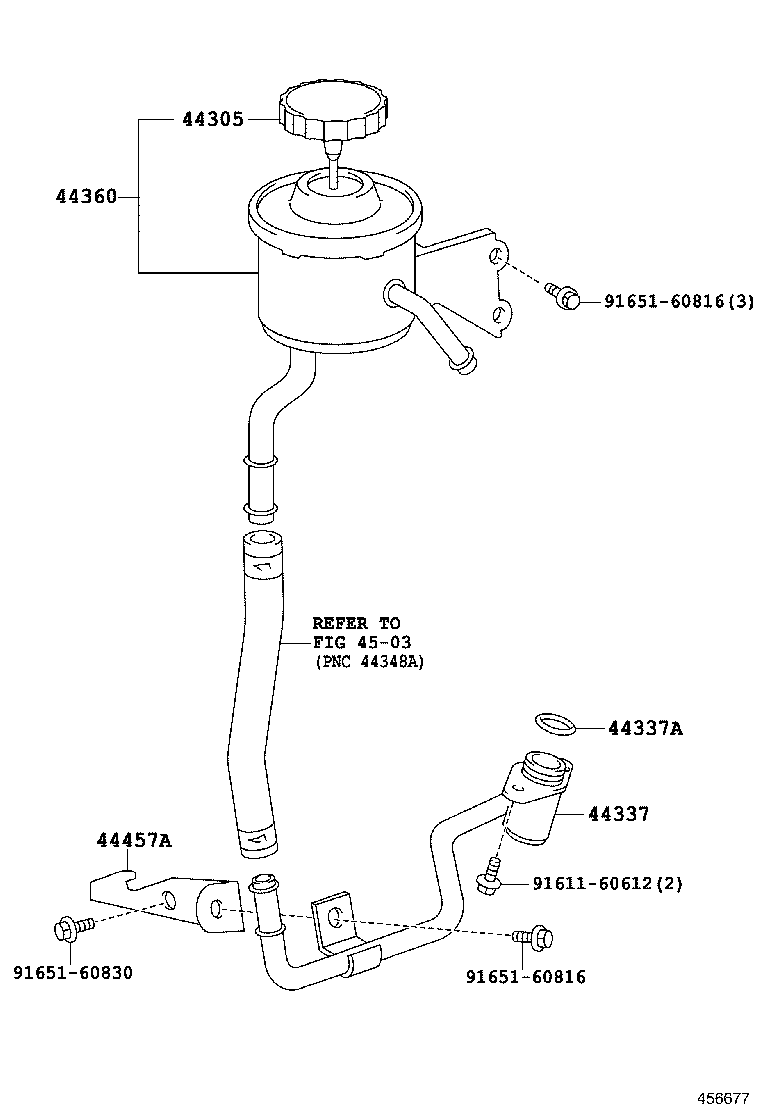

ILLUST NO. 2 OF 2(9001-9208)HZJ7#,PZJ7# ; (9208- )HZJ7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22040 |
BJ73,HZJ7#,PZJ7#,RJ7# |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 90405-16029 |
HZJ7#,PZJ7# |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19019 |
HZJ7#,PZJ7# |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-60100 |
HZJ7#,PZJ7# |
1 | ||
| 44457A - BRACKET, TUBE SUPPORT, VANE PUMP | ||||
| 44457-60171 |
HZJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91651-60816 | ||||
| 91651-60830 | ||||
| Linked diagrams | ||||
| 4503 | ||||
