PZJ73LV-MRW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Aug 1991
Engine
1PZ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )HT,SOT

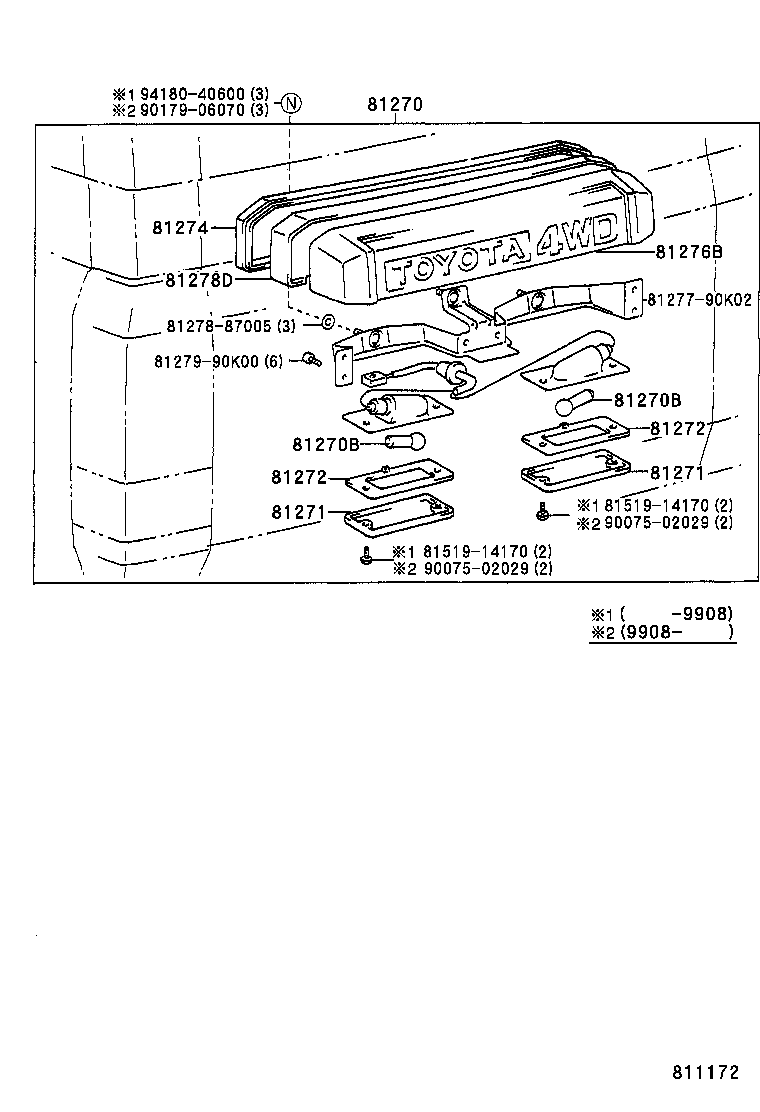

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-90K08 |
HZJ7#,PZJ7#..HT |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-16016 |
HZJ7#,PZJ7#..HT 24V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-16016 |
HZJ7#,PZJ7#..HT 24V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-87004 |
BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-87004 |
BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-87004 |
BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-87004 |
BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81272-90K07 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 81276B - COVER, LICENSE PLATE LAMP | ||||
| 81278-90K02 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 81278D - SPACER, LICENSE PLATE LAMP | ||||
| 81278-90K07 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| Common parts | ||||
| 81277-90K02 | ||||
| 81278-87005 | ||||
| 81279-90K00 | ||||
| 81519-14170 | ||||
| 90075-02029 | ||||
| 90179-06070 | ||||
| 94180-40600 | ||||
