PZJ73LV-MRW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1991
Engine 1PZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9908)BJ73,HZJ70,73,PZJ70,73

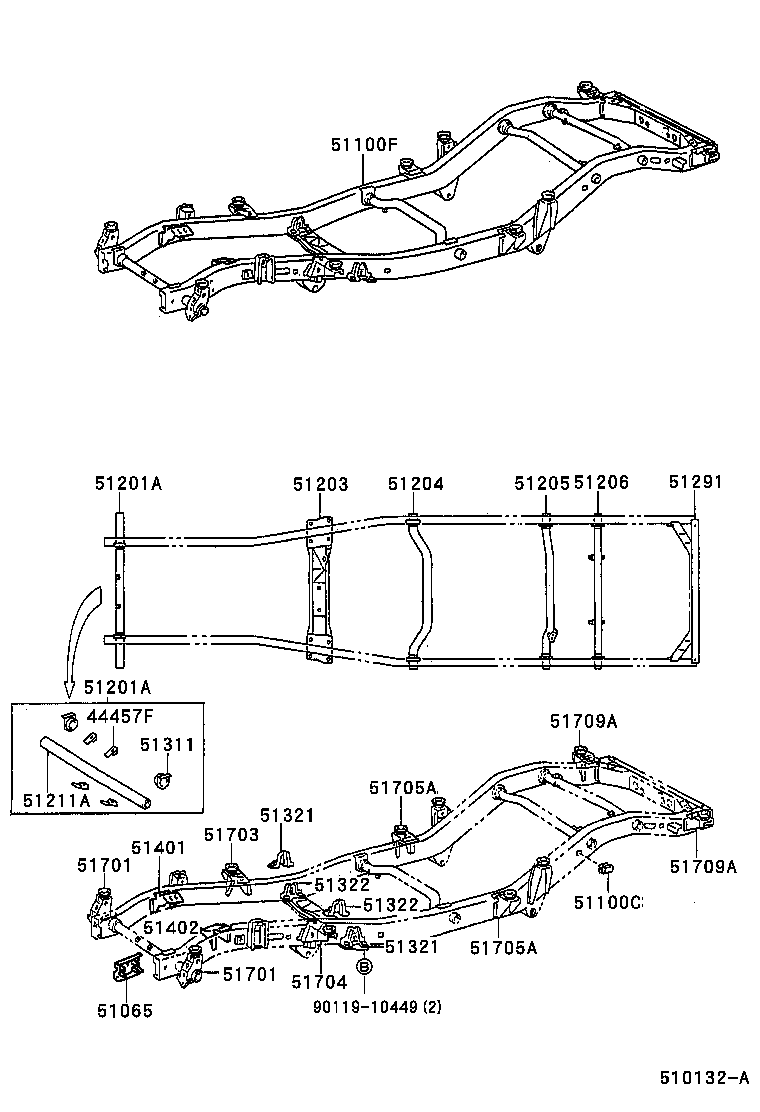

Click highlighted areas on diagram

diagram 44457F 51065 51100C 51100F 51201A 51201A 51203 51204 51205 51206 51211A 51291 51311 51321 51321 51322 51322 51401 51402 51701 51701 51703 51704 51705A 51705A 51709A 51709A 9011910449
Part # Description Qty Price
51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX
51065-60041

BJ73,HZJ70,73,PZJ70,73

 1
51100C - PLUG, HOLE(FOR FRAME)
90950-01754

LJ7#,PZJ7#,RJ7#

BLUE

 2
90950-01463

BJ73,HZJ7#,PZJ7#

BLACK

 6
51100F - FRAME SUB-ASSY
51002-60113

PZJ73

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-60101

BJ73,HZJ7#,PZJ7#

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-60101

BJ73,HZJ7#,PZJ7#

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-60131

LJ7#,PZJ7#,RJ7#

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-60132

BJ73,HZJ7#,LJ7#,PZJ7#,RJ70..CBR,DSL

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-60071

BJ73,HZJ70,71,73,74,PZJ70,73

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-60021

BJ73,HZJ7#,PZJ7#

 1
51291 - CROSSMEMBER, FRAME, REAR
51209-60130

BJ73,HZJ7#,LJ73,PZJ70,73,RJ7#

 1
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-60041

LJ7#,PZJ7#,RJ7#

 2
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-60041

LJ7#,PZJ7#,RJ7#

 2
51322 - GUSSET, CROSSMEMBER, NO.2 LH
51321-60041

LJ7#,PZJ7#,RJ7#

 2
51322 - GUSSET, CROSSMEMBER, NO.2 LH
51321-60041

LJ7#,PZJ7#,RJ7#

 2
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-60140

BJ73,HZJ7#,PZJ7#

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-60120

PZJ7#

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-60070

BJ73,HZJ7#,PZJ7#

 2
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-60070

BJ73,HZJ7#,PZJ7#

 2
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-60030

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-60020

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-60080

BJ73,HZJ73,LJ73,77,PZJ73,RJ73

 2
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-60080

BJ73,HZJ73,LJ73,77,PZJ73,RJ73

 2
51709A - BRACKET SUB-ASSY, BODY REAR END MOUNTING
51709-60031

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT

 2
51709A - BRACKET SUB-ASSY, BODY REAR END MOUNTING
51709-60031

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT

 2
Common parts
90119-10449
