PZJ70LV-MRW (1990)
Toyota Land Cruiser
ILLUST NO. 1 OF 4(9001-9908)
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
PZJ7# 24V 1.4W |
4 | ||
| 99134-12030 |
HZJ7#,PZJ7# 24V 3W |
1 | ||
| 99132-12034 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
PZJ7# 24V 1.4W |
4 | ||
| 99134-12030 |
HZJ7#,PZJ7# 24V 3W |
1 | ||
| 99132-12034 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-89101 |
PZJ7# BULB=24V 3W |
8 | ||
| 83101-95020 |
PZJ7# BULB=24V 1.4W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-89101 |
PZJ7# BULB=24V 3W |
8 | ||
| 83101-95020 |
PZJ7# BULB=24V 1.4W |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60560 |
PZJ7# |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-90K00 |
BJ73,HZJ7#,PZJ7#,RJ7# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60200 |
PZJ7# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60180 |
PZJ7# |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-60040 |
HZJ7#,PZJ7# |
1 | ||
| 83145P - DROPPER, METER | ||||
| 83145-90K07 |
PZJ7# |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-60160 |
HZJ7#,PZJ7# |
1 | ||
| 83147B - LAMP, METER NO.3 | ||||
| 83147-60200 |
PZJ7# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-90K05 |
PZJ7# |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-90K00 |
PZJ7# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-60540 |
PZJ7# |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20180 | ||||
| 83161-20380 | ||||
| 83161-20720 | ||||
| 83165-20120 | ||||
| 93540-13012 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
ILLUST NO. 1 OF 4(9001-9908)
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
PZJ7# 24V 1.4W |
4 | ||
| 99134-12030 |
HZJ7#,PZJ7# 24V 3W |
1 | ||
| 99132-12034 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
PZJ7# 24V 1.4W |
4 | ||
| 99134-12030 |
HZJ7#,PZJ7# 24V 3W |
1 | ||
| 99132-12034 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-89101 |
PZJ7# BULB=24V 3W |
8 | ||
| 83101-95020 |
PZJ7# BULB=24V 1.4W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-89101 |
PZJ7# BULB=24V 3W |
8 | ||
| 83101-95020 |
PZJ7# BULB=24V 1.4W |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60560 |
PZJ7# |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-90K00 |
BJ73,HZJ7#,PZJ7#,RJ7# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60200 |
PZJ7# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60180 |
PZJ7# |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-60040 |
HZJ7#,PZJ7# |
1 | ||
| 83145P - DROPPER, METER | ||||
| 83145-90K07 |
PZJ7# |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-60160 |
HZJ7#,PZJ7# |
1 | ||
| 83147B - LAMP, METER NO.3 | ||||
| 83147-60200 |
PZJ7# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-90K05 |
PZJ7# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-60540 |
PZJ7# |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20180 | ||||
| 83161-20300 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83161-20420 | ||||
| 83161-20440 | ||||
| 83161-20800 | ||||
| 83162-20100 | ||||
| 83165-20080 | ||||
| 83165-20120 | ||||
| 83165-20140 | ||||
| 90149-50032 | ||||
| 93385-15016 | ||||
| 93540-13012 | ||||
| 94115-40400 | ||||
| 94115-70300 | ||||
| 94511-00400 | ||||

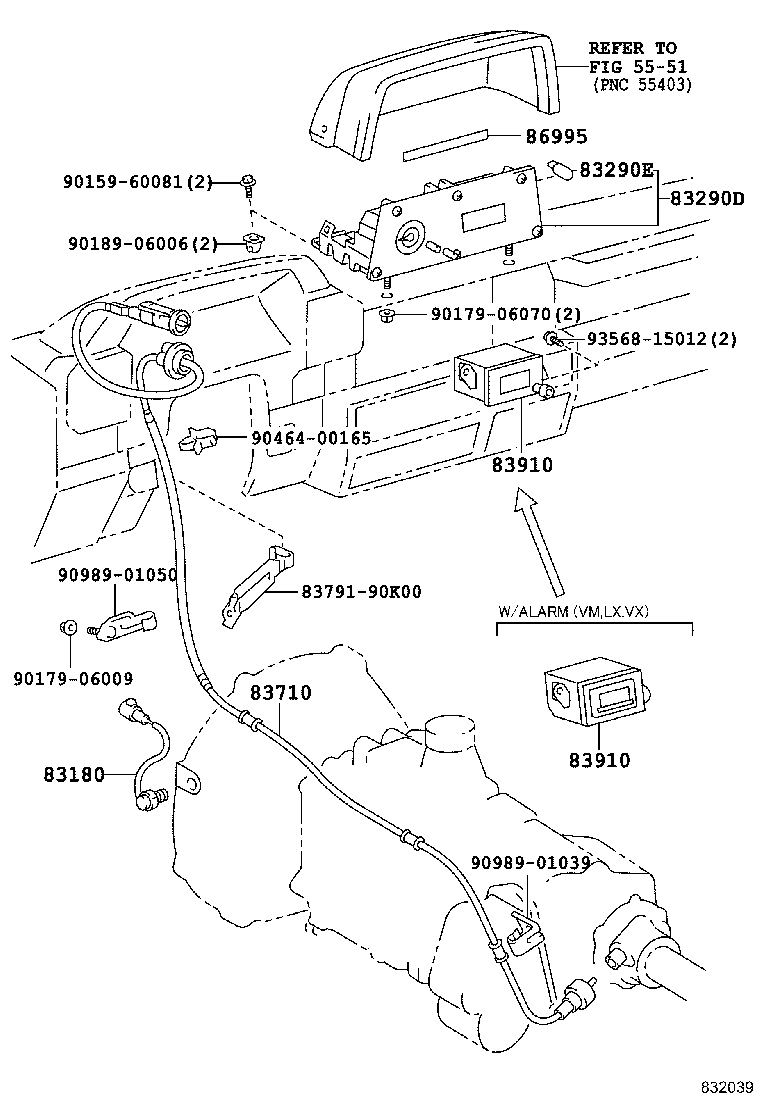

ILLUST NO. 3 OF 4(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83290D - METER ASSY, ACCESSORY | ||||
| 83290-90K02 |
HZJ7#,PZJ7# CLINOMETER |
1 | ||
| 83290-90K12 |
PZJ75..PIC;HZJ7#,PZJ70,73 THERMOMETER |
1 | ||
| 83290E - BULB, ACCESSORY METER | ||||
| 84999-50080 |
HZJ7#,PZJ7# 24V 3.0W |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-90K01 |
HZJ7#,PZJ7# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60080 |
HZJ70,75,PZJ70,75..HT |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60080 |
HZJ70,75,PZJ70,75..HT |
1 | ||
| 86995 - PLATE, CAUTION (FOR CLINOMETER) | ||||
| 86995-90A01 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 83791-90K00 | ||||
| 90159-60081 | ||||
| 90179-06009 | ||||
| 90179-06070 | ||||
| 90189-06006 | ||||
| 90464-00165 | ||||
| 90989-01039 | ||||
| 90989-01050 | ||||
| 93568-15012 | ||||
| Linked diagrams | ||||
| 5551 | ||||
