PZJ70LV-MRW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1991
Engine 1PZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9405)HZJ7#,LJ7#,PZJ7#..LHD

Click highlighted areas on diagram

diagram 04311 04319A 31402 31410 31410A 31415 31417 31426 31440P 31451 31453 31454 31490F 31490G 31493A 31496A 9017908038 9025405009 9030316002 9161160612 9412040800 9615102500
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-60110

HZJ7#,PZJ7#

W(CLUTCH BOOSTER)

 1
04311-60100

HZJ7#,PZJ7#

 1
04319A - CYLINDER KIT, CLUTCH ACCUMULATOR
04319-36011

HZJ7#,PZJ7#

W(CLUTCH BOOSTER)

 1
04319-60020

HZJ7#,LJ7#,PZJ7#..LHD

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-35030

HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
31402-60030

HZJ7#,PZJ7#

W(CLUTCH BOOSTER)

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31401-60050

HZJ7#,PZJ7#

W(CLUTCH BOOSTER)

 1
31410-60430

HZJ7#,PZJ7#

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
90116-08146

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
47275-14010

HZJ7#,PZJ7#

W(CLUTCH BOOSTER)

 1
31415-60020

HZJ7#,PZJ7#

 1
31417 - GROMMET, CLUTCH RESERVOIR
31417-35010

HZJ7#,LJ7#,PZJ7#,RJ7#

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-35070

HZJ7#,LJ7#,PZJ7#..LHD

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-35010

HZJ7#,PZJ7#

W(*CLB)

 1
31404-36031

HZJ7#,PZJ7#

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-60020

HZJ7#,PZJ7#

 1
31490F - ACCUMULATOR ASSY, MASTER CYLINDER
31490-60030

HZJ7#,PZJ7#

W(*CLB)

 1
31490-60020

HZJ7#,LJ7#,PZJ7#..LHD

 1
31490G - GASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)
90430-09253

HZJ7#,LJ7#,PZJ7#..LHD

 1
31493A - BRACKET, CLUTCH ACCUMULATOR
31493-27030

HZJ7#,LJ7#,PZJ7#..LHD

 1
31493-60010

HZJ7#,PZJ7#

W(*CLB)

 1
31496A - CUSHION, CLUTCH ACCUMULATOR
31496-35020

HZJ7#,LJ7#,PZJ7#..LHD

 1
Common parts
90179-08038
90254-05009
90303-16002
91611-60612
94120-40800
96151-02500

ILLUST NO. 2 OF 2(9001-9501)HZJ7#,PZJ7#

Click highlighted areas on diagram

W(CLUTCH BOOSTER)

diagram 04319A 31490F 31493A 9017908146 9161160612
Part # Description Qty Price
04319A - CYLINDER KIT, CLUTCH ACCUMULATOR
04319-36011

HZJ7#,PZJ7#

W(CLUTCH BOOSTER)

 1
04319-60020

HZJ7#,LJ7#,PZJ7#..LHD

 1
31490F - ACCUMULATOR ASSY, MASTER CYLINDER
31490-60030

HZJ7#,PZJ7#

W(*CLB)

 1
31490-60020

HZJ7#,LJ7#,PZJ7#..LHD

 1
31493A - BRACKET, CLUTCH ACCUMULATOR
31493-27030

HZJ7#,LJ7#,PZJ7#..LHD

 1
31493-60010

HZJ7#,PZJ7#

W(*CLB)

 1
Common parts
90179-08146
91611-60612

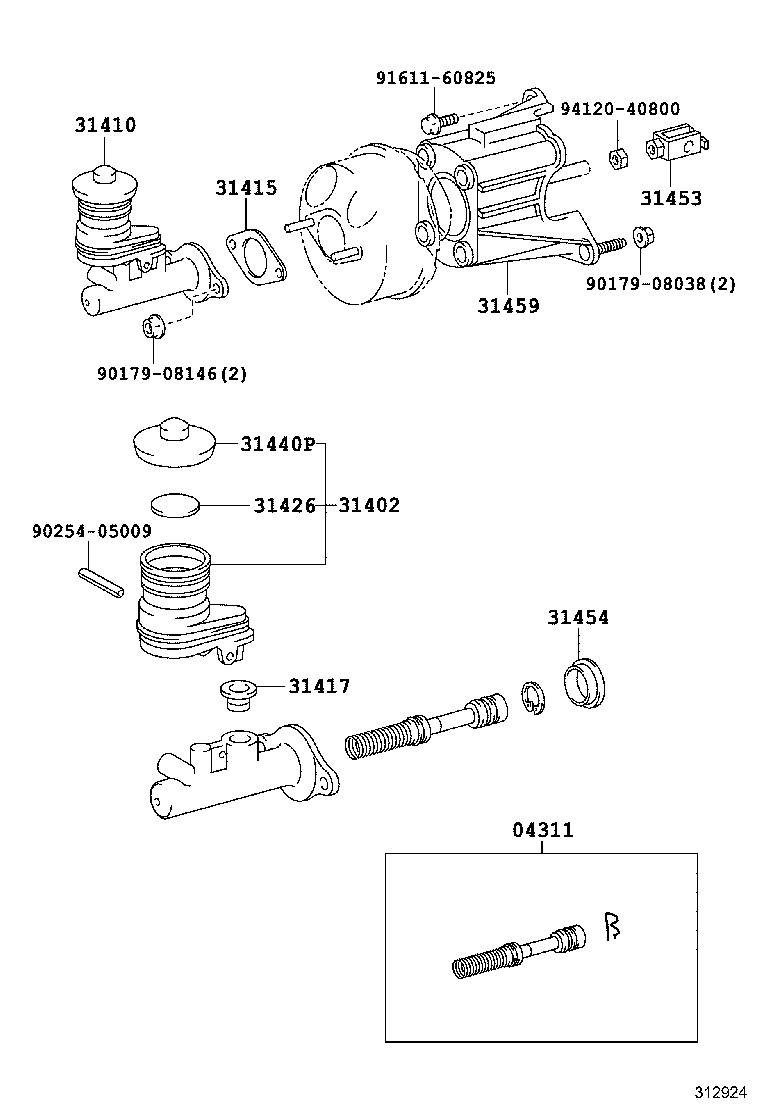

ILLUST NO. 1 OF 2(9001-9501)HZJ7#,PZJ7#

Click highlighted areas on diagram

W(CLUTCH BOOSTER)

diagram 04311 31402 31410 31415 31417 31426 31440P 31453 31454 31459 9017908038 9017908146 9025405009 9161160825 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-60110

HZJ7#,PZJ7#

W(CLUTCH BOOSTER)

 1
04311-60100

HZJ7#,PZJ7#

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-35030

HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
31402-60030

HZJ7#,PZJ7#

W(CLUTCH BOOSTER)

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31401-60050

HZJ7#,PZJ7#

W(CLUTCH BOOSTER)

 1
31410-60430

HZJ7#,PZJ7#

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
47275-14010

HZJ7#,PZJ7#

W(CLUTCH BOOSTER)

 1
31415-60020

HZJ7#,PZJ7#

 1
31417 - GROMMET, CLUTCH RESERVOIR
31417-35010

HZJ7#,LJ7#,PZJ7#,RJ7#

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD

 1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-35010

HZJ7#,PZJ7#

W(*CLB)

 1
31404-36031

HZJ7#,PZJ7#

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-60020

HZJ7#,PZJ7#

 1
31459 - BRACKET, CLUTCH MASTER CYLINDER
31459-60070

HZJ7#,PZJ7#

 1
Common parts
90179-08038
90179-08146
90254-05009
91611-60825
94120-40800
