LJ73LV-MNXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1994
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

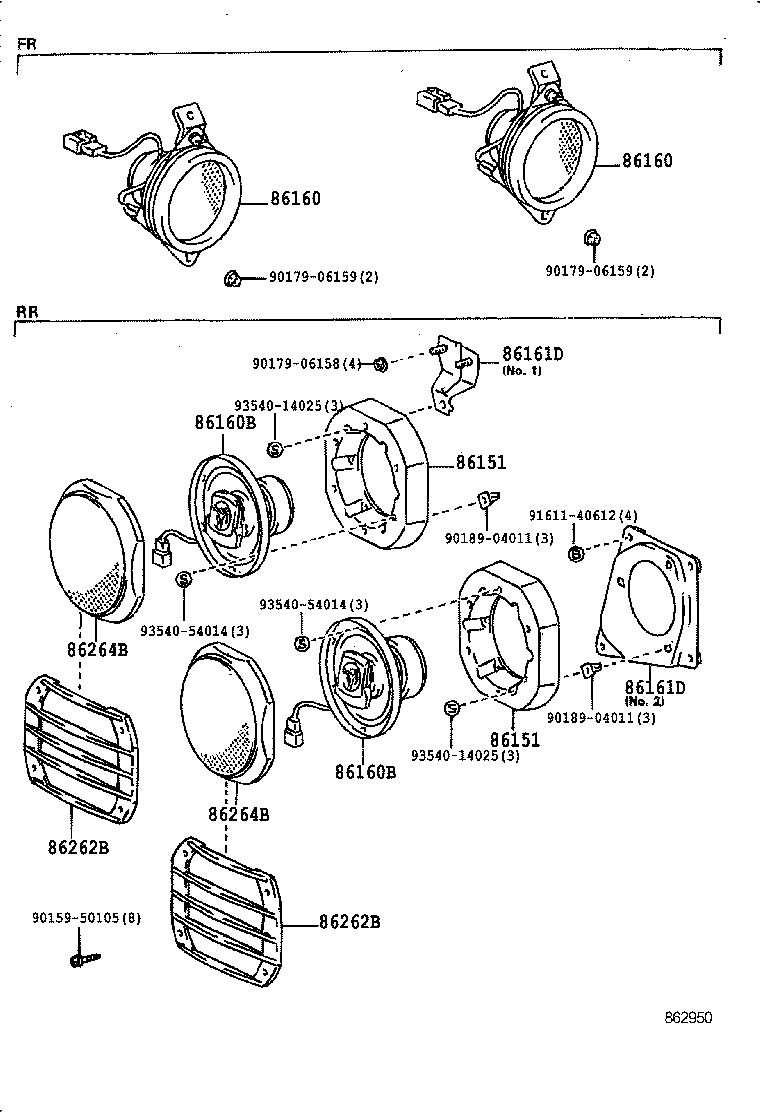

Click highlighted areas on diagram

diagram 86151 86151 86160 86160 86160B 86160B 86161D 86161D 86262B 86262B 86264B 86264B 9015950105 9017906158 9017906159 9017906159 9018904011 9018904011 9161140612 9354014025 9354014025 9354054014 9354054014
Part # Description Qty Price
86151 - BOX, SPEAKER
86151-90K01

LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX

 2
86151 - BOX, SPEAKER
86151-90K01

LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-90K01

LJ70..STD,VX;LJ70..LHD..LX;BJ73,HZJ7#,LJ73,77,PZJ7#,RJ7#

10W

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-90K01

LJ70..STD,VX;LJ70..LHD..LX;BJ73,HZJ7#,LJ73,77,PZJ7#,RJ7#

10W

 2
86160B - SPEAKER ASSY, REAR
86160-90K02

LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX

 2
86160B - SPEAKER ASSY, REAR
86160-90K02

LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX

 2
86161D - BRACKET, SPEAKER MOUNTING, NO.1
86161-90K01

LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX

NO.2

 1
86161-90K00

LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX

NO.1

 1
86161D - BRACKET, SPEAKER MOUNTING, NO.1
86161-90K01

LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX

NO.2

 1
86161-90K00

LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX

NO.1

 1
86262B - COVER, SPEAKER, REAR
86269-90K01

LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX

 2
86262B - COVER, SPEAKER, REAR
86269-90K01

LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX

 2
86264B - GRILLE, SPEAKER, REAR
86269-90K00

LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX

 2
86264B - GRILLE, SPEAKER, REAR
86269-90K00

LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX

 2
Common parts
90159-50105
90179-06158
90179-06159
90189-04011
91611-40612
93540-14025
93540-54014
