LJ73LV-MNXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1994
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9604)KZJ7#,LJ7#,RJ7#

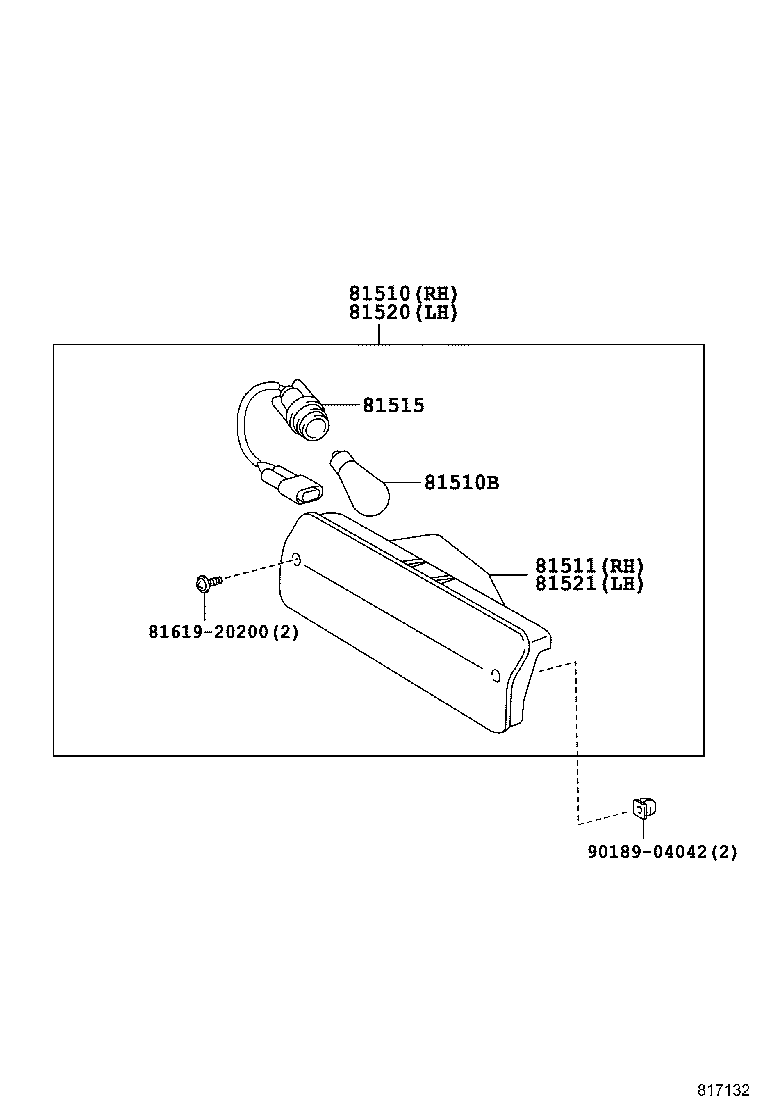

Click highlighted areas on diagram

diagram 81510 81510B 81511 81515 81520 81521 8161920200 9018904042
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-60402

LJ7#,RJ7#

 1
81510-60401

LJ7#,RJ7#

 1
81510-60400

LJ7#,RJ7#

 1
81510-60403

LJ7#,RJ7#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

BJ73,HZJ71,74,78,79,LJ7#,RJ7#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-60391

LJ7#,RJ7#

 1
81511-60390

LJ7#,RJ7#

 1
81511-60402

LJ7#,RJ7#

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-60403

LJ7#,RJ7#

 2
81515-60400

LJ7#,RJ7#

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-60270

LJ7#,RJ7#

 1
81520-60271

LJ7#,RJ7#

 1
81520-60272

LJ7#,RJ7#

 1
81520-60273

LJ7#,RJ7#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-60261

LJ7#,RJ7#

 1
81521-60272

LJ7#,RJ7#

 1
81521-60261

LJ7#,RJ7#

 1
81521-60260

LJ7#,RJ7#

 1
Common parts
81619-20200
90189-04042
