LJ73LV-MEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - May 1993
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

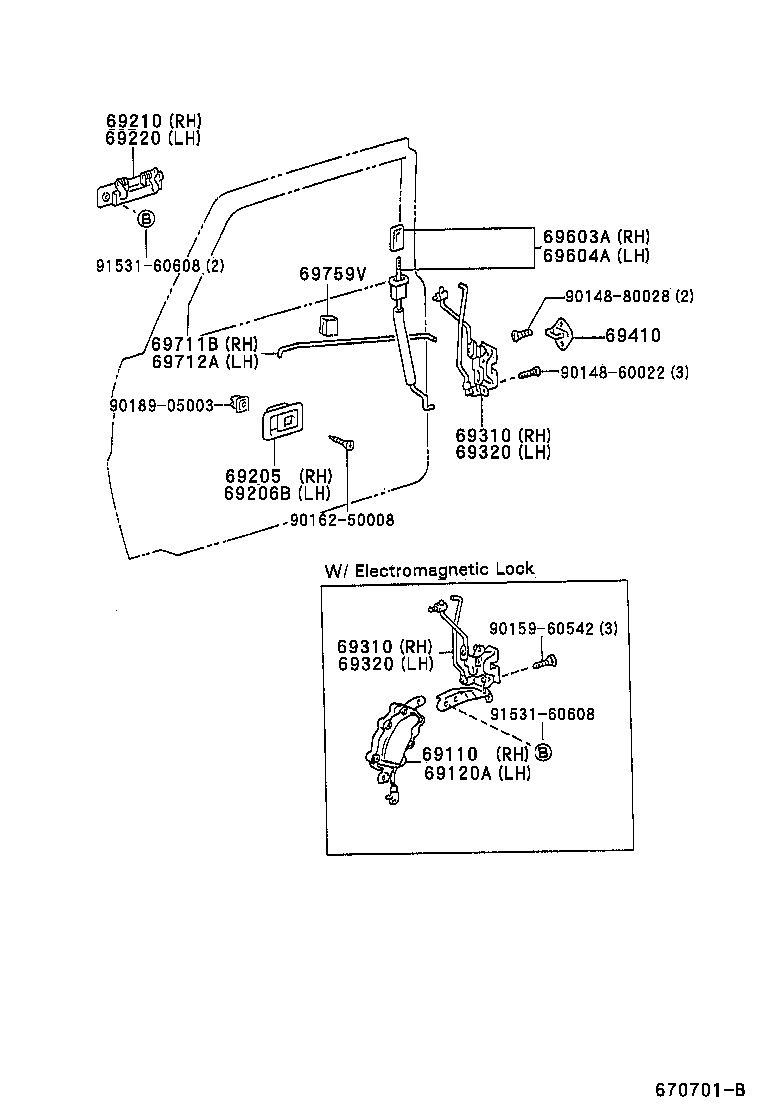

Click highlighted areas on diagram

diagram 69110 69120A 69205 69206B 69210 69220 69310 69310 69320 69320 69410 69603A 69604A 69711B 69712A 69759V 9014860022 9014880028 9015960542 9016250008 9018905003 9153160608 9153160608
Part # Description Qty Price
69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH
69110-60020

BJ73,LJ70,73,RJ7#..LX,VM,VX

 1
69110-60060

HZJ70,73

 1
69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH
69120-60010

BJ73,LJ70,73,RJ7#..LX,VM,VX

 1
69120-60020

HZJ70,73

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1004046

BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#

LIGHT SABLE,TRIM4#

 1
69205-1004033

BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#

LIGHT GRAY,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1004033

BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#

LIGHT GRAY,TRIM1#

 1
69206-1004046

BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#

LIGHT SABLE,TRIM4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-90K00

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

PLATED

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-90K00

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

PLATED

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-60090

LJ70,73..LHD..VX

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-60090

LJ70,73..LHD..VX

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-60090

LJ70,73..LHD..VX

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-60090

LJ70,73..LHD..VX

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 2
69603A - ROD SUB-ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69603-90K0116

LJ70,73..VX

LIGHT SABLE,TRIM4#

 1
69603-90K0113

LJ70,73..VX

LIGHT GRAY,TRIM1#

 1
69604A - ROD SUB-ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69604-90K0116

LJ70,73..VX

LIGHT SABLE,TRIM4#

 1
69604-90K0113

LJ70,73..VX

LIGHT GRAY,TRIM1#

 1
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-90K00

BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-90K00

BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#

 1
69759V - SILENCER, FRONT DOOR LOCK LINK
69759-30021

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 2
Common parts
90148-60022
90148-80028
90159-60542
90162-50008
90189-05003
91531-60608
