LJ73LV-MEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - May 1993
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )KZJ7#,LJ7#,RJ7#

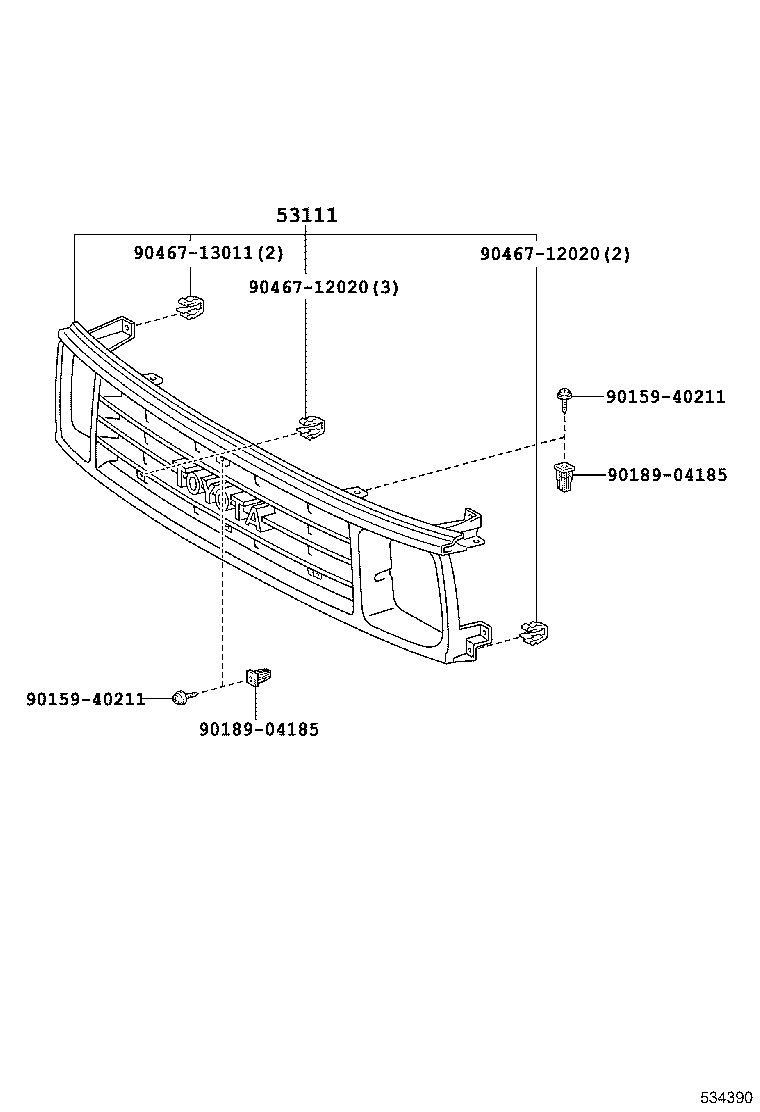

Click highlighted areas on diagram

diagram 53111 9015940211 9015940211 9018904185 9018904185 9046712020 9046712020 9046713011
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-60100

LJ70..LX;LJ73,77,RJ7#;LJ70..LHD..VX

PLATED,W(HEADLAMP CLEANER)

 1
53101-60090

LJ70..LX;LJ73,77,RJ7#;LJ70..LHD..VX

PLATED

 1
53101-60070

LJ70..LX;LJ73,77,RJ7#;LJ70..LHD..VX

NO PAINT REQ.,W/O CHROME PACKAGE

 1
53101-60080

LJ70..LX;LJ73,77,RJ7#;LJ70..LHD..VX

NO PAINT REQ.,W/O CHROME PACKAGE & W(HEADLAMP CLEANER)

 1
53101-60060

HZJ70,73

PLATED

 1
53101-60050

HZJ70,73

NO PAINT REQ.,W/O CHROME PACKAGE

 1
53101-60100

LJ73..VX;LJ70..RHD..LX;LJ77,RJ7#..DSL,EFI

PLATED,W(HEADLAMP CLEANER)

 1
Common parts
90159-40211
90189-04185
90467-12020
90467-13011
