LJ70RV-MNXW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
May 1993
Engine
2LT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

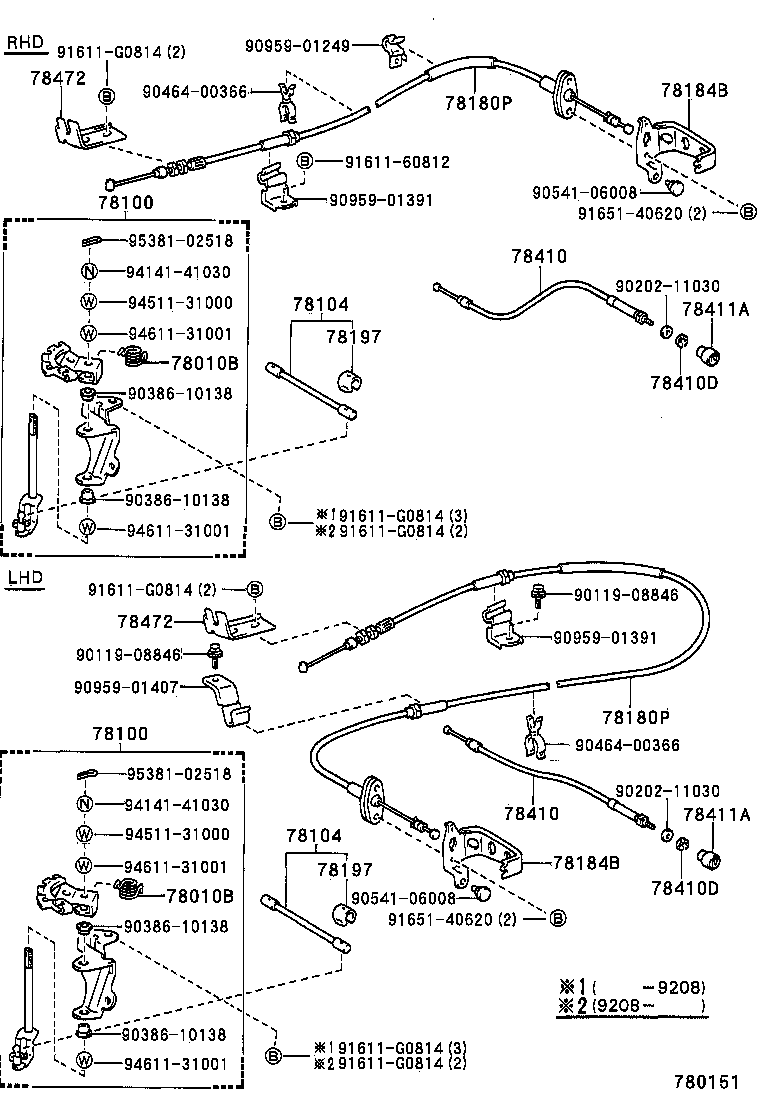

ILLUST NO. 1 OF 2(9001- )LJ7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010B - SPRING, TORSION (FOR ACCELERATOR LINK) | ||||
| 90508-16114 |
LJ7# |
1 | ||
| 78010B - SPRING, TORSION (FOR ACCELERATOR LINK) | ||||
| 90508-16114 |
LJ7# |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-35071 |
LJ7# |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-35071 |
LJ7# |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-22140 |
LJ7# |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-22140 |
LJ7# |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-60130 |
LJ70..RHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-60130 |
LJ70..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90K02 |
LJ70..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90K02 |
LJ70..RHD |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
HZJ7#,LJ7#,PZJ7# |
2 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
HZJ7#,LJ7#,PZJ7# |
2 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90K00 |
LJ70..RHD..LX |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90K00 |
LJ70..RHD..LX |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90179-11007 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90179-11007 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-60030 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-60030 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 78472 - SUPPORT, THROTTLE CONTROL CABLE | ||||
| 78472-35010 |
LJ7# |
1 | ||
| 78472 - SUPPORT, THROTTLE CONTROL CABLE | ||||
| 78472-35010 |
LJ7# |
1 | ||
| Common parts | ||||
| 90119-08846 | ||||
| 90202-11030 | ||||
| 90386-10138 | ||||
| 90464-00366 | ||||
| 90541-06008 | ||||
| 90959-01249 | ||||
| 90959-01391 | ||||
| 90959-01407 | ||||
| 91611-60812 | ||||
| 91611-G0814 | ||||
| 91651-40620 | ||||
| 94141-41030 | ||||
| 94511-31000 | ||||
| 94611-31001 | ||||
| 95381-02518 | ||||

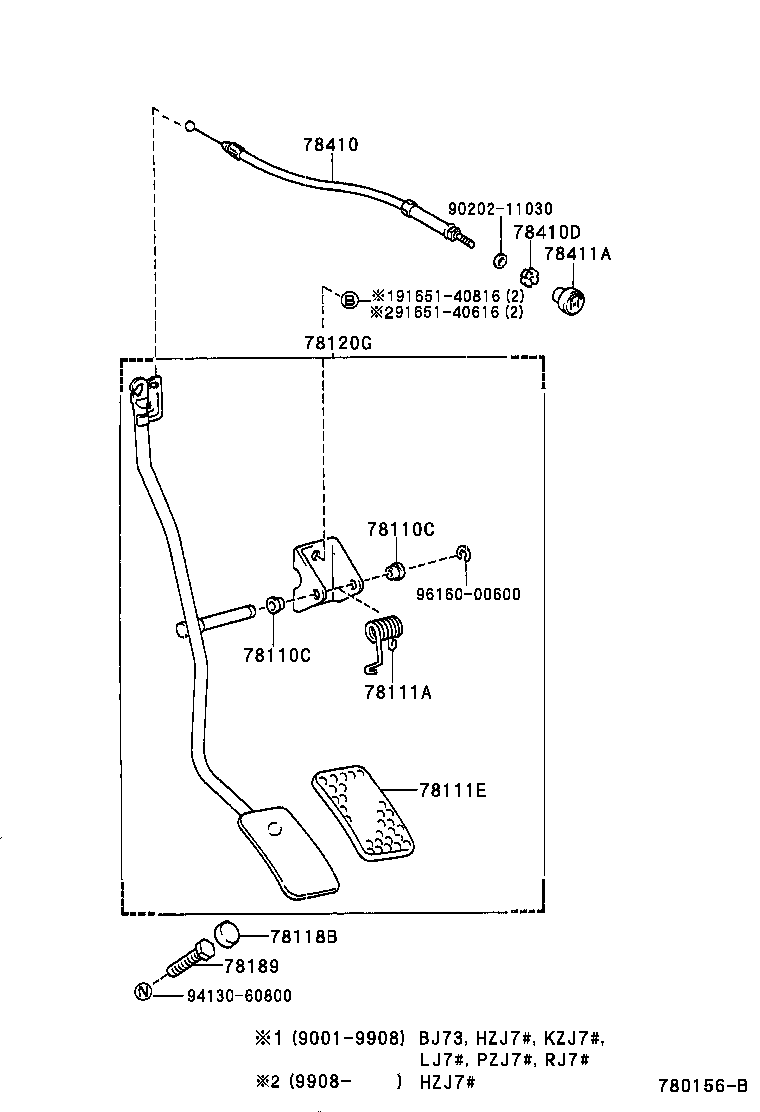

ILLUST NO. 2 OF 2(9001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08155 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08155 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-29017 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ70..CBR,DSL |
1 | ||
| 78111E - PAD, ACCELERATOR PEDAL | ||||
| 78111-95110 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 78118B - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-90K00 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-90K08 |
LJ70..RHD |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 91131-50845 |
LJ70..RHD |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90K00 |
LJ70..RHD..LX |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90179-11007 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-60030 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 90202-11030 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 94130-60800 | ||||
| 96160-00600 | ||||
