LJ70RV-MNXW (1986)

Toyota Land Cruiser

Production Aug 1986 - Jan 1990
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

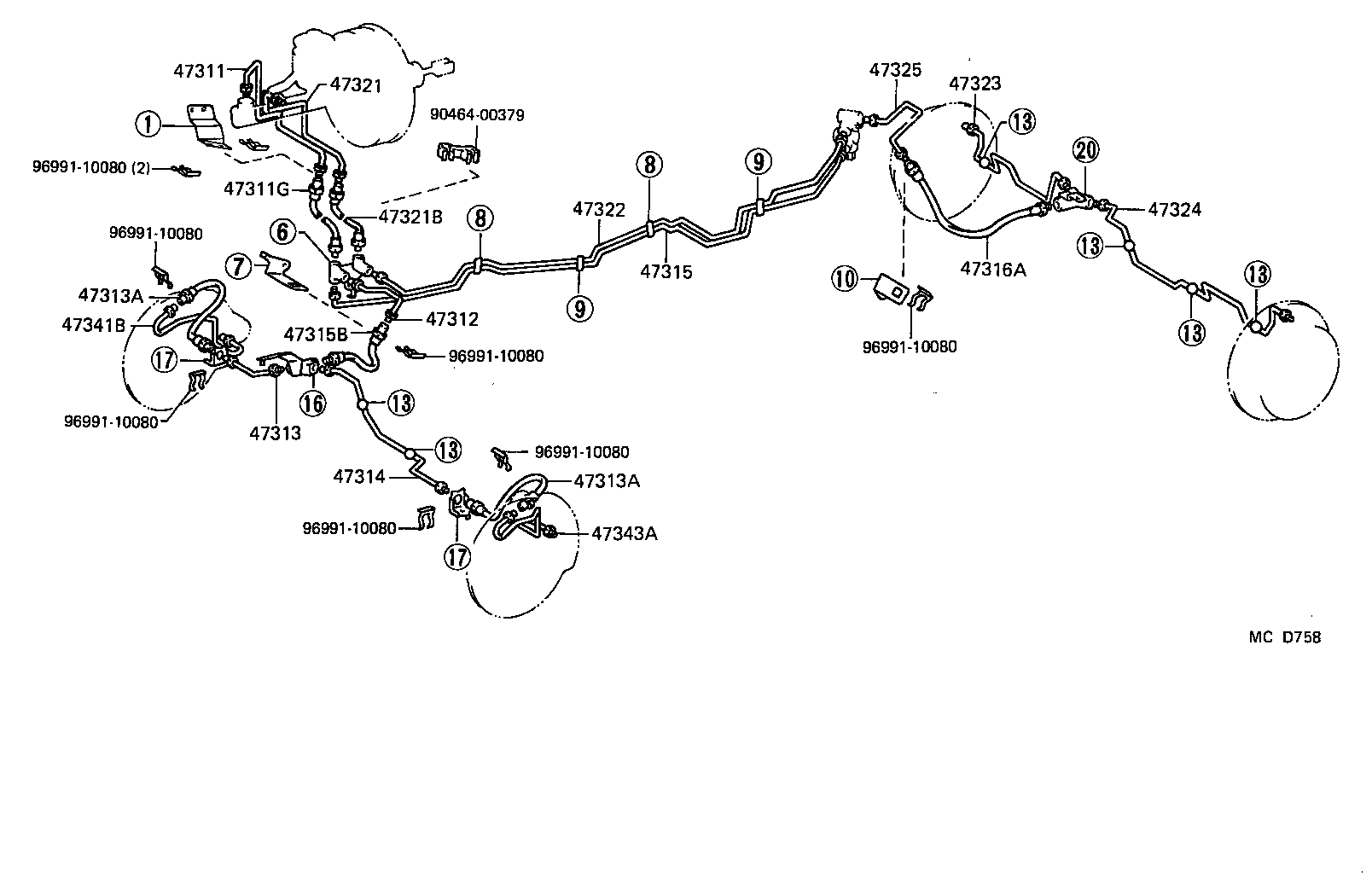

ILLUST NO. 1 OF 3(8608- )LJ70..RHD

Click highlighted areas on diagram

diagram 47311 47311G 47312 47313 47313A 47313A 47314 47315 47315B 47316A 47321 47321B 47322 47323 47324 47325 47341B 47343A 9046400379 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47312-60560

LJ70..RHD

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96940-32755

LJ7#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47313-60160

LJ7#

 1
47313-60161

LJ7#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47314-60150

LJ7#,RJ7#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02467

LJ7#,RJ7#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02467

LJ7#,RJ7#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47315-60300

LJ7#,RJ7#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47316-60200

LJ70

 1
47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96940-32755

LJ7#,RJ7#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34605

LJ7#,RJ7#

 1
47321 - TUBE, REAR BRAKE, NO.1
47322-60450

LJ70..RHD

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32305

LJ7#

 1
47322 - TUBE, REAR BRAKE, NO.2
47323-60210

LJ70

 1
47323 - TUBE, REAR BRAKE, NO.3
47324-60080

LJ7#,RJ7#

 1
47324 - TUBE, REAR BRAKE, NO.4
47325-60070

LJ7#,RJ7#

 1
47325 - TUBE, REAR BRAKE, NO.5
47326-60070

LJ7#,RJ7#

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-60050

LJ7#,RJ7#

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-60050

LJ7#,RJ7#

 1
Common parts
90464-00379
96991-10080

ILLUST NO. 3 OF 3(9001-9908)

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47931 47932A 47932A 47933 47933 47935 47935A 47935B 47935B 47935C 47935C 47935C 47936 47937 47938 9011908834 9017910132 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 91611B0816 9165160816 9411041000 9413000802 9413000802 9413000802 9414140800 9414140800 9451200800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020 9538102020
Part # Description Qty Price
Common parts
90119-08834
90179-10132
90201-23360
91131-50840
91611-B0816
91651-60816
94110-41000
94130-00802
94141-40800
94512-00800
94512-01000
95381-02020

ILLUST NO. 2 OF 3(9001-9908)

Click highlighted areas on diagram

diagram 47311B 47311B 47311B 47311H 47311H 47312E 47312E 47312E 47321A 47321A 47351B 47351B 47352B 47353B 47354B 47355A 47355A 47371A 47372 47393 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011910121 9017910033 9046108706 9046110793 9094901183 9094901309 9094901854 9111141035 91611B0816 91611B0816 91611B0816 91621J0814 91621J0814 91621J0814 91621J0814 91621J0814 91621J0814
Part # Description Qty Price
Common parts
90119-08701
90119-10121
90179-10033
90461-08706
90461-10793
90949-01183
90949-01309
90949-01854
91111-41035
91611-B0816
91621-J0814

ILLUST NO. 1 OF 3(9001-9305)RHD

Click highlighted areas on diagram

diagram 47311 47311G 47312 47313 47313A 47313A 47314 47315 47315 47315B 47316A 47318D 47318E 47318E 47321 47321B 47322 47322 47323 47324 47324B 47324B 47325 47341B 47343A 9046400379 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034
Part # Description Qty Price
Common parts
90464-00379
90468-08034
