LJ70RV-MEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - May 1993
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

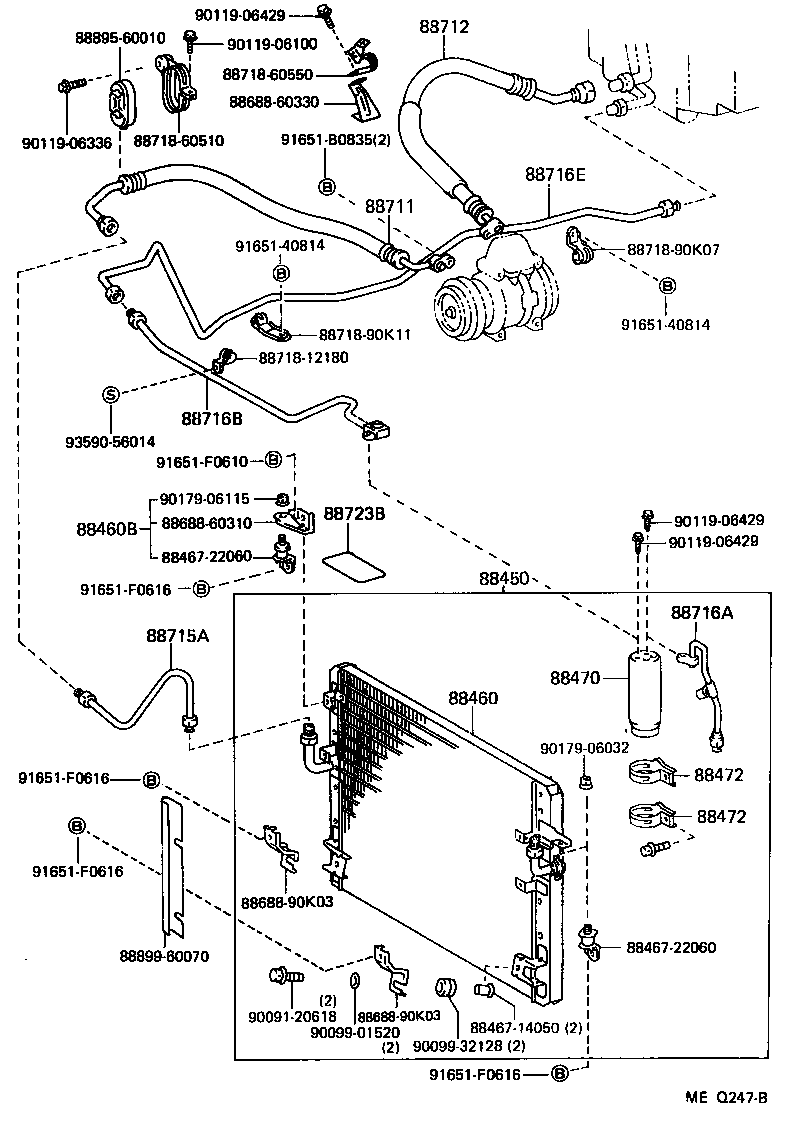

ILLUST NO. 1 OF 2(9001-9501)LJ7#

Click highlighted areas on diagram

diagram 88450 88460 88460B 8846714050 8846722060 8846722060 88470 88472 88472 8868860310 8868860330 8868890K03 8868890K03 88711 88712 88715A 88716A 88716B 88716E 8871812180 8871860510 8871860550 8871890K07 8871890K11 88723B 8889560010 8889960070 9009120618 9009901520 9009932128 9011906100 9011906336 9011906429 9011906429 9011906429 9017906032 9017906115 9165140814 9165140814 91651B0835 91651F0610 91651F0616 91651F0616 91651F0616 91651F0616 9359056014
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-60080

LJ7#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-12020

LJ7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60080

LJ7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60080

LJ7#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60180

LJ7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60230

LJ70..RHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60030

LJ7#

GERMAN SPEC

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60520

LJ7#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60470

LJ70..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-60480

LJ70..RHD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-22050

BJ73,HZJ7#,LJ7#,PZJ75

 1
Common parts
88467-14050
88467-22060
88688-60310
88688-60330
88688-90K03
88718-12180
88718-60510
88718-60550
88718-90K07
88718-90K11
88895-60010
88899-60070
90091-20618
90099-01520
90099-32128
90119-06100
90119-06336
90119-06429
90179-06032
90179-06115
91651-40814
91651-B0835
91651-F0610
91651-F0616
93590-56014
