LJ70RV-MEXW (1990)
Toyota Land Cruiser

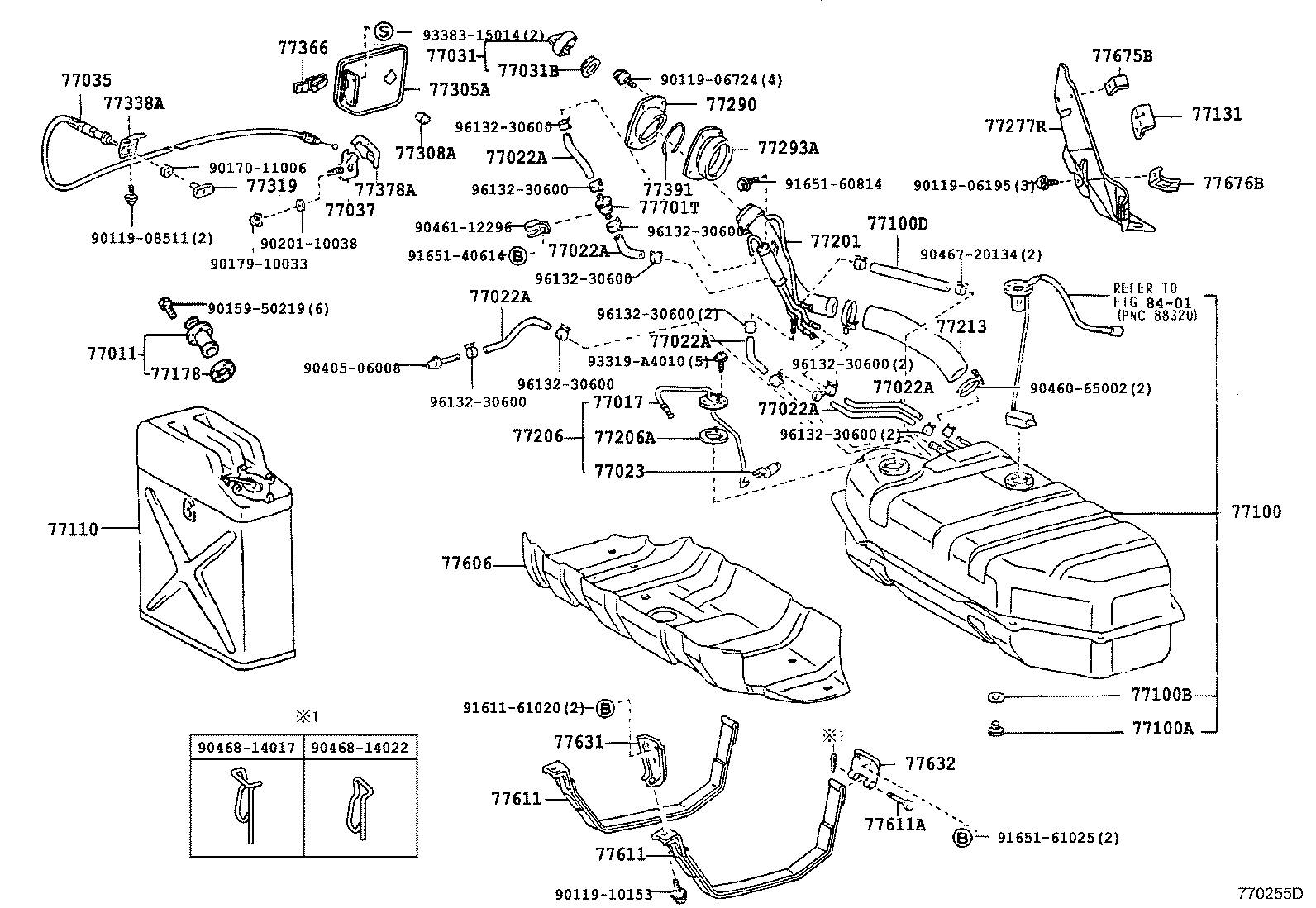

ILLUST NO. 1 OF 2(9001- )BJ73,HZJ70,73,KZJ7#,LJ7#,PZJ70,73,RJ7#
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=220 |
2 | ||
| 95333-06010 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=80 |
1 | ||
| 95333-06020 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=170 |
1 | ||
| 95333-06030 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=300 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=220 |
2 | ||
| 95333-06010 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=90 |
1 | ||
| 95333-06010 |
BJ73,HZJ7#,LJ7#,RJ7# *H,L=80 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=300 |
1 | ||
| 95333-06010 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=90 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=220 |
2 | ||
| 95333-06020 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=150 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=300 |
1 | ||
| 95333-06020 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=150 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=220 |
2 | ||
| 95333-06010 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=80 |
1 | ||
| 95333-06020 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=170 |
1 | ||
| 95333-06030 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=300 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=220 |
2 | ||
| 95333-06010 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=90 |
1 | ||
| 95333-06010 |
BJ73,HZJ7#,LJ7#,RJ7# *H,L=80 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=300 |
1 | ||
| 95333-06010 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=90 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=220 |
2 | ||
| 95333-06020 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=150 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=300 |
1 | ||
| 95333-06020 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=150 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=220 |
2 | ||
| 95333-06010 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=80 |
1 | ||
| 95333-06020 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=170 |
1 | ||
| 95333-06030 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=300 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=220 |
2 | ||
| 95333-06010 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=90 |
1 | ||
| 95333-06010 |
BJ73,HZJ7#,LJ7#,RJ7# *H,L=80 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=300 |
1 | ||
| 95333-06010 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=90 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=220 |
2 | ||
| 95333-06020 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=150 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=300 |
1 | ||
| 95333-06020 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=150 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=220 |
2 | ||
| 95333-06010 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=80 |
1 | ||
| 95333-06020 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=170 |
1 | ||
| 95333-06030 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=300 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=220 |
2 | ||
| 95333-06010 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=90 |
1 | ||
| 95333-06010 |
BJ73,HZJ7#,LJ7#,RJ7# *H,L=80 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=300 |
1 | ||
| 95333-06010 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=90 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=220 |
2 | ||
| 95333-06020 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=150 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=300 |
1 | ||
| 95333-06020 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=150 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=220 |
2 | ||
| 95333-06010 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=80 |
1 | ||
| 95333-06020 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=170 |
1 | ||
| 95333-06030 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=300 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=220 |
2 | ||
| 95333-06010 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=90 |
1 | ||
| 95333-06010 |
BJ73,HZJ7#,LJ7#,RJ7# *H,L=80 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=300 |
1 | ||
| 95333-06010 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=90 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=220 |
2 | ||
| 95333-06020 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=150 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=300 |
1 | ||
| 95333-06020 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=150 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=220 |
2 | ||
| 95333-06010 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=80 |
1 | ||
| 95333-06020 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=170 |
1 | ||
| 95333-06030 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=300 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=220 |
2 | ||
| 95333-06010 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=90 |
1 | ||
| 95333-06010 |
BJ73,HZJ7#,LJ7#,RJ7# *H,L=80 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=300 |
1 | ||
| 95333-06010 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=90 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=220 |
2 | ||
| 95333-06020 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=150 |
1 | ||
| 95333-06030 |
BJ73,HZJ70,73,LJ7#,RJ7# *H,L=300 |
1 | ||
| 95333-06020 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# *H,L=150 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
BJ73,LJ7# |
1 | ||
| 77023-22040 |
LJ7# |
1 | ||
| 77023-22040 |
BJ73,LJ7# |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-35061 |
BJ73,HZJ7#,LJ7#,PZJ7#..HT,SOT |
1 | ||
| 77310-35110 |
PZJ75..HT;BJ73,HZJ7#,LJ7# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-90K00 |
LJ70..RHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-90K00 |
LJ73..LX;BJ73,HZJ70,71,73,74,LJ70,RJ7#..LX,VM,VX |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-60290 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ70..CBR,DSL |
1 | ||
| 77100-60905 |
HZJ7#,LJ7#,RJ70..CBR,DSL |
1 | ||
| 77100-60905 |
BJ73,HZJ7#,LJ7#,RJ70..CBR,DSL |
1 | ||
| 77100-60919 |
BJ73,LJ7# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
HZJ7#,LJ7#,PZJ75,RJ7# |
1 | ||
| 90341-20004 |
BJ73,HZJ7#,LJ7#,PZJ75,RJ7# |
1 | ||
| 90341-20004 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90430-20007 |
BJ73,HZJ7#,LJ7#,PZJ75,RJ7# |
1 | ||
| 90430-20007 |
HZJ7#,LJ7#,PZJ75,RJ7# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# L=220 |
1 | ||
| 77110 - TANK ASSY, AUXILIARY FUEL | ||||
| 77110-60011 |
BJ73,HZJ70,73,75,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT | ||||
| 77131-90K00 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60201 |
BJ73,HZJ70,73,LJ70,73,RJ70..CBR,DSL |
1 | ||
| 77201-60200 |
BJ73,HZJ7#,LJ70,73,PZJ70,73,RJ70..CBR,DSL |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77240-60220 |
LJ7# |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ70..CBR,DSL |
1 | ||
| 77169-14020 |
HZJ7#,LJ7#,PZJ75,RJ70..CBR,DSL |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60040 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-90K01 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-90K00 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-90K00 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-90K00 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 77319 - KNOB, FUEL TANK CAP | ||||
| 77319-90K00 |
LJ73..LX;BJ73,HZJ70,71,73,74,LJ70,RJ7#..LX,VM,VX |
1 | ||
| 77338A - BRACKET, FUEL TANK CAP LOCK CONTROL ROD | ||||
| 77338-90K01 |
LJ73..LX;BJ73,HZJ70,71,73,74,LJ70,RJ7#..LX,VM,VX |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77378-90K00 |
LJ73..LX;BJ73,HZJ70,71,73,74,LJ70,RJ7#..LX,VM,VX |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60081 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7# |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60081 |
BJ73,HZJ70,73,LJ70,73,PZJ70,73,RJ7# |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10025 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77614-60050 |
BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7# |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77625-60020 |
BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7# |
2 | ||
| 77675B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1 | ||||
| 77675-90K00 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77676B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2 | ||||
| 77676-90K00 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06724 | ||||
| 90119-08511 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90170-11006 | ||||
| 90179-10033 | ||||
| 90201-10038 | ||||
| 90405-06008 | ||||
| 90460-65002 | ||||
| 90461-12296 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 90468-14022 | ||||
| 91611-61020 | ||||
| 91651-40614 | ||||
| 91651-60814 | ||||
| 91651-61025 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

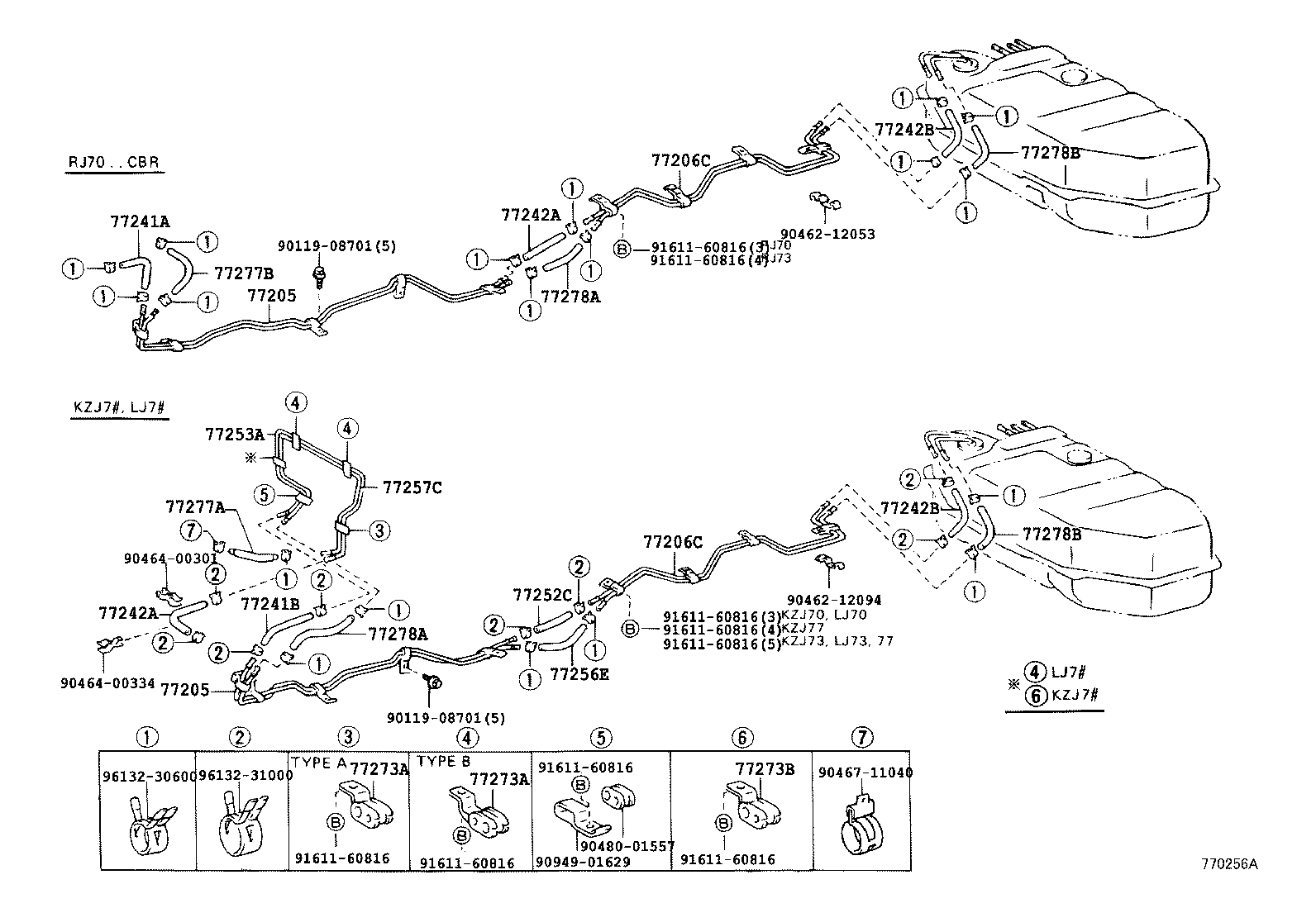

ILLUST NO. 2 OF 2(9001-9908)KZJ7#,LJ7#,RJ70
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-60151 |
LJ7# |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-60151 |
LJ7# |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77205-60500 |
LJ70 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77205-60500 |
LJ70 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
LJ70..RHD L=200,ID=8 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95333-08020 |
BJ73,LJ7# L=200,ID=8 |
1 | ||
| 77259-60130 |
LJ70..RHD L=380 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95333-08020 |
BJ73,LJ7# L=200,ID=8 |
1 | ||
| 77259-60130 |
LJ70..RHD L=380 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 90447-14071 |
BJ73,LJ7# L=200 |
1 | ||
| 90447-14071 |
LJ7# L=200 |
1 | ||
| 90447-14071 |
BJ73,LJ7# L=200 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 90447-14071 |
BJ73,LJ7# L=200 |
1 | ||
| 90447-14071 |
LJ7# L=200 |
1 | ||
| 90447-14071 |
BJ73,LJ7# L=200 |
1 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77253-60051 |
LJ7# |
1 | ||
| 77257C - TUBE, FUEL RETURN, NO.3 | ||||
| 77257-60051 |
LJ7# |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-60020 |
BJ73,LJ7# TYPE B |
3 | ||
| 77273-60010 |
BJ73,LJ7# TYPE A |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-60020 |
BJ73,LJ7# TYPE B |
3 | ||
| 77273-60010 |
BJ73,LJ7# TYPE A |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12023 |
LJ7# L=280 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ70..CBR,DSL *H,L=200 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ70..CBR,DSL *H,L=200 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 90447-12122 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ70..CBR,DSL L=200,ID=6.0 |
1 | ||
| 90447-12122 |
HZJ7#,LJ7#,RJ70..CBR,DSL L=200,ID=6.0 |
1 | ||
| 90447-12082 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ70..CBR,DSL L=200 |
1 | ||
| 90447-12122 |
BJ73,HZJ70,73,LJ7#,RJ70..CBR,DSL L=200,ID=6.0 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 90447-12122 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ70..CBR,DSL L=200,ID=6.0 |
1 | ||
| 90447-12122 |
HZJ7#,LJ7#,RJ70..CBR,DSL L=200,ID=6.0 |
1 | ||
| 90447-12082 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ70..CBR,DSL L=200 |
1 | ||
| 90447-12122 |
BJ73,HZJ70,73,LJ7#,RJ70..CBR,DSL L=200,ID=6.0 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90462-12053 | ||||
| 90462-12094 | ||||
| 90464-00301 | ||||
| 90464-00334 | ||||
| 90467-11040 | ||||
| 90480-01557 | ||||
| 90949-01629 | ||||
| 91611-60816 | ||||
| 96132-30600 | ||||
| 96132-31000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
