LJ70RV-MEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - May 1993
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

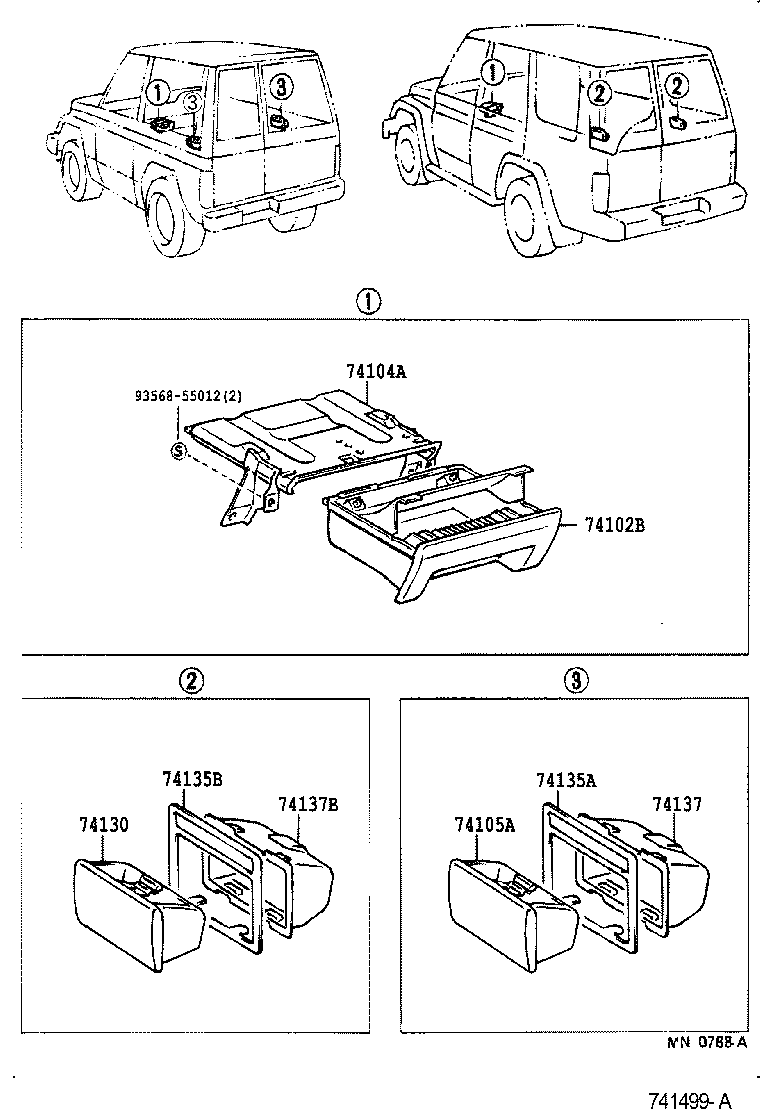

Click highlighted areas on diagram

diagram 74102B 74104A 74105A 74130 74135A 74135B 74137 74137B 9356855012
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-60050E0

BJ73,HZJ7#,LJ7#,RJ7#

LIGHT SABLE,TRIM4#

 1
74102-6004006

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

LIGHT SABLE,TRIM4#

 1
74102-60050B0

BJ73,HZJ7#,LJ7#,RJ7#

LIGHT GRAY,TRIM1#

 1
74102-6004003

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

LIGHT GRAY,TRIM1#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-60030

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
74105A - RECEPTACLE SUB-ASSY, REAR ASH
74105-1001033

LJ70..VX

GRAY,TRIM1#

 2
74105-1001040

LJ73..LX;BJ73,HZJ73,LJ70,77,PZJ73,RJ7#

LIGHT SABLE,TRIM4#

 1
74105-1001030

LJ70..VX

W(FRONT SEPARATE SEAT (1+2 TYPE)),SABLE,TRIM4#

 2
74135A - RETAINER, REAR ASH RECEPTACLE, NO.1
74135-10030

HZJ70,71,LJ70,PZJ70,RJ70

 2
74137 - RETAINER, REAR ASH RECEPTACLE, INNER RH
74137-10030

HZJ70,71,LJ70,PZJ70,RJ70

 2
Common parts
93568-55012
