LJ70RV-MEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - May 1993
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

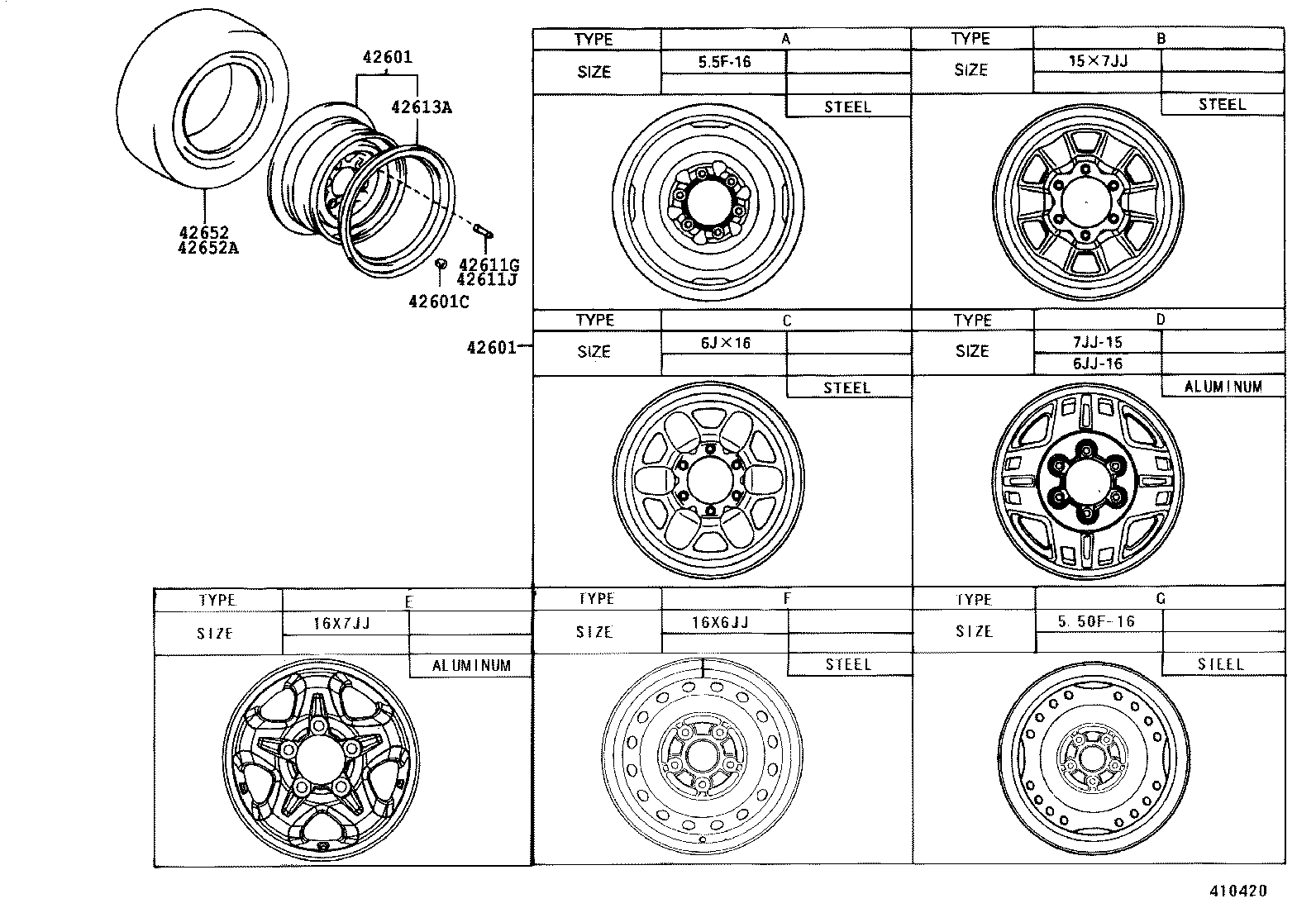

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

diagram 42601 42601 42601C 42611G 42611J 42613A 42652 42652A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-60030

HZJ70,73,LJ7#,RJ7#..LX,VX

7JJ-15,TYPE D:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)

 5
42611-60030

HZJ7#,LJ7#,RJ7#..(LX,VX)..(DSL,EFI)

7JJ-15,TYPE D:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)

 5
42601-60210

HZJ70,73,LJ7#,PZJ70,73,RJ7#

15X7JJ,#,TYPE B:REFER TO ILLUSTRATION,W(CHROME PLATED WHEEL)

 5
42601 - WHEEL, DISC
42611-60030

HZJ70,73,LJ7#,RJ7#..LX,VX

7JJ-15,TYPE D:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)

 5
42611-60030

HZJ7#,LJ7#,RJ7#..(LX,VX)..(DSL,EFI)

7JJ-15,TYPE D:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)

 5
42601-60210

HZJ70,73,LJ7#,PZJ70,73,RJ7#

15X7JJ,#,TYPE B:REFER TO ILLUSTRATION,W(CHROME PLATED WHEEL)

 5
42601C - NUT, HUB (FOR AXLE)
90942-01081

HZJ70,73,LJ7#,RJ7#..LX,VX

W(ALUMINUM WHEEL)

 24
90942-01082

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 24
42652 - TIRE
42605-6A120

HZJ70,73,LJ7#,PZJ70,73,RJ7#

265/75R15,*D/L

 4
42605-6A190

HZJ70,73,LJ7#,PZJ70,73,RJ7#

265/75R15,*B/S

 4
42652A - TIRE (FOR SPARE)
42605-6A120

HZJ70,73,LJ7#,PZJ70,73,RJ7#

265/75R15,*D/L

 1
42605-6A190

HZJ70,73,LJ7#,PZJ70,73,RJ7#

265/75R15,*B/S

 1

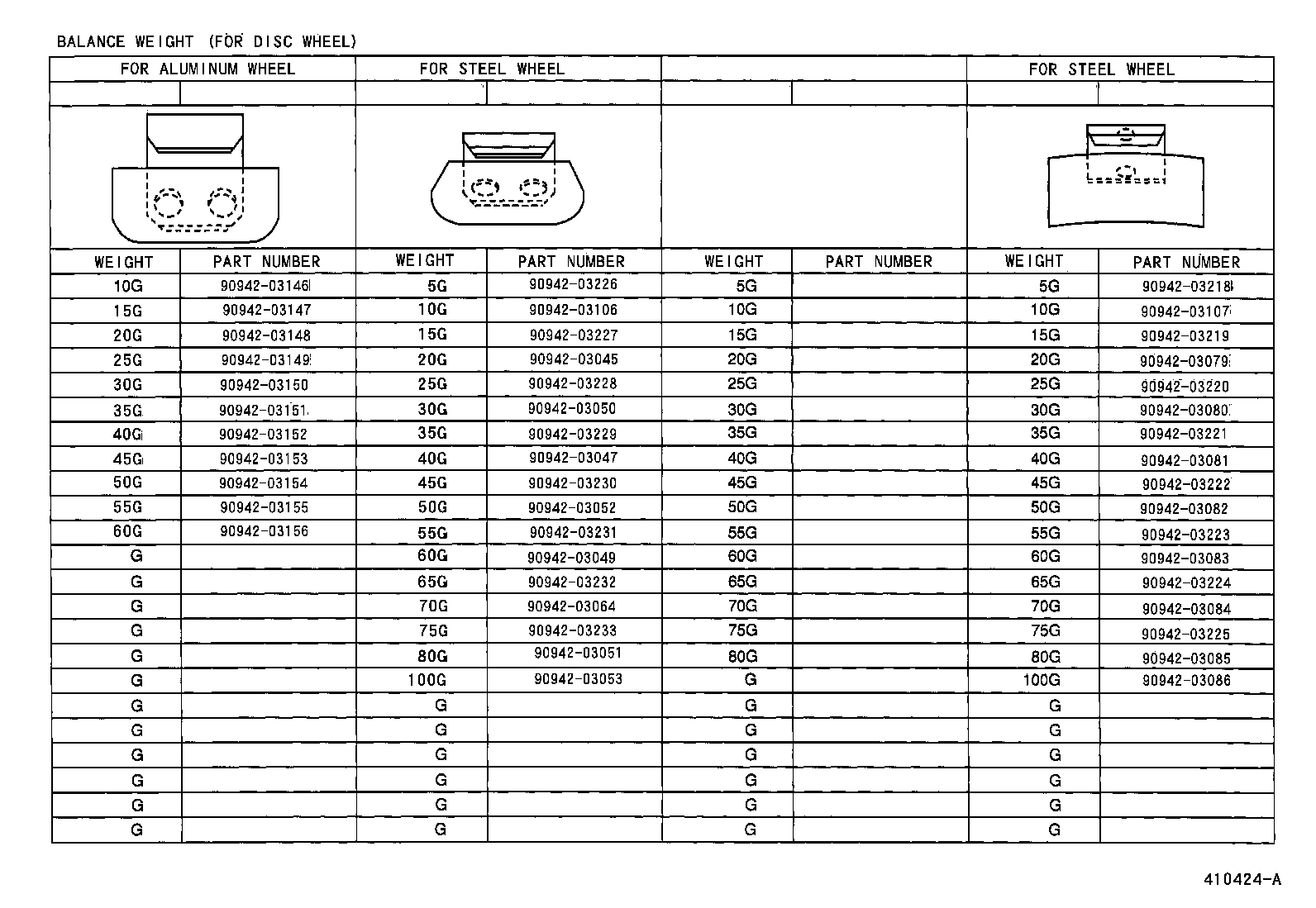

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

diagram 9094203045 9094203047 9094203049 9094203050 9094203051 9094203052 9094203053 9094203064 9094203079 9094203080 9094203081 9094203082 9094203083 9094203084 9094203085 9094203086 9094203106 9094203107 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203155 9094203156 9094203218 9094203219 9094203220 9094203221 9094203222 9094203223 9094203224 9094203225 9094203226 9094203227 9094203228 9094203229 9094203230 9094203231 9094203232 9094203233
Part # Description Qty Price
Common parts
90942-03045
90942-03047
90942-03049
90942-03050
90942-03051
90942-03052
90942-03053
90942-03064
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03086
90942-03106
90942-03107
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03218
90942-03219
90942-03220
90942-03221
90942-03222
90942-03223
90942-03224
90942-03225
90942-03226
90942-03227
90942-03228
90942-03229
90942-03230
90942-03231
90942-03232
90942-03233

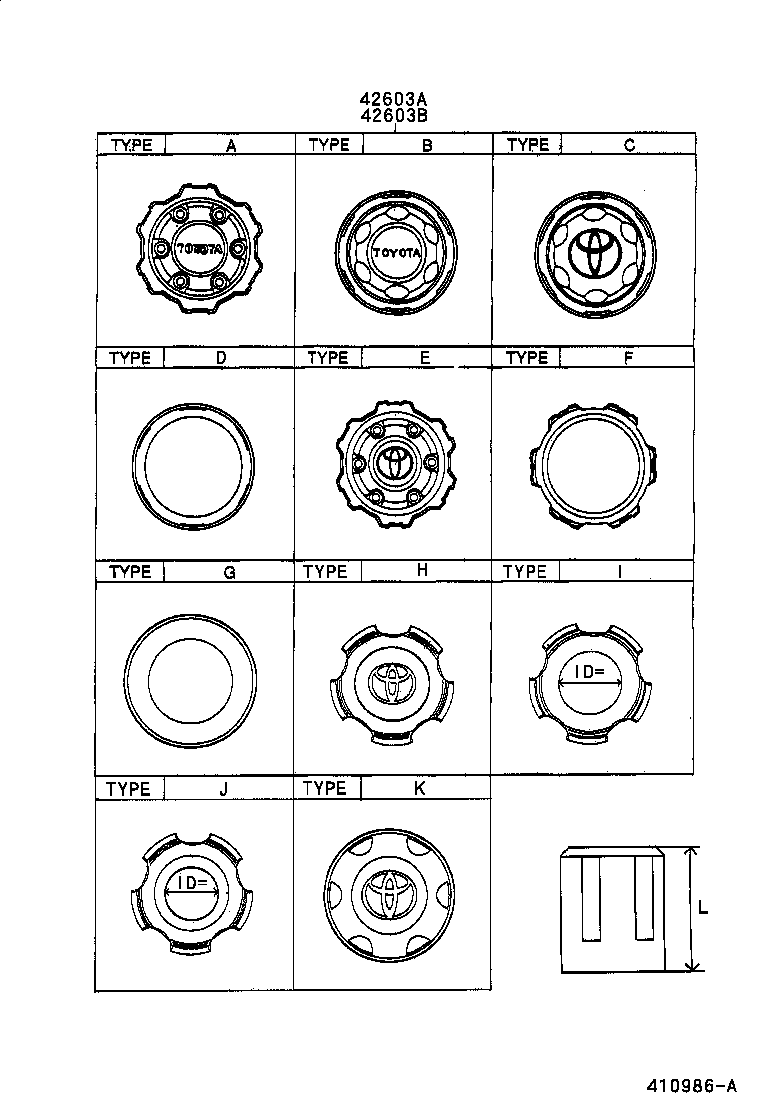

ILLUST NO. 2 OF 3(9001- )

Click highlighted areas on diagram

diagram 42603A 42603B
Part # Description Qty Price
42603A - ORNAMENT SUB-ASSY, WHEEL HUB(FOR FRONT)
42603-35080

HZJ70,73,LJ7#,RJ7#..LX,VX

TYPE D:REFER TO ILLUSTRATION, W(MECHANICAL FREE WHEEL HUB)

 2
42603-60120

HZJ70,73,LJ7#,RJ7#..LX,VX

TYPE D:REFER TO ILLUSTRATION

 2
42603-60130

HZJ70,73,LJ7#,RJ7#..LX,VX

TYPE F:REFER TO ILLUSTRATION, W(POWER LOCKING HUB)

 2
42603-60071

HZJ70,73,LJ7#,RJ7#..LX,VX

W(MECHANICAL FREE WHEEL HUB),TYPE C:REFER ILLUST.

 2
42603B - ORNAMENT SUB-ASSY, WHEEL HUB(FOR REAR)
42603-60053

BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7#

TYPE B:REFER TO ILLUSTRATION,L=49.5

 2
42603-60091

HZJ7#,LJ7#,RJ7#..LX,VX

TYPE A:REFER TO ILLUSTRATION

 2
42603-60053

HZJ7#,LJ7#,PZJ70,73,RJ7#

TYPE B:REFER TO ILLUSTRATION

 2
42603-60240

HZJ70,73,LJ7#,RJ7#..LX,VX

TYPE E:REFER TO ILLUSTRATION

 2
42603-60054

HZJ70,73,LJ7#,RJ7#

TYPE C:REFER TO ILLUSTRATION,L=49.5

 2
