LJ70LV-MRXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Jan 1990
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

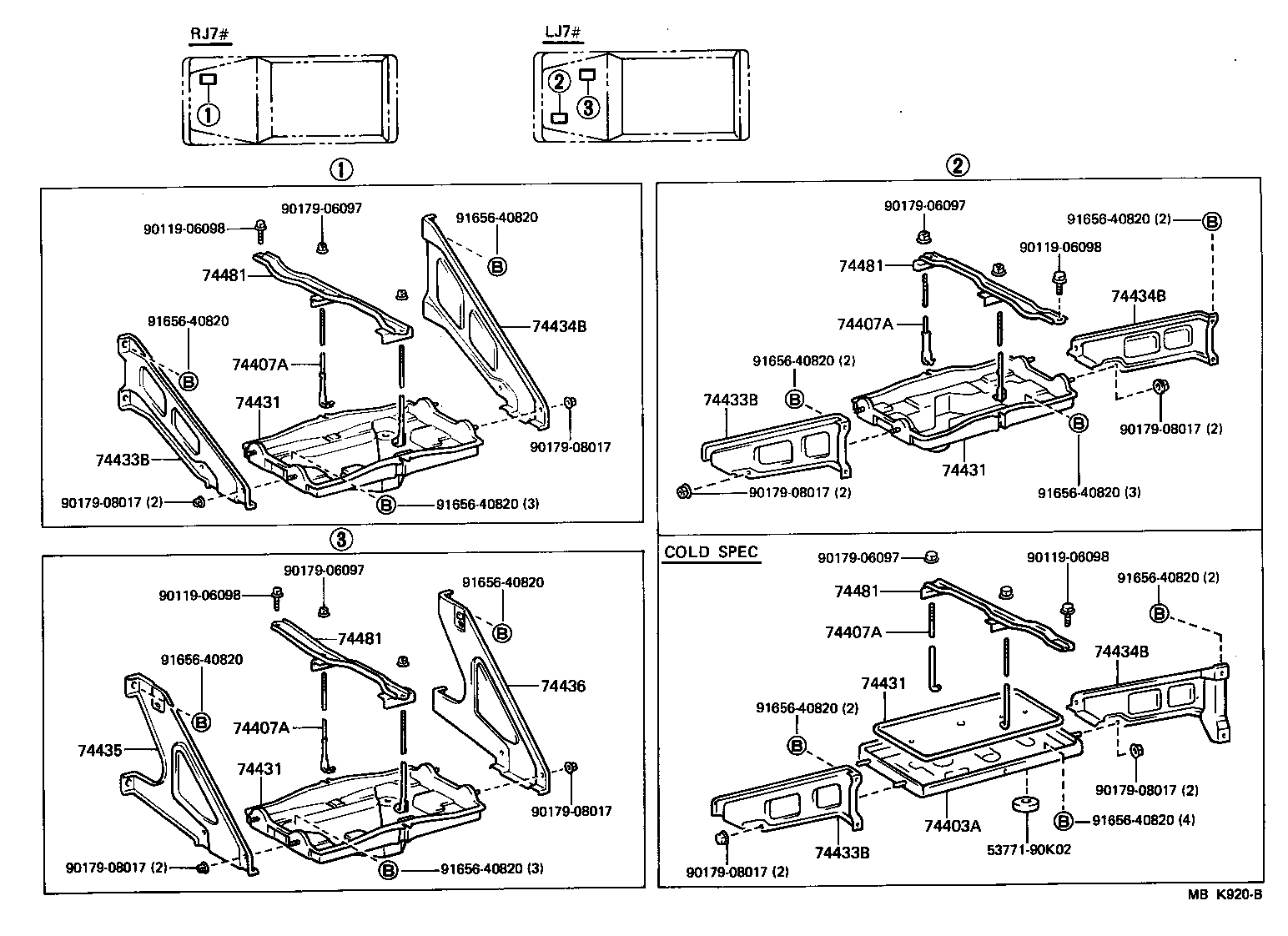

(8411-8704)LJ7#,RJ7#

Click highlighted areas on diagram

diagram 5377190K02 74403A 74407A 74407A 74407A 74407A 74431 74431 74431 74431 74433B 74433B 74433B 74434B 74434B 74434B 74435 74436 74481 74481 74481 74481 9011906098 9011906098 9011906098 9011906098 9017906097 9017906097 9017906097 9017906097 9017908017 9017908017 9017908017 9017908017 9017908017 9017908017 9017908017 9017908017 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165648820
Part # Description Qty Price
74403A - CARRIER SUB-ASSY, BATTERY
74403-90K01

LJ7#..LHD

RH,COLD SPEC

 1
74403-90K01

LJ7#..LX,STD

LH

 1
74407A - BOLT SUB-ASSY, BATTERY CLAMP
74407-90K00

LJ7#..LHD

RH,COLD SPEC

 2
74407-90K00

LJ7#

LH

 2
74407A - BOLT SUB-ASSY, BATTERY CLAMP
74407-90K00

LJ7#..LHD

RH,COLD SPEC

 2
74407-90K00

LJ7#

LH

 2
74407A - BOLT SUB-ASSY, BATTERY CLAMP
74407-90K00

LJ7#..LHD

RH,COLD SPEC

 2
74407-90K00

LJ7#

LH

 2
74407A - BOLT SUB-ASSY, BATTERY CLAMP
74407-90K00

LJ7#..LHD

RH,COLD SPEC

 2
74407-90K00

LJ7#

LH

 2
74431 - TRAY, BATTERY
74431-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74431-90K00

LJ7#

LH

 1
74431 - TRAY, BATTERY
74431-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74431-90K00

LJ7#

LH

 1
74431 - TRAY, BATTERY
74431-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74431-90K00

LJ7#

LH

 1
74431 - TRAY, BATTERY
74431-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74431-90K00

LJ7#

LH

 1
74433B - SUPPORT, BATTERY TRAY, NO.1
74433-90K01

LJ7#

LH

 1
74433B - SUPPORT, BATTERY TRAY, NO.1
74433-90K01

LJ7#

LH

 1
74433B - SUPPORT, BATTERY TRAY, NO.1
74433-90K01

LJ7#

LH

 1
74434B - SUPPORT, BATTERY TRAY, NO.2
74402-90K01

LJ7#..LX,STD

LH

 1
74434-90K01

LJ7#

LH

 1
74434B - SUPPORT, BATTERY TRAY, NO.2
74402-90K01

LJ7#..LX,STD

LH

 1
74434-90K01

LJ7#

LH

 1
74434B - SUPPORT, BATTERY TRAY, NO.2
74402-90K01

LJ7#..LX,STD

LH

 1
74434-90K01

LJ7#

LH

 1
74435 - SUPPORT, BATTERY TRAY, NO.3
74435-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74436 - SUPPORT, BATTERY TRAY, NO.4
74436-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74481 - CLAMP, BATTERY HOLD DOWN
74405-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74404-90K00

LJ7#..LX,STD

LH

 1
74481 - CLAMP, BATTERY HOLD DOWN
74405-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74404-90K00

LJ7#..LX,STD

LH

 1
74481 - CLAMP, BATTERY HOLD DOWN
74405-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74404-90K00

LJ7#..LX,STD

LH

 1
74481 - CLAMP, BATTERY HOLD DOWN
74405-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74404-90K00

LJ7#..LX,STD

LH

 1
Common parts
53771-90K02
90119-06098
90179-06097
90179-08017
91656-40820
91656-48820

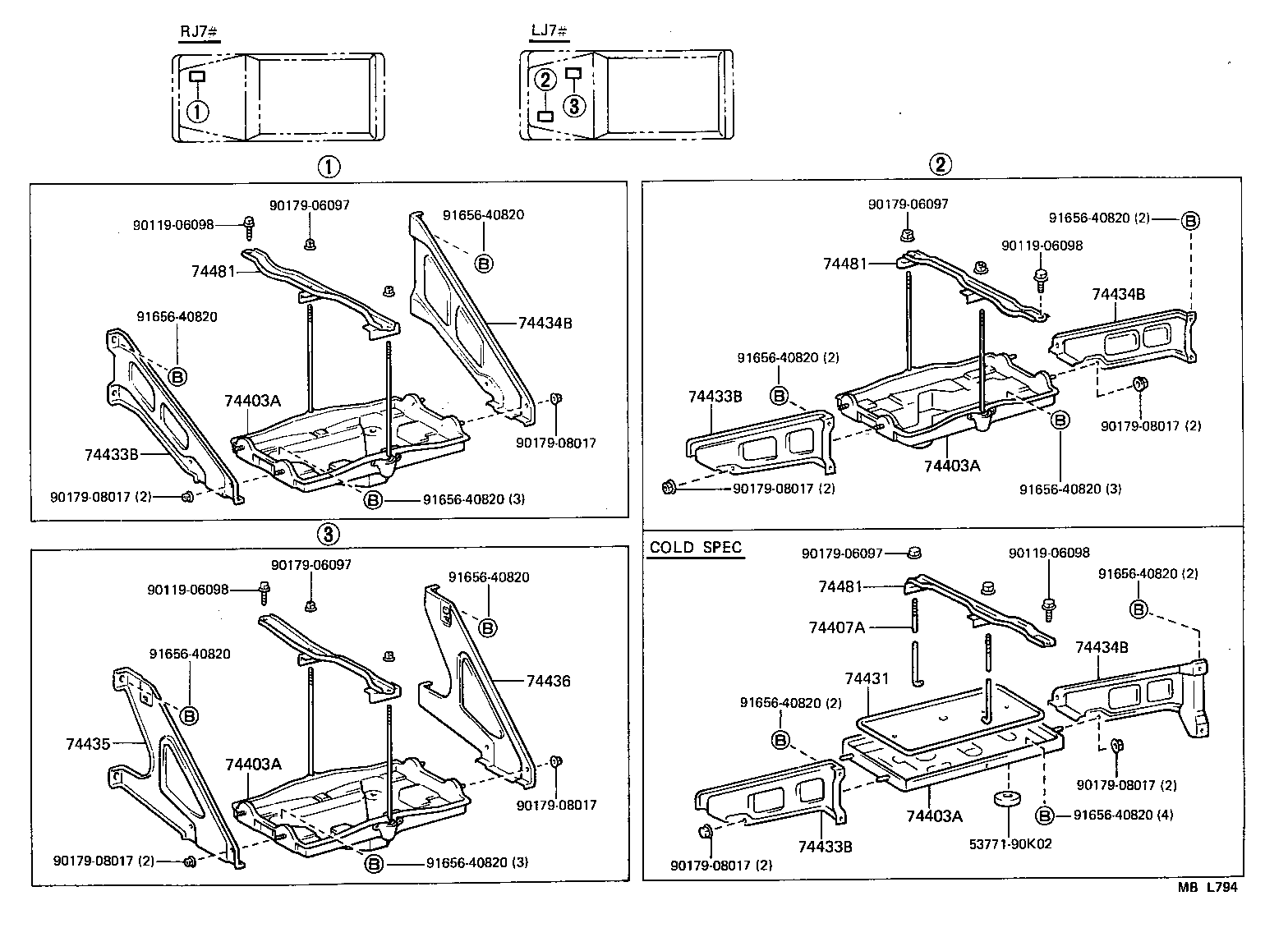

(8704- )LJ7#,RJ7#

Click highlighted areas on diagram

diagram 5377190K02 74403A 74403A 74403A 74403A 74407A 74431 74433B 74433B 74433B 74434B 74434B 74434B 74435 74436 74481 74481 74481 9011906098 9011906098 9011906098 9011906098 9017906097 9017906097 9017906097 9017906097 9017908017 9017908017 9017908017 9017908017 9017908017 9017908017 9017908017 9017908017 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820
Part # Description Qty Price
74403A - CARRIER SUB-ASSY, BATTERY
74403-90K01

LJ7#..LHD

RH,COLD SPEC

 1
74403-90K01

LJ7#..LX,STD

LH

 1
74403A - CARRIER SUB-ASSY, BATTERY
74403-90K01

LJ7#..LHD

RH,COLD SPEC

 1
74403-90K01

LJ7#..LX,STD

LH

 1
74403A - CARRIER SUB-ASSY, BATTERY
74403-90K01

LJ7#..LHD

RH,COLD SPEC

 1
74403-90K01

LJ7#..LX,STD

LH

 1
74403A - CARRIER SUB-ASSY, BATTERY
74403-90K01

LJ7#..LHD

RH,COLD SPEC

 1
74403-90K01

LJ7#..LX,STD

LH

 1
74407A - BOLT SUB-ASSY, BATTERY CLAMP
74407-90K00

LJ7#..LHD

RH,COLD SPEC

 2
74407-90K00

LJ7#

LH

 2
74431 - TRAY, BATTERY
74431-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74431-90K00

LJ7#

LH

 1
74433B - SUPPORT, BATTERY TRAY, NO.1
74433-90K01

LJ7#

LH

 1
74433B - SUPPORT, BATTERY TRAY, NO.1
74433-90K01

LJ7#

LH

 1
74433B - SUPPORT, BATTERY TRAY, NO.1
74433-90K01

LJ7#

LH

 1
74434B - SUPPORT, BATTERY TRAY, NO.2
74402-90K01

LJ7#..LX,STD

LH

 1
74434-90K01

LJ7#

LH

 1
74434B - SUPPORT, BATTERY TRAY, NO.2
74402-90K01

LJ7#..LX,STD

LH

 1
74434-90K01

LJ7#

LH

 1
74434B - SUPPORT, BATTERY TRAY, NO.2
74402-90K01

LJ7#..LX,STD

LH

 1
74434-90K01

LJ7#

LH

 1
74435 - SUPPORT, BATTERY TRAY, NO.3
74435-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74436 - SUPPORT, BATTERY TRAY, NO.4
74436-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74481 - CLAMP, BATTERY HOLD DOWN
74405-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74404-90K00

LJ7#..LX,STD

LH

 1
74481 - CLAMP, BATTERY HOLD DOWN
74405-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74404-90K00

LJ7#..LX,STD

LH

 1
74481 - CLAMP, BATTERY HOLD DOWN
74405-90K00

LJ7#..LHD

RH,COLD SPEC

 1
74404-90K00

LJ7#..LX,STD

LH

 1
Common parts
53771-90K02
90119-06098
90179-06097
90179-08017
91656-40820
