LJ70LV-MRXW (1985)
Toyota Land Cruiser
Production
Oct 1985
-
Jan 1990
Engine
2LT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

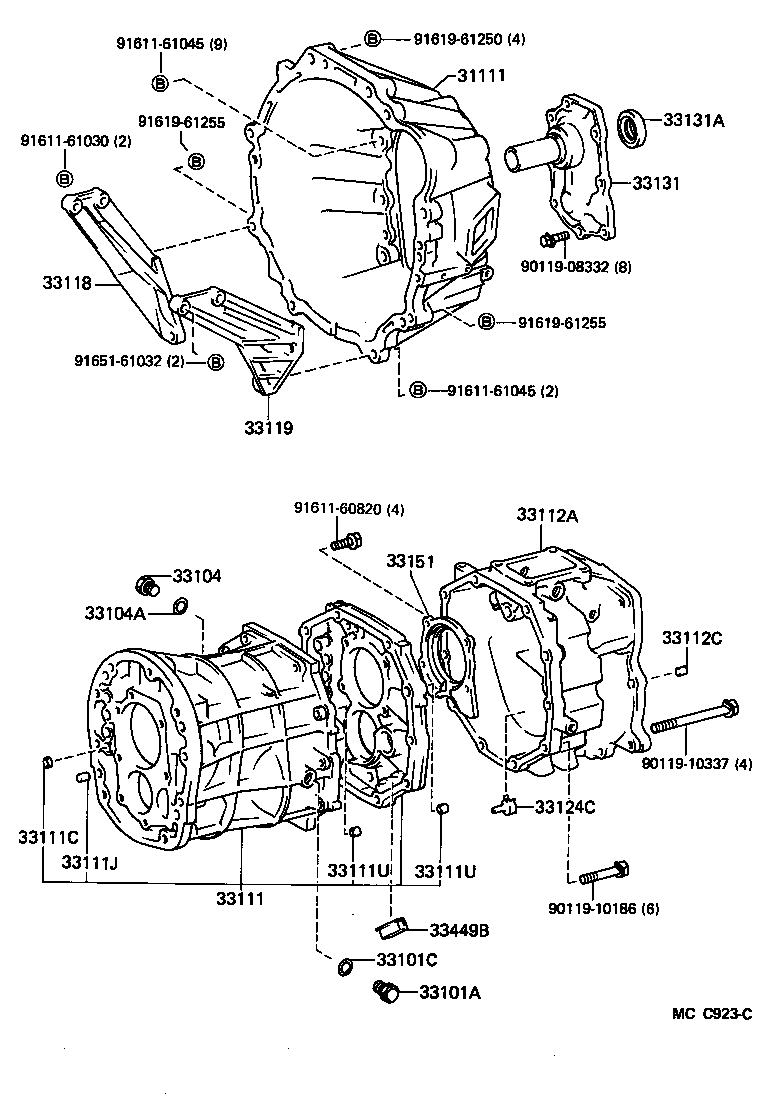

(8510- )LJ7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-25030 |
LJ7# |
1 | ||
| 31111-22111 |
LJ70 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
BJ7#,LJ70,RJ70 |
1 | ||
| 90341-18006 |
LJ7# |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-35030 |
LJ7# |
1 | ||
| 33101-35010 |
LJ70,RJ70 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LJ7#,RJ7# OD=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LJ7#,RJ7# L=16,OD=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LJ7#,RJ7# L=14,OD=15 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LJ7#,RJ7# L=14,OD=15 |
4 | ||
| 33112A - ADAPTER, TRANSFER | ||||
| 36117-60050 |
LJ7# |
1 | ||
| 36117-60040 |
LJ70,RJ70 |
1 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| 90250-12216 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LJ7# |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-25020 |
LJ7# |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36010 |
LJ7#,RJ7# |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-26020 |
LJ70,RJ70 |
1 | ||
| 33131-35030 |
LJ7# |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
LJ7# |
1 | ||
| 90311-30115 |
LJ70,RJ70 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35020 |
LJ7# |
1 | ||
| 33151-28010 |
LJ70,RJ70 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35010 |
LJ7# |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10186 | ||||
| 90119-10337 | ||||
| 91611-60820 | ||||
| 91611-61030 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
| 91619-61255 | ||||
| 91651-61032 | ||||

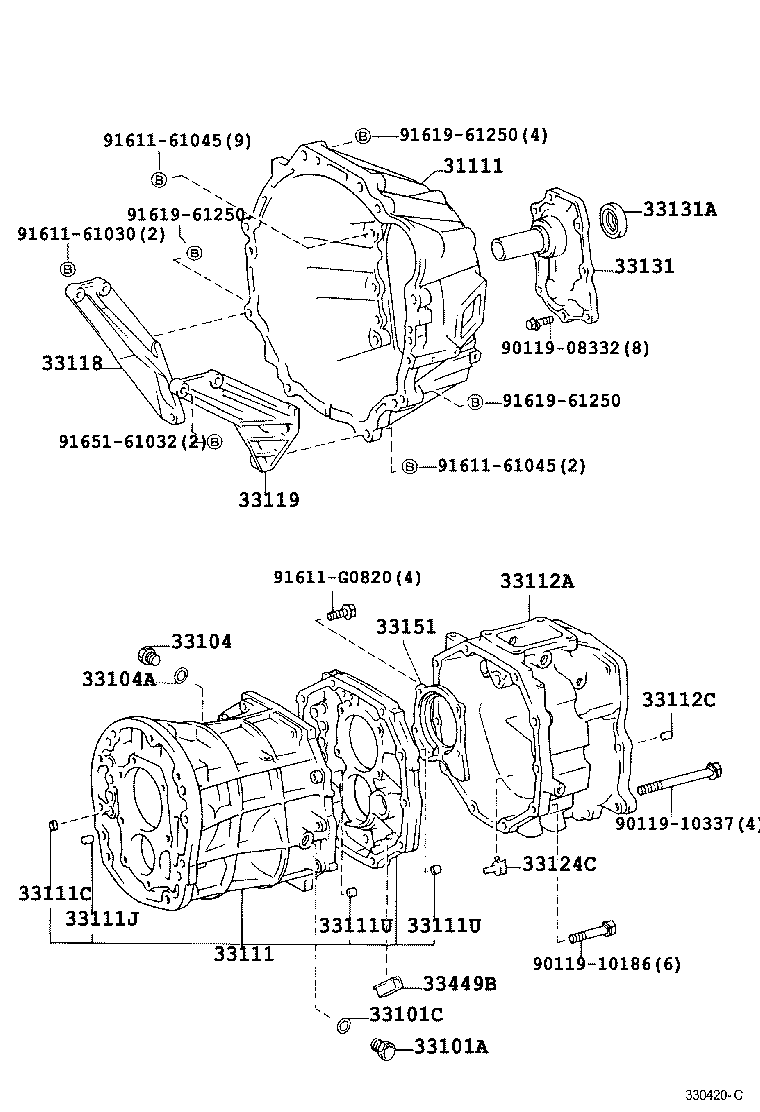

(9001-9501)LJ7#
Click highlighted areas on diagram
R150,R151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10186 | ||||
| 90119-10337 | ||||
| 91611-61030 | ||||
| 91611-61045 | ||||
| 91611-G0820 | ||||
| 91619-61250 | ||||
| 91651-61032 | ||||
