LJ70LV-MRXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Jan 1990
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

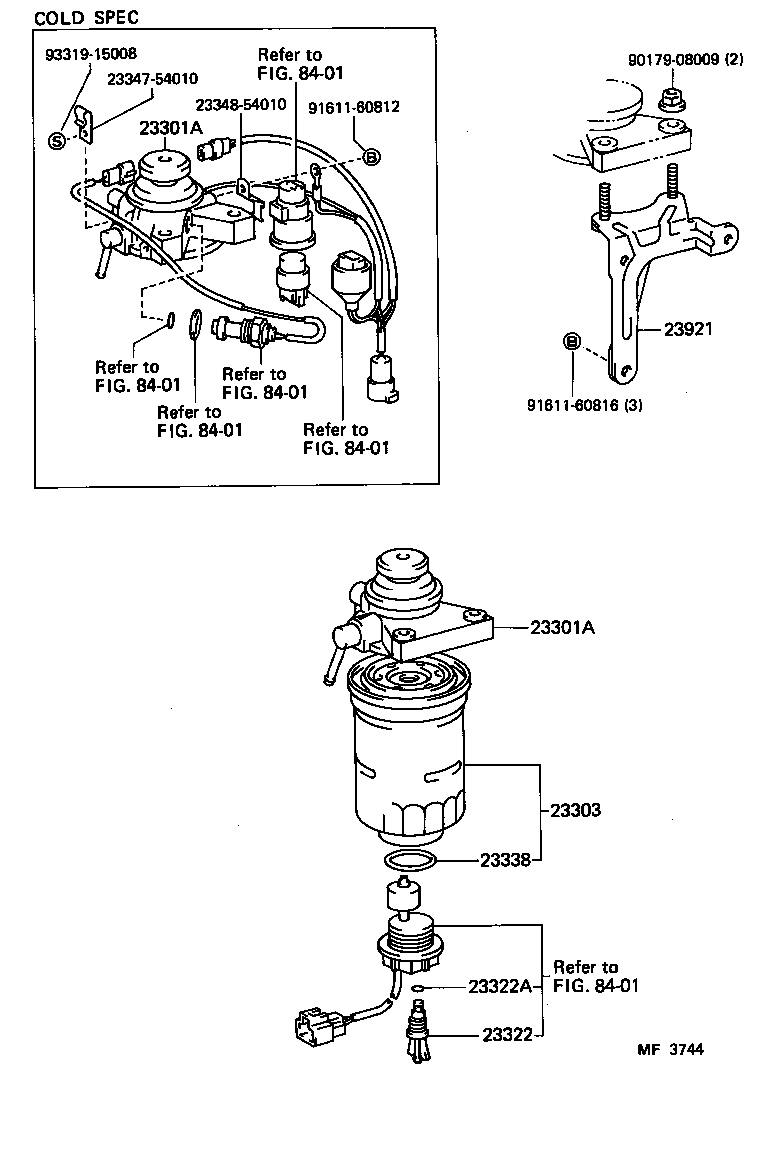

(8510- )2LT

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 2334754010 2334854010 23921 8401 8401 8401 8401 8401 8401 9017908009 9161160812 9161160816 9331915008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-54150

2LT..LJ7#

W/FUEL HEATER

 1
23301-64010

2L..LJ70

 1
23301-54050

2L..LJ70

COLD SPEC

 1
23301-54140

2LT..LJ7#

 1
23301A - CAP ASSY, FUEL FILTER
23301-54150

2LT..LJ7#

W/FUEL HEATER

 1
23301-64010

2L..LJ70

 1
23301-54050

2L..LJ70

COLD SPEC

 1
23301-54140

2LT..LJ7#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

2L#..LJ7#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

2L#..LJ7#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

2L#..LJ7#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

2L#..LJ7#

 1
23921 - SUPPORT, FUEL FILTER
23921-54160

2L#..LJ7#

 1
Common parts
23347-54010
23348-54010
90179-08009
91611-60812
91611-60816
93319-15008
Linked diagrams
8401

(9001-9501)2LT

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 2334754010 23910B 23921 84461B 9017908040 9165640818 9331915008 9331915008
Part # Description Qty Price
Common parts
23347-54010
90179-08040
91656-40818
93319-15008
